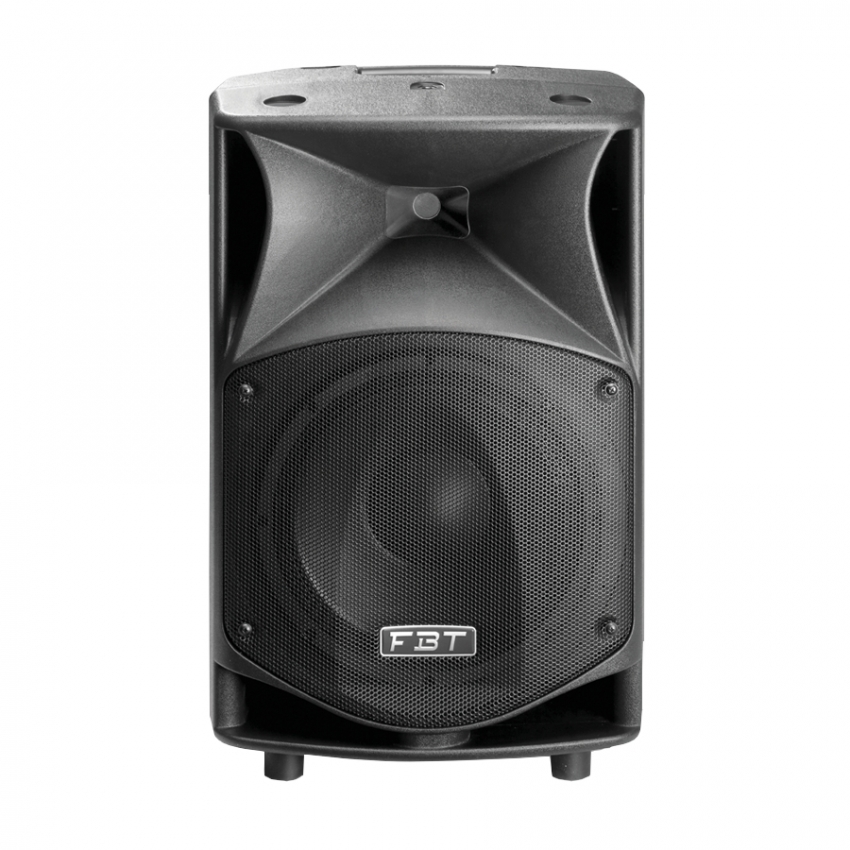

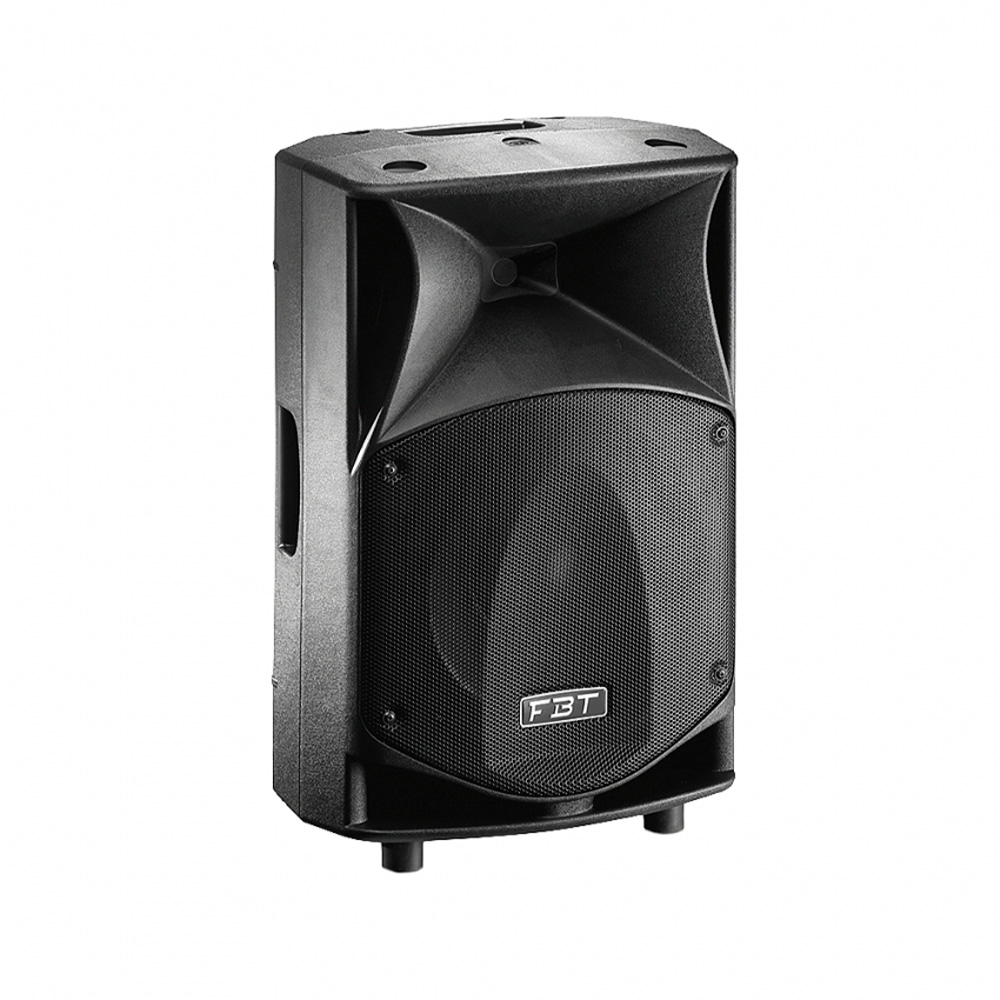

Acoustic system FBT JMAXX 114A is a professional two-way active speaker system with a built-in DSP processor. The speaker is suitable for small live performances, as well as for use in clubs, restaurants, corporate events, and budget-friendly educational institutions.
Features:
- Can be used as a stage monitor
- Horn-type construction and special shape
- Built-in DSP processor with 4 presets
- Switchable high-frequency filter
- Two M10 mounting points
- Built-in limiter.
The device features a 14-inch low-frequency driver with a 2-inch voice coil. The tweeter is 1 inch in size with a 1-inch voice coil, and a horn-type construction providing a 90-degree horizontal and 60-degree vertical constant directivity angle. Thanks to the asymmetric shape of the cabinet, this system can be used as a floor stage monitor, positioned horizontally at angles of 12°, 40°, and 55°. The system features a Class D amplifier with Bi-Amp separate amplification type. The maximum output power is 700W for the low-frequency driver and 200W for the tweeter. The system can deliver a maximum sound pressure level of 132 dB and has a frequency response from 45 Hz to 20 kHz.

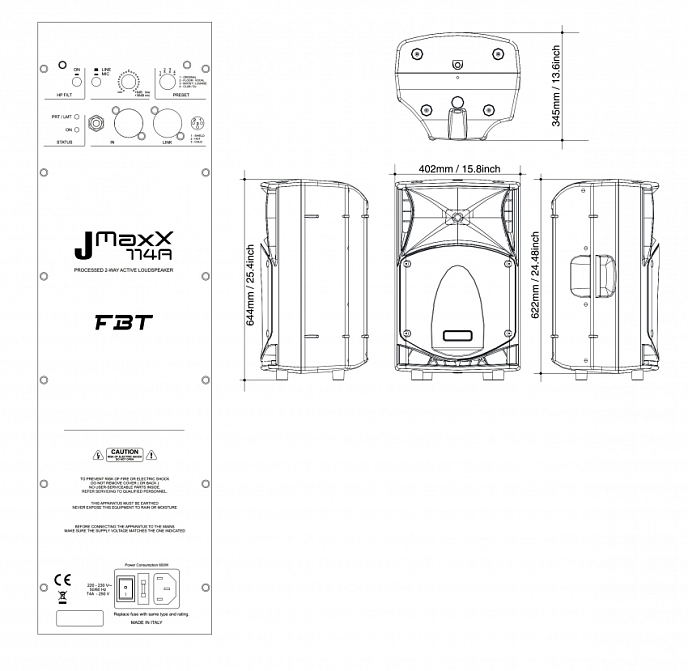

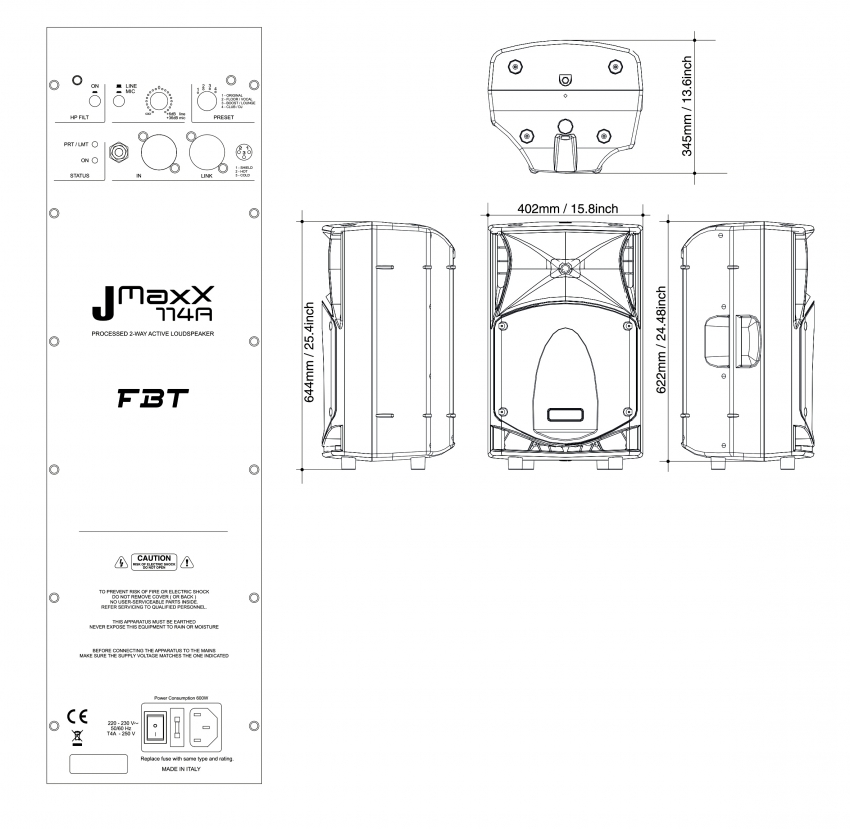

The cabinet is made of polypropylene with a specially designed shape to eliminate unwanted resonances and enhance low-frequency characteristics. A steel front grille protects the driver from damage. Mounting points available are 2 x M10, as well as special holes for additional brackets (sold separately). Rubber feet for vertical placement on a surface are also provided. The speaker can be mounted on a stand with a 1.38-inch cup diameter located at the bottom of the cabinet. The system weighs 14 kilograms.
The rear panel of the cabinet features connections with a built-in DSP processor, offering 4 preset options for sound frequency correction in different environments. The speaker has a balanced XLR / 1/4" Jack TRS input for connecting a line signal or dynamic microphone. There is an input signal type switch and volume level control nearby. An XLR Link output is available for connecting to other speaker systems. A switchable high-frequency filter is provided for sound correction. Two LED indicators show limiter activation and operational status.
Package includes:
- Speaker
- Power cable
- Manual.
