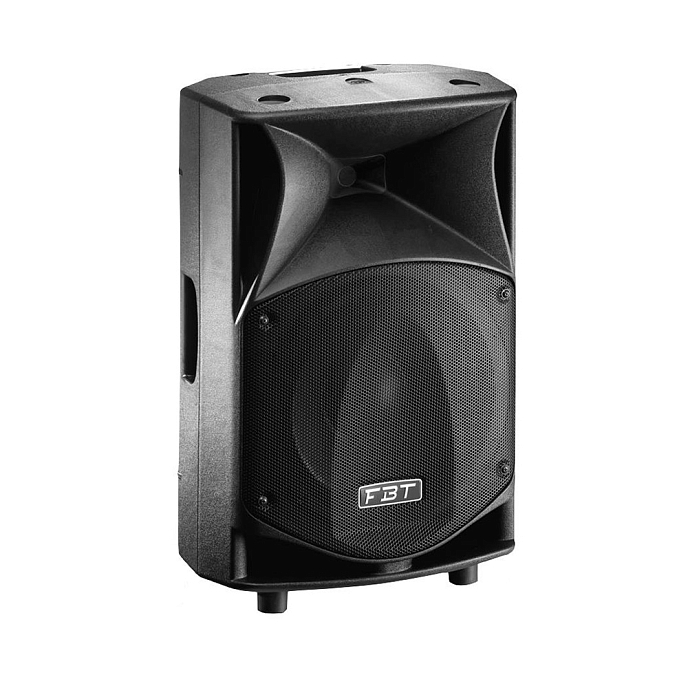

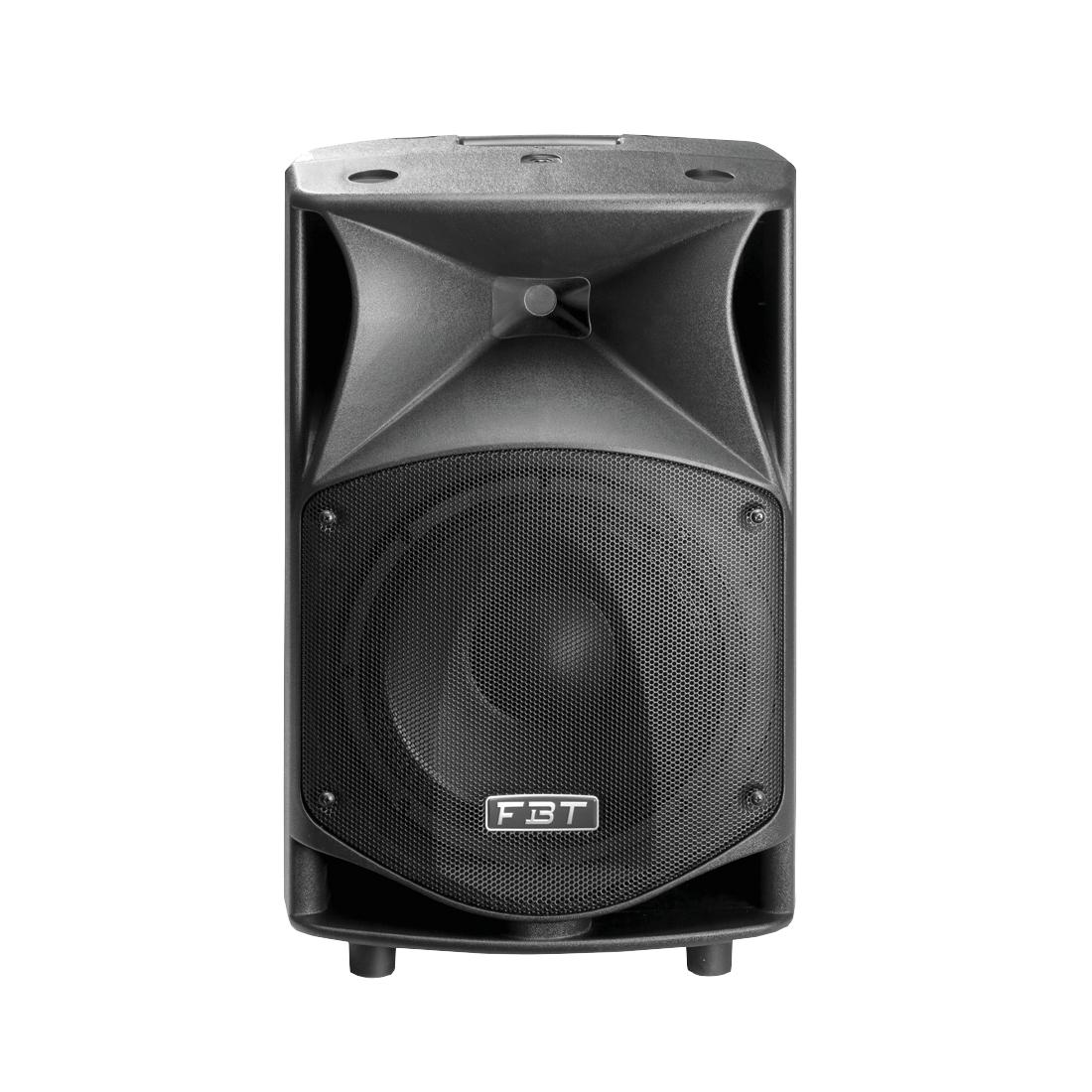

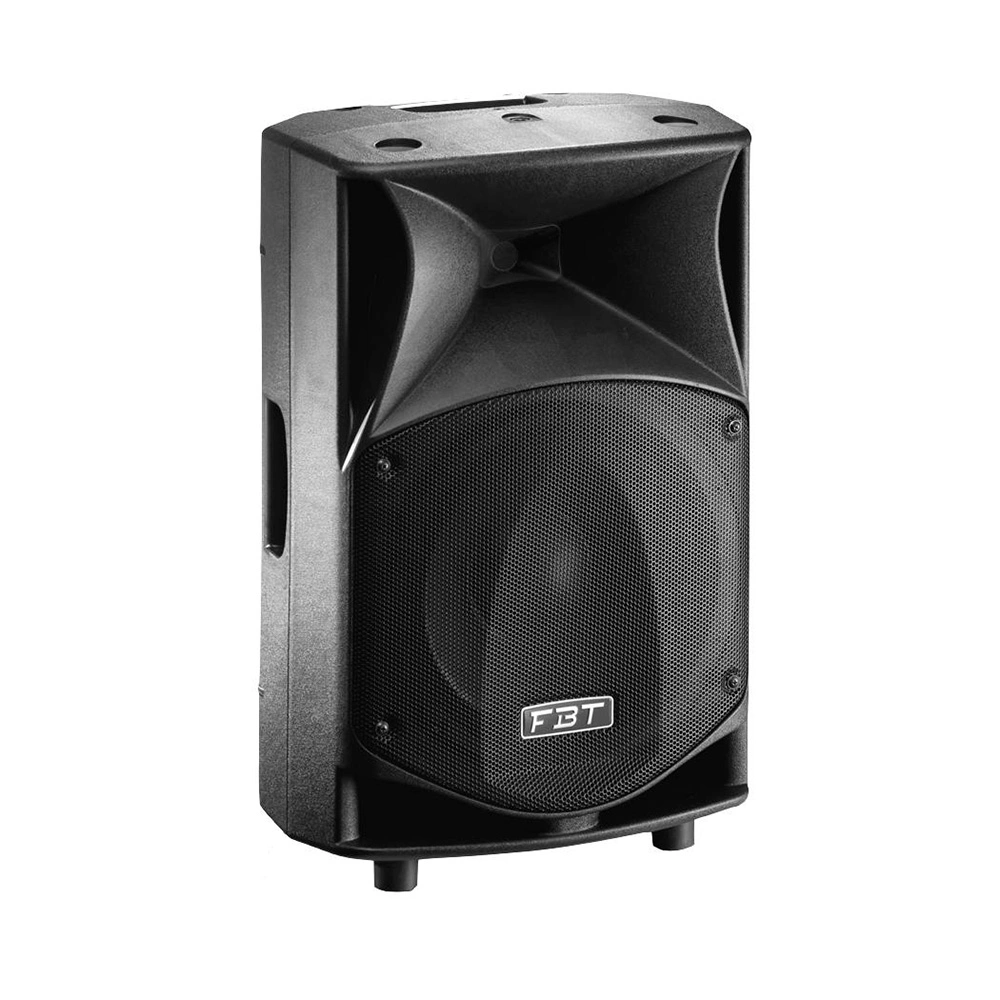

FBT JMAXX 112A is a professional two-way active speaker system with a built-in DSP processor. This speaker is suitable for small stage performances, clubs, restaurants, corporate events, as well as budget and educational institutions.
Features:
- Can be used as a stage monitor
- Horn-type construction and special shape
- Built-in DSP processor with 4 presets
- Switchable high-frequency filter
- Two M10 mounting points
- Built-in limiter
The device's housing is made of polypropylene and has a specially designed shape to eliminate unwanted resonances and enhance low-frequency characteristics. The steel front grille protects the speaker from damage. Mounting points are available for 2 x M10 attachments, as well as special holes for additional brackets (sold separately). Rubber feet are provided for vertical placement on surfaces. The speaker can be mounted on a stand using a 1.38-inch cup at the bottom of the housing. The weight of the system is 13.8 kilograms.
The system features a 12-inch low-frequency driver with a 2-inch voice coil. The tweeter has a 1-inch size and a 1-inch voice coil, as well as a horn-type construction providing a constant coverage angle of 90 degrees horizontally and 60 degrees vertically. Due to the asymmetrical shape of the housing, this system can be used as a floor stage monitor, placed horizontally at angles of 12°, 40°, and 55°. The device is equipped with a class D amplifier with separate Bi-Amp amplification. The maximum output power for the woofer is 700 W, and for the tweeter is 200 W. The system can deliver a maximum sound pressure level of 131 dB and has a frequency response from 48 Hz to 20 kHz.

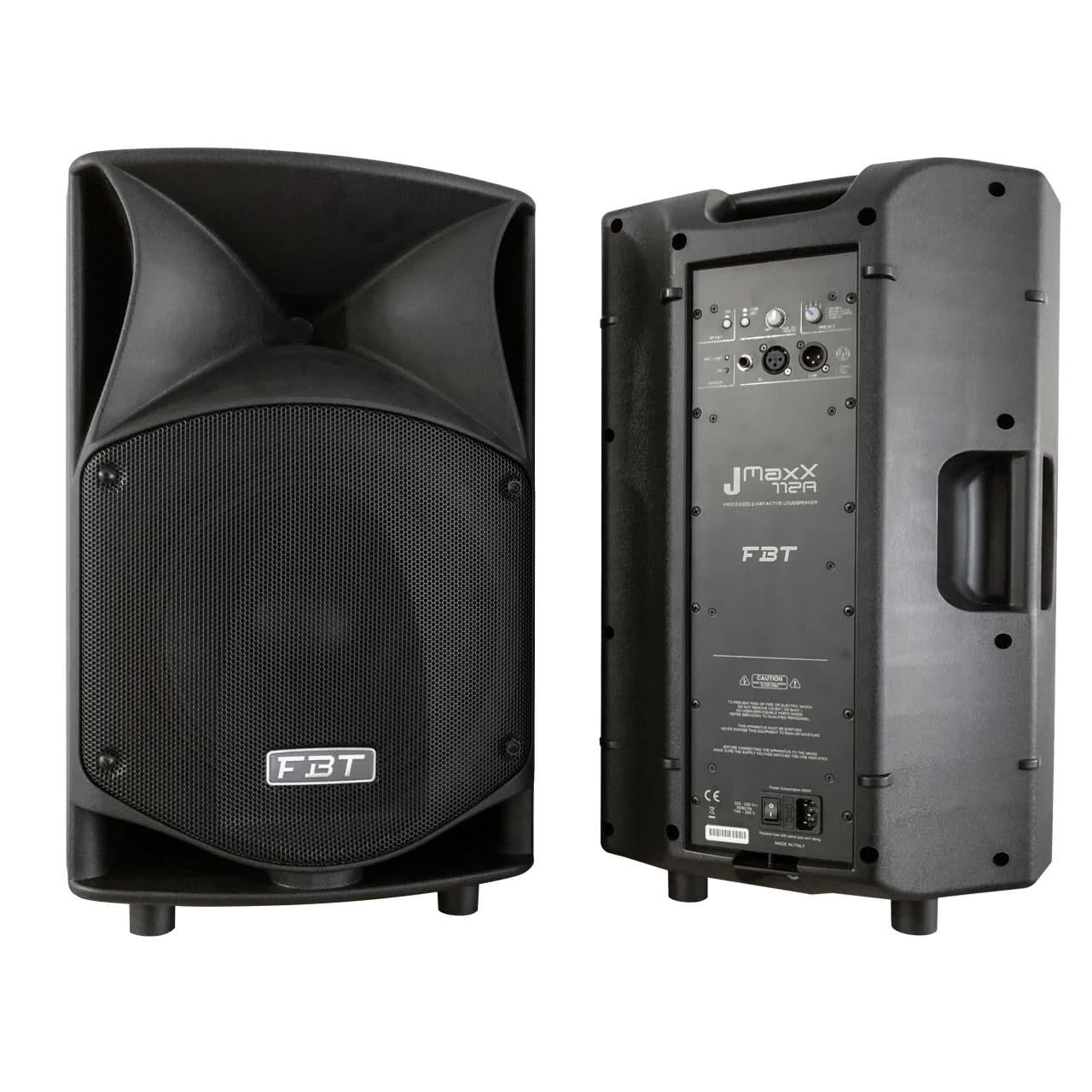

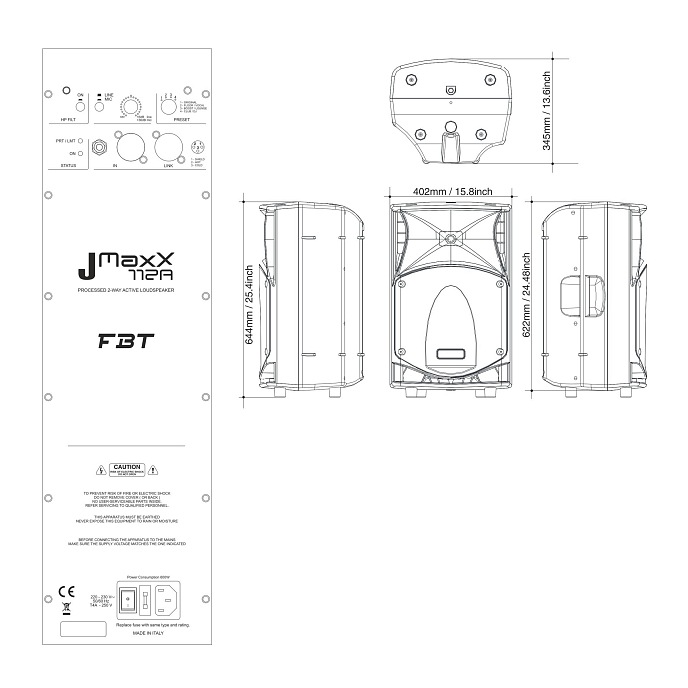

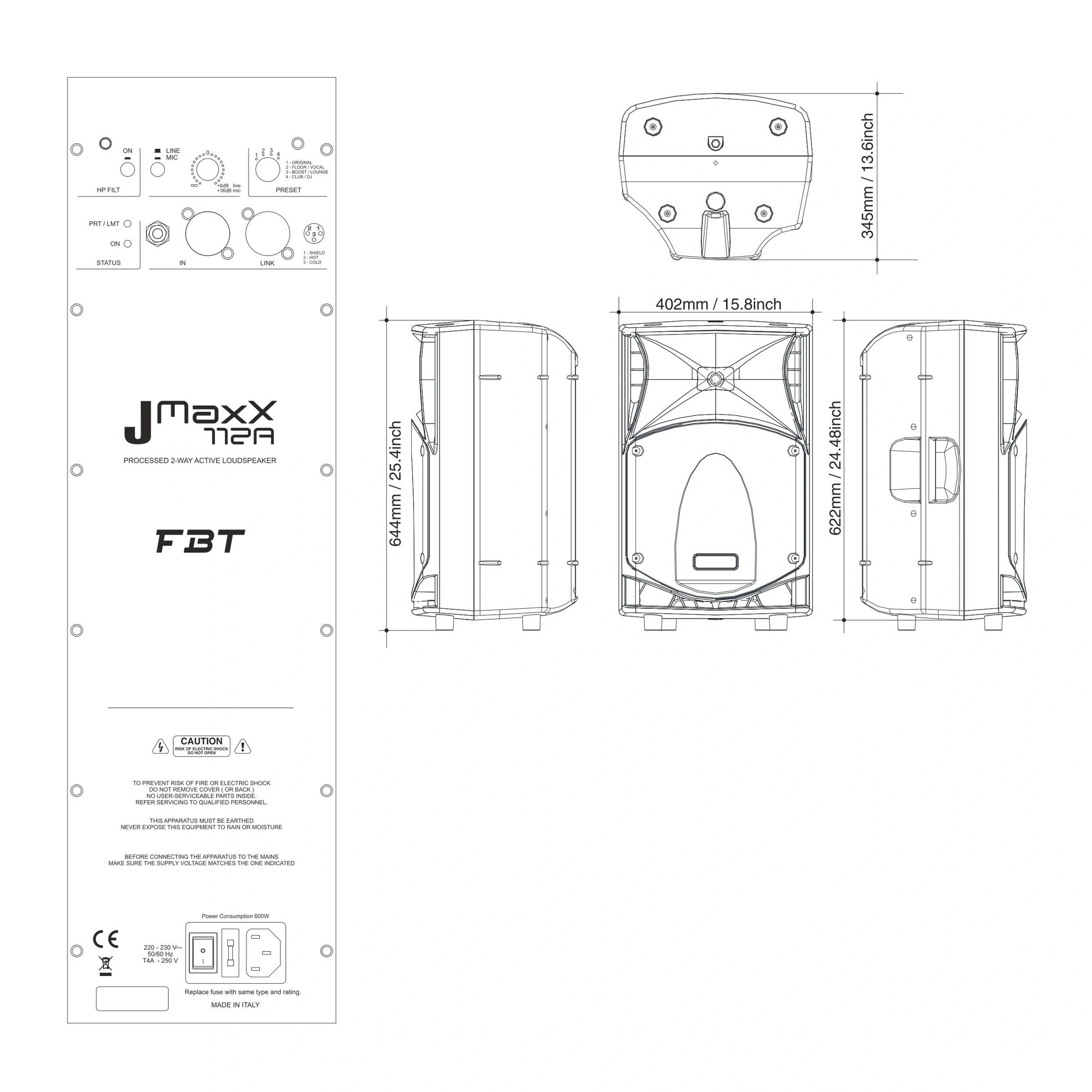

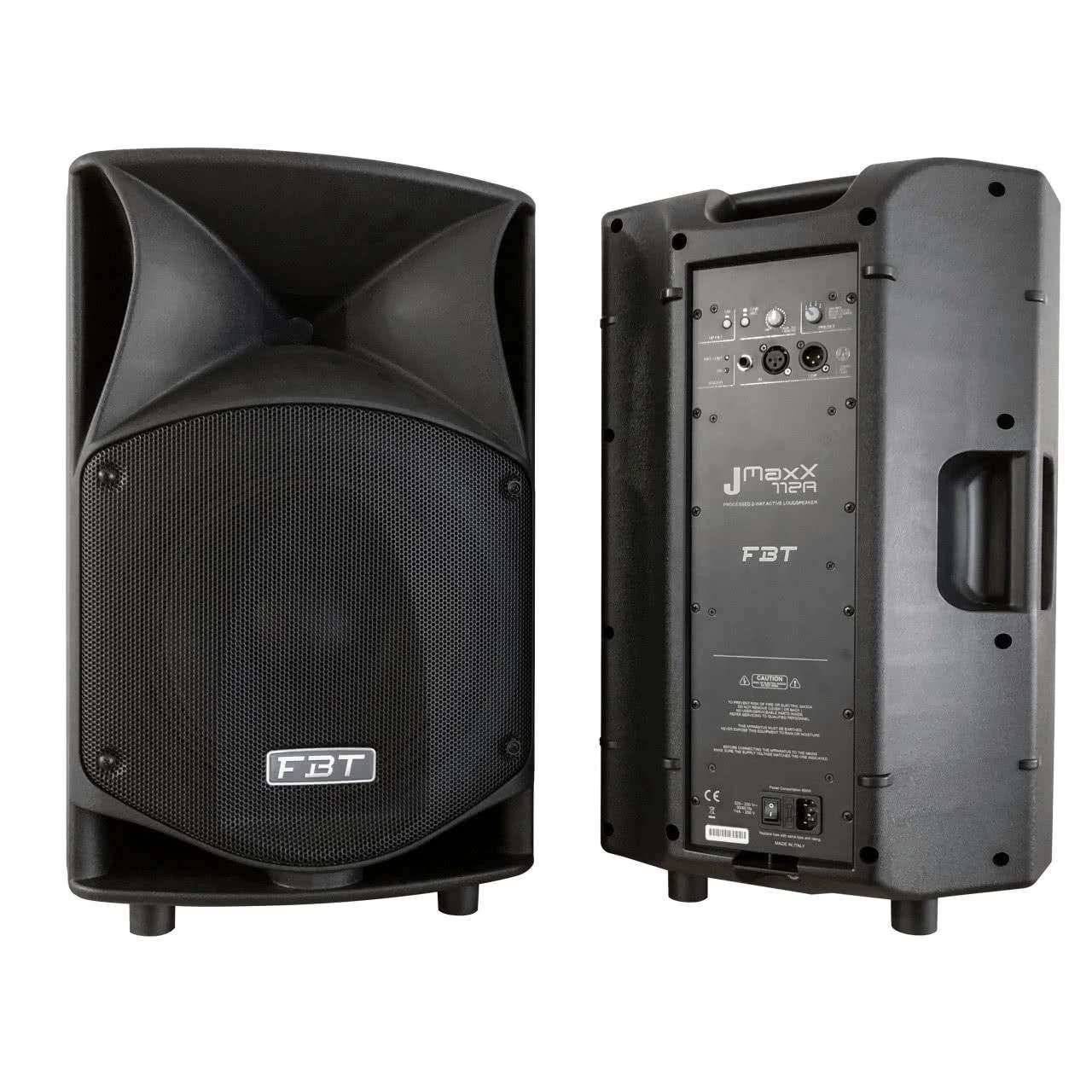

The rear panel of the housing houses a panel for connection with a built-in DSP processor, which has 4 preset settings. These are used for frequency correction of the system's sound in different conditions and venues. The speaker features a balanced XLR / 1/4" Jack TRS input for connecting a line signal or dynamic microphone. Next to it is a switch for input signal type and a volume input level control. There is also a pass-through XLR Link output for connecting to other speaker systems. A switchable high-frequency filter is available for sound correction. Two LED indicators show when the built-in limiter is engaged and the active status of the system.
Package includes:
- Speaker
- Power cable
- Manual.
