The FBT JMAXX 112A is a professional two-way active speaker system with a built-in DSP processor. This speaker is suitable for small stage performances, as well as for use in clubs, restaurants, corporate events, and budget or educational institutions.
Features:
- Can be used as a stage monitor
- Horn-loaded design with a special shape
- Built-in DSP processor with 4 presets
- Switchable high-frequency filter
- Two M10 mounting points
- Built-in limiter

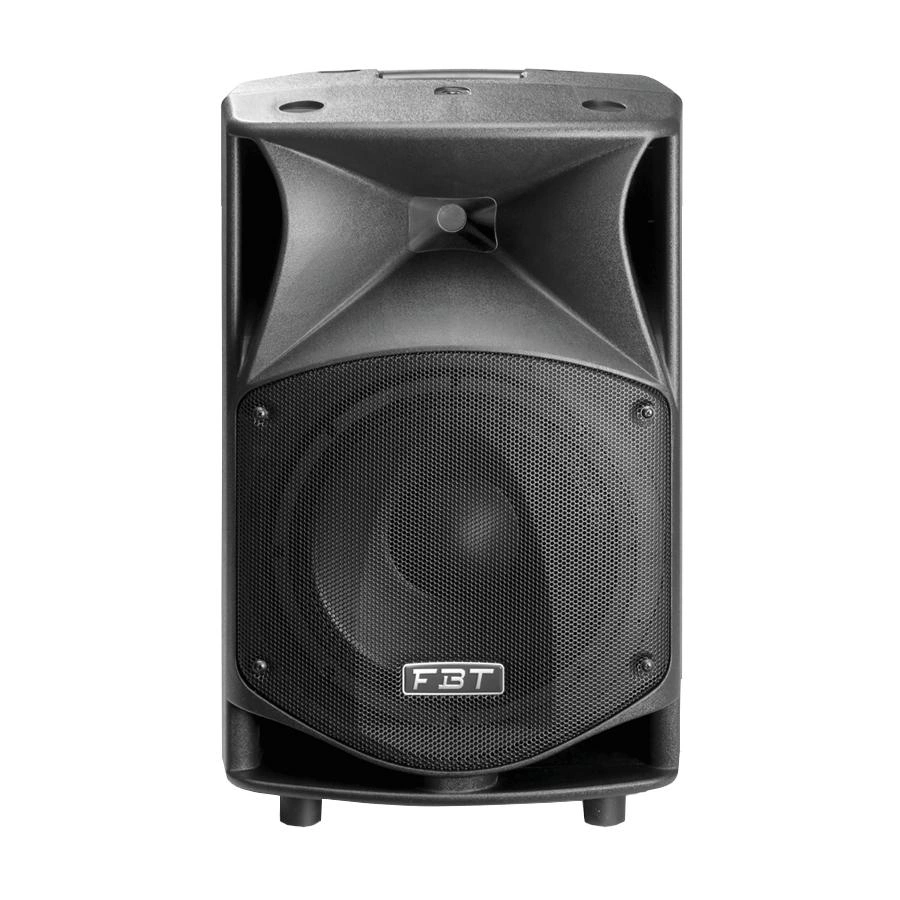

The device's enclosure is made of polypropylene with a specially designed shape to eliminate unwanted enclosure resonances and enhance low-frequency characteristics. A steel front grille protects the speaker from damage. There are two M10 mounting points for installation, as well as special holes for additional brackets (sold separately). Rubber feet are available for vertical placement on surfaces. The speaker can be mounted on a stand with a 1.38-inch diameter cup located at the bottom of the enclosure. The system weighs 13.8 kilograms.
The system features a 12-inch low-frequency driver with a 2-inch voice coil. The tweeter is 1 inch with a 1-inch voice coil and a horn-loaded design, providing a constant directivity angle of 90 degrees horizontally and 60 degrees vertically. Due to the asymmetrical shape of the enclosure, this system can be used as a floor monitor by placing it horizontally at angles of 12°, 40°, and 55°. The device is equipped with a class D amplifier with separate Bi-Amp amplification. The maximum output power for the low-frequency driver is 700 W, and for the tweeter is 200 W. The system can deliver a maximum sound pressure level of 131 dB and has a frequency response from 48 Hz to 20 kHz.

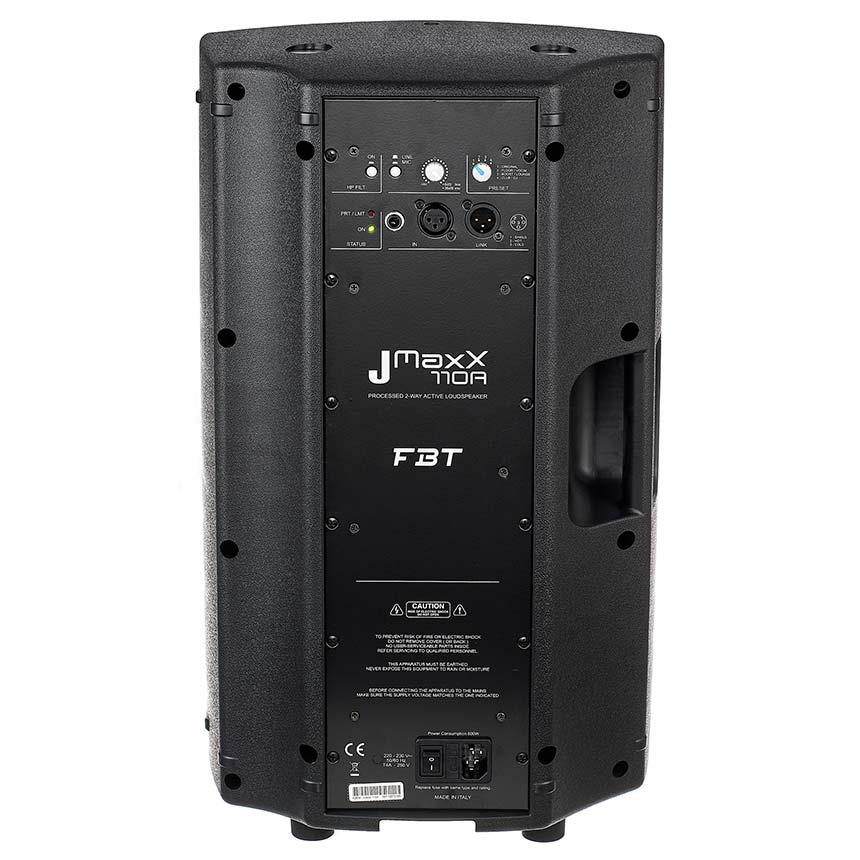

The rear panel of the enclosure features a panel for connection with the built-in DSP processor, which has 4 preset settings. These settings are used for frequency correction of the system's sound in different conditions and rooms. The speaker is equipped with a balanced XLR / 1/4" Jack TRS input for connecting a line signal or dynamic microphone. There is also a switch for selecting the type of input signal and a volume input level control. Additionally, there is a pass-through XLR Link output for connecting to other speaker systems. A switchable high-frequency filter is available for sound correction, along with 2 LED indicators showing the activation of the built-in limiter and the active status of operation.
Package includes:
- Speaker
- Power cable
- Manual
