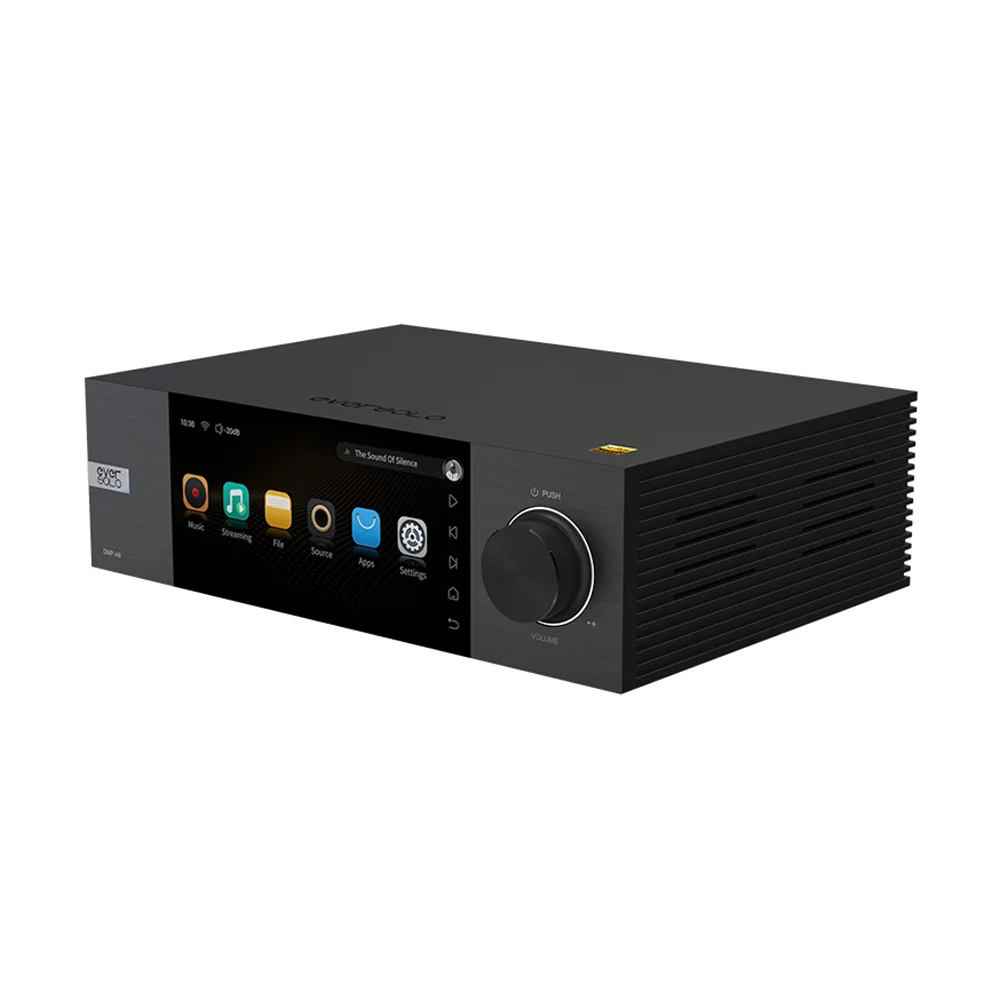

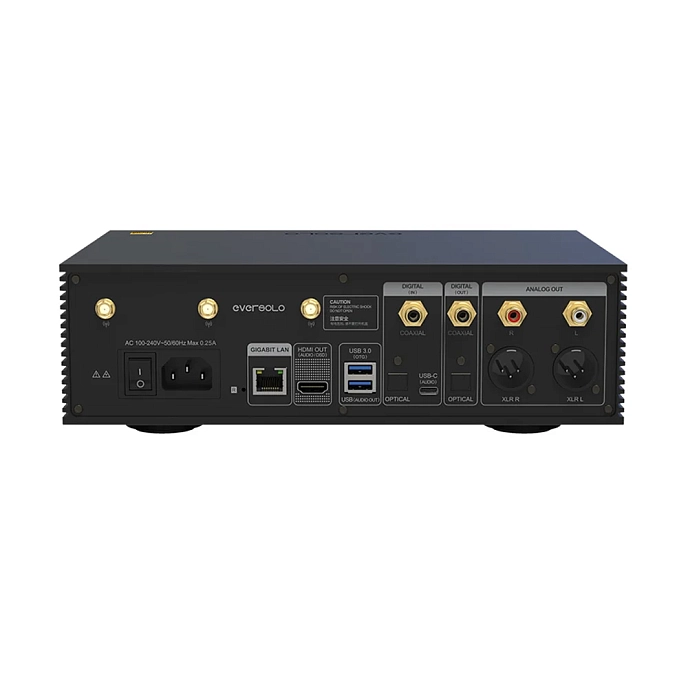

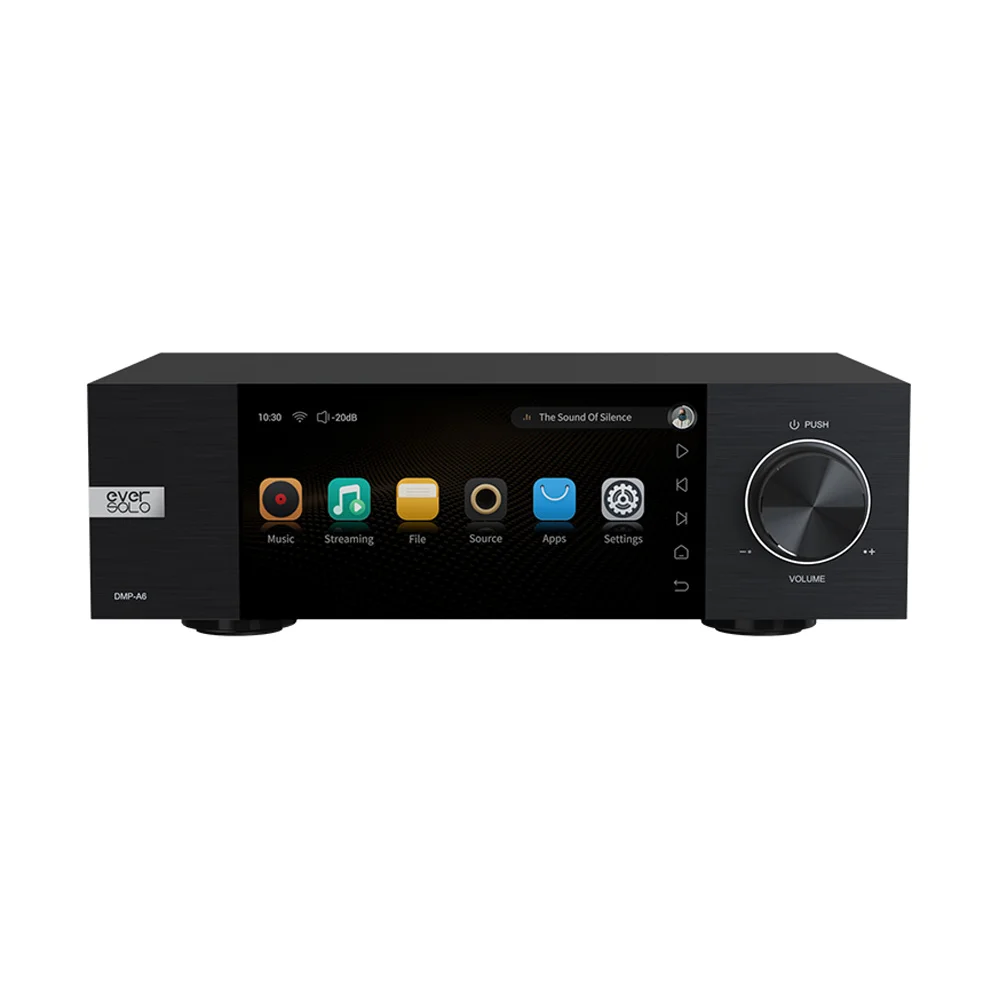

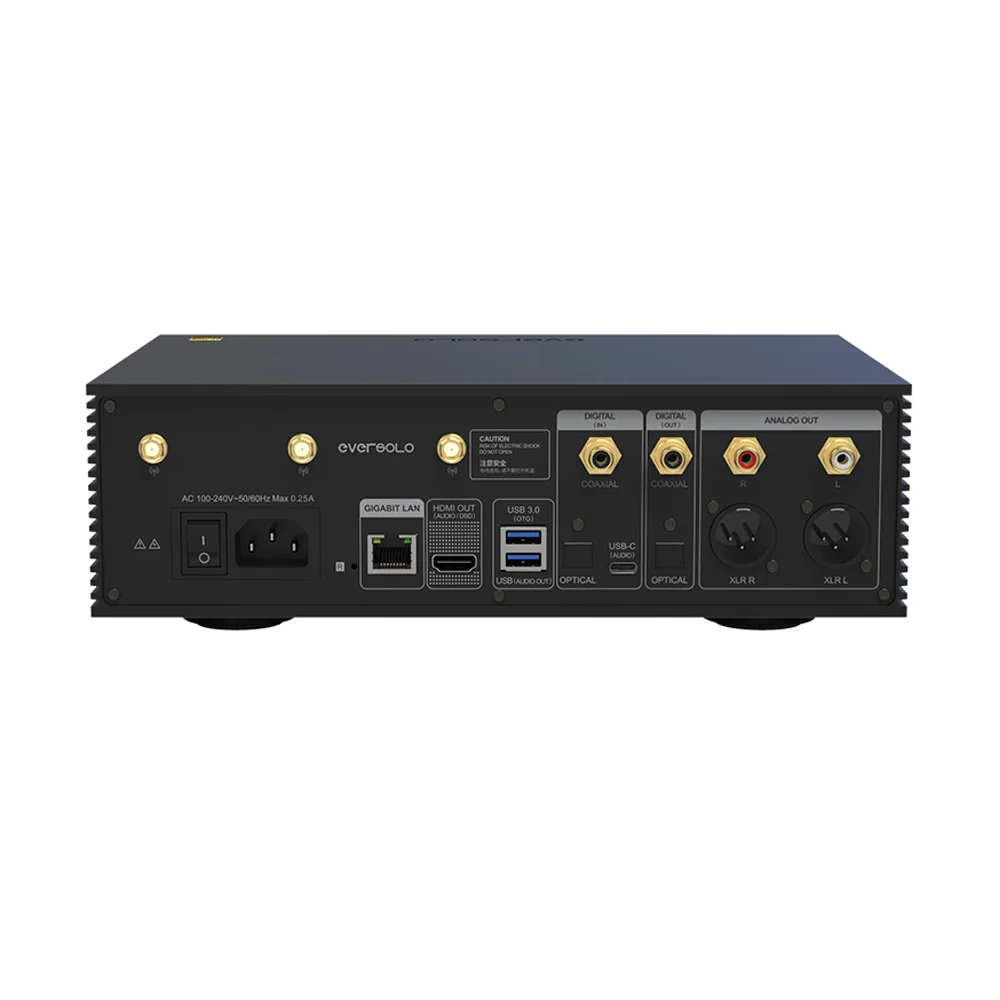

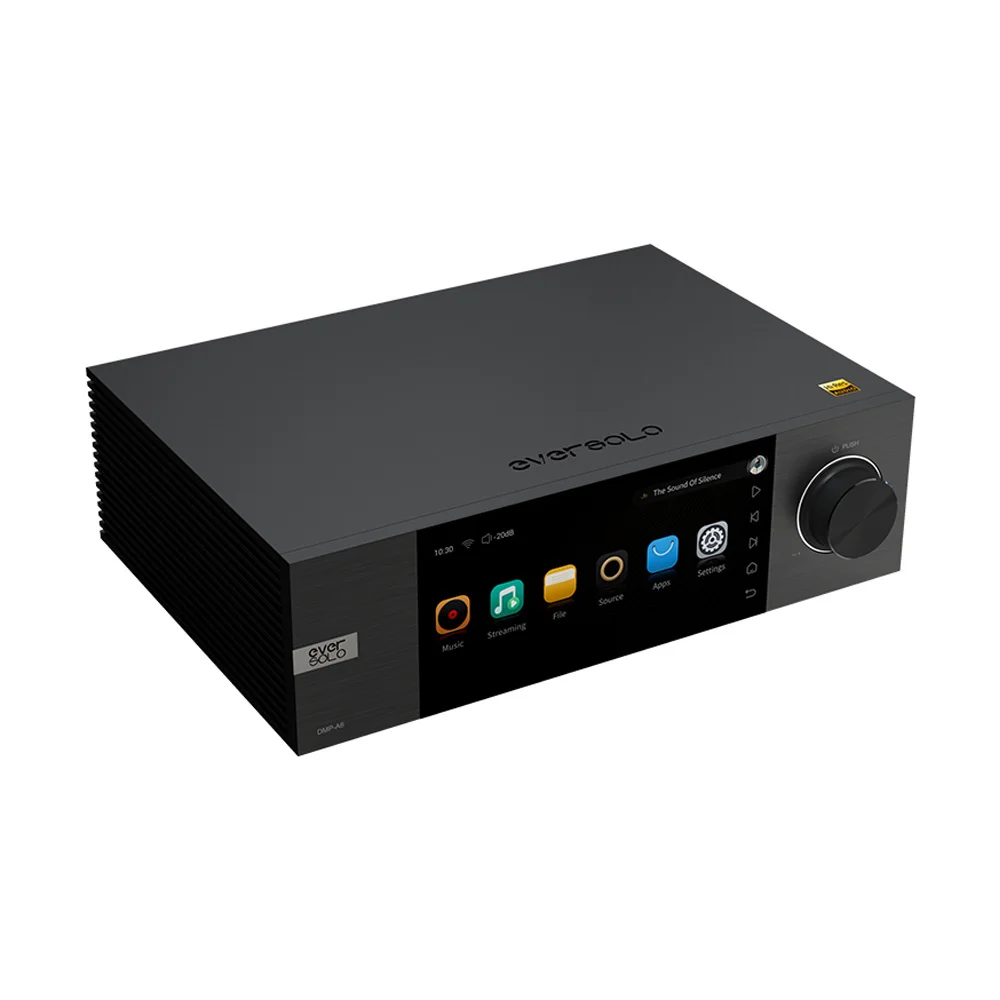

Eversolo DMP-A6 - Music Streamers, Network Player, Digital Music Streamer, DAC, Music Service&Streaming MQA Full Decode, DSD512 PCM768kHz/32Bit Bluetooth 5.0, 6’’HD Touchscreen, Exclusive App.
Key Features:
- 6" LCD touchscreen;
- DACES 9038Q2M*2;
- Audio ProcessorXMOS XU316;
- Op-amp ChipOPA1642;
- Dual femtosecond clocks, ultra-low phase noise, ultra-low jitter clock synchronization processing, purer output;
- SSDM.2 NVME 3.0 2280 protocol, up to 4TB;
- WiFiWiFi 2.4G+5G;
- DSD512, PCM 768KHz 32Bit, MQA;
- Tidal, Qobuz, Highresaudio, Amazon, WebDAV, UPnP, Air Play, DLNA, Spotify, Tidal Connect, Qobuz Connect etc.
A New Epoch is Beginning
With years of development, DMPA 6 has reformed traditional streamers by solving pain points across the industry, it implies the beginning of a new epoch. DMP-A6 is an all-in-one player, with quad-core processor and large memory, tailored for lossless music playback. Rich digital input and output ports, HDMI DSD multi-channel output, dual ESS9038Q2M professional DAC, fully balanced differential circuit and professional audio tuning, all of them contribute to the superior performance of DMPA 6. Unprecedented experience is offered to music lovers with music streaming services, local music management, mobile APP and exclusive control system.
Self-developed EOS Audio Engine
EOS (Ever solo original sampling-rate audio engine) is developed by Ever solo engineeds, with the support of outputting original sampling rate, that is, audio playback completely bypasses the Android SRC restriction, supporting the Direct audio output of third-party apps (Apple Music hi-res Direct output).
Master Recording Playback and Decoding
Almost all ultra-high sampling master recording formats are supported by DMPA 6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel and MQA etc.
Large LCD Touch screen for Better User Interaction
Equipped with a large 6" LCD high-definition touch screen, DMPA 6 has a professional streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library and third-party apps, it runs smoothly as a mobile phone.
DOH Chips for HDMI DSD Multichannel
As a multi-channel streamer, DMPA 6 adopts DOH processing chips for HDMI audio especially to play and output master DSD music. Except for the support of DSD Native multi-channel raw output and D2P output (PCM multi-channel output) decoding, it also provides regenerated high-precision independent clock for HDMI. So that it can also be used as a digital turntable.
Internal High-speed M.2 SSD Slot
A M.2 NVME 3.0 2280 SSD slot is built in to install SSD without removing the cover, the maximum storage is 4TB. Faster, stable and no noise, it is the key for local high-quality music playback.
Low Ripple High Performance Power Module
The DMP-A6 is equipped with a low-noise regulated switching power supply module and several dedicated audio capacitors with less ripple and interference. Choke filter circuit is specifically made for AC input, reducing high-frequency line noise in the region of 100 KHz to 5 MHz, ensuring cleaner power, a softer background noise, and clearer musical details.
3rd Generation XMOS 316 Audio Solution
With 3rd generation XMOS 316 audio processor, DMPA 6 has faster speed and higher USB bandwidth, ensuring the lossless transmission of high-definition audio data. USB port supports DSD512 Native, PCM768@32bit and MQA full decoding. Optical and Coaxial ports support DSD 64 (DoP), PCM 192@24 Bit.
Low Jitter Dual Clock Processing
Low-jitter high-precision dual clocks are designed for DMP-A6. Two high-precision crystal oscillators (45.1584 MHz and 49.152 MHz) respectively correspond to 44.1KHz and 48KHz multiplied sampling, effectively reducing jitter and achieving more precise audio decoding.
Fully Balanced Preamp Circuit
DMP-A6 analog circuit adopts fully balanced design from DAC chip to the XLR and RCA stereo output. It provides better noise immunity, improves channel separation by eliminating shared loops for stronger and more consistent signal quality.
2x ES 9038Q2M DAC Decoding
2x ES 9038Q2M are used to establish Double Differential Quadruple Converter for DMP-A6 DAC decoding. Two DAC chips correspond to two channels for D/A conversion output independently. So that it effectively avoids the interference between channels, reduces the background noise, obtains better signal-to-noise ratio, and greatly improves the dynamic range and other audio indicators. Supporting DSD512, PCM768@32 bit, and MQA hard decoding.
Hand picked Audio Components
Sound quality of DMPA 6 Master Edition analog output is monitor-level. The primary elements of the audio circuit are excellent, including WIMA capacitors from Germany, NICHICON dedicated audio capacitors, Murata chip capacitor and Omron relays from Japan, TI Audio Operational Amplifiers from the USA etc. The goal is to provide more authentic and pure sound performance.
Qualcomm QCC5125 Module
The Qualcomm QCC5125 Bluetooth audio receiving module used by the DMPA 6 is compatible with Bluetooth 5.0. Connecting with mobile phones, tablets, and laptops via Bluetooth allows for simple music playback and CD-quality sound.
Wireless Music Streaming
Room Ready, Tidal Connect, DLNA are supported by the DMPA 6. High quality music can be streamed online to mobile devices in the same LAN, make it simpler to enjoy online music services and easier to play back music at home.
In the Box:
- Streamer;
- Power Cable;
- USB Cable;
- User manual.
