Headphone Amplifier
EarMen CH-Amp

Headphone Amplifier

EarMen CH-Amp

no reviews

AED 4,299

Product code: 125784

CHAT WITH US

10:00-22:00

Available in stores

Pickup in Dubai:
Calculating...

Description

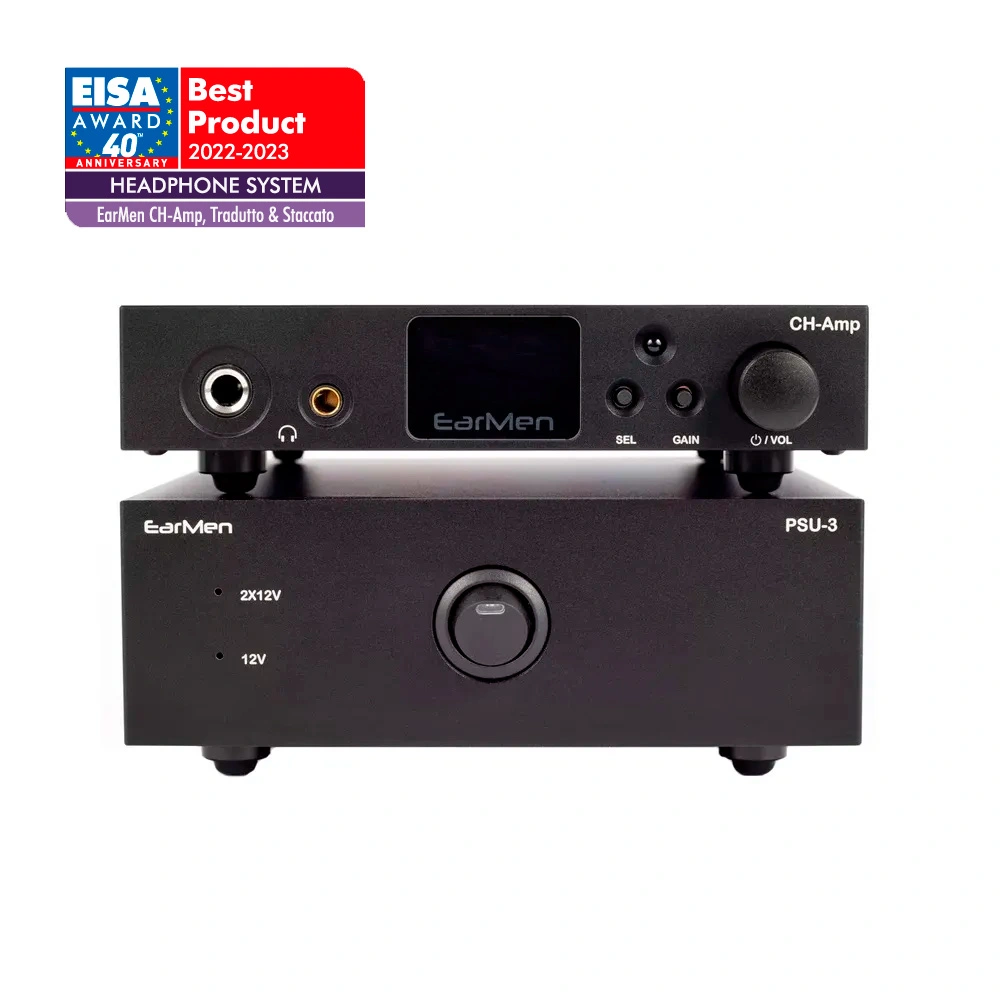

Earmen CH-Amp is a fully balanced headphone amplifier with an external linear power supply. The more you listen to the CH-Amp, the better it becomes. This is especially noticeable when you listen to another amplifier for a while and then return to the CH-Amp with the same headphones. EarMen CH-Amp is precise, clean, fast, transparent, and always musical. It works exceptionally well in the full EarMen stack, but you can confidently use it with any DAC or other source. Earmen CH-Amp has received various awards from audio industry professionals.

Features:

  • Fully balanced amplifier
  • External linear power supply
  • Audiophile components
  • Composite amplifiers
  • Low noise and distortion levels
  • Balanced input and output 4.4 mm
  • Output power 6.35 mm: 1500 mW / 7 V at 32 Ohms
  • Output power 4.4 mm: 3800 mW / 11 V at 32 Ohms
  • Amplification switching function

Composite reinforcement technology

CH-Amp utilizes a composite amplifier topology that combines excellent characteristics of both direct and alternating current. Such amplifiers have several advantages compared to other types of similar devices.

For instance, power amplifiers typically use thermal feedback loops, which result in significant errors when controlling large loads. These errors arise from self-heating. The use of composite materials can eliminate such errors and enhance the circuit's performance. Composite amplifiers also provide better bias offset for direct current output signals. Overloading the output transistors does not affect the bias voltage.

Premium-class components

The schematic design incorporates WIMA capacitors, as well as electrolytes paired with low-noise MELF resistors (Metal Electrode Leadless Face, a type of surface mount component) and OPA1642 operational amplifiers, which are an excellent choice for achieving a neutral sound. EarMen CH-Amp has a range of quality characteristics: low signal-to-noise ratio and THD (Total Harmonic Distortions, the coefficient of nonlinear distortions); excellent frequency response and high power, with characteristics that hardly change even under high loads.

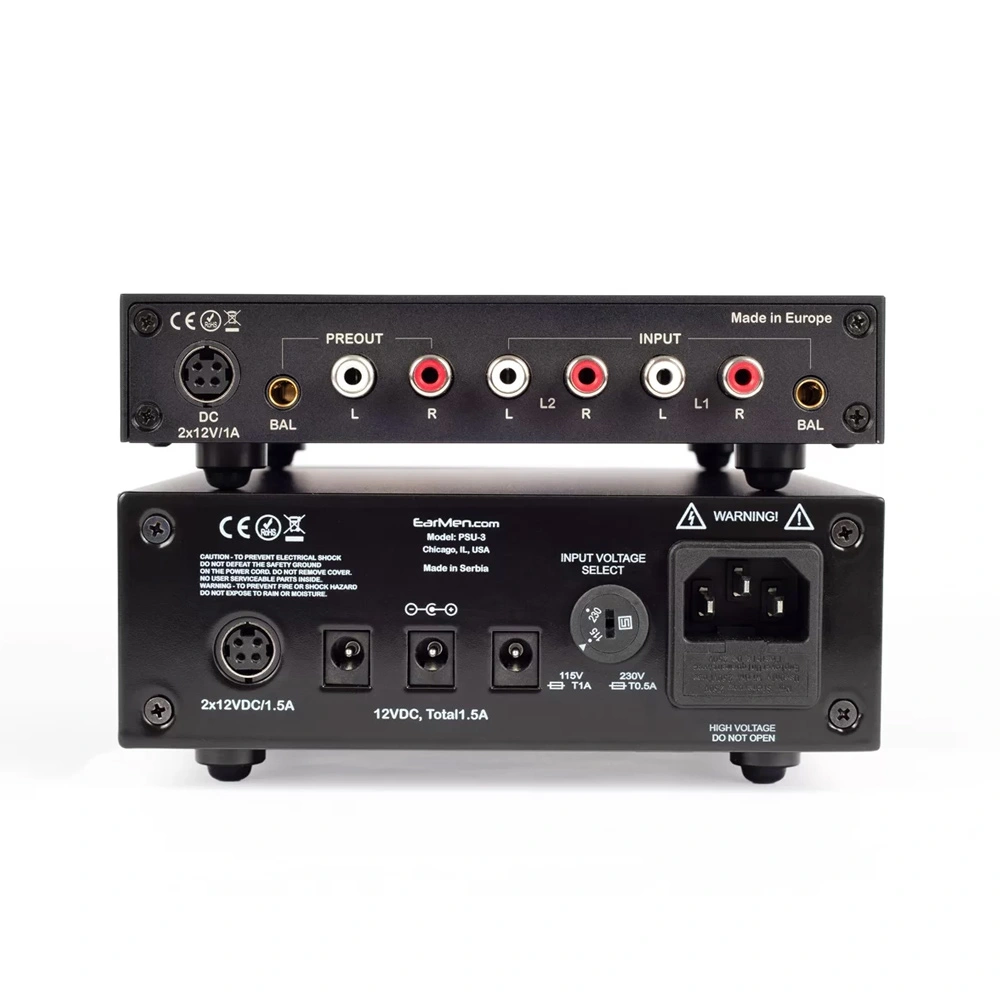

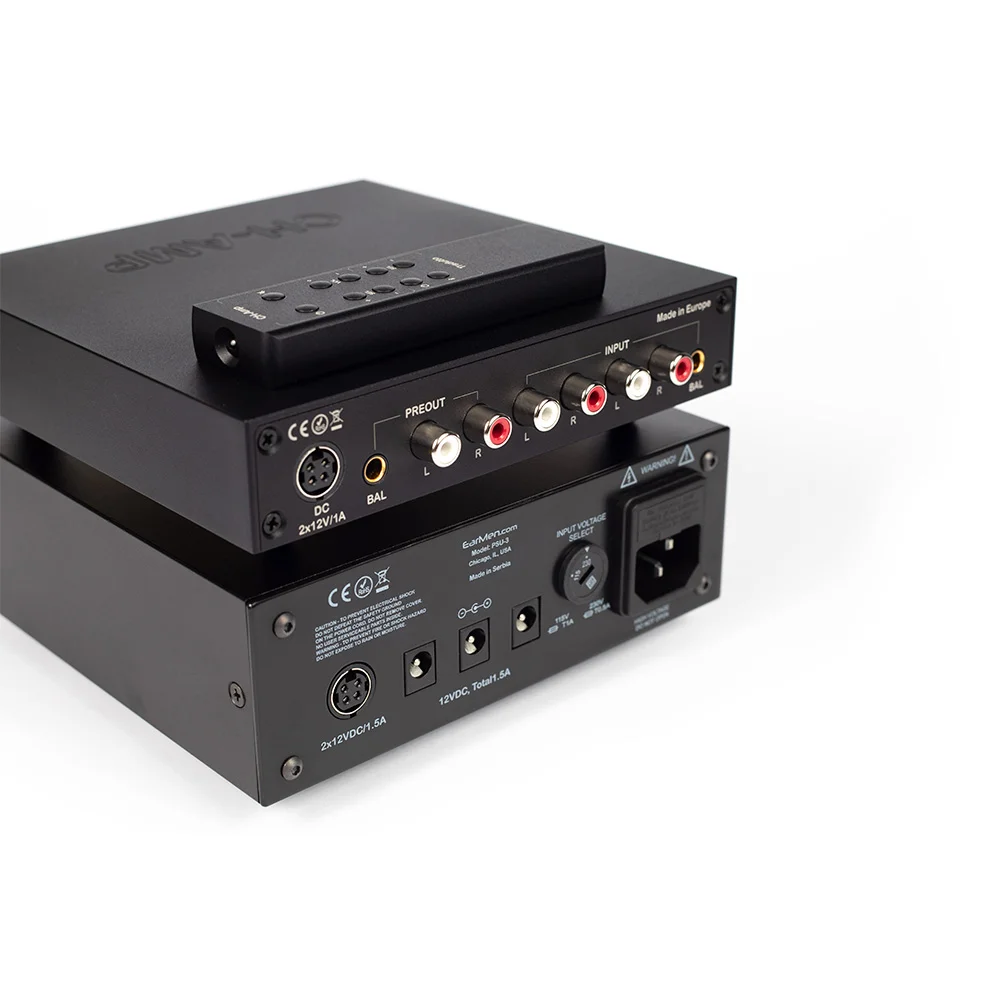

EarMen CH-Amp features two important functions: preamplifier outputs and a gain switch. CH-Amp has balanced and single-ended preamplifier outputs, so you can also connect to active monitors. The gain switch allows for better control of both output level and impedance, for a better match with your headphones.

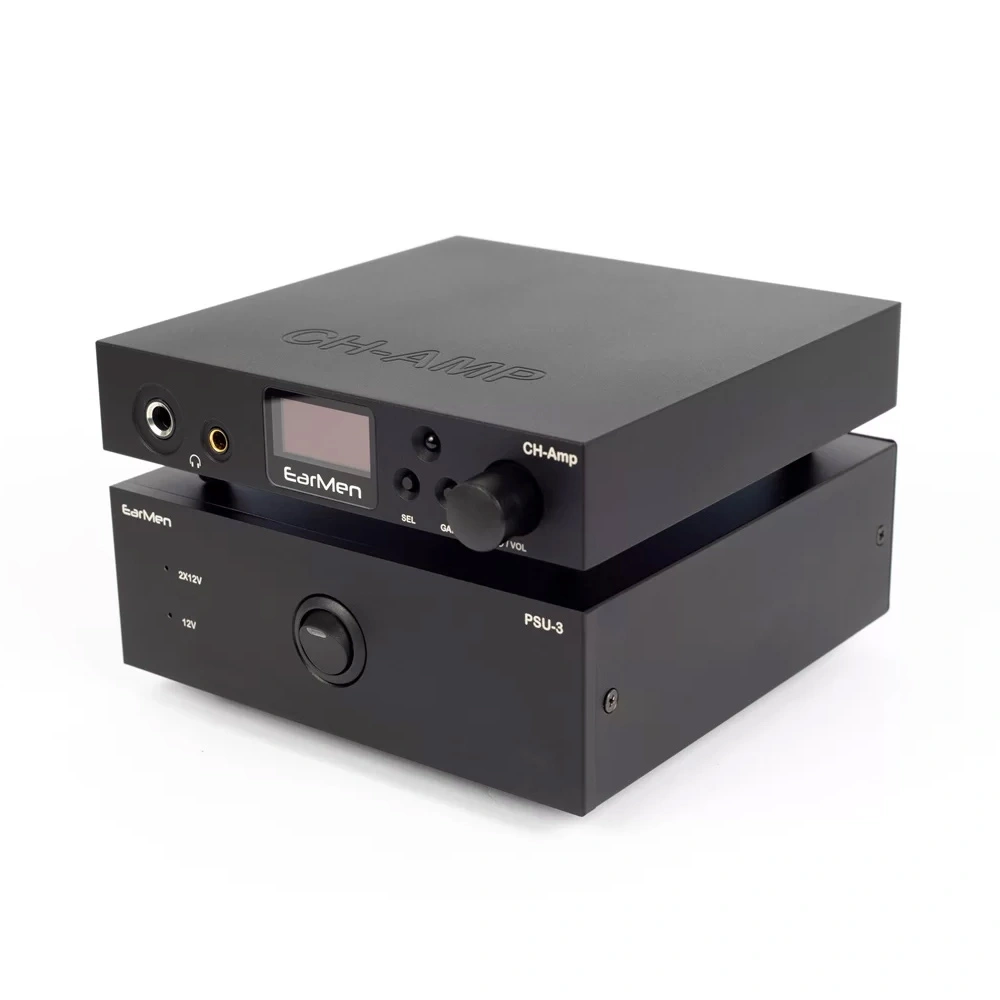

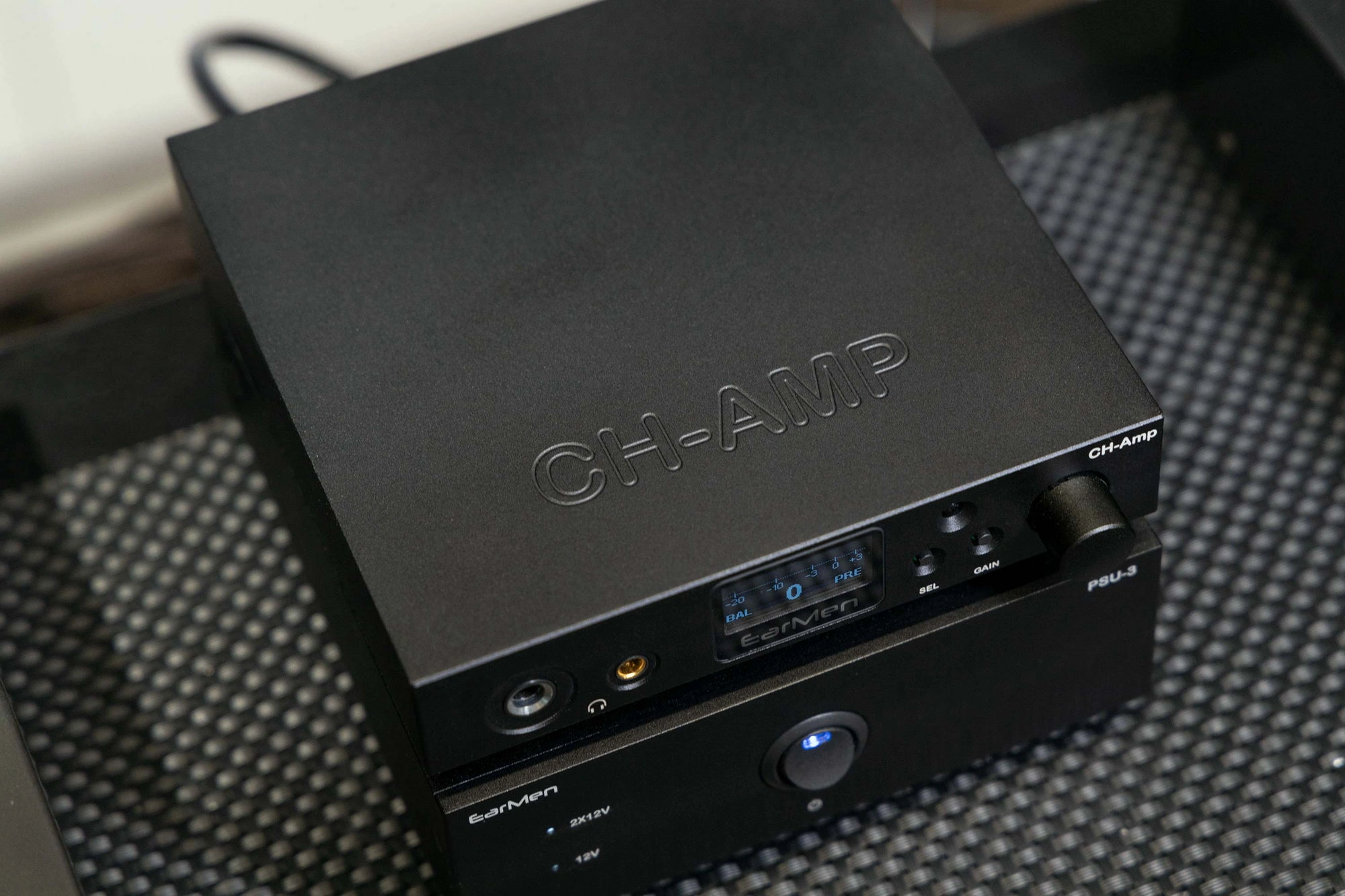

CH-Amp is housed in a solid aluminum enclosure, making it extremely durable and reliable, and providing the printed circuit board with greater protection and additional insulation from external interference. Its compact design makes it suitable for any home system.

Balanced Architecture

The CH-Amp is a fully balanced headphone amplifier, which means that balanced inputs from the source are sent to the output without any changes. From an unbalanced input, signals are converted into balanced signals without phase shift (phase imbalance), so that the + and - signals perfectly align in phase. This eliminates unnecessary distortion.

Linear Power Supply

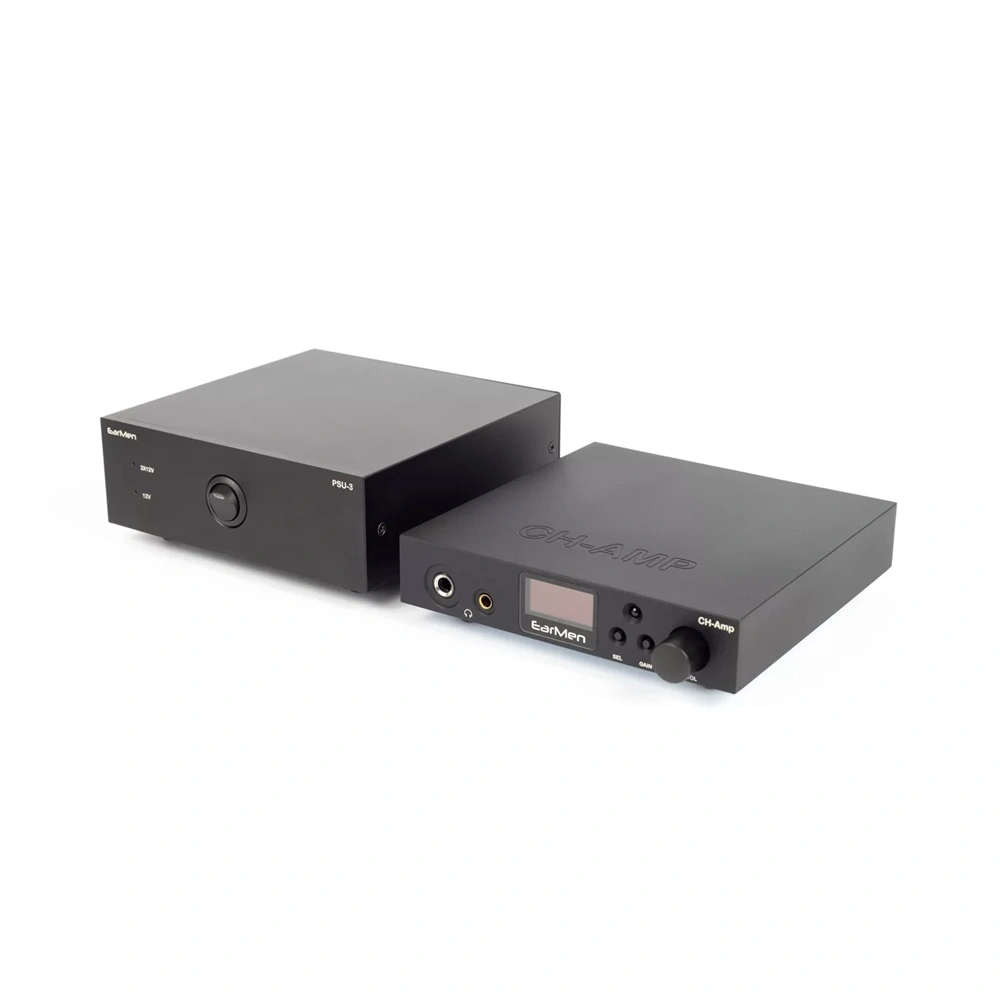

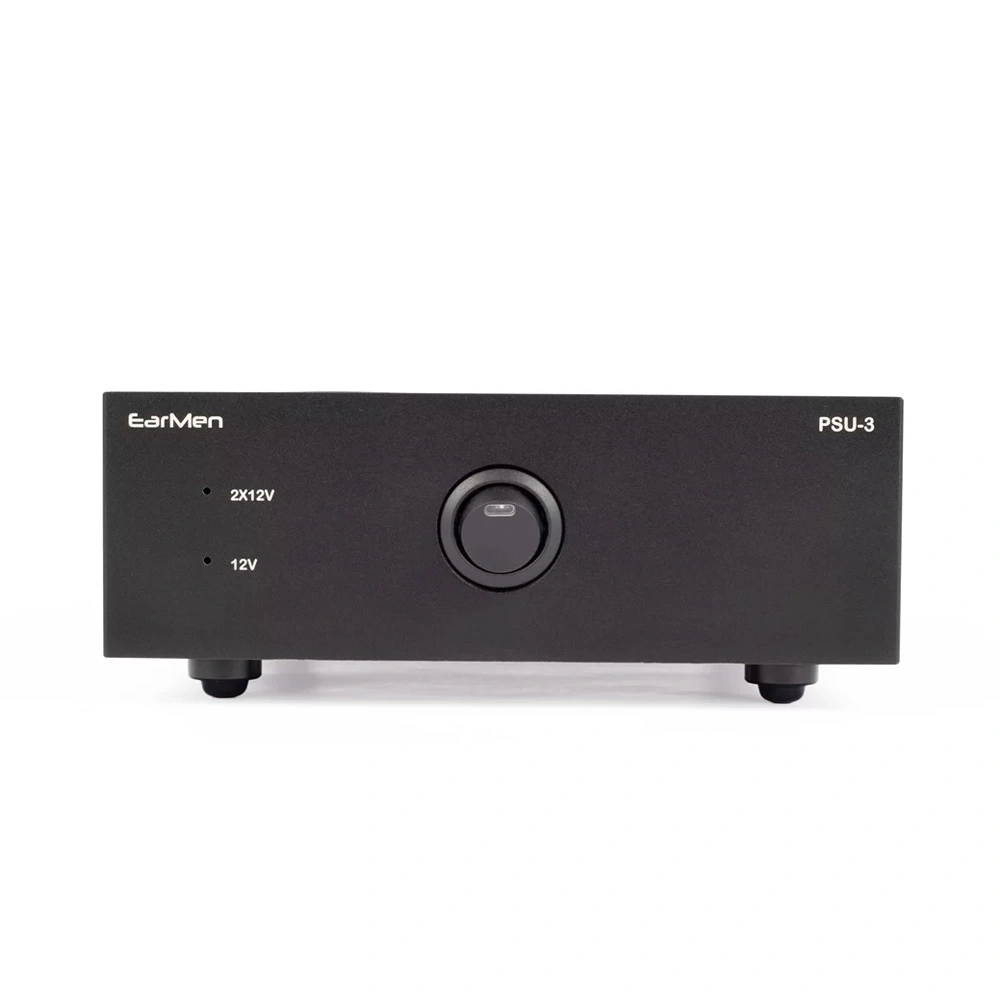

The amplifier's power supply unit is housed in a separate enclosure and utilizes a linear topology with the use of high-quality components and the latest design. The linear power source is reliable, simple, and produces minimal noise.

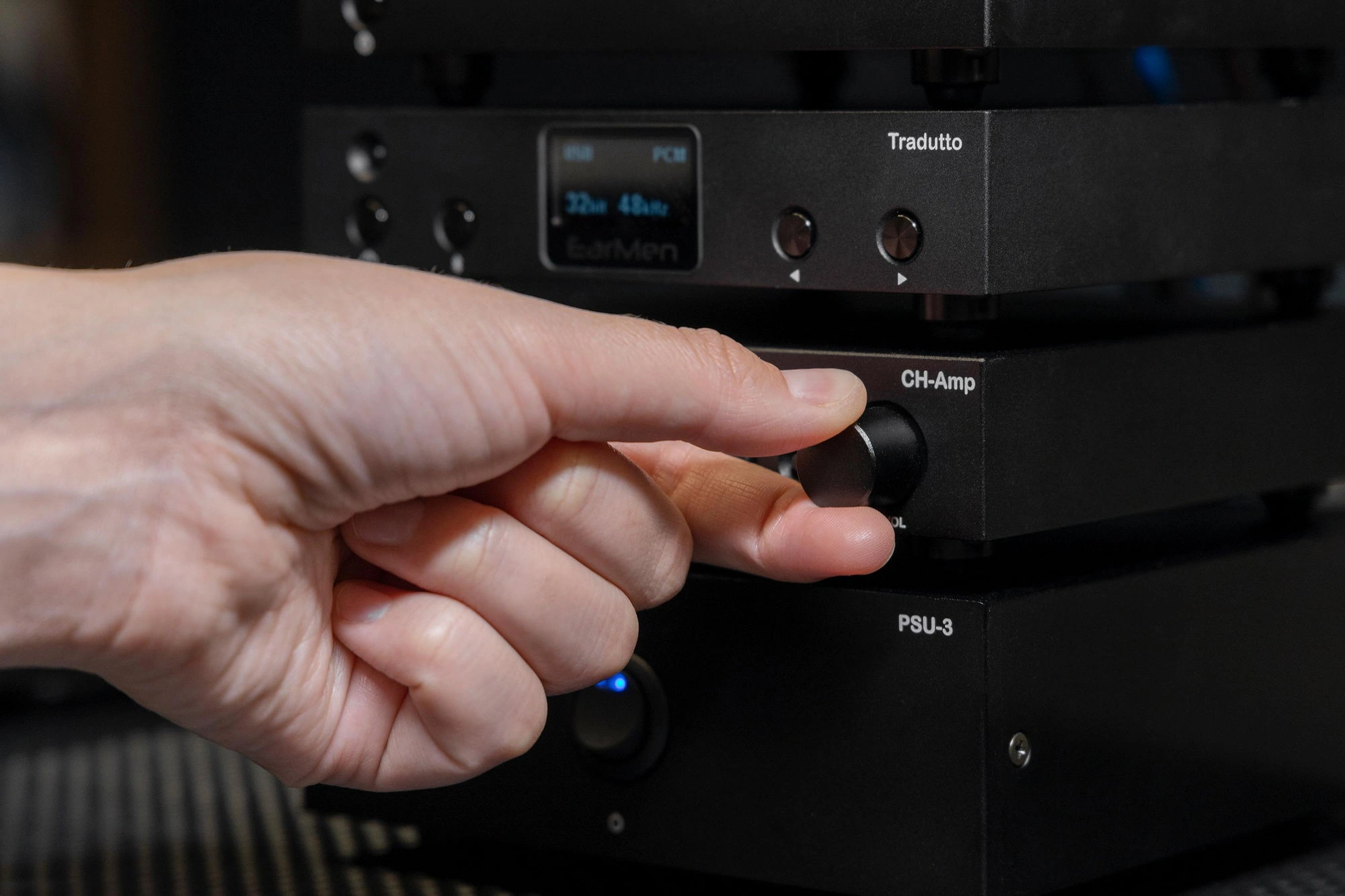

It is designed to provide the best performance and efficiency. It also features protection against current overload, short circuit, and thermal overload in accordance with the highest safety standards. One major advantage of this power source is that you can connect it to the Tradutto digital-analog converter and Airmen Staccato Streamer to have an excellent all-in-one system.

Equipment:

  • headphone amplifier
  • power supply unit
  • power cord for connecting the power supply unit to the network is not included in the set
  • documentation

Characteristics

  • Brand
  • Power output

    This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

    Glossary of terms
    3.8
  • The lowest frequency, Hz
    20
  • The highest frequency, kHz

    The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

    Glossary of terms
    20
  • Signal-to-noise ratio, dB

    The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

    Glossary of terms
    119
  • Output connectors
    4.4mm jack, RCA
  • Circuit design
    discrete

    The circuit with transistors used.

    Словарь терминов
  • Preamplifier

    A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

    Glossary of terms
    yes
  • Input connectors
    RCA, 4.4mm jack
  • Color
  • Form factor
    stationary

    For use on a table or in a rack.

    Словарь терминов
  • Material
    metal, aluminum
  • Headphone output
    6.35mm jack, 4.4mm jack
  • Depth, mm
    150
  • Height, mm
    30
  • Width, mm
    150
  • Weight, g
    2000
  • Country of origin

    The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

    Glossary of terms
    Serbia
  • Service life, months
    24
  • Warranty, months
    12
