Headphone amplifier with DAC
EarMen Angel

Headphone amplifier with DAC

EarMen Angel

no reviews

AED 2,299

Product code: 125787

CHAT WITH US

10:00-22:00

Available in stores

Pickup in Dubai:
Calculating...

Description

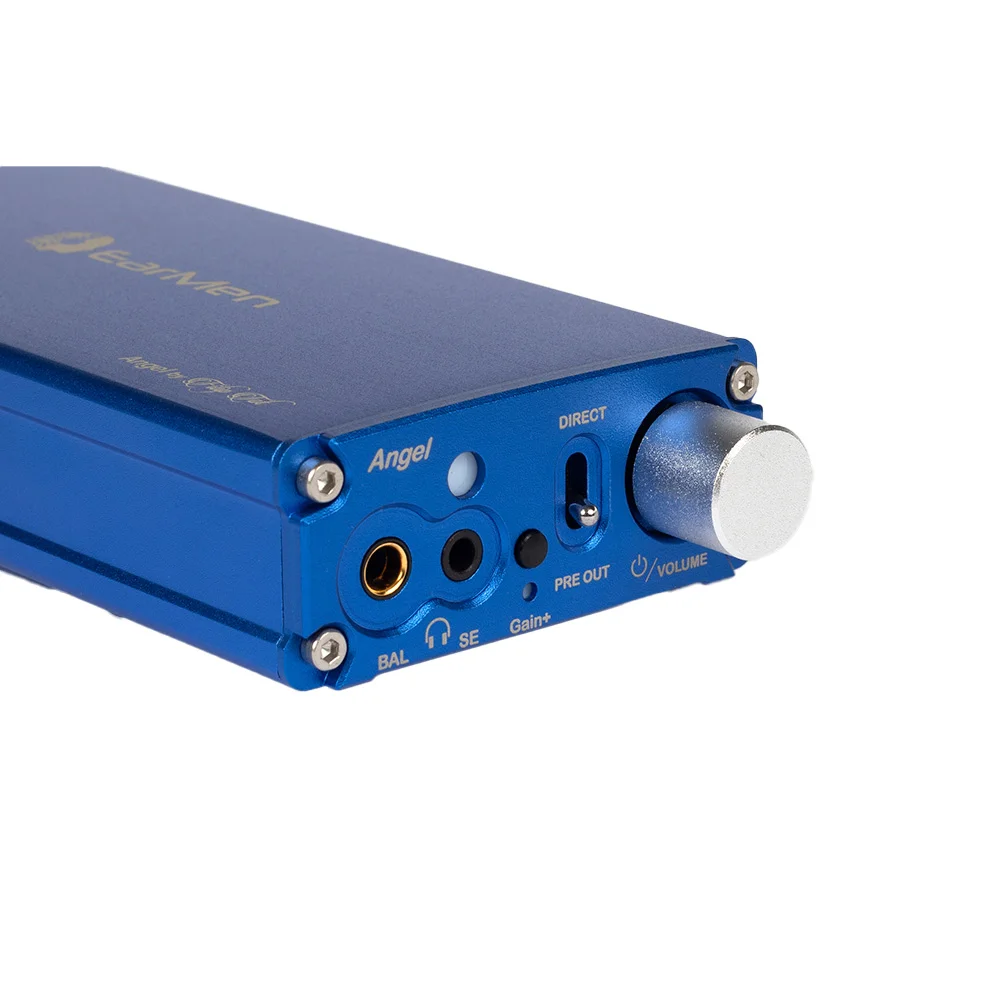

The EarMen Angel is a portable digital-to-analog converter (DAC) and headphone amplifier that offers high-resolution sound quality. This powerful device can be easily connected to your PC, laptop, or smartphone, allowing you to enjoy your favorite music with clean and vibrant sound wherever you go. The EarMen Angel is designed with a large capacity battery that ensures long-lasting performance and eliminates concerns about power consumption.

Key Features:

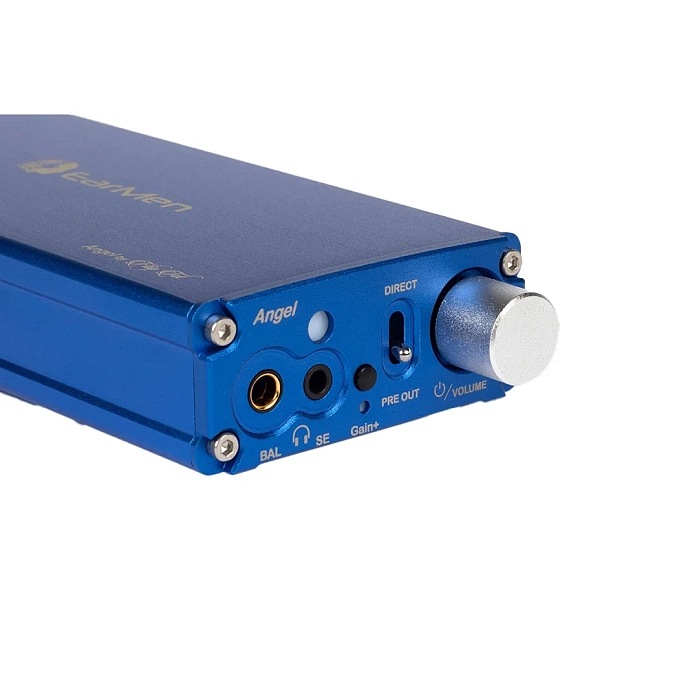

  • Fully balanced circuitry
  • Gain+ amplification function
  • 4.4mm preamplifier output
  • Supports PCM 768kHz/32-bit, DSD256 via DoP, and MQA Studio formats

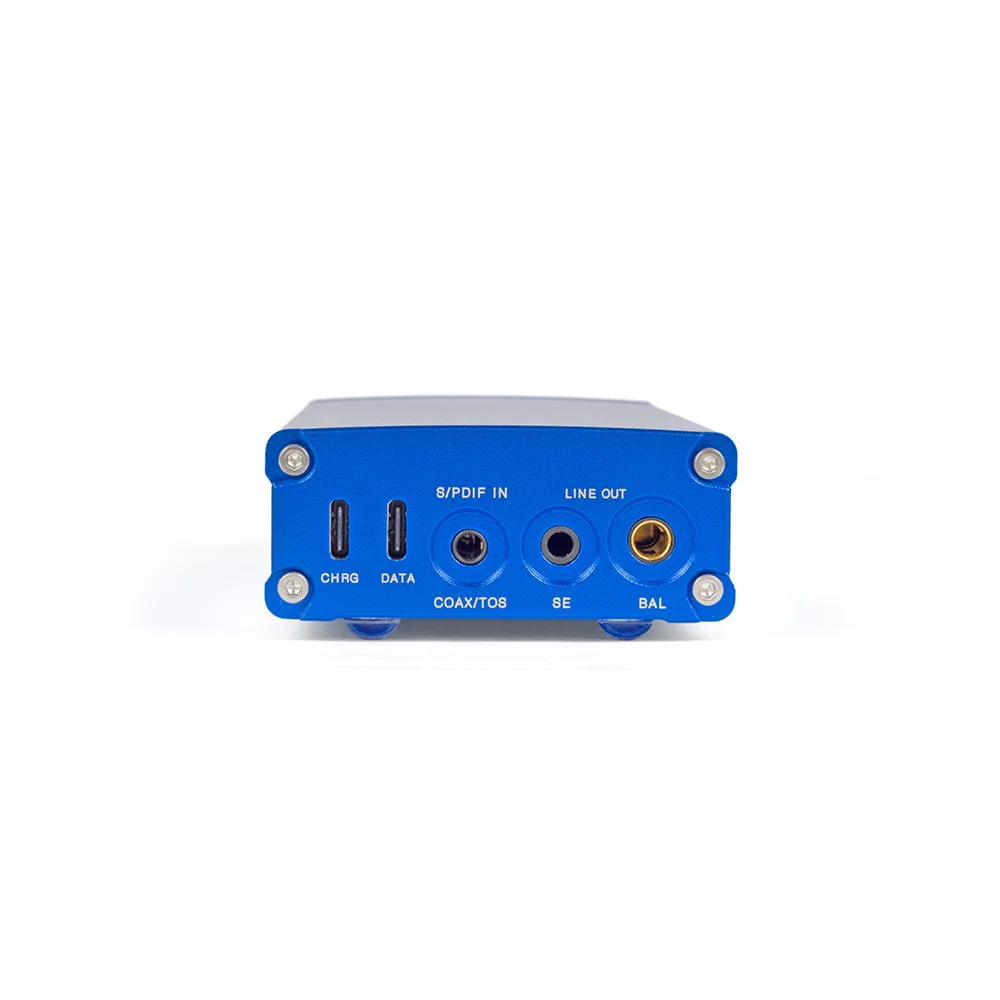

  • S/PDIF input: coaxial/optical

DAC

The EarMen Angel features the ESS ES9038Q2M DAC, which delivers exceptional Total Harmonic Distortion (THD) and Signal-to-Noise Ratio (SNR) compared to other DACs in its class. It also utilizes the latest USB receiver XMOS, enabling it to decode high-resolution formats including PCM 768kHz/32-bit, DSD256 via DoP, and MQA Studio. You can learn more about these formats by reading our blog article.

The EarMen Angel is designed to ensure that the balanced signal passes through the DAC to the headphone output without any alterations. There are no additional capacitors or components in the audio signal path that could introduce distortions, ensuring a pure and unadulterated sound experience.

With an impressive dynamic range of 120dB, the EarMen Angel brings your music to life, reproducing it with exceptional clarity and realism. The device features a linear power supply with ultra-low noise, further enhancing the quality of the sound.

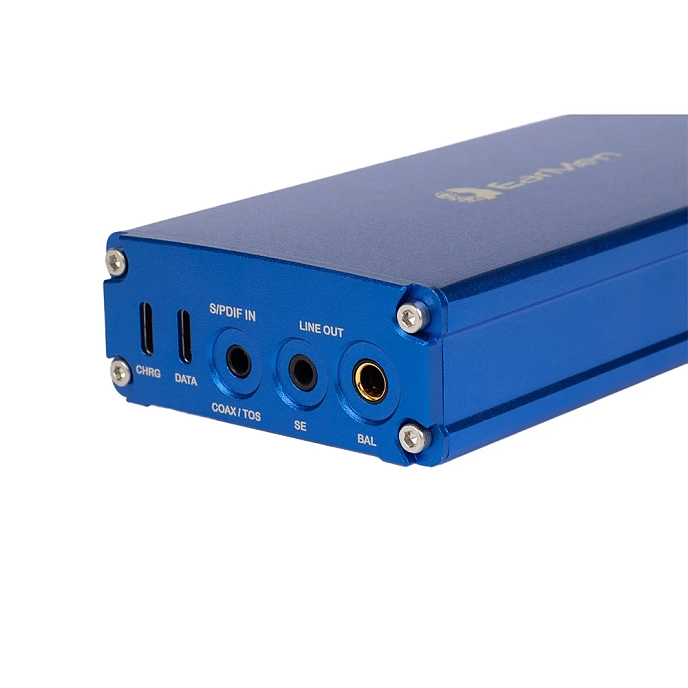

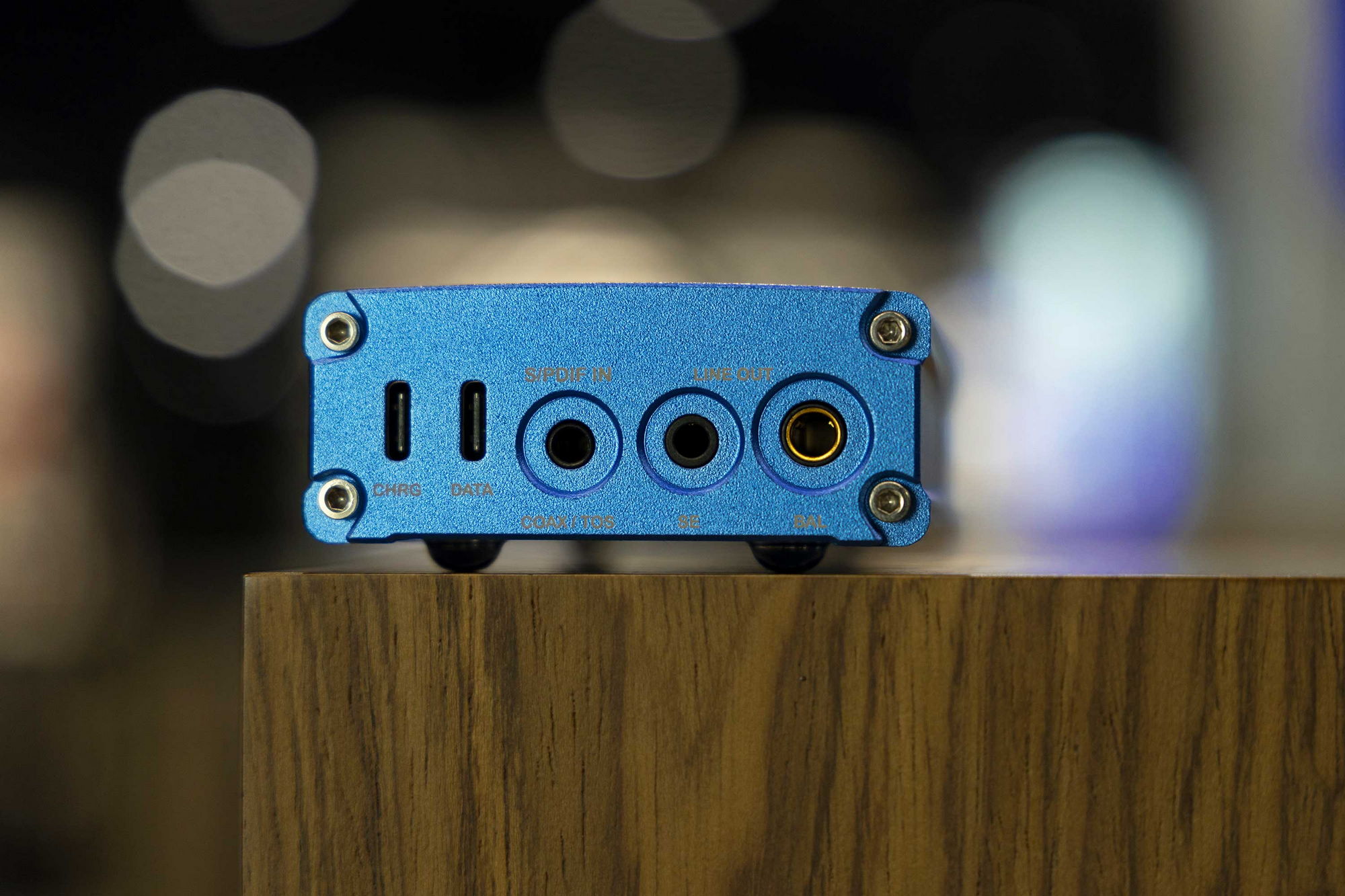

Separate USB Ports for Power and Data Transfer: Equipped with a 2x3000mAh battery, the EarMen Angel offers long-lasting playback time. Its quick charging feature allows you to fully charge the device in less than 3 hours. The separate data transfer and USB charging ports enable continuous operation when connected to a power source, allowing you to use it throughout the day in your audio system.

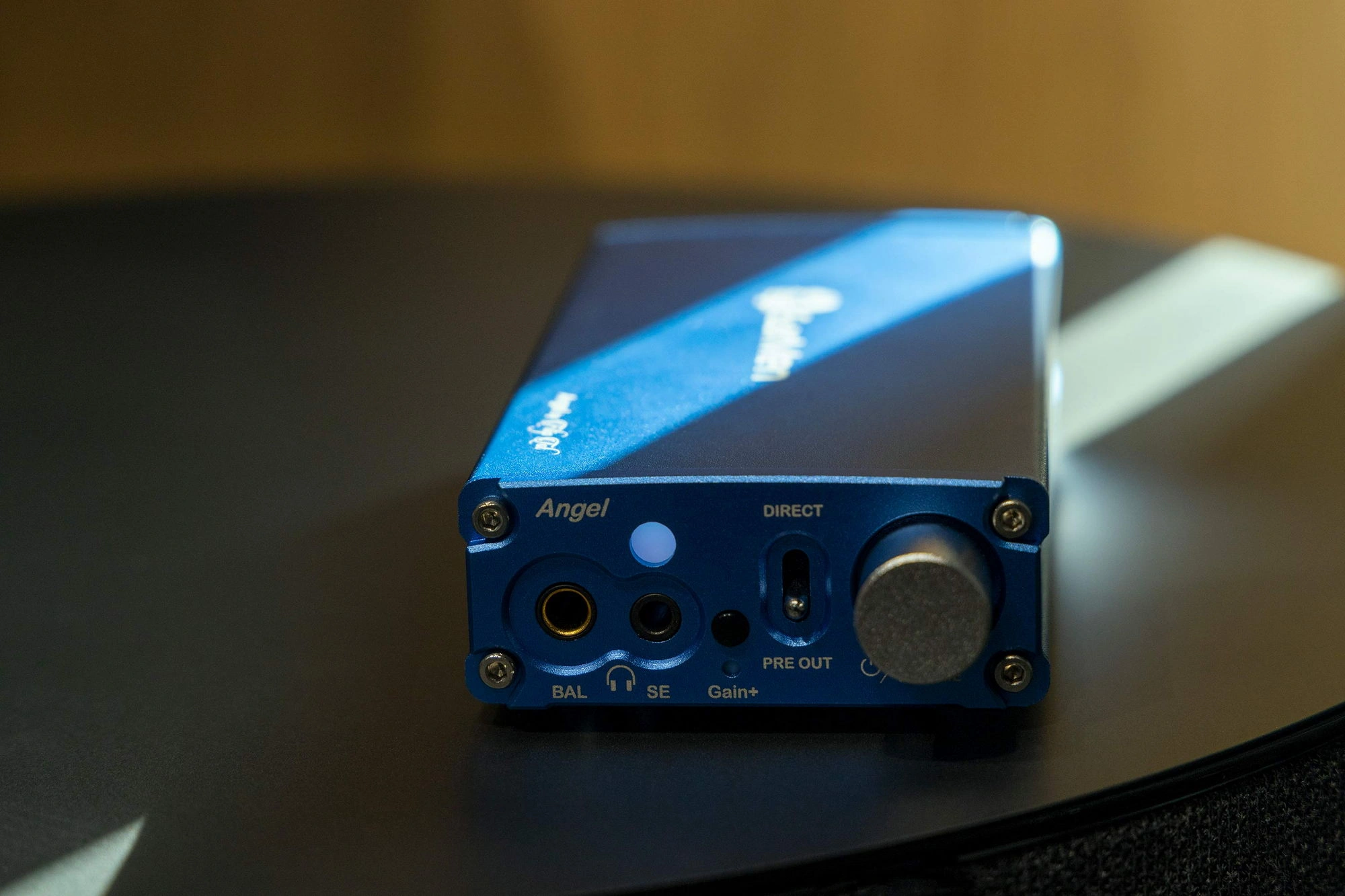

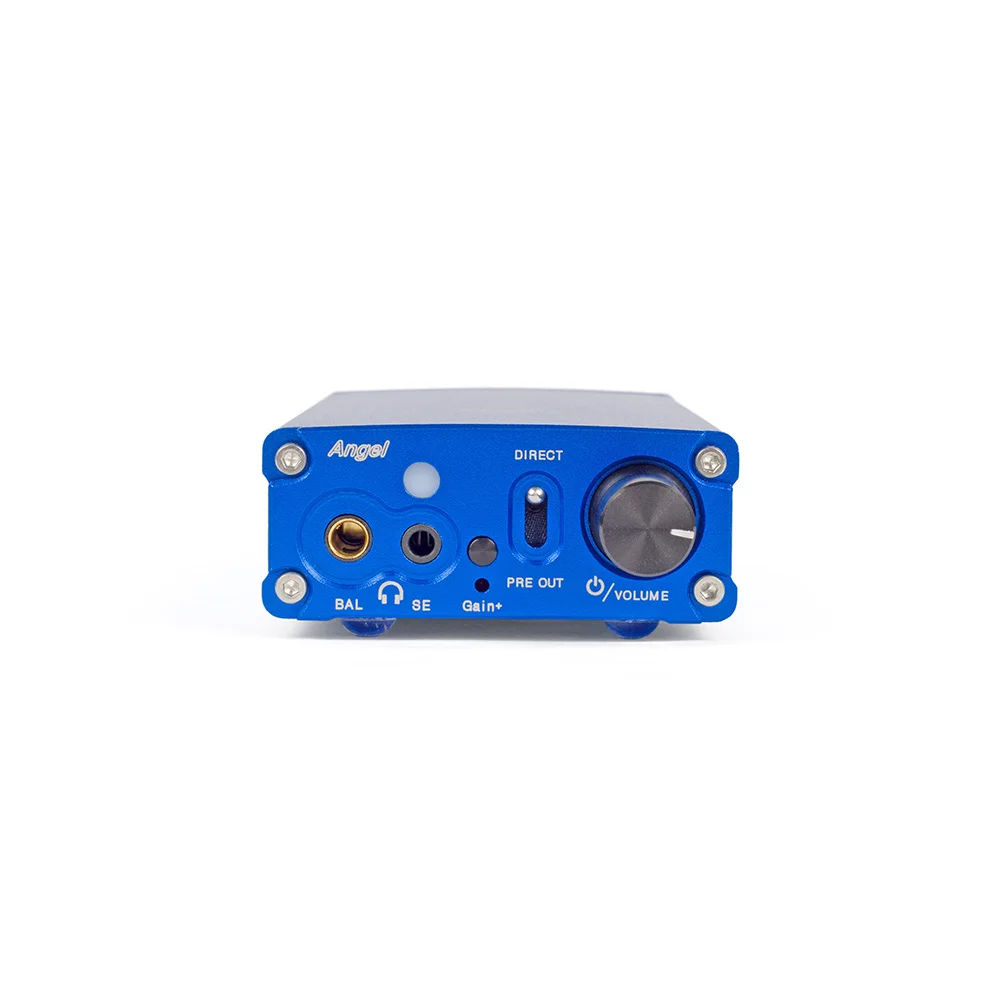

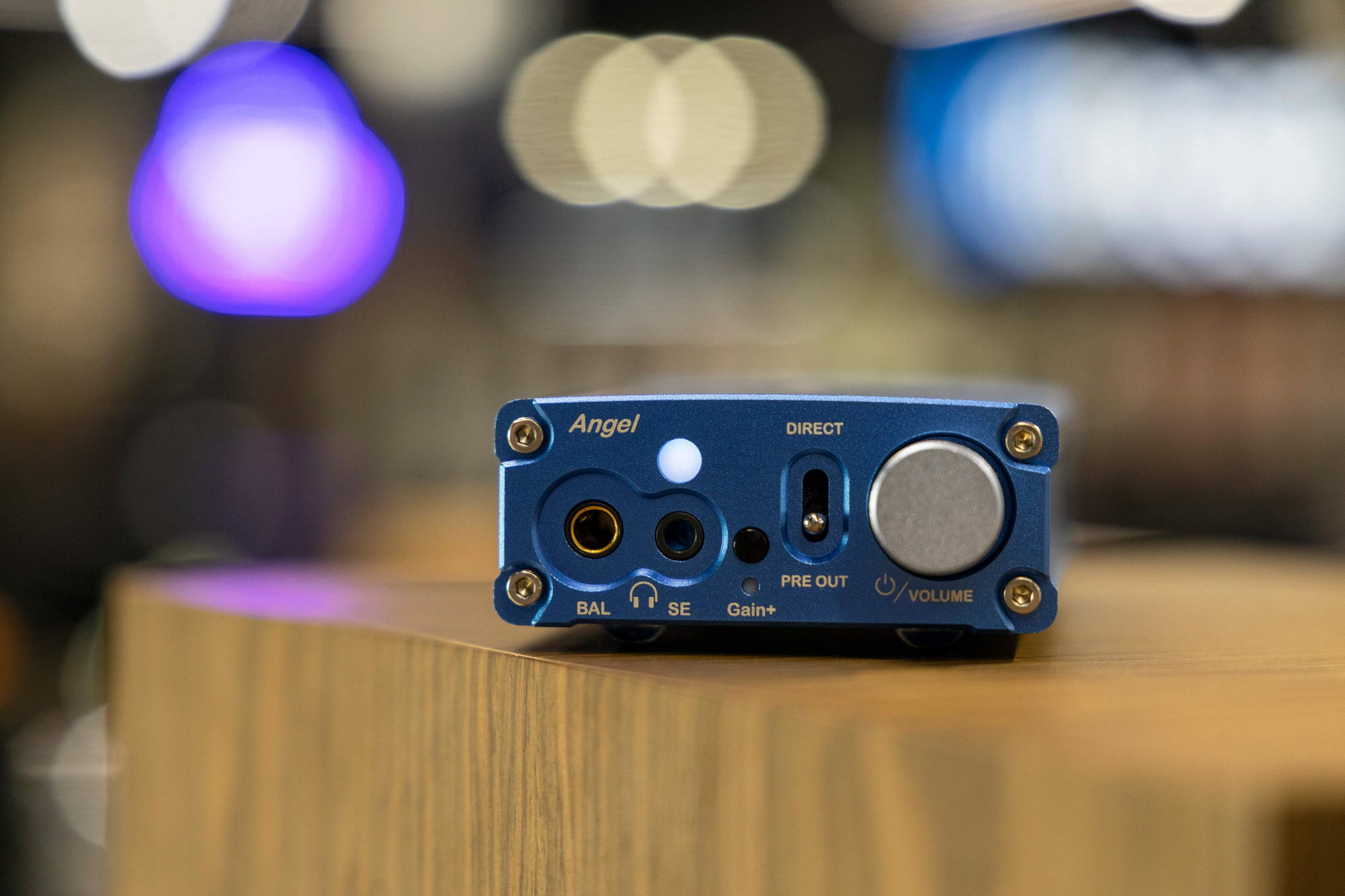

Additional Gain+ Amplification Mode: The EarMen Angel includes a Gain+ amplification mode, offering increased power, volume, and dynamic sound. This feature allows for precise volume adjustments to accommodate high-sensitivity headphones.

Package Includes:

  • Portable digital-to-analog converter
  • Documentation

Characteristics

  • Brand
  • Headphone output
    4.4mm jack, 3.5mm jack
  • Output connectors
    3.5mm jack, 4.4mm jack
  • DAC chip

    The chip used for digital-to-analog conversion

    Glossary of terms
    ES9038Q2M
  • DAC bit depth, bits
    32
  • Sampling rate, kHz

    The sampling frequency of a time-continuous signal during its sampling

    Glossary of terms
    768
  • Signal-to-noise ratio, dB

    The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

    Glossary of terms
    120
  • Powered by USB
    yes
  • Connecting to a computer via USB
    yes
  • DSD support

    Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

    Glossary of terms
    yes
  • Built-in battery
    yes
  • Color
  • Form factor
    portable
  • Input connectors
    Coaxial, Optical, USB-C
  • Internal DAC
    yes
  • Material
    aluminum
  • Playback via USB
    yes

    Playing music files via USB

    Словарь терминов
  • Circuit design
    operational
  • Preamplifier

    A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

    Glossary of terms
    yes
  • Depth, mm
    152
  • Height, mm
    27
  • Width, mm
    66
  • Weight, g
    340
  • Country of origin

    The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

    Serbia
  • Service life, months
    24
  • Warranty, months
    12
