Headphone amplifier with DAC

ddHiFi TC44Pro USB-C

no reviews

AED 389

Product code: 136083

CHAT WITH US

10:00-22:00

Available in stores

Pickup in Dubai:
Calculating...

Description

ddHiFi TC44CPro USB-C - a headphone adapter that combines a high-quality digital-to-analog converter and amplifier. The high-quality chip from Cirrus Logic ensures clear, rich, and accurate reproduction.

Features:

  • Dual CS43131 DAC
  • Output power of 120mW at 32 Ohms
  • Supports PCM 32-bit/384kHz and DSD256
  • Signal-to-noise ratio of 125dB
  • Input format indicator
  • 4.4mm balanced output
  • Aluminum alloy body
  • Strap buckle

The 4.4mm balanced DAC has undergone testing in the first-generation TC44B, second-generation TC44C, and current TC44Pro, with sound tuning optimized once again. Completely new internal wiring and soldering make the sound more balanced, and the arrangement of digital connectors and analog ports has been improved.

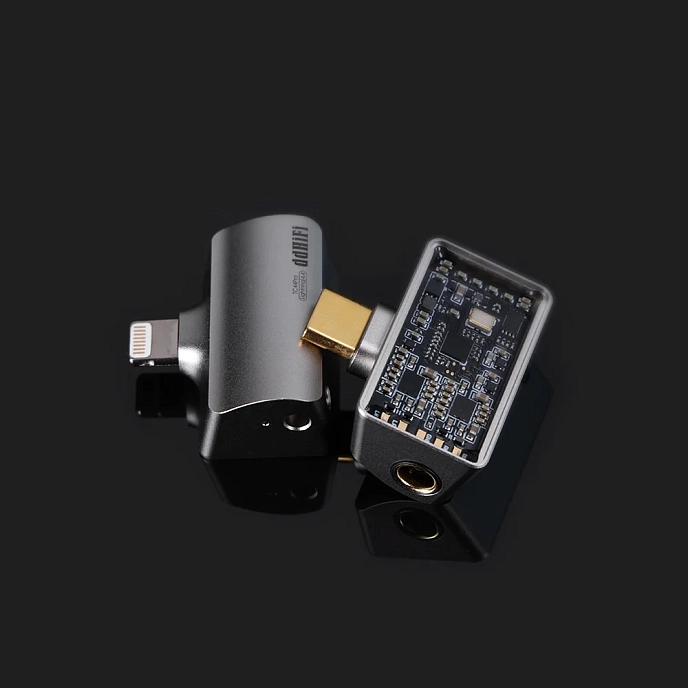

The device's body is carved from an aluminum alloy, while the back panel is made of 1800D carbon. The DAC block features the dual CS43131 chip from Cirrus Logic, providing excellent signal-to-noise ratio and a wide dynamic range.

The USB connector and the 4.4mm headphone jack are connected to the board using silver solder, ensuring high signal transmission quality.

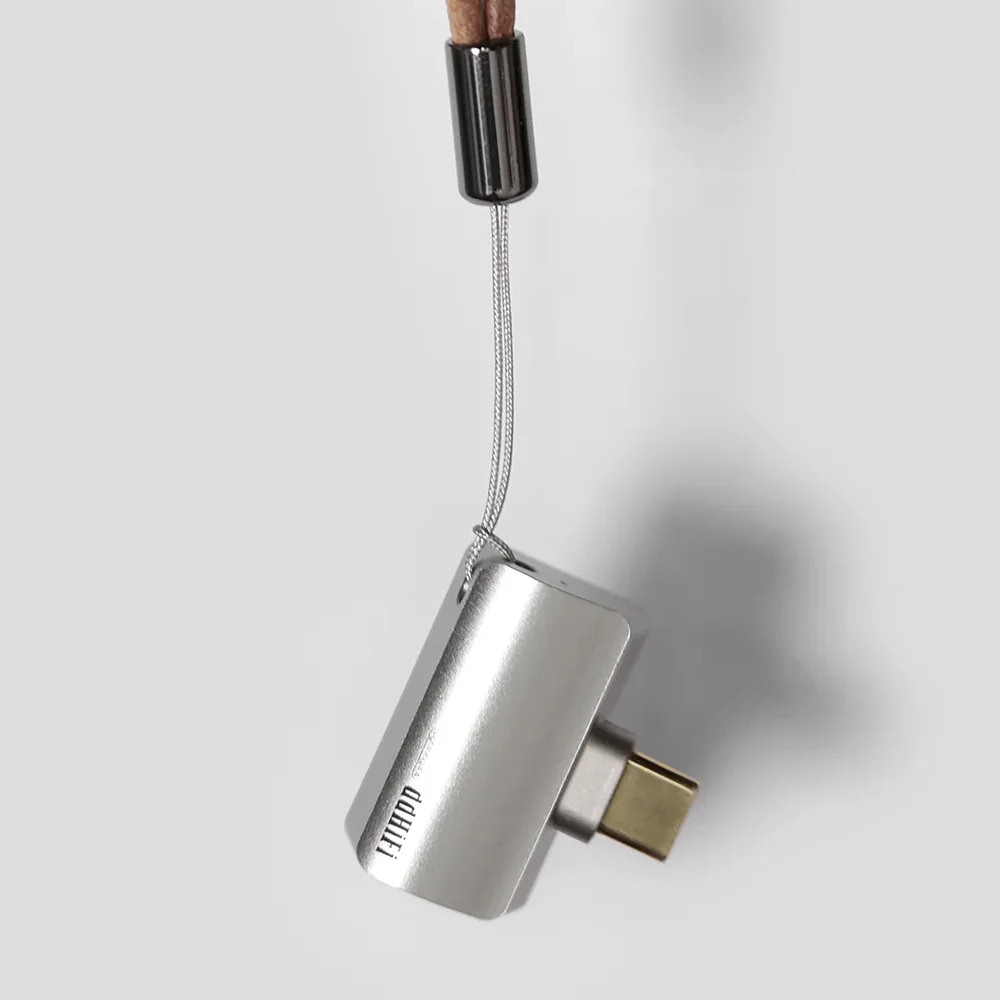

The amplifier's output power reaches up to 120mW at 32 Ohms. The DAC can work with a PCM signal of 32-bit/384kHz and native DSD256. The body of the adapter includes a strap buckle, making it more convenient to carry.

Package includes:

  • DAC
  • Documentation

Characteristics

  • Brand
  • Conductor material
    copper
  • Connector (left)
    USB-C, 4.4mm jack male
  • Connector (right)
    USB-C, 4.4mm jack male
  • Headphone output
    4.4mm jack
  • Output connectors
    USB-C
  • Power output
    0.12
  • DAC chip
    2 x CS43131
  • DAC bit depth, bits
    32
  • Sampling rate, kHz
    384
  • Signal-to-noise ratio, dB
    125
  • Powered by USB
    yes
  • Connecting to a computer via USB
    yes
  • DSD support
    yes
  • The lowest frequency, Hz
    20
  • The highest frequency, kHz
    20
  • Color
  • Form factor
    portable
  • Input connectors
    USB-C
  • Internal DAC
    yes
  • Material
    aluminum
  • Playback via USB
    yes
  • Circuit design
    operational
  • Power, W
    0.12
  • Depth, mm
    12
  • Height, mm
    18
  • Width, mm
    30
  • Weight, g
    9
  • Country of origin
    China
  • Service life, months
    24
  • Warranty, months
    12
