Headphone amplifier with DAC
ddHiFi TC35Pro M2 Lightning

Product code: 136087
no reviews
AED 325
Delivery
Pickup in Dubai:
1 store, Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Media City, Business Central Tower B
Online store (Dubai)
In stock

Description

Reviews (0)

Description

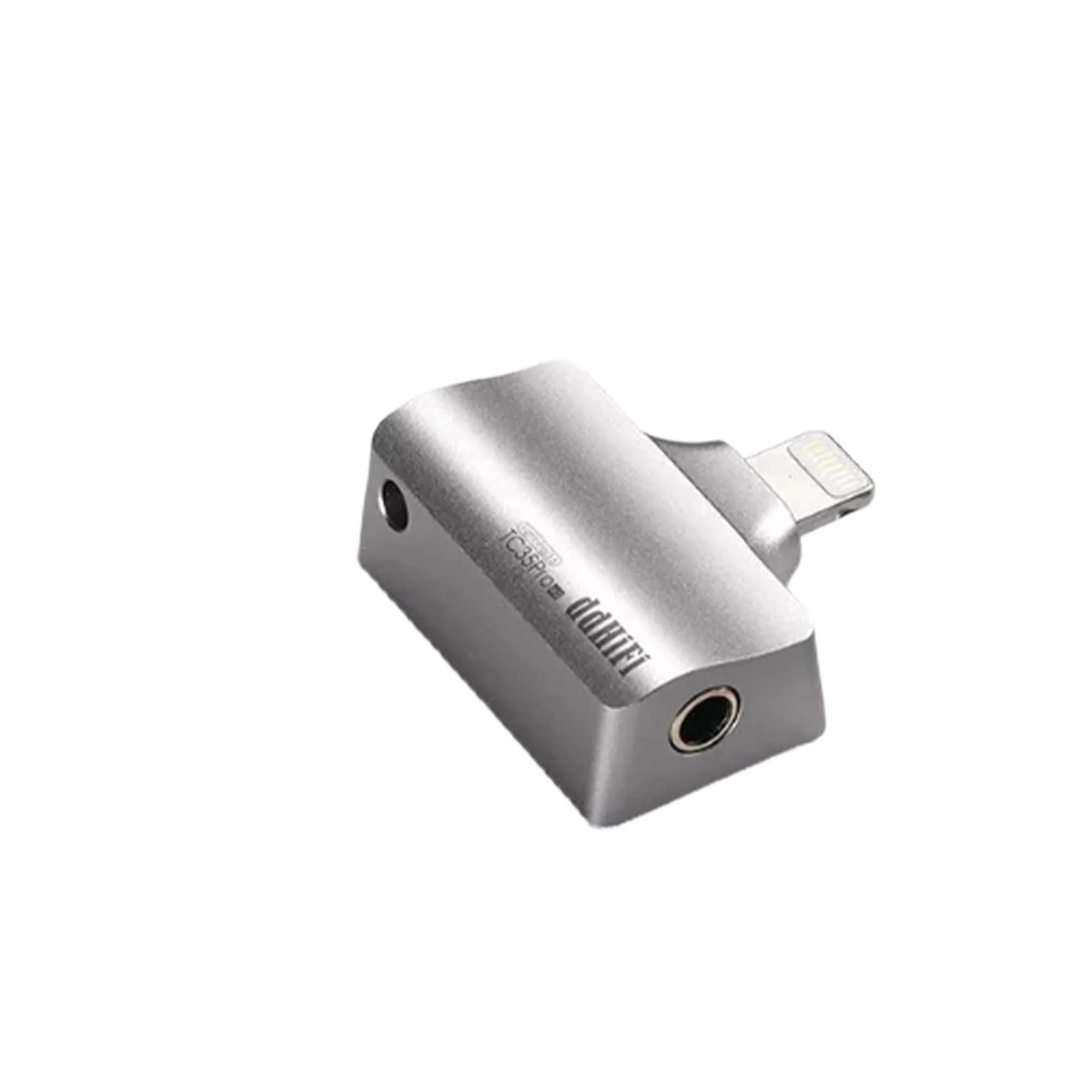

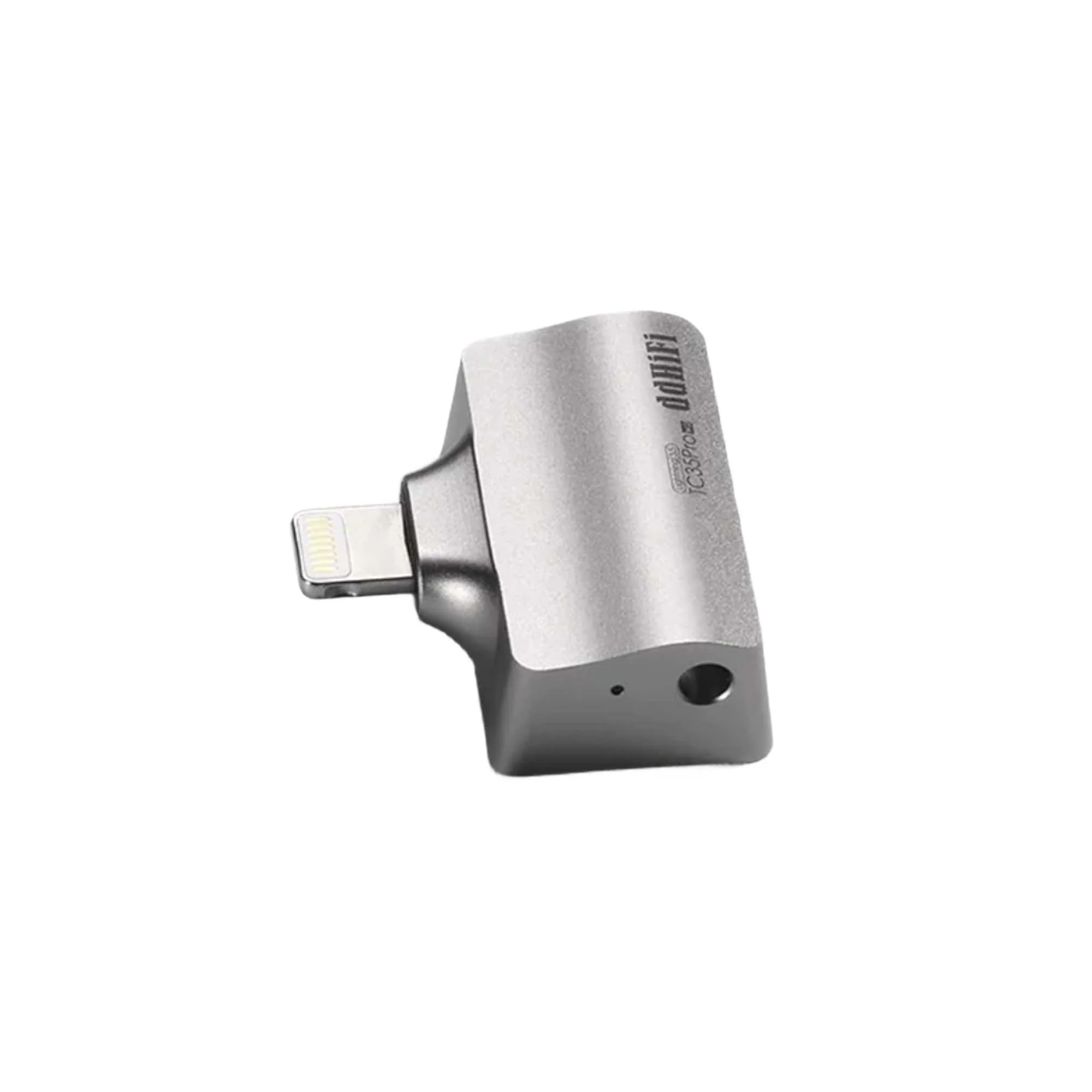

ddHiFi TC35Pro Mountain 2 - a new version of a DAC and headphone amplifier in an adapter format. This compact device combines advanced technologies, providing excellent sound quality that meets your preferences.

Features:

  • DAC chip: CS43131;
  • Amplifier chip: ES9603Q;
  • Supports PCM 32 bit / 384 kHz and DSD256;
  • Portable DAC with a 3.5mm connector;
  • Input: Lightning;
  • Power: 65 + 65 mW (32 ohms);
  • SNR: >122 dB;
  • THD+N: <0.0004%;
  • Weight: 8.5 g.

The portable digital-to-analog converter with a built-in headphone amplifier ddHiFi TC35C has an audio output for headphones and a Lightning USB input. It is suitable for connecting headphones with a 3.5mm jack to Lightning-supported devices. The power of ddHiFi TC35Pro M2 is 65 + 65 mW with 32-ohm headphones. It uses the CS43131 chip as the DAC and the ES9603Q as the amplifier.

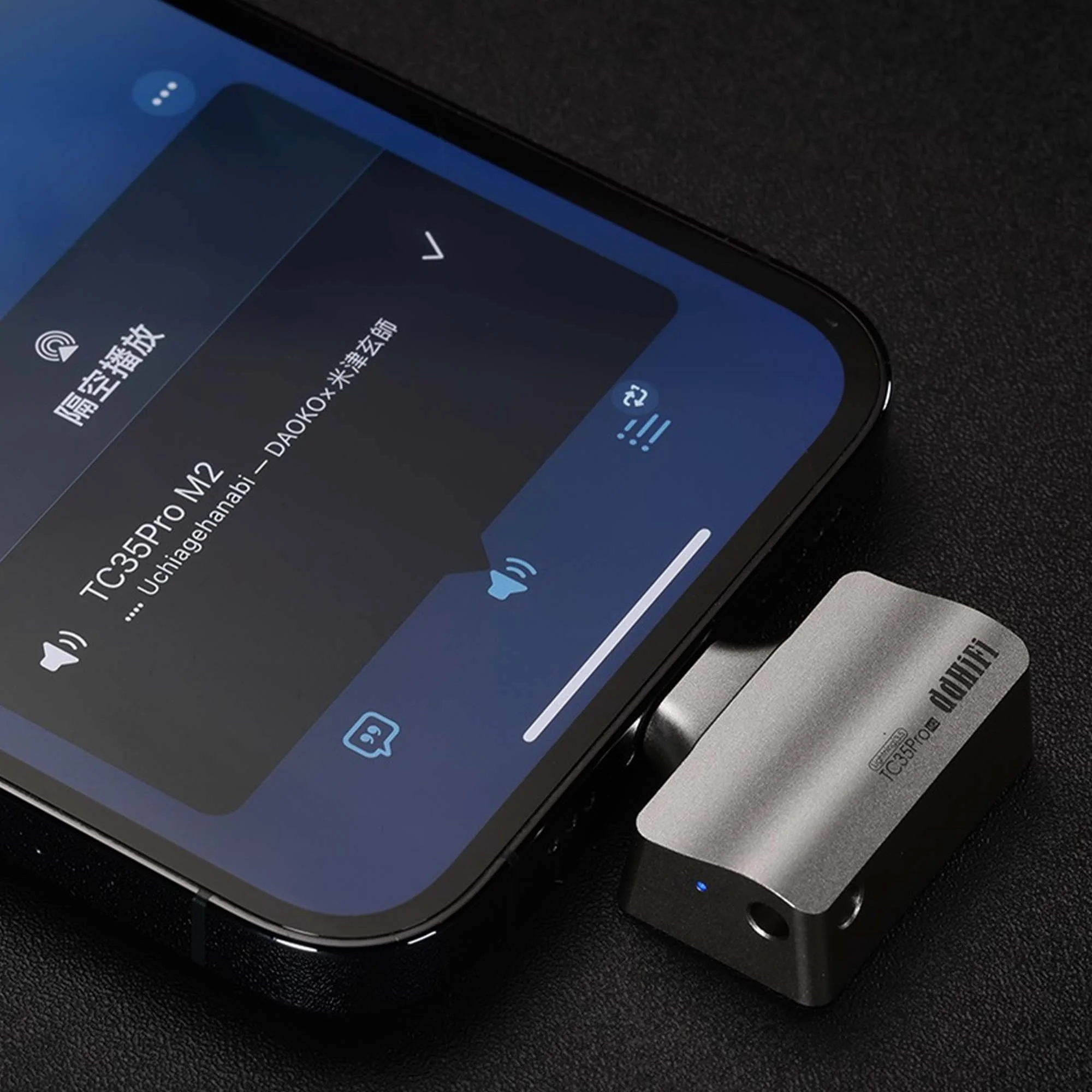

ddHiFi TC35Pro M2 features a light indicator on the left side with an internal light guide, creating a soft and attractive glow. The indicator lights up blue for PCM output and green for DSD decoding output, allowing you to always know the status of your sound.

Package includes:

  • ddHiFi DAC.
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Cable length, m

The length should allow you to lay the cable with a small margin. The longer the cable, the more impact it can have on the sound.

Glossary of terms
0.1
Cable type
straight

Straight, non-twisted cable with one-way connection.

Словарь терминов
Connector (left)
3.5mm jack female, Lightning
Connector (right)
3.5mm jack female, Lightning
USB version

A technology standard that affects the data transfer rate and the charging speed.

Glossary of terms
2.0
Headphone output
3.5mm jack
Output connectors
3.5mm jack
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
0.065
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
CS43131
DAC bit depth, bits
32
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
384
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
120
Powered by USB
yes
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
20
Color
Form factor
portable
Input connectors
Lightning
Internal DAC
yes
Material
aluminum
Playback via USB
yes

Playing music files via USB

Circuit design
operational
Power, W
0.06
Depth, mm
10.4
Height, mm
17
Width, mm
28.5
Weight, g
8.5
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

China
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
