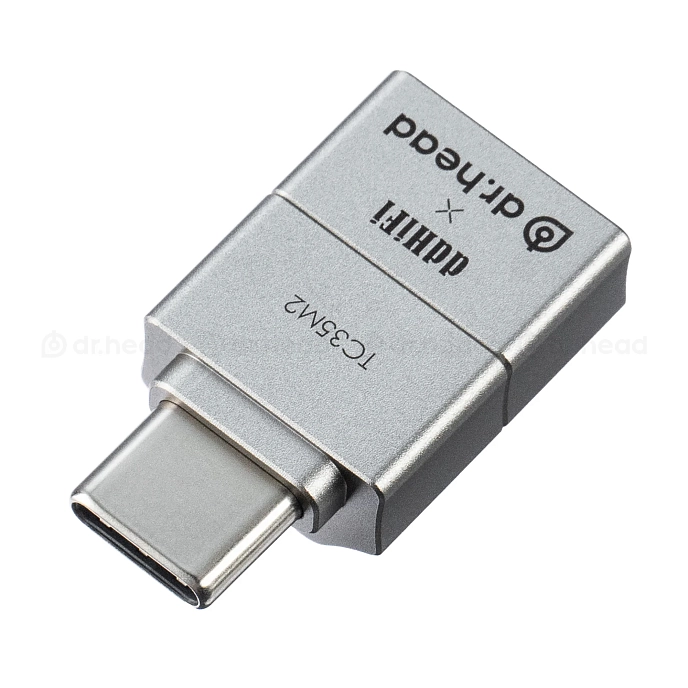

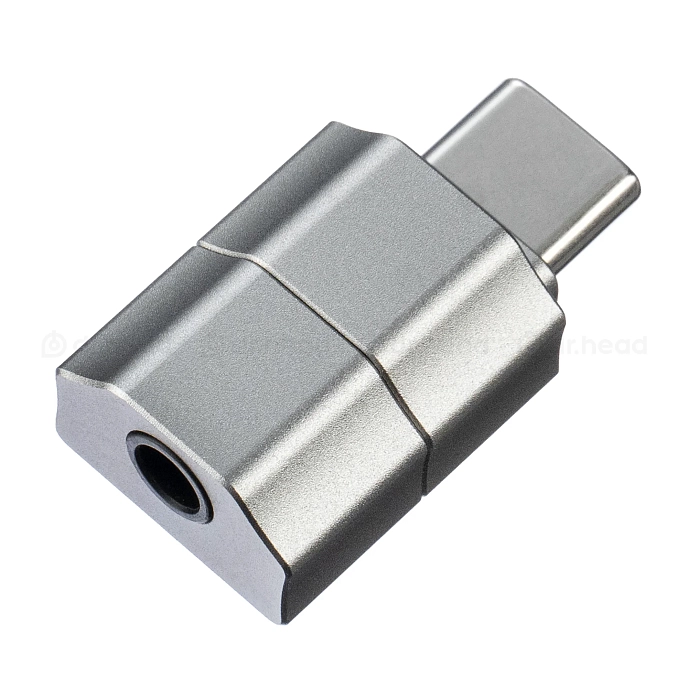

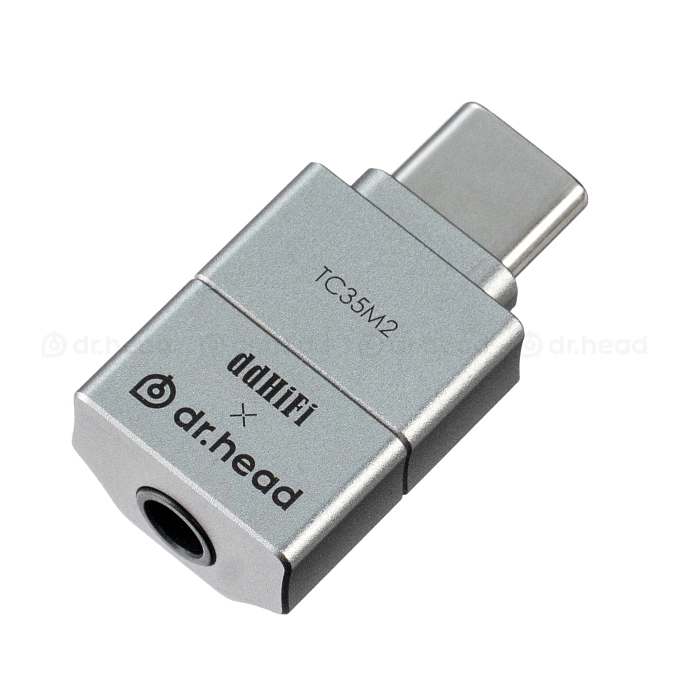

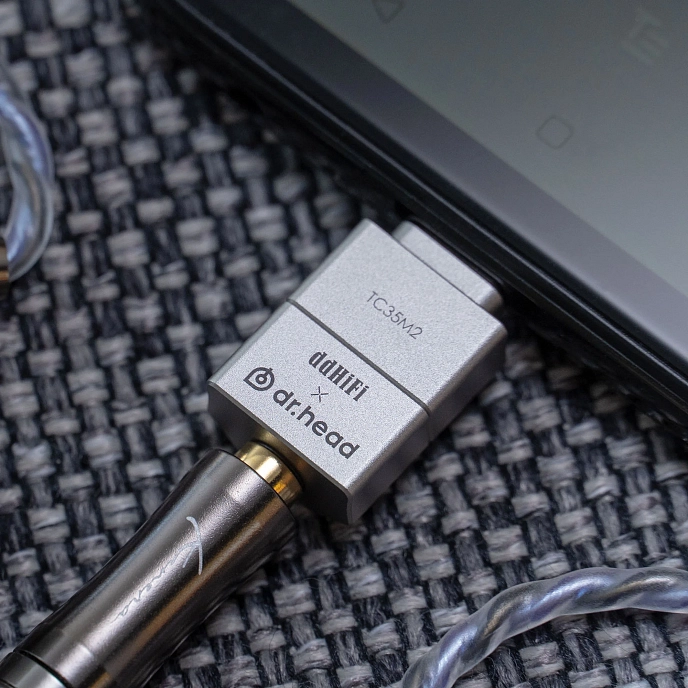

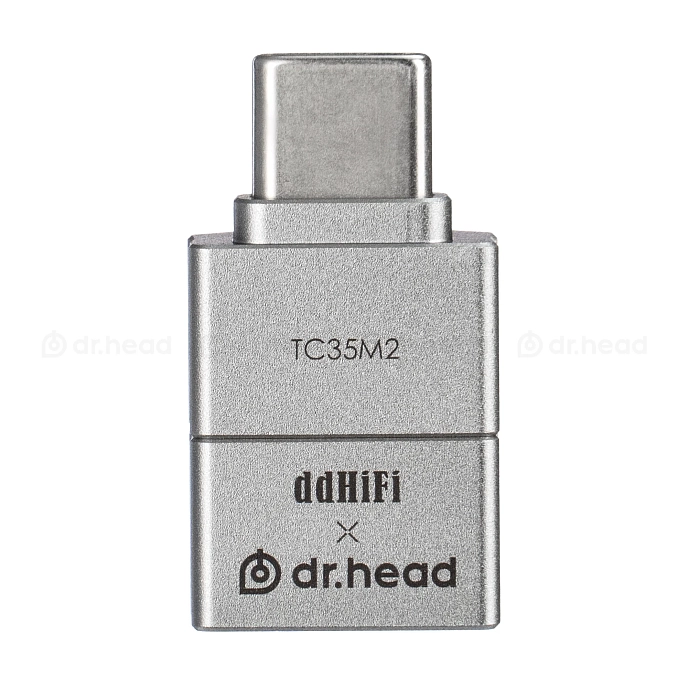

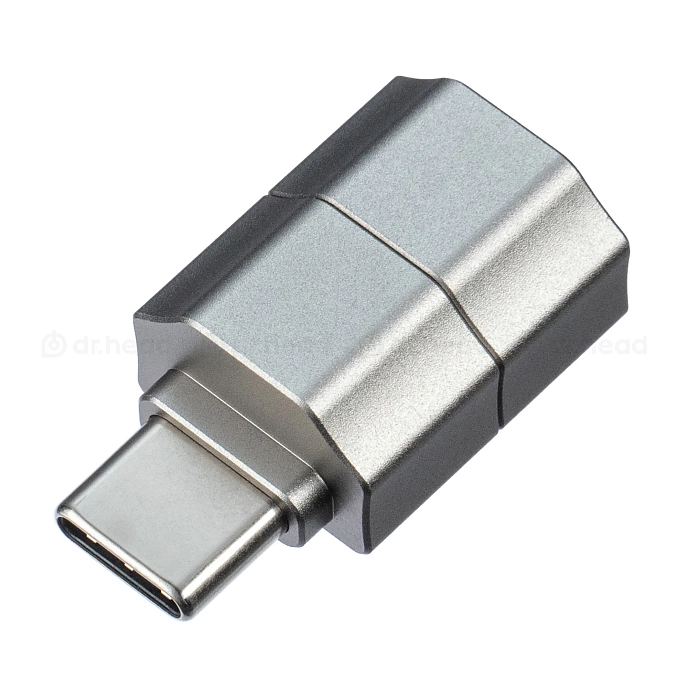

ddHiFi x Dr.Head TC35M2
The ddHiFi x Dr.Head TC35M2 is a new version of a headphone DAC and amplifier in adapter format, created in collaboration between two professional audio brands. This compact device combines advanced technologies to provide superior listening quality tailored to your preferences.
Features:
- Headphone amplifier chip: ES9603Q;
- Supports PCM 32-bit / 384 kHz;
- Power output: 45+45 mW (32 ohms);
- Portable DAC with 3.5mm jack;
- Input: USB-C.

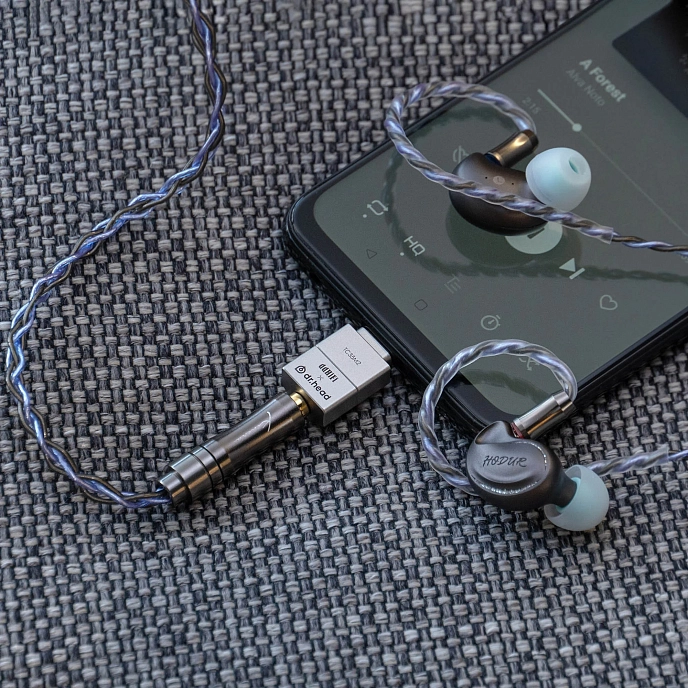

The TC35M2 model is designed for the convenience of wired headphone users. Compared to the previous generation, this 2nd generation features improved housing quality and increased durability of the connector, making it more long-lasting and reliable.
Headphone Connection Detection Function
The headphone jack is equipped with a connection detection function that allows you to determine if headphones are connected. The TC35M2 also supports a four-pole 3.5mm headphone cable, enabling you to answer phone calls and control your music playback.
CS43131 DAC
The TC35M2 supports popular music applications such as Apple Music, QQ Music, Netease Cloud Music, Sony Lossless Music, and more. While most lossless music formats offered by these applications support frequencies of 44.1 kHz, 96 kHz, or 192 kHz, the TC35M2 supports PCM decoding up to 384 kHz.
Equipped with an autonomous decoding chip and operational amplifier chip, the TC35M2 ensures stable performance and output power, compatible with most 3.5mm headphones available on the market. It is suitable for connecting headphones with a 3.5mm jack to devices supporting USB-C. The power output of the ddHiFi TC35M2 is 45+45 mW with 32-ohm headphones. It uses the CS43131 chip as the DAC and the ES9603Q chip as the amplifier.
What's Included:
- ddHiFi adapter;
- Documentation.
