Cable

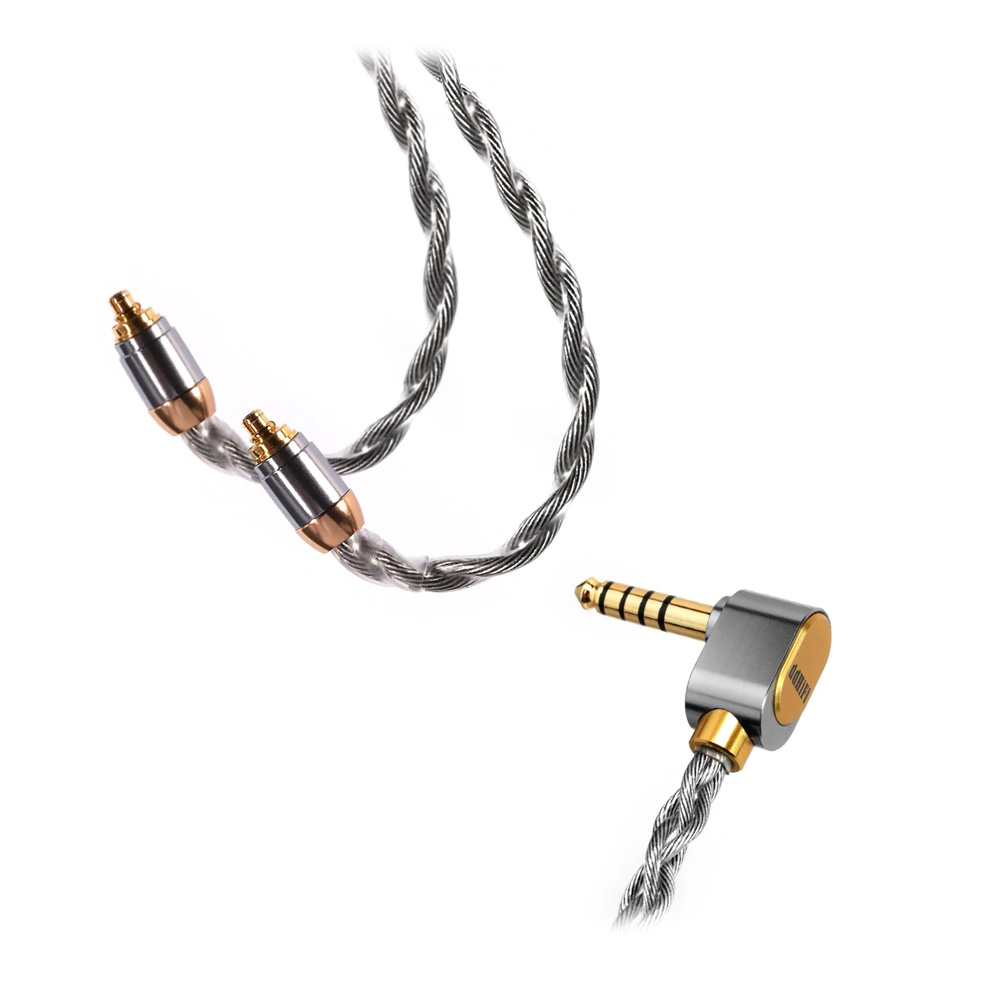

ddHiFi BC130A Air Nyx MMCX - 4.4mm 1.2m

Product code: 143683
no reviews

Description

Reviews (0)

Description

ddHiFi BC130A Air Nyx - Replacement headphone cable. Nyx sets a new standard for the Air series. The materials of the highest quality are used in the manufacturing process. The shielding layer improves signal transmission. Braiding layer and unique weaving structure. Exclusively handmade work guarantees superior quality of execution.

Features:

  • Construction: 27.2AWG (conductor) + 24.9AWG (shield);
  • Conductor: Second-generation Litz made of copper and pure silver;
  • Conductor: 7x7 0.05 mm;
  • Shield: 7x14 0.05 mm;
  • Inner insulation: NUC HDPE foam (Japan);
  • Outer insulation: polymer (USA).

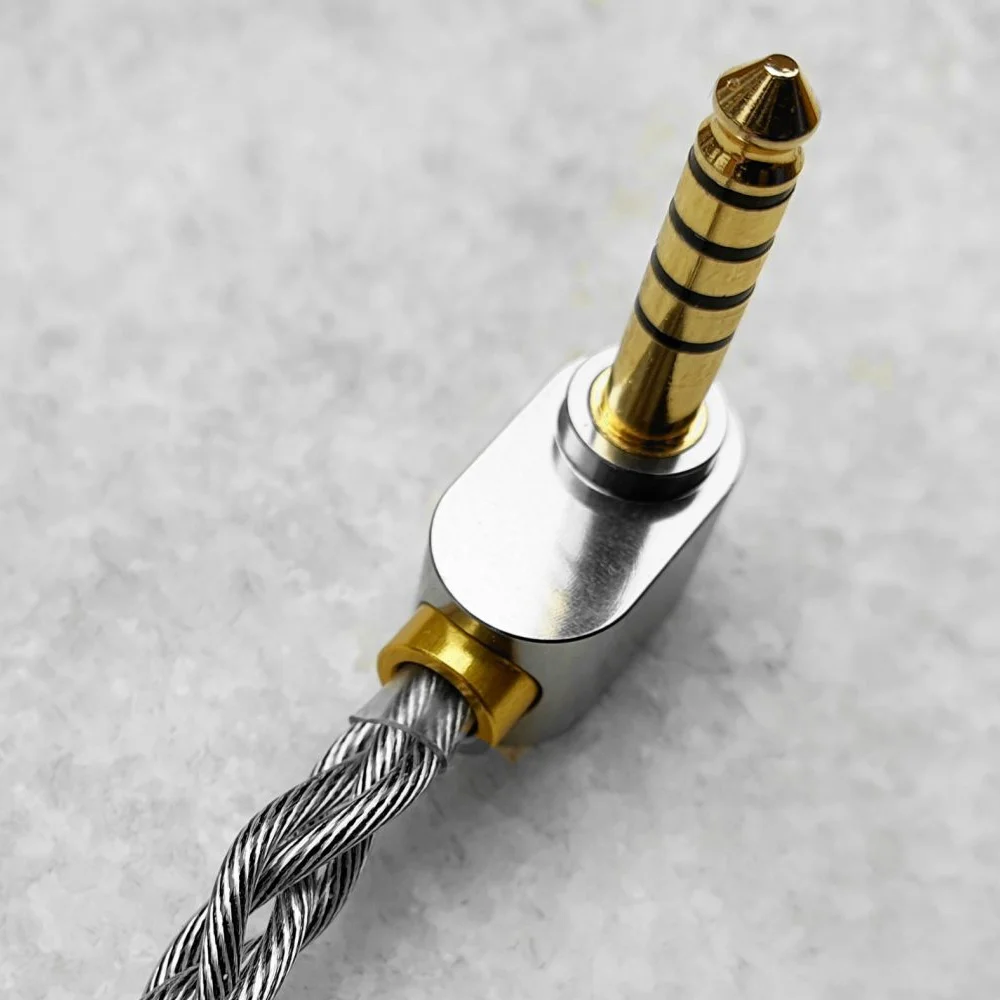

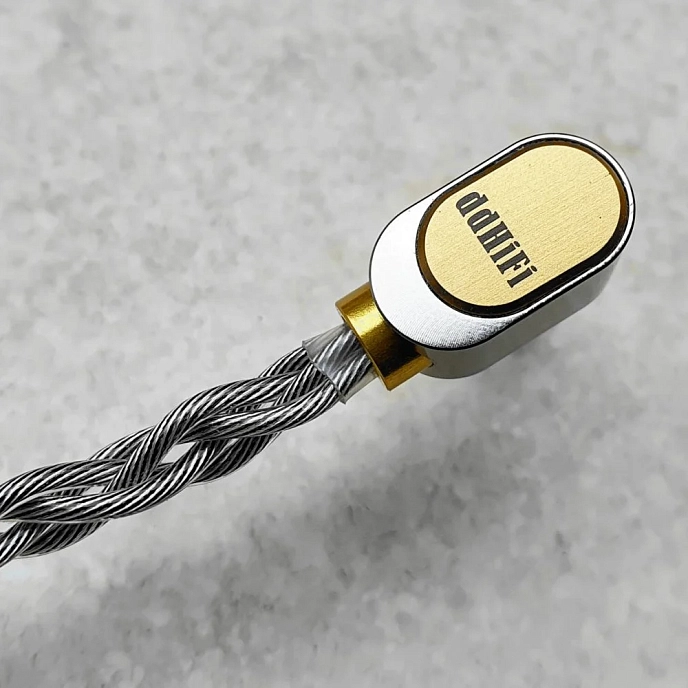

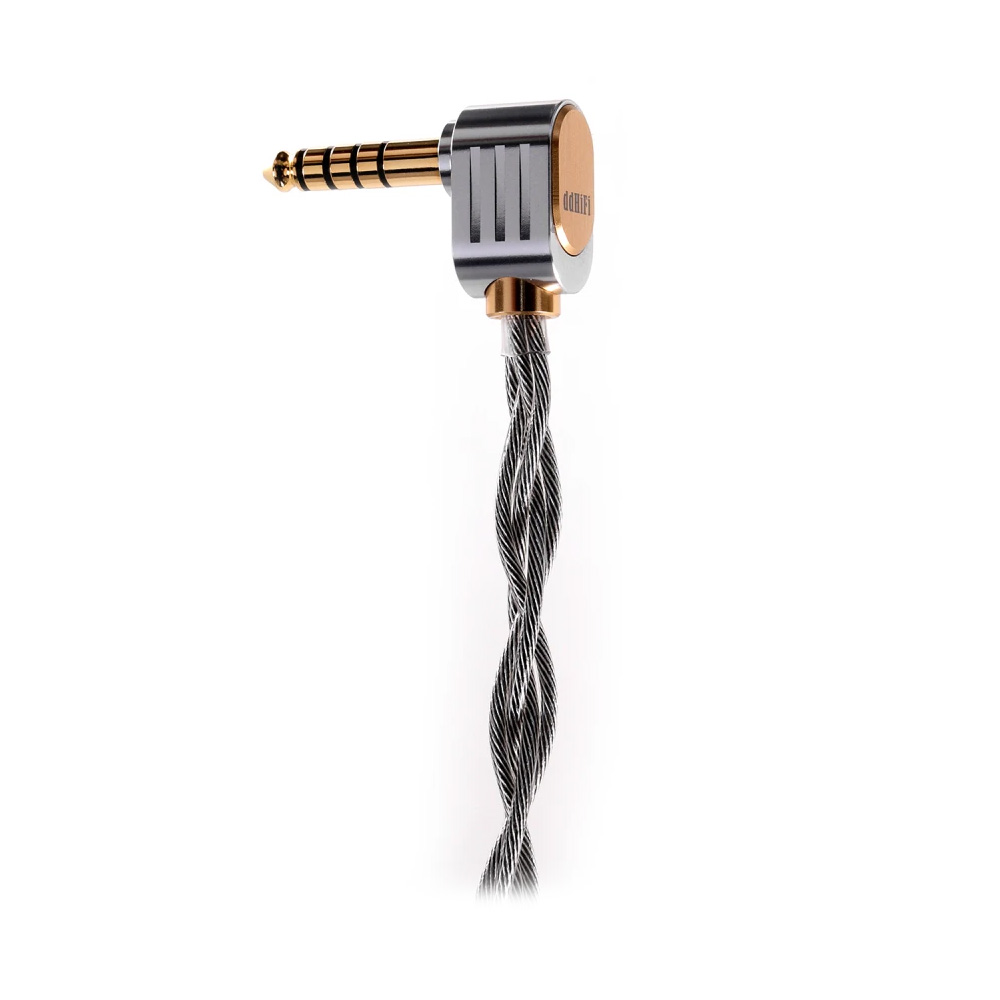

What are the advantages of the L-shaped balanced connector with a diameter of 4.4 mm?

Most headphone cables with a diameter of 4.4 mm have straight connectors, but not everyone prefers to use them that way. The process of manufacturing a straight plug is relatively simple, and its assembly can be completed by securing the plug in a threaded hole in the housing. However, if it is made in the form of an L-shaped plug, the cable needs to be handmade, as machines cannot be used to twist the wires. In addition, assembly is also complicated due to the increase in the number of parts in the plug.

Furthermore, plug protection can only be done after soldering to ensure uniform connection pressure of the four-core wires before inserting the four wires into the metal shell through four separate processes. Finally, once the 4.4 mm plug is securely installed, the wire braiding can begin.

Does the shielding layer improve signal transmission?

The answer is definitely yes. Environmental interference can easily affect the performance of headphone cables. There are many ways to reduce interference, including increasing the purity of the material, wrapping it in a braided layer, creating a unique structure, etc. Additionally, when using a shielding layer, it can be securely connected to the shielding on the output device for maximum interference protection.

The Nyx headphone cable's shielding layer is fully connected to the 4.4 mm plug and the housing with a 0.78 mm contact pin. Therefore, when connecting to a 4.4 mm output device socket, the shielding layer and the device housing can be fully grounded, significantly reducing interference in the signal.

High-quality connectors

The cable is equipped with a shielded 2-pin connector from ddHiFi. The contact pin is made of a two-layer jacket, where the inner layer is intended for soldering the shielding layer of the headphone cable, while the connecting pin is made of a 24-carat gold-plated copper-silver alloy.

Package:

  • Cable;
  • Storage case.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Balanced cable

A cable for a balanced (symmetrical) connection allows you to neutralize the negative impact of cable length on signal transmission, and also has a beneficial effect on the final sound.

Glossary of terms
yes
Braid material
PVC
Cable length, m

The length should allow you to lay the cable with a small margin. The longer the cable, the more impact it can have on the sound.

Glossary of terms
1.2
Cable type
twisted Y-shaped

Spiral with connection to two cups of headphones. Lengthens when stretched

Словарь терминов
Color
Conductor material
copper
Connector (left)
MMCX male, 4.4mm jack male
Connector (right)
MMCX male, 4.4mm jack male
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
China
Service life, months
24
Warranty, months
12
