Subwoofer
Dali SUB E-9 F Satin Black

Product code: 119226
no reviews
AED 2,795
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

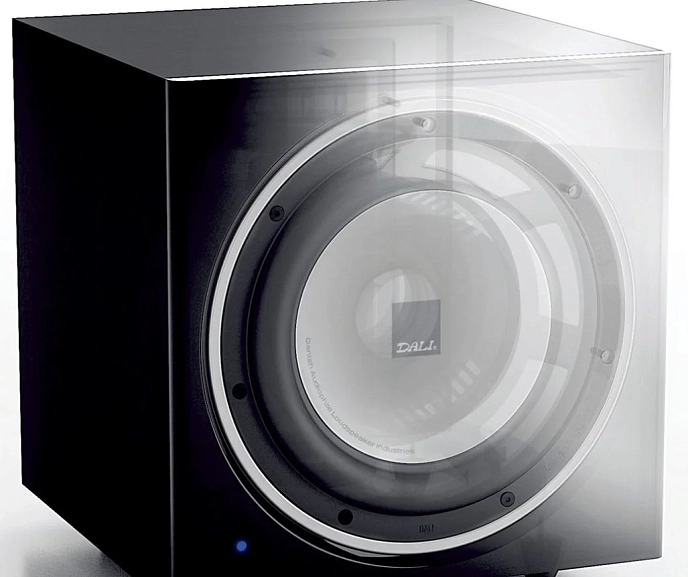

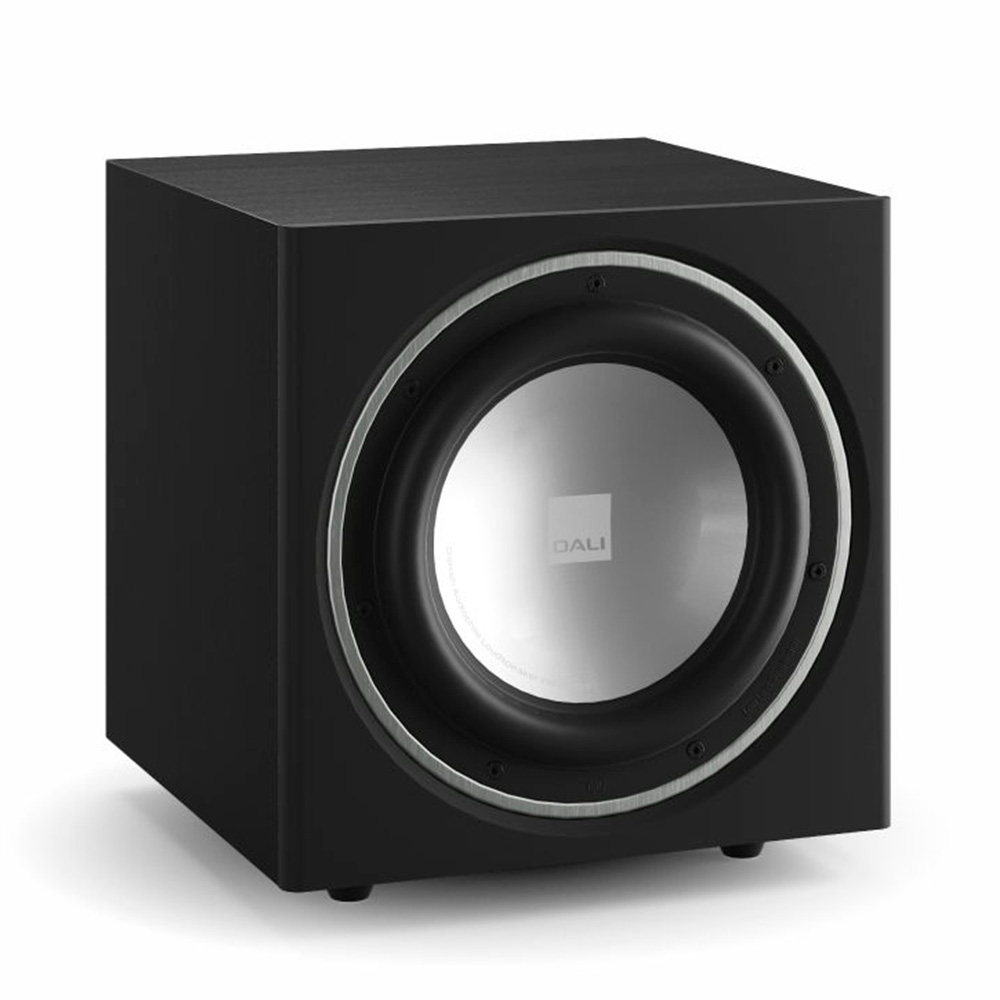

DALI Sub E-9 F Subwoofer

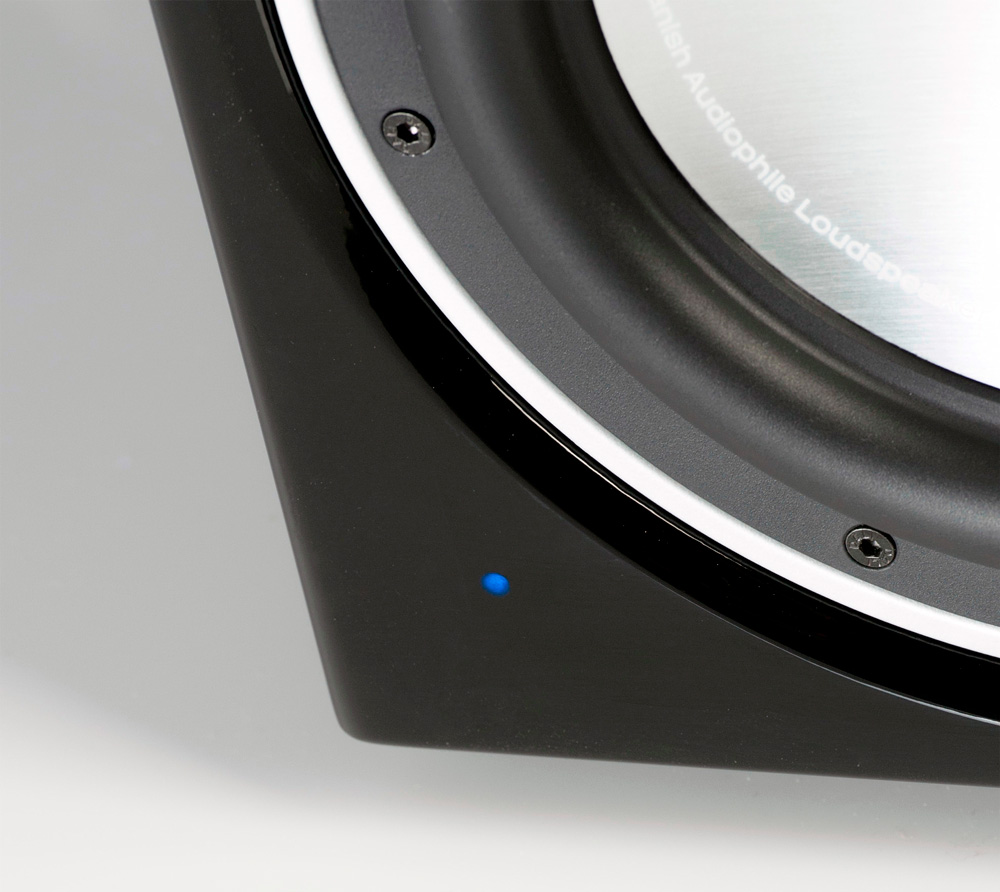

The DALI Sub E-9 F subwoofer has relatively small dimensions and high-quality external finishing, which allows it to remain virtually invisible in a residential interior. The neatly rounded corners of the enclosure give the device a tidy appearance.

Features:

  • 228mm aluminum woofer with a rubber surround
  • Built-in Class D amplifier with 170W RMS power
  • Rear panel with controls for level adjustment, crossover frequency, and phase
  • Line and LFE inputs
  • Phase-inverting enclosure with a sturdy aluminum base

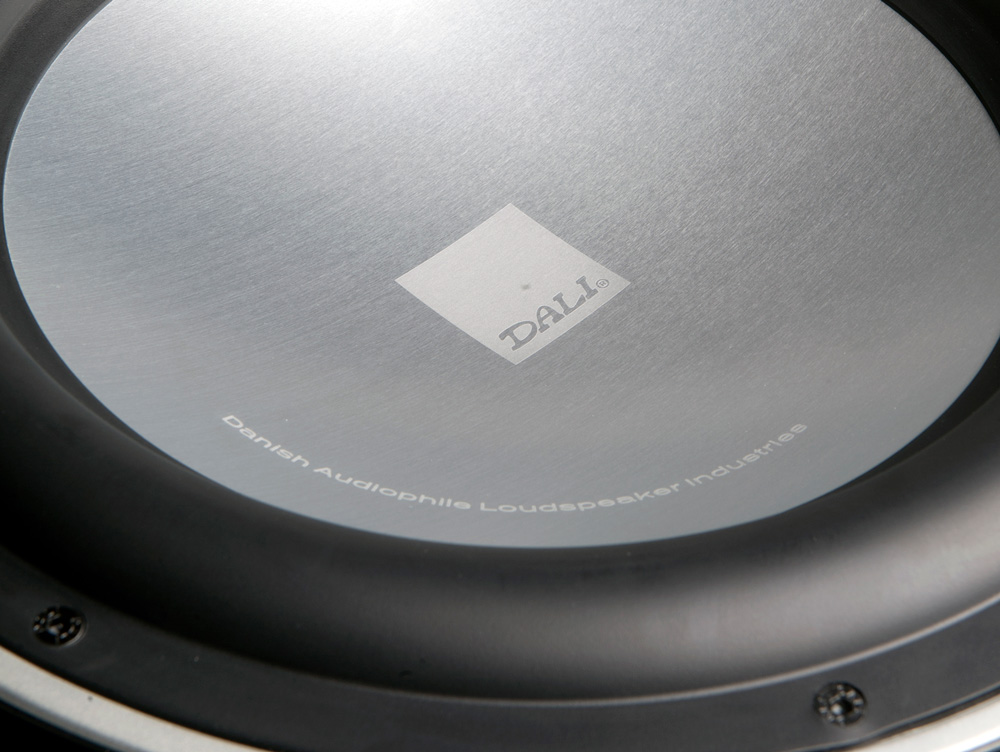

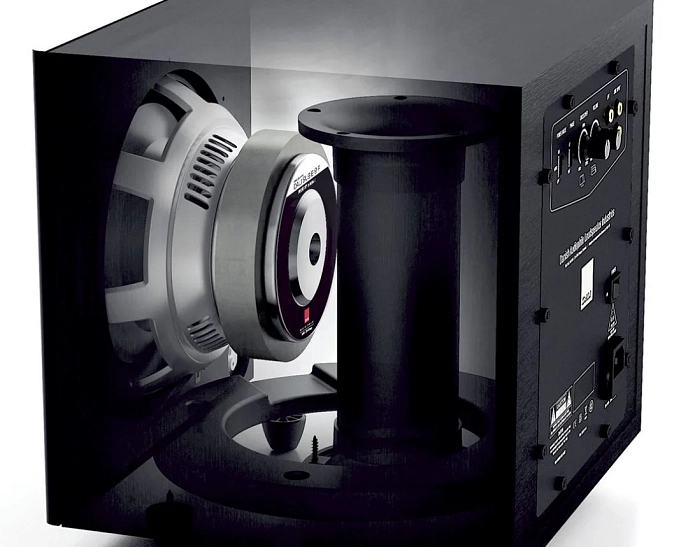

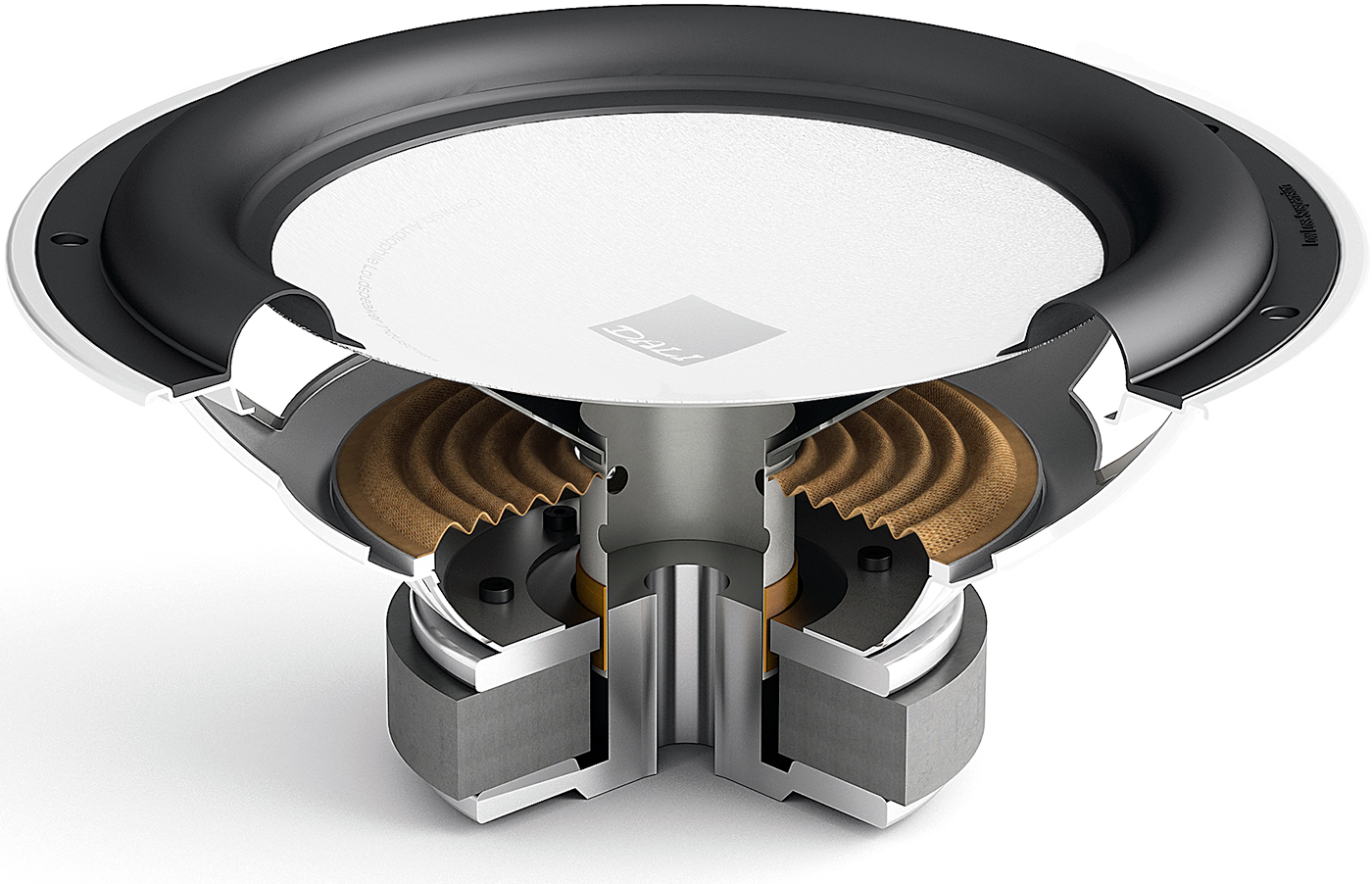

The Sub E-9 F is equipped with a large 230mm bass driver capable of moving a significant volume of air and creating serious sound pressure in a room. The aluminum woofer is lightweight yet rigid, allowing it to move quickly and with high amplitude without bending or distorting the sound. It features a four-layer voice coil and a powerful magnet for precise tracking of even the smallest changes in the audio signal. The bass driver is loaded onto a phase inverter with the output port located on the bottom panel of the enclosure, ensuring even distribution of low frequencies in the room. For unobstructed airflow from the sub's base regardless of the type of flooring, it is placed on tall stands. A removable grille is not included but can be purchased separately.

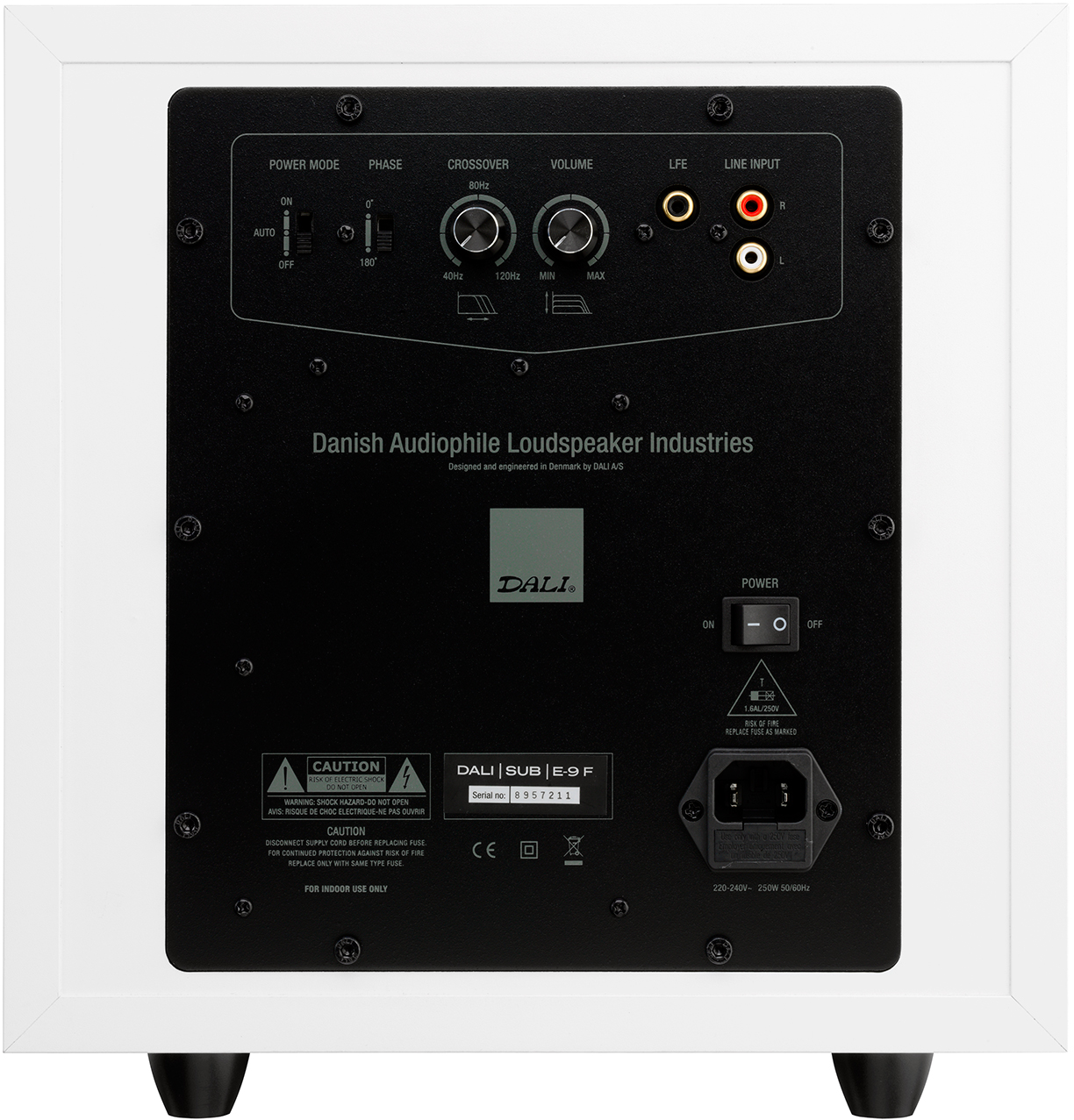

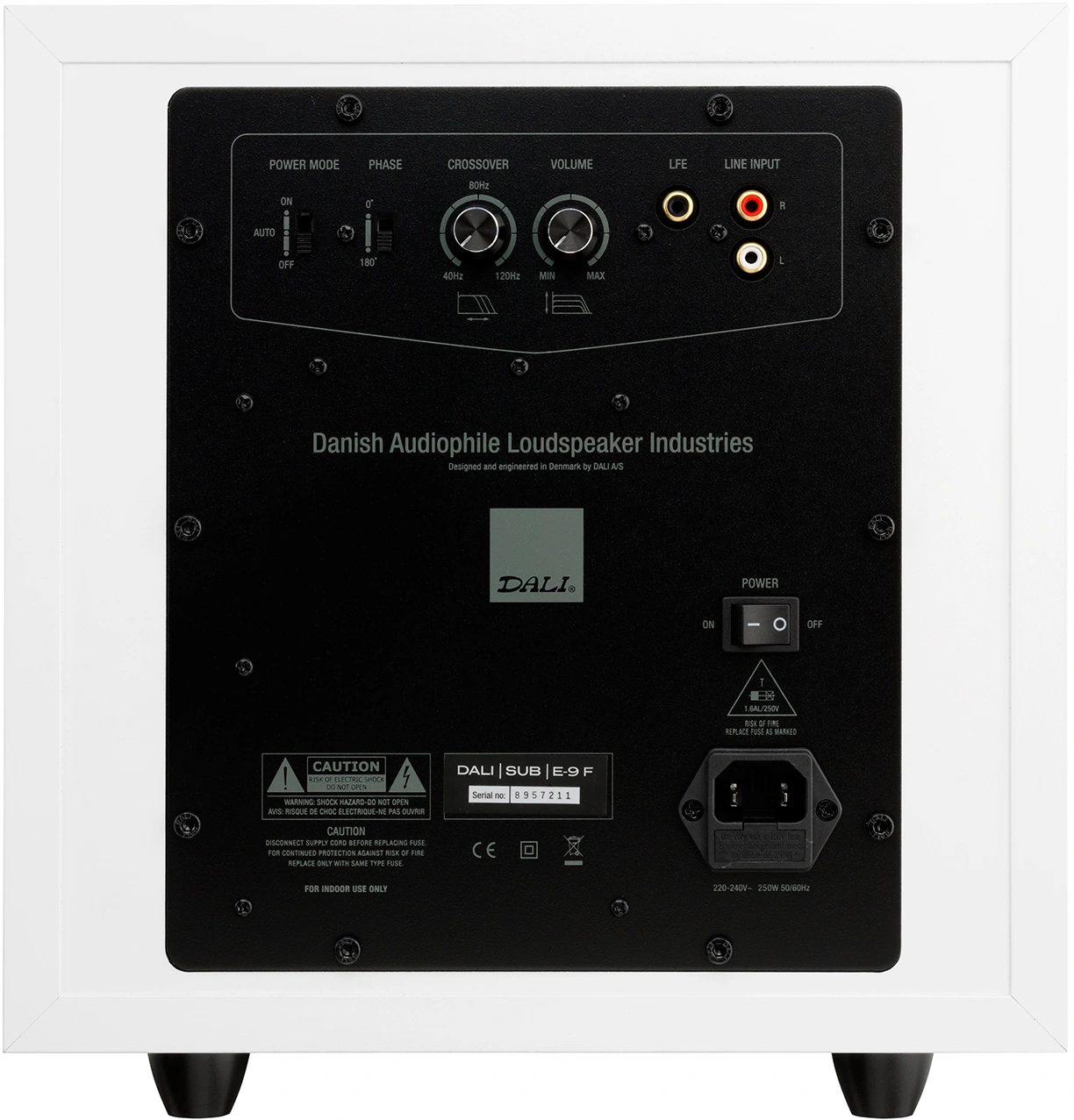

The device features a 170-watt Class D amplifier with a linear response across the entire frequency range. A fast-acting overload protection circuit is included to protect the amplifier. The rear panel of the DALI Sub E-9 F houses all control elements, including volume and filter frequency adjustment knobs, an absolute phase switch (0 / 180 degrees), and a power mode switch (manual / automatic). It offers stereo line and LFE inputs for audio signal input, allowing it to be used in home theater systems (when connected to an AV receiver or processor's .1 output) and Hi-Fi systems.

The subwoofer is housed in a thick MDF enclosure reinforced with internal braces and deep damping. Its high degree of acoustic inertness ensures that sound coloration is eliminated even at high listening volumes. The Sub E-9 F can be used to complement systems based on Zenzor, Fazon, or similar speaker series.

Package Includes:

  • Subwoofer
  • Power cable
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color
Connection method
stereo, rca
Diameter of the woofer, mm
230
Material
aluminum, fiberboard
Max SPL, dB
111
Phase Inverter location
below
Power, W
170
Removable panels
yes
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
200
The lowest frequency, Hz
37
Type of speakers
active subwoofer
Depth, mm
311
Height, mm
307
Width, mm
288
Weight, g
11000
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
Denmark
Service life, months
24
Warranty, months
12
