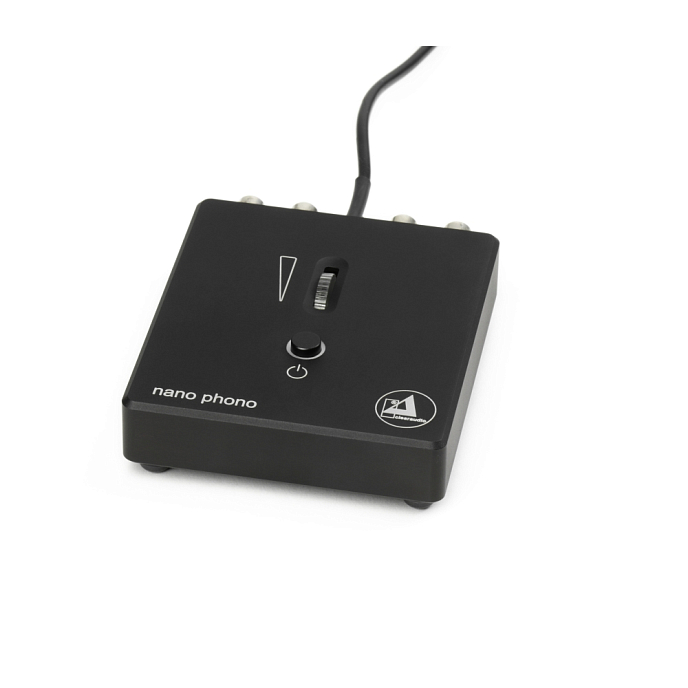

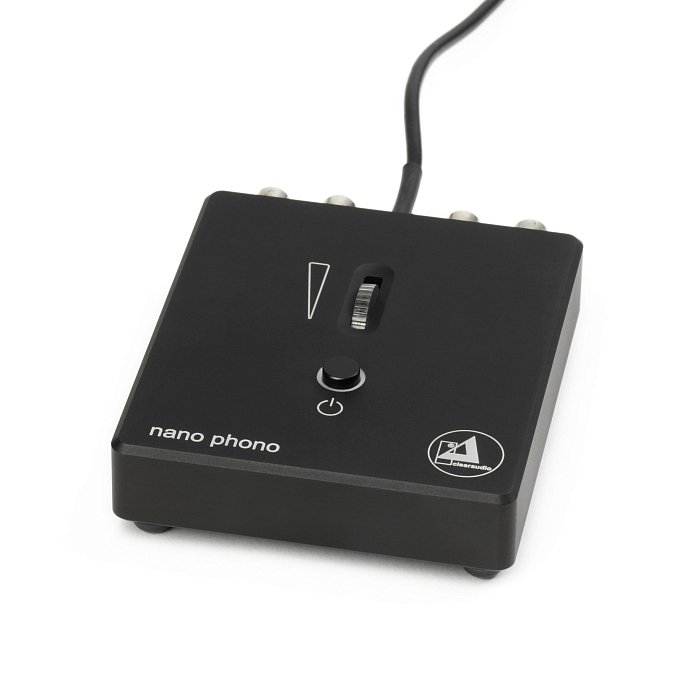

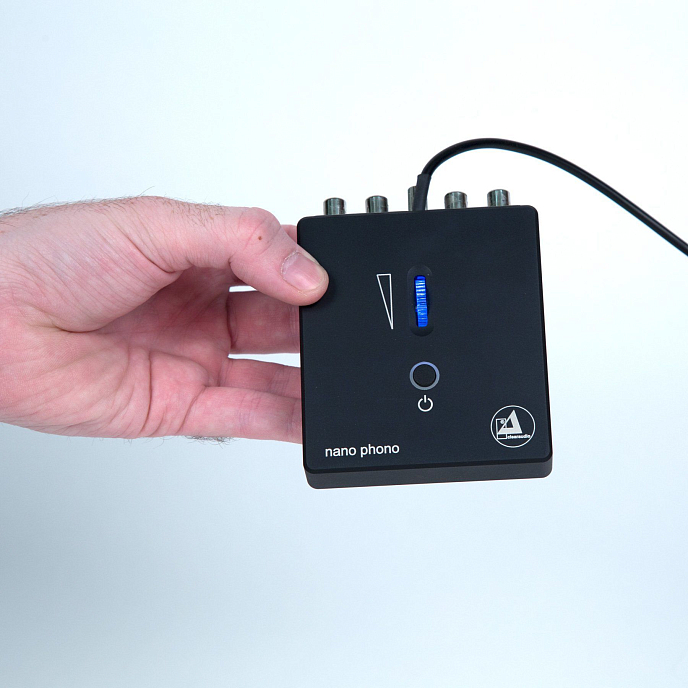

The compact device Clearaudio Phonostage Nano Phono V2 is a MM/MC phono preamplifier.

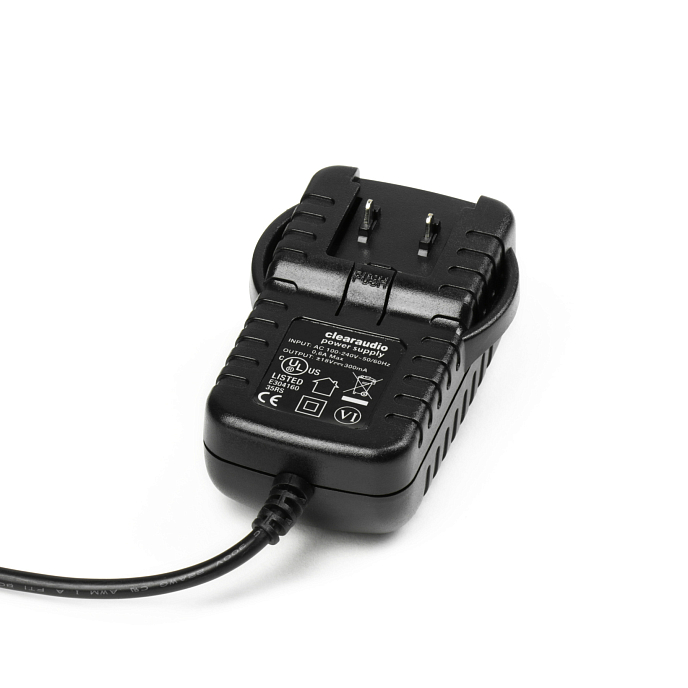

The unit is housed in a metal casing, featuring a simple design and high-quality manufacturing and finish. The power on button is located on the top panel of the Clearaudio Phonostage Nano Phono V2. The unit is equipped with inputs and outputs on RCA connectors. The casing has three anti-resonant supports, providing good stability on any surface. The power supply for the phono preamplifier is external, allowing to isolate this potential source of electrical interference from the sensitive amplifier circuits.

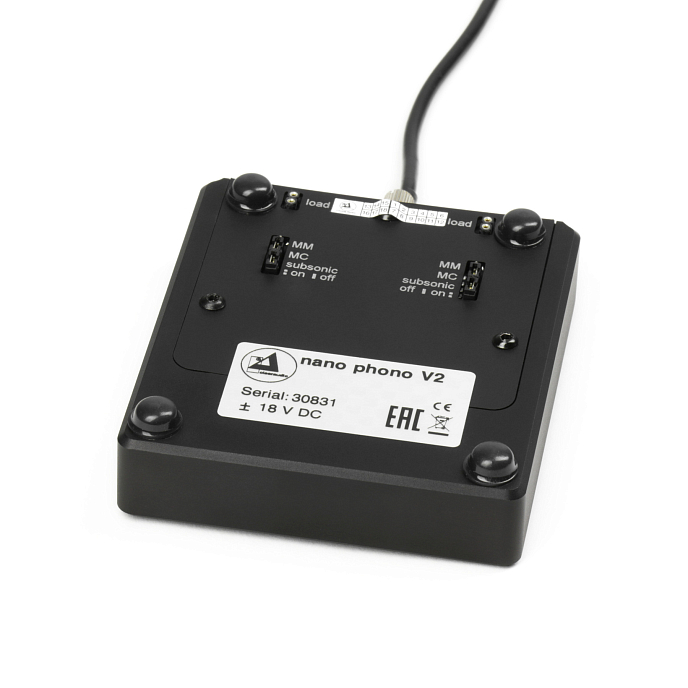

The device is designed on a dual mono principle, ensuring good separation of stereo channels and a wide soundstage with precise imaging. The preamplifiers for MM and MC cartridges are mounted on separate boards, using precision SMD components to minimize the audio signal transmission path length. Several micro switches are provided on the bottom panel of the Clearaudio Phonostage Nano Phono V2 for adjusting the operation modes. They can be used to set the phono preamplifier input type (MM or MC), input impedance (resistance and capacitance), and if necessary, engage a subsonic filter.
The phono preamplifier is sensitive to electromagnetic interference, so this should be taken into consideration when choosing its installation location. A special interconnect cable with a separate grounding contact is used to connect the Clearaudio Phonostage Nano Phono V2 to the turntable.
Features:
- support for MM and MC cartridges;
- subsonic filter;
- circuitry: dual mono.
Specifications:
- input: RCA;
- output: RCA;
- gain: 48 dB (MM), 68 dB (MC);
- signal-to-noise ratio: 70 dB (MC), 81 dB (MM);
- stereo channel separation: 80 dB;
- dimensions: 85 x 106 x 25 mm;
- weight: 500 g.
Package includes:
- phono preamplifier;
- power supply;
- manual.
