Headphone amplifier with DAC

Chord Hugo TT 2 Black

no reviews

AED 15,599

Product code: 110901

CHAT WITH US

10:00-22:00

Available in stores

    Delivery from the supplier's remote warehouse.
    We will contact you within 48 hours to clarify the delivery time.

    Description

    Chord Electronics Hugo TT 2 Headphone Amplifier

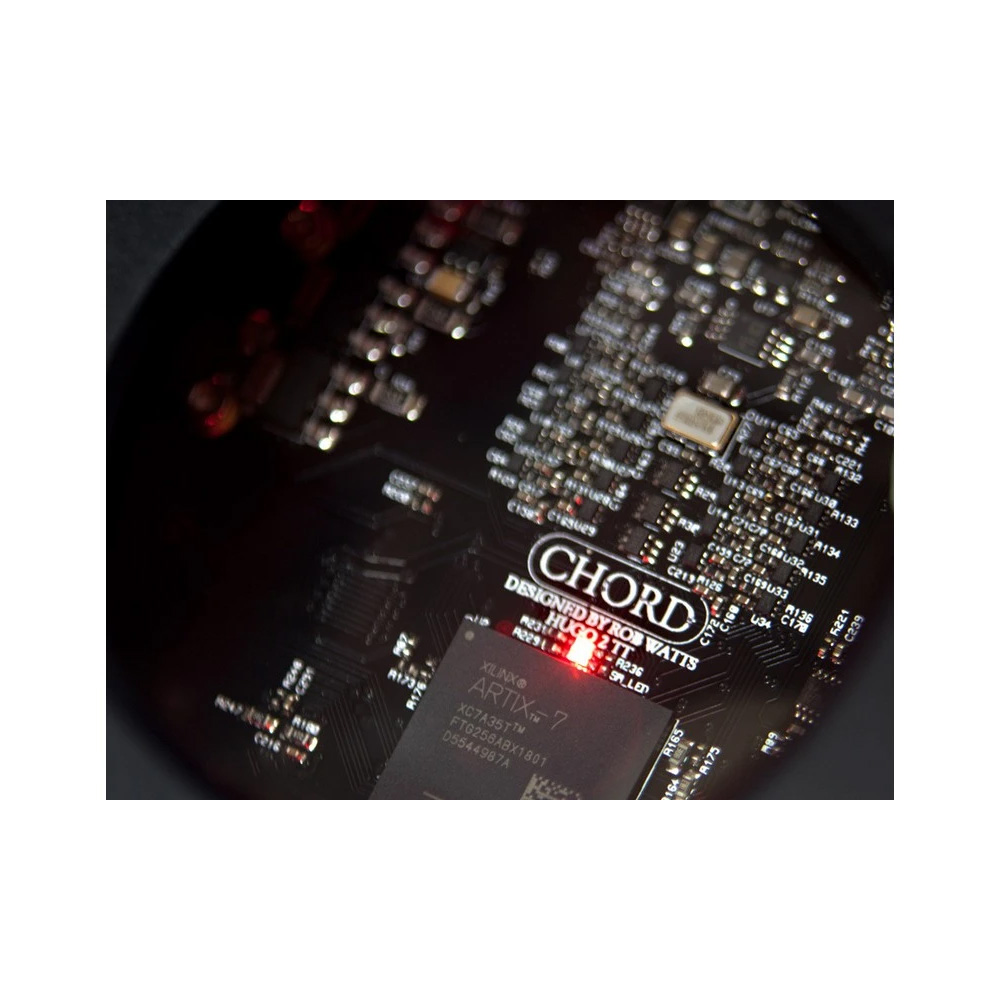

    The Chord Electronics Hugo TT 2 headphone amplifier is an updated version of the Hugo TT model, using a new programmable Xilinx Artix 7 FPGA valve matrix that functions as a DAC and is five times more powerful than its predecessor. All algorithms for this matrix were programmed by the company's specialist, Rob Watts. The device features a slightly different design and can also be used as an external DAC or preamplifier with digital source connections. The model has improved technical specifications and can handle PCM formats up to 32-bit/768kHz and DSD512 (when connected via USB).

    The Chord Electronics Hugo TT 2 utilizes a WTA filter with 98,304 taps, which is twice as many as the popular portable Hugo 2 model. It features a powerful discrete output stage and a second-order noise shaping contour between the DAC output and filter to minimize distortion.

    The power supply unit of the model includes six supercapacitors, guaranteeing a maximum output current of 5A/9.3V. With the appropriate cable, this amplifier can even drive small speaker systems. The model comes with four filters, each of which can be manually selected to achieve different sound characteristics. The Crossfeed function is applied (three selectable modes), mixing channels and changing the scale of the soundstage, ideal for headphone listening to simulate the deep and expansive sound delivery typical of speaker systems.

    Features:

    • Support for aptX Bluetooth codec
    • Support for 768kHz PCM and DSD 512
    • Powerful Xilinx Artix 7 FPGA

    Package includes:

    • Digital-to-analog converter
    • Power cable
    • Power block
    • Optical cable
    • USB cable

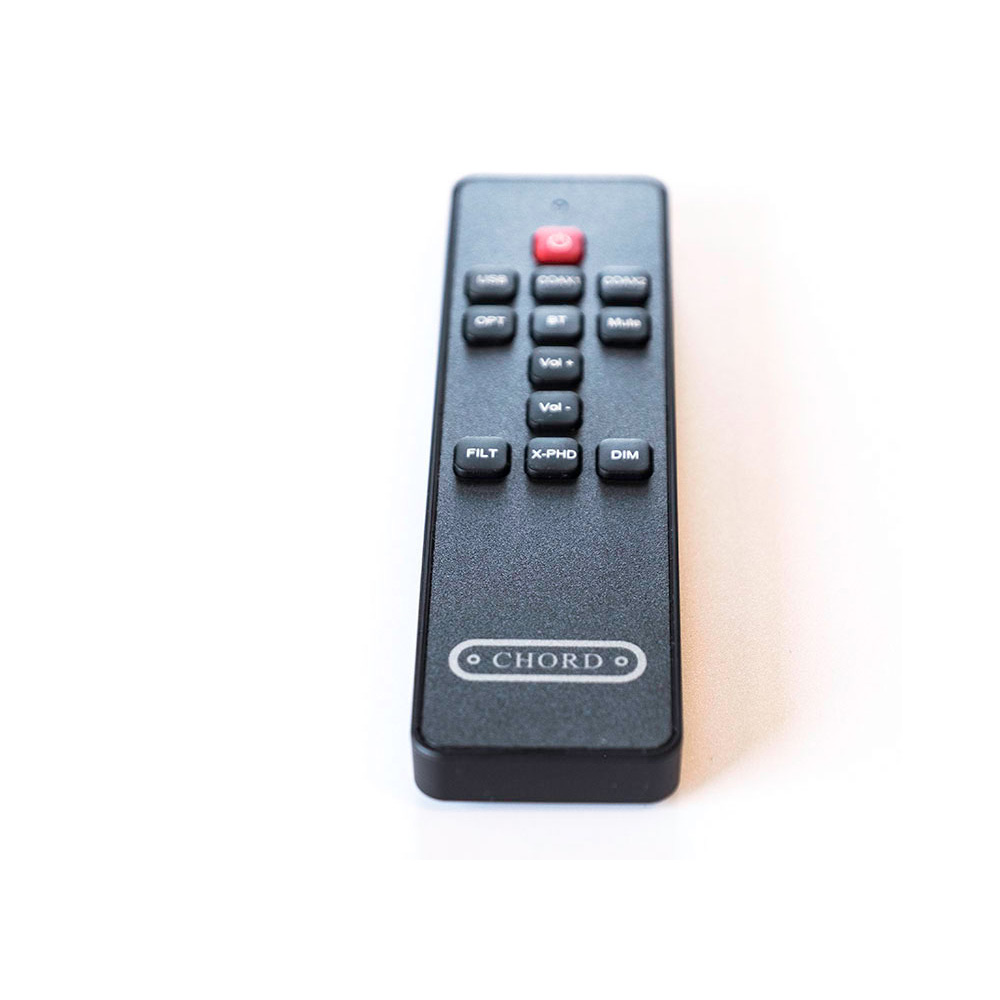

    • Remote control
    • Documentation

    Characteristics

    • Brand
    • DAC chip
      custom

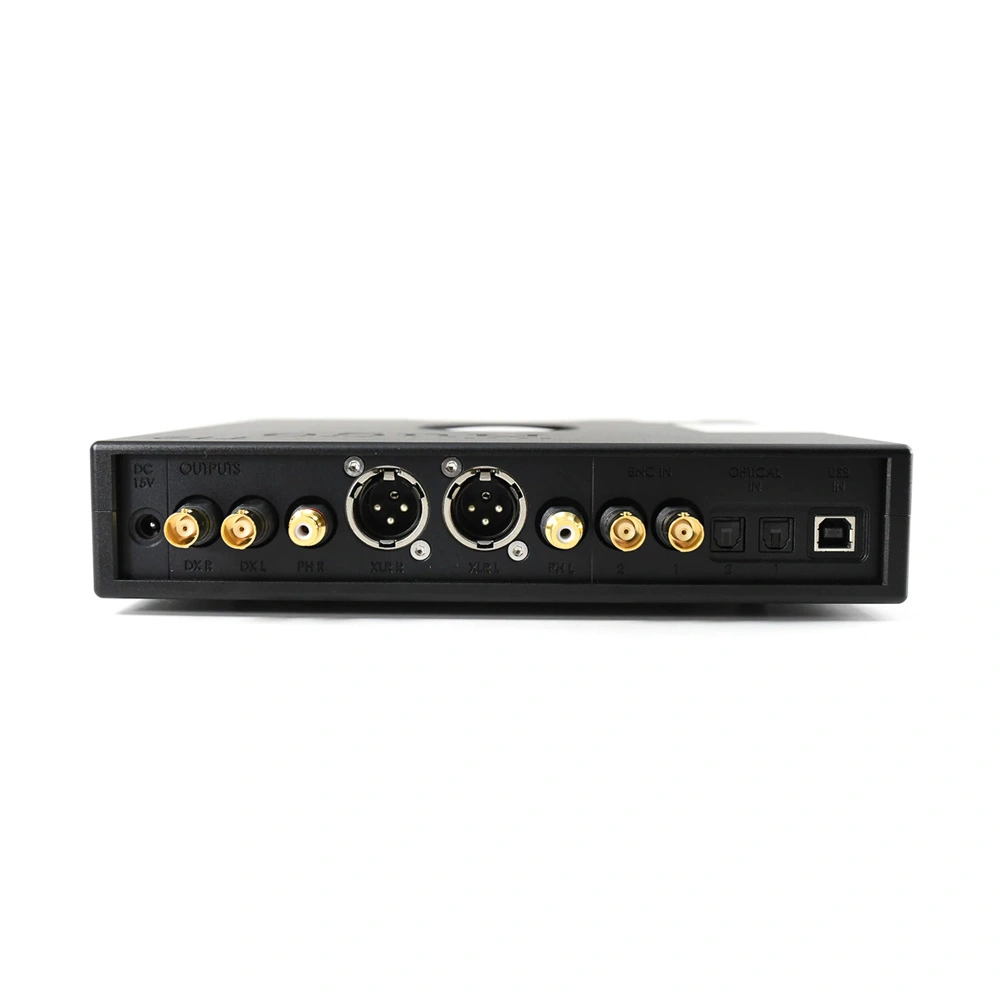

    • Input connectors
      Optical, BNC, USB-B
    • Output connectors
      RCA, XLR, BNC
    • Remote controller
      yes
    • Headphone output
      6.35mm jack, 3.5mm jack
    • Sampling rate, kHz
      768
    • DAC bit depth, bits
      24
    • DSD support
      yes
    • Playback via USB
      yes
    • Connecting to a computer via USB
      yes
    • Signal-to-noise ratio, dB
      127
    • Circuit design
      discrete
    • Form factor
      stationary
    • Color
    • Material
      aluminum
    • Depth, mm
      235
    • Height, mm
      46
    • Width, mm
      223
    • Weight, g
      3000
    • Service life, months
      24
    • Warranty, months
      12
    • Show all characteristicsShow fewer characteristics
