DAC
Chord Hugo M-Scaler Black

Product code: 109868
no reviews
AED 16,499
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

Hugo M Scaler is an advanced processor-scaler implemented on the most powerful programmable FPGA matrix, designed to increase the resolution of audio signals by calculating and interpolating them in the time domain. The algorithm was written by Rob Watts, an authoritative specialist at Chord Electronics in the digital audio field. The first working prototype of the device was demonstrated in July 2018 at the CanJam exhibition in London.

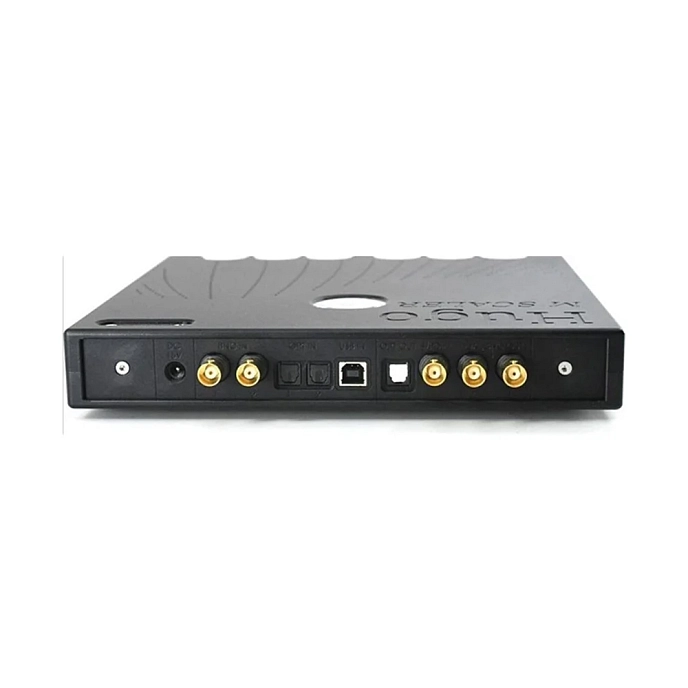

This small box has five inputs: two coaxial BNC, two TosLink, and a galvanically isolated USB (supporting DSD256). The source can be a smartphone, laptop, streamer, CD or DVD player, TV with a digital output - in any case, the audio at the outputs will be close to ideal in quality. The outputs of the M Scaler are digital only: TosLink and BNC, and with a standard 44.1 kHz signal, the resolution on them can be up to 176.4 and 352.8 kHz respectively.

Additionally, the scaler is capable of accepting high-res audio. For example, on the TosLink output, an incoming 96 kHz signal can be upscaled to 192 kHz, and on BNC - up to 384 kHz.

Formally, Hugo M Scaler is part of the lineup of desktop DACs and headphone amplifiers for Hugo and in terms of form factor is similar to Chord TToby and Hugo 2 TT. Moreover, these components can be stacked on top of each other to save space on the desk.

For compatibility with older DACs, there is an option to select the sampling frequency of the output signal. If the user wishes to include a video source in the setup, in "Video" mode, the processor switches to low-latency mode to ensure the synchronization of sound and image is not disrupted.

Package includes:

  • Processor
  • Power supply
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Input connectors
Toslink, BNC, USB-B
Output connectors
BNC, Toslink
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
768
DAC bit depth, bits
32
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Playback via USB
yes

Playing music files via USB

Словарь терминов
Connecting to a computer via USB
yes
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Color
Depth, mm
235
Height, mm
40
Width, mm
328
Weight, g
2550
Service life, months
24
Warranty, months
12
