Absolute reliability thanks to revolutionary Class D cooling technology with "almost zero" heat accumulation. SmartSense is able to compensate for low-impedance speaker connection and provides a completely linear frequency response.

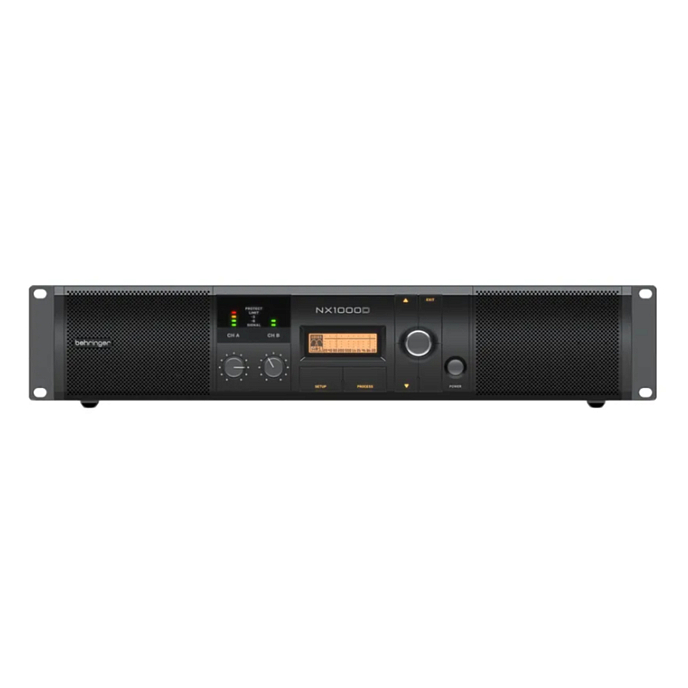

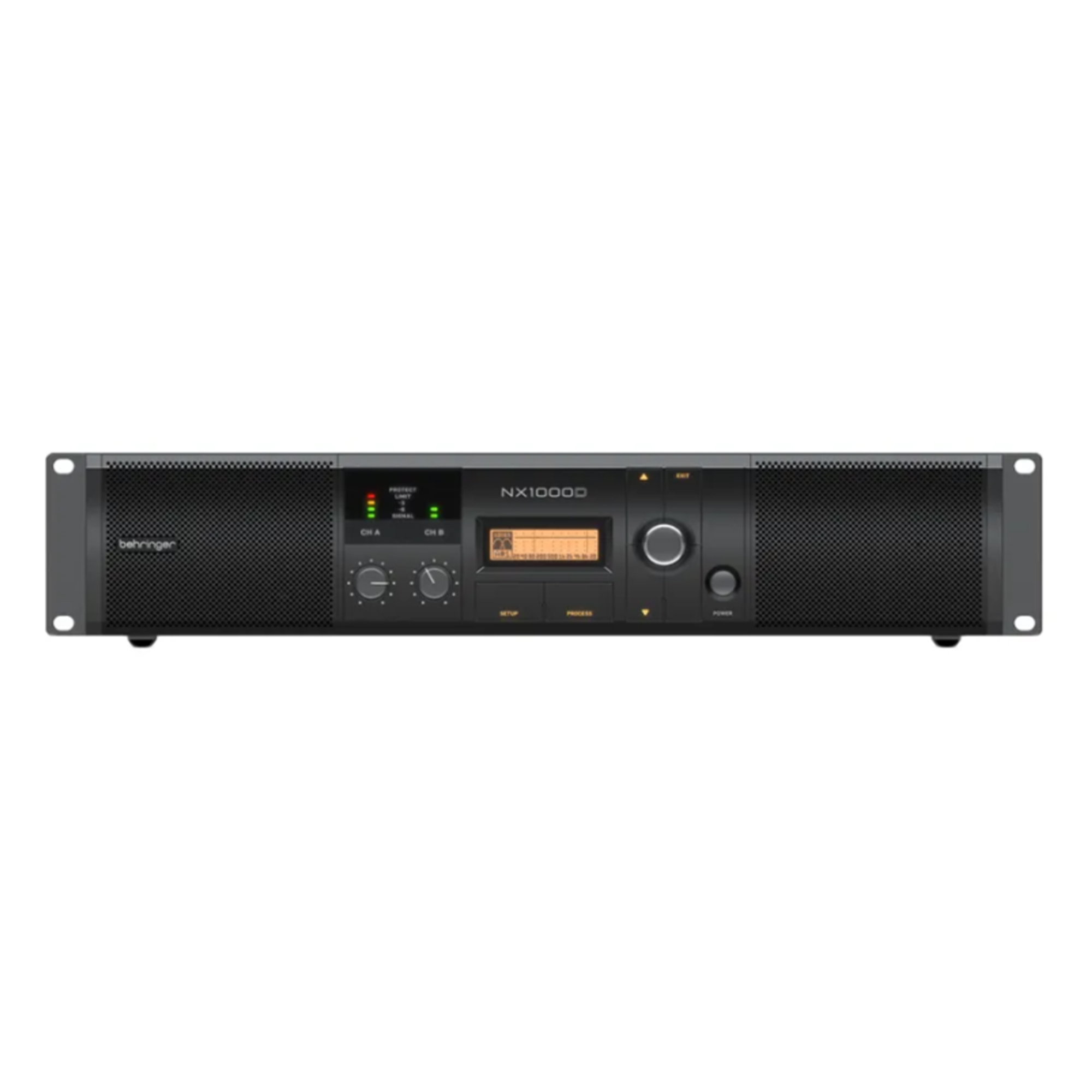

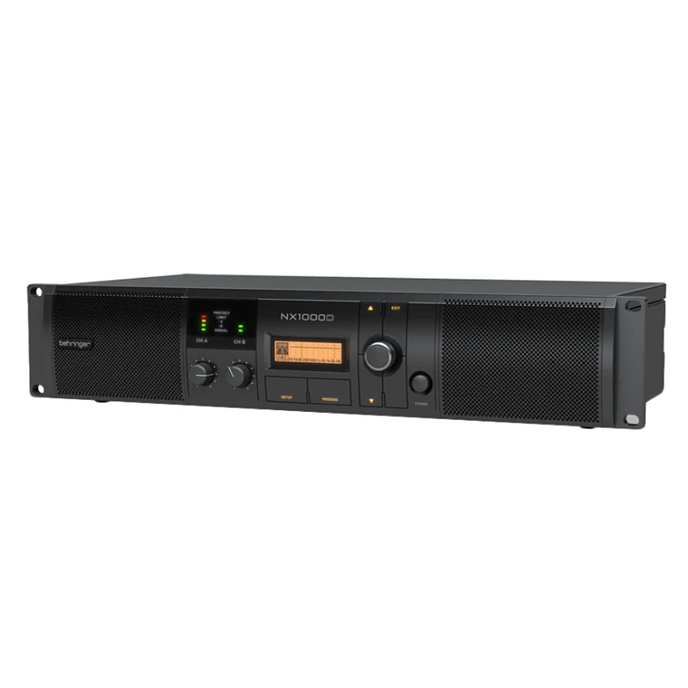

The LCD display on the front panel allows for easy setup without using a PC. It can be adjusted and controlled via the USB port on the front panel. "Zero-Attack" limiters ensure maximum output level with reliable overload protection.
Independent DC, LF, and thermal overload protection on each channel automatically protect the amplifier and speakers. The "Back-to-front" cooling system protects the device from overheating for reliable operation.
After pressing the power button, the power indicator lights up to show that the amplifier is ready for action. All channels have gain controls with signal LEDs that light up when there is a signal, as well as Limit LEDs indicating when the amplifier is operating at full power.

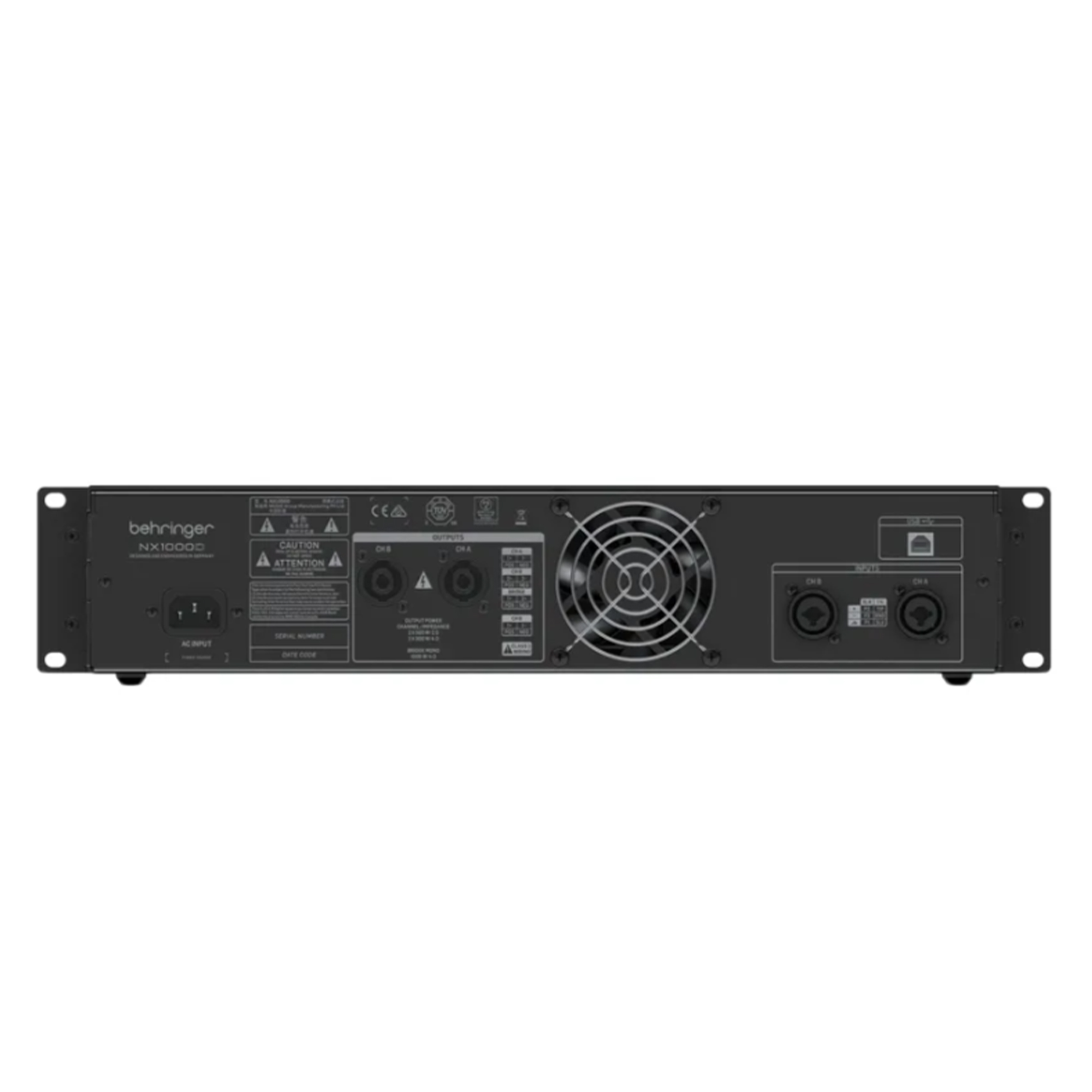

The rear panel features 2 inputs on Combo Jack/XLR connectors, suitable for balanced and unbalanced signals. Outputs are on 2 Speakon connectors with locking. There is a switch that allows the amplifier to operate in dual mono, stereo, and bridge modes.
The DSP ensures maximum signal integrity with an extremely wide dynamic range.
The built-in DSP processor has a data processing format of 24 bit/96 kHz and offers a multitude of possibilities. There are delay effects up to 300 ms, a crossover with 3 filter types (48 dB/octave slope), 8 types of parametric and 2 dynamic equalizers, as well as a limiter to limit signal peaks.
SmartSense technology is able to compensate for impedance when connecting low-impedance speakers, thereby eliminating frequency response distortions and providing smooth and dynamic sound across the frequency range from 20 Hz to 20 kHz, aided by the quality Class D amplifier.
You can also set up and control your NX3000D amplifier with your computer via USB - and immediately gain access to a whole new level of amplifier control. NX EDIT is the ideal way to manage installed systems and create custom presets.
Package includes:
- Power amplifier
- Power cable
- Manual
