Description

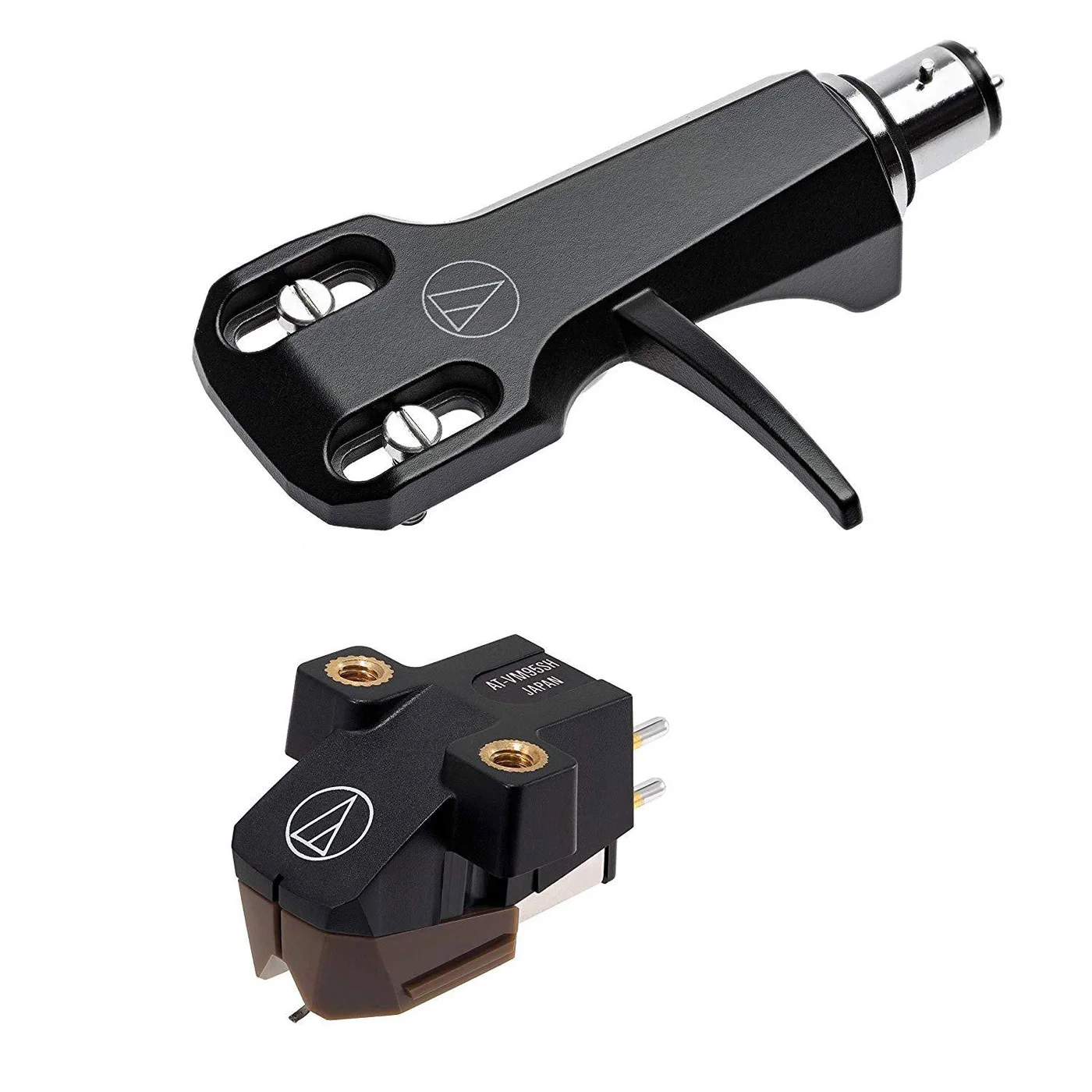

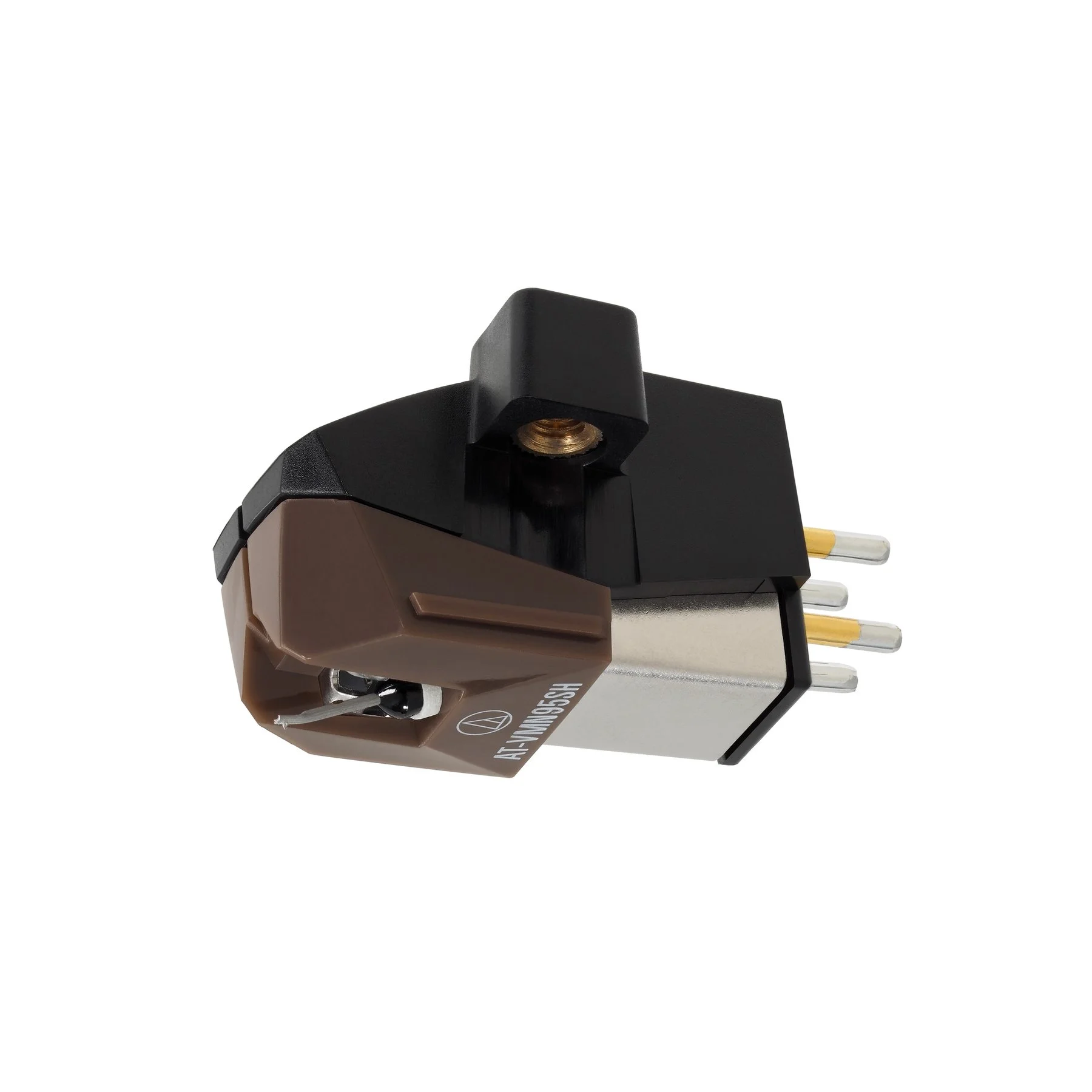

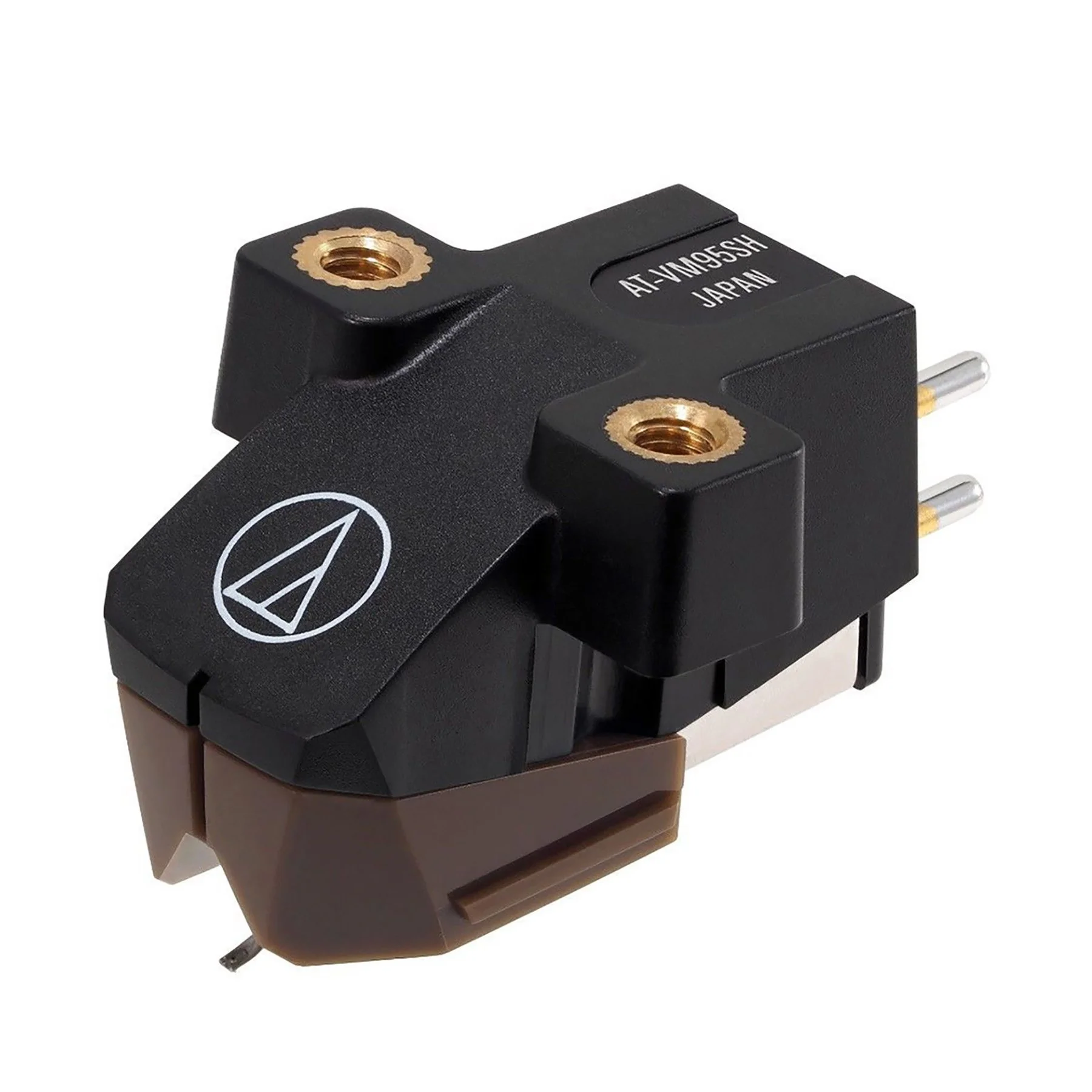

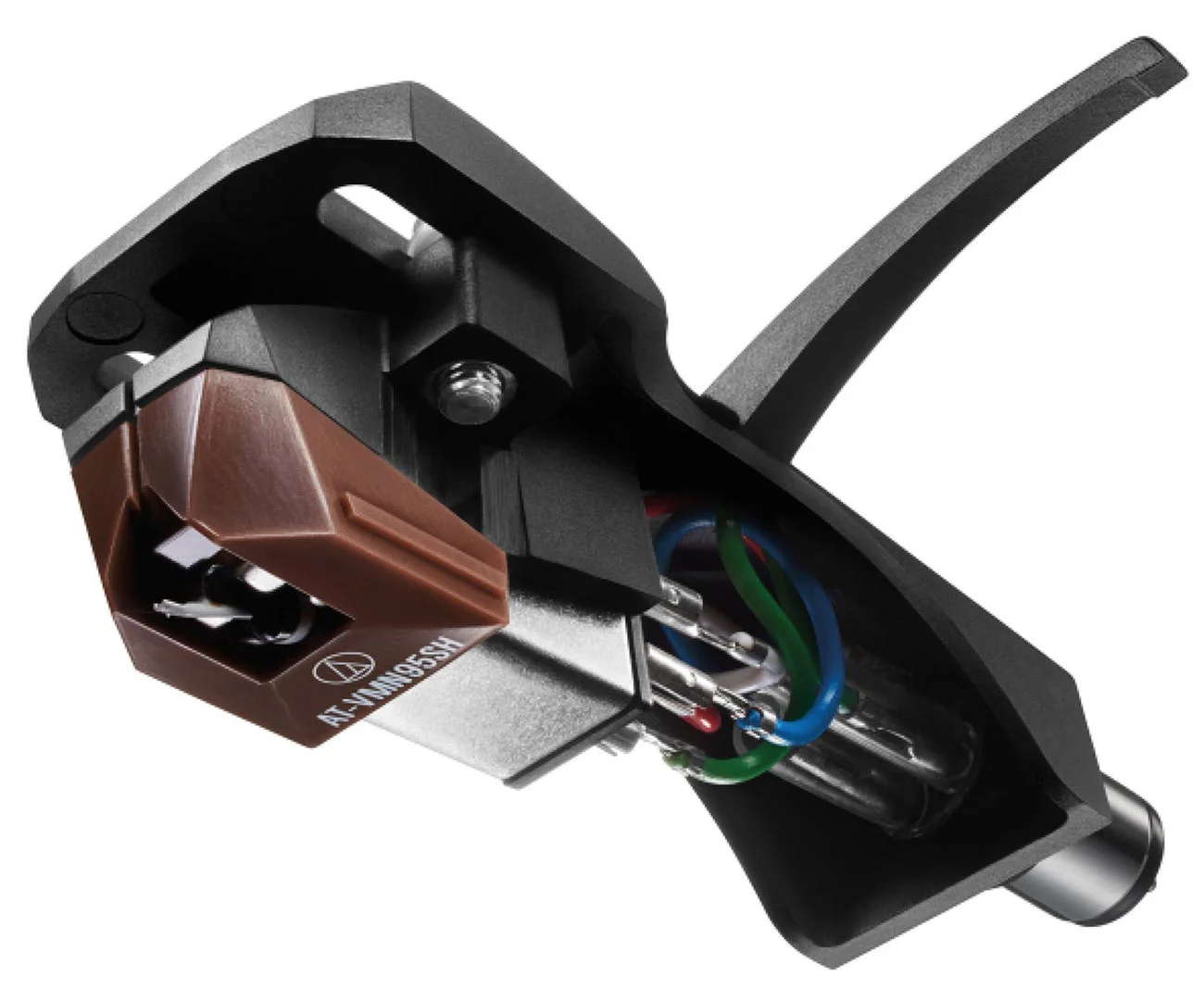

The Audio-Technica AT-VM95SH/H is a bundle that includes the Audio-Technica AT-VM95SH cartridge and the Audio-Technica AT-HS6BK cartridge holder (shell).
The new cartridge features a Shibata diamond stylus tip. The Nude Shibata stylus tip is highly popular among audiophiles. The Shibata stylus reproduces strong and rich mid and low frequencies, as well as providing a frequency response up to 25,000 Hz.
The Audio-Technica AT-VM95SH is the fifth most expensive and highest quality cartridge in the new line. The approximate lifespan of the AT-VMN95SH Shibata stylus is around 800 hours.
Features:
- The AT-VM95SH has an improved design with a stiffer low-resonance body.
- The developed radial damping ring improves transient response and extends the frequency range up to 25,000 Hz.
- The cantilever is made of aluminum tubing.
- Output voltage of 3.5 mV.
- Assembled and tested at the Audio-Technica factory in Fukui, Japan.
Specifications:
- Type: VM.
- Mounting type: 1/2 inch.
- Frequency range: 20 - 25,000 Hz.
- Channel separation: 23 dB (1 kHz).
- Channel balance: 1.5 dB (1 kHz).
- Output voltage: 3.5 mV (1 kHz, 5 cm/s).
- Vertical tracking angle: 23 degrees.
- Tracking force: 1.8 - 2.2 g (2.0 g standard).
- Stylus type: Shibata.
- Stylus size: 2.7 x 0.26 mil.
- Stylus holder: Aluminum tubing.
- Coil impedance: 3.3 kOhms (1 kHz).
- Static compliance: 20 x 10-6 cm/dyne.
- Dynamic compliance: 10.0 x 10-6 cm/dyne (100 Hz).
- Recommended load impedance: 47,000 Ohms.
- Recommended load capacitance: 100 - 200 pF.
- Cartridge weight with shell: 15.5 g.
- Dimensions: 21.2 x 21.4 x 62.4 mm.
- Replacement stylus: AT-VMN95SH.
