Cartridge
Audio-Technica VM95EN

Product code: 81725
no reviews
AED 699
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

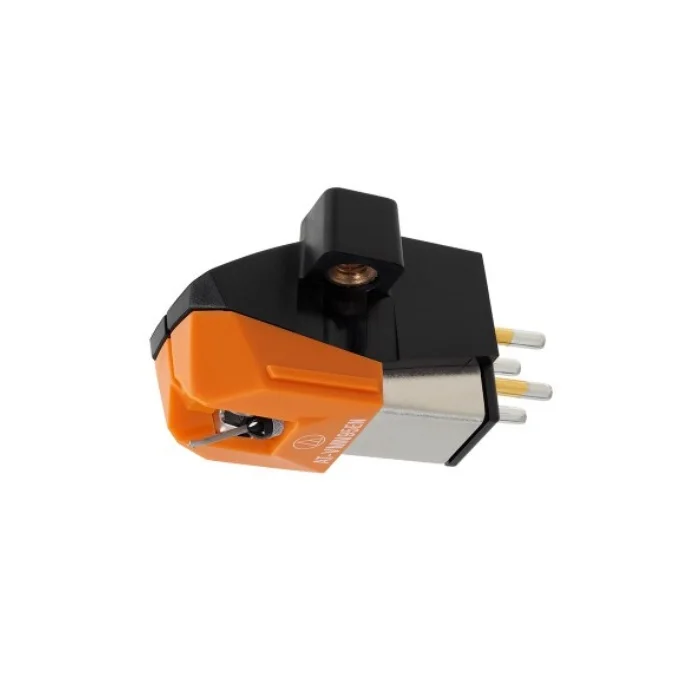

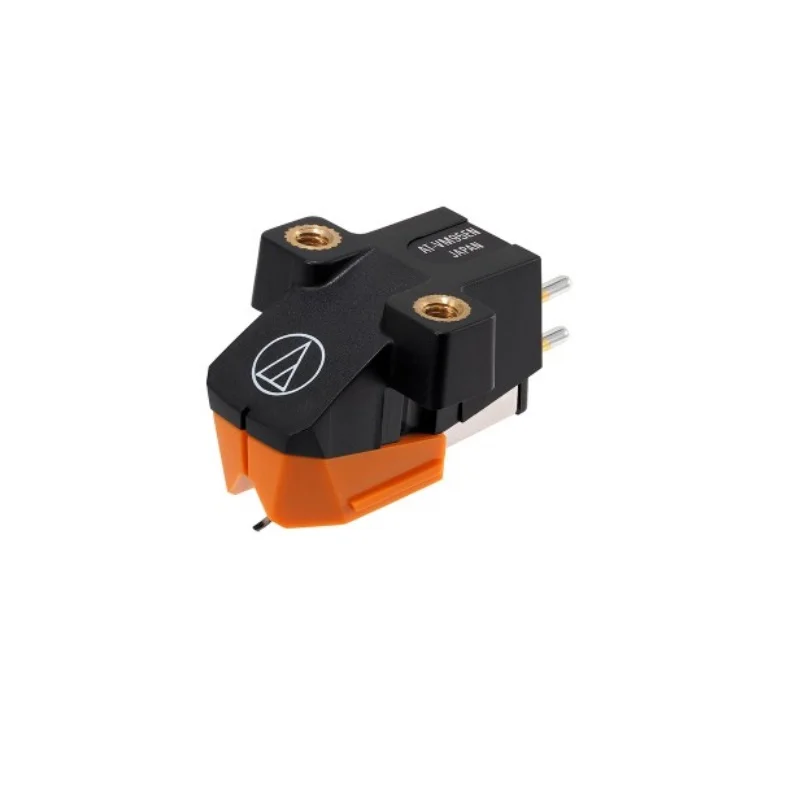

Audio-Technica VM95EN is a cartridge with an elliptical nude diamond stylus. The elliptical shape enhances the quality of music reproduction, especially in terms of high-frequency accuracy and transient response.

The VM95EN cartridge, with its two moving magnets, features a special coil construction that increases the efficiency of the moving system and ensures perfect contact between the stylus and the record groove. Additionally, the cartridge's internal design includes a special transducer construction to eliminate any loss of sound information and achieve the highest efficiency in the converting system.

A cartridge with a conical stylus is less demanding in terms of setup angle and is the most versatile, suitable for various tonearms. You can always choose a different stylus shape from the VM95 series: Microlinear or Shibata. As any needle wears out over time due to playing records, it is important to have the option to purchase a replacement stylus.

Features:

  • The AT-VM95EN cartridge features an improved design with a stiffer low-resonance body.
  • A newly developed radial damping ring improves transient response and increases the frequency range up to 23,000 Hz.
  • The cantilever is made of aluminum tubing.
  • Output voltage: 3.5 mV.
  • Two threaded inserts in the cartridge body allow for easy installation on a shell or tonearm with just two screws, without nuts.
  • Assembled and tested at the Audio-Technica factory in Fukui, Japan.

Specifications:

  • Frequency response: 20 - 23,000 Hz.
  • Channel separation: 22 dB at 1 kHz.
  • Tracking angle: 23°.
  • Tracking force range: 1.8 - 2.2 g.
  • Recommended tracking force: 2.0 g.
  • Stylus shape and type: elliptical.
  • Recommended load impedance: 47 kΩ.
  • Internal impedance: 3.3 kΩ (1 kHz).
  • Recommended load capacitance: 100 - 200 pF.
  • Stylus size: 0.3 x 0.7 mil.
  • Cartridge size (H x W x D): 18.9 x 17.2 x 28.3 mm.

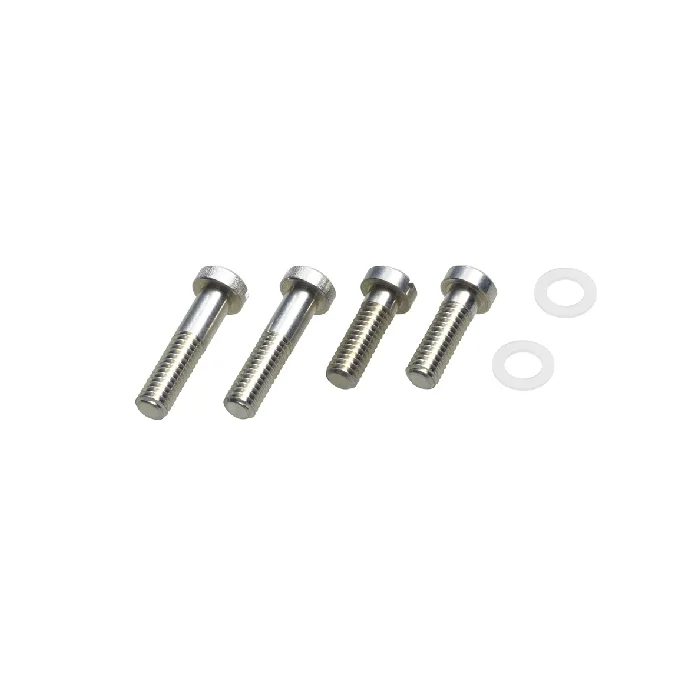

Package contents:

  • Two 11 mm mounting screws.
  • Two 8 mm mounting screws.
  • Two washers.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Cartridge type

MM (moving magnet), i.e. construction with a movable magnet or MC (moving coil) with a movable coil. MM ones are used more often in turntables of primary and secondary classes

Glossary of terms
MM
Color
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
485
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
20
The lowest frequency, Hz
20
Weight, g
6.1
Service life, months
24
Warranty, months
12
