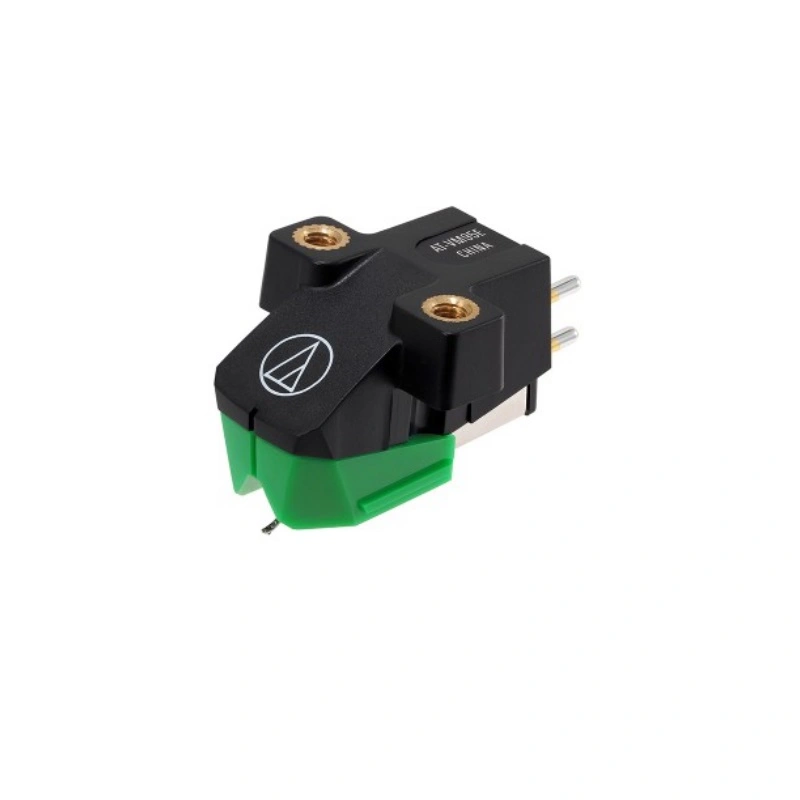

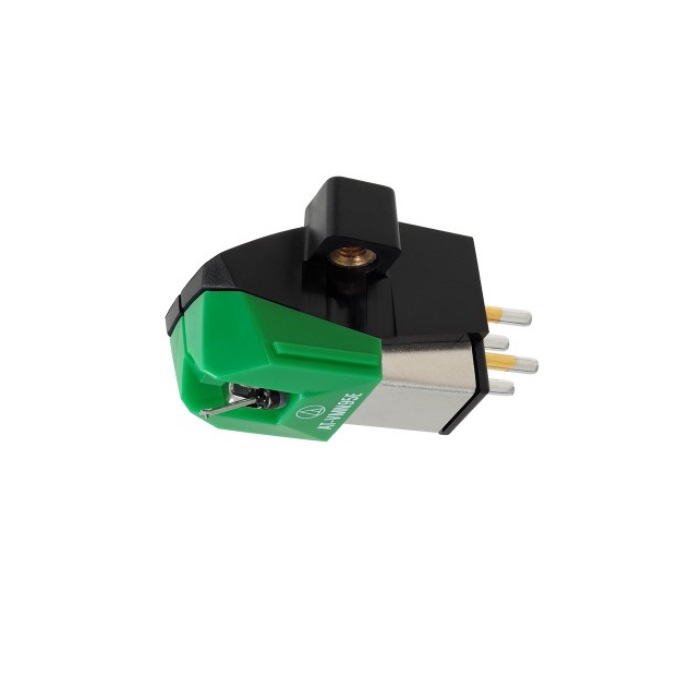

The Audio-Technica AT-VM95E is a new elliptical cartridge.
The AT-VM95E cartridge with dual moving magnets has a special coil construction that enhances the efficiency of the moving system and ensures perfect contact between the needle tip and the groove of the sound recording. Additionally, the headshell inside the cartridge uses a special converter design that eliminates any loss of sound information and achieves the highest efficiency of the converting system.
The elliptical stylus combined with the aluminum headshell minimizes vibrations. You can always choose a different stylus shape from the VM95 series: Elliptical nude, Microlinear, or Shibata. As any needle wears out with playing records, it is essential to have the option to purchase a replacement needle.
Features:
- The AT-VM95E has an improved design with a more rigid low-resonance body.
- The newly developed radial damping ring enhances the transient response and extends the frequency range to 22,000 Hz.
- The cantilever is made of aluminum tubing.
- Increased output voltage of 4 mV.
- Two threaded inserts in the cartridge body allow it to be mounted on a headshell or tonearm with just two screws, without nuts.
Specifications:

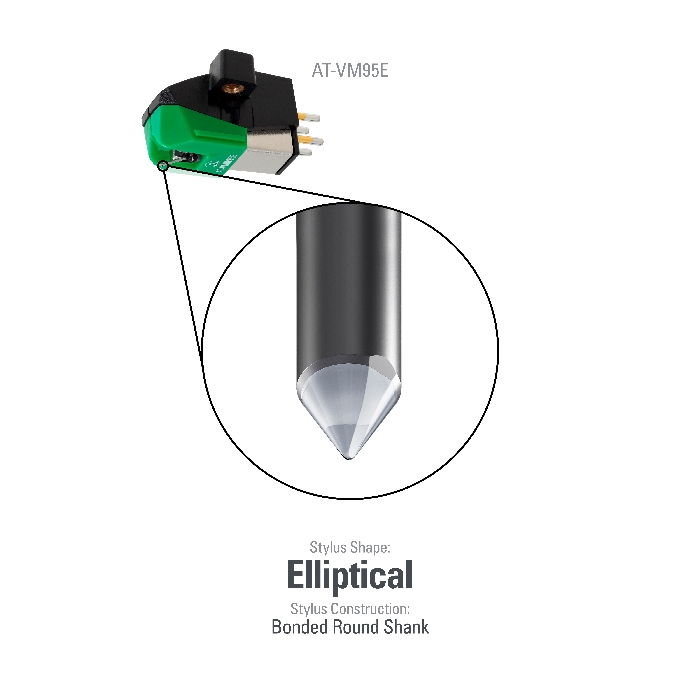

- Stylus type and shape: elliptical (bonded round shank).
- Stylus radius: 0.3 x 0.7 mil.
- Tracking angle: 23°.
- Static compliance: 17.0 x 10-6 cm/dyne.
- Dynamic compliance: 7.0 x 10-6 cm/dyne (100 Hz).
- Tracking force range: 1.8 - 2.2 g.
- Optimum tracking force: 2.0 g.
- Weight: 6.1 g.
- Dimensions (WxHxD): 18.9x17.2x28.3 mm.
- Cartridge body material: ABS plastic.
- Output voltage: 4.0 mV (1 kHz, 5 cm/sec).
- Load impedance: 47 kOhm.
- Recommended load capacitance: 100 - 200 pF.
- Internal impedance: 3.3 kOhm (1 kHz).

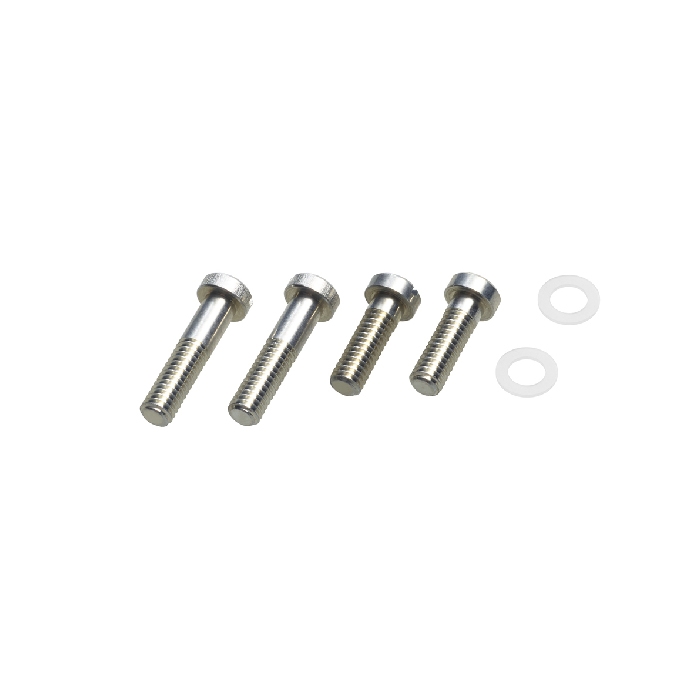

Package includes:
- 2 screws 11 mm.
- 2 screws 8 mm.
- 2 washers.
