Cartridge and headshell kit
Audio-Technica VM95C/H

Product code: 81724
no reviews
AED 299
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

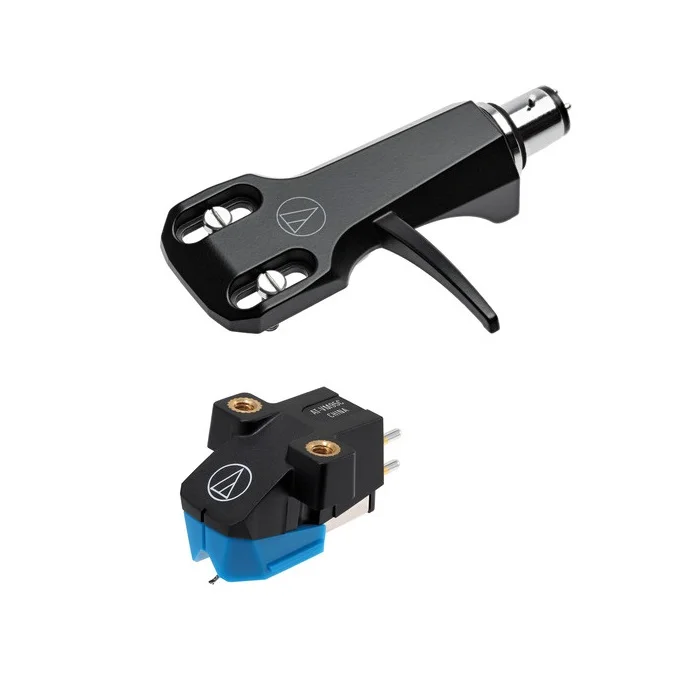

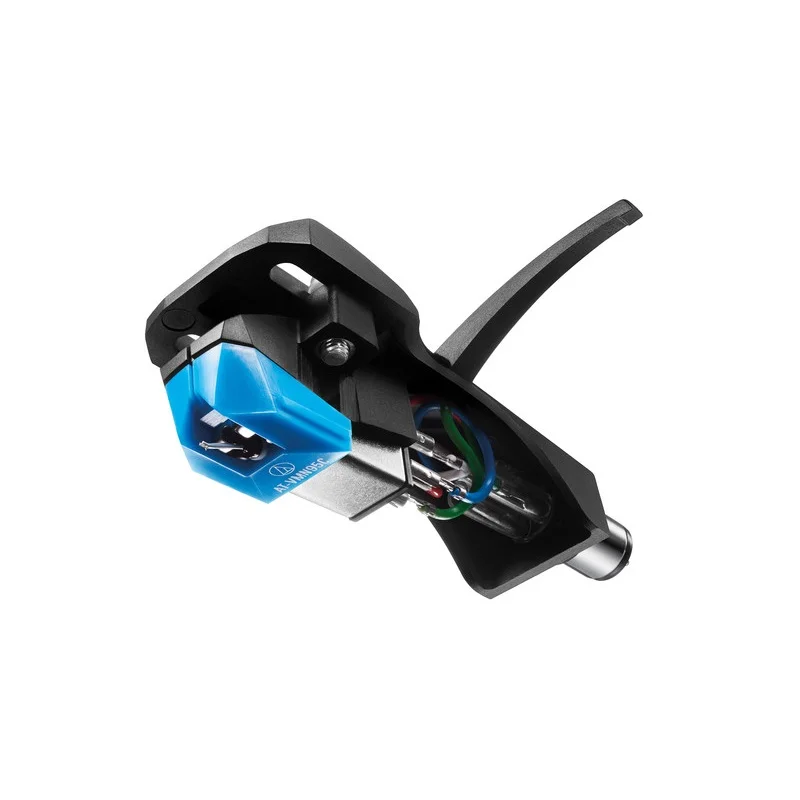

The Audio Technica Consumer AT-VM95CH is a set that includes the AT-VM95C cartridge and the AT-HS6BK cartridge holder, with a four-pin connection.

The AT-VM95C cartridge with two moving magnets has a special coil design that increases the efficiency of the moving system and ensures perfect contact between the needle tip and the groove of the recording. In addition, the cartridge features a special converter design that eliminates any loss of sound information and delivers the highest efficiency in the conversion system.

The molded, aluminum, super-lightweight body (9g) is pressure-cast to minimize vibration. The special finger hook allows for precise and neat needle placement on the record. The AT-HS6BK features gold-plated lead wires for lossless signal transmission and comes with mounting screws.

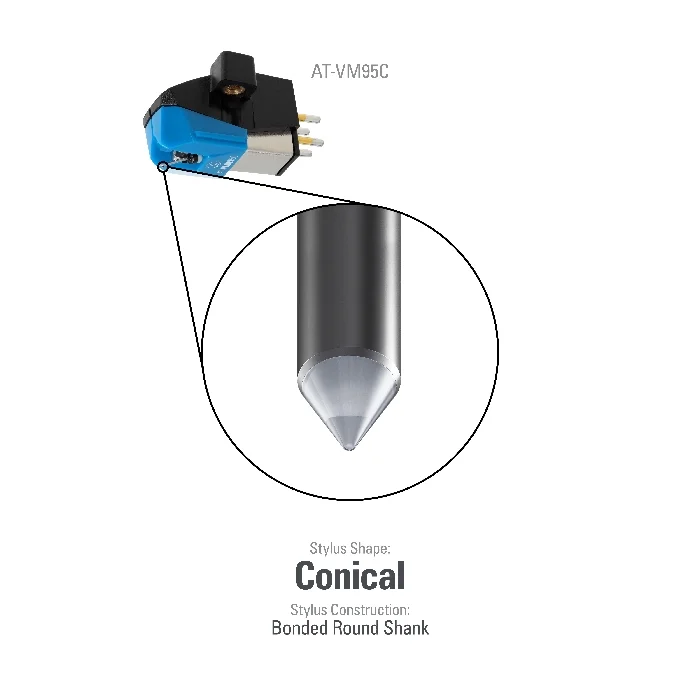

The conical stylus is less demanding in terms of installation angle adjustment, making it the most versatile and suitable for various tonearms. You can always choose a different stylus from the VM95 series: Elliptical, Elliptical nude, Microlinear, or Shibata. Any stylus wears out over time as records are played, so it is important to have the option to purchase a replacement stylus. The approximate service life of the AT-VMN95C conical stylus is about 500 hours.

Features:

  • AT-VM95C cartridge with two moving magnets
  • Low distortion and high channel separation
  • Conical stylus
  • Low-resonance body
  • AT-HS6BK headshell
  • Cantilever made of aluminum pipe
  • Assembled and tested at the Audio-Technica factory in Fukui, Japan

Specifications:

  • Frequency response: 20 - 20,000 Hz
  • Channel separation: 18 dB at 1 kHz
  • Tracking angle: 23°
  • Tracking force range: 1.8 - 2.2 g
  • Optimum tracking force: 2.0 g
  • Stylus type and shape: Conical, Bounded round shank
  • Recommended load impedance: 47 kΩ
  • Internal impedance: 3.3 kΩ at 1 kHz
  • Recommended load capacitance: 100 - 200 pF
  • Output voltage: 4.0 mV at 1 kHz, 5 cm/sec
  • Channel balance: 2.5 dB
  • Stylus tip radius: 0.6 mil
  • Dimensions (WxHxD): 21.4 x 21.2 x 62.4 mm
  • Cartridge dimensions (WxHxD): 18.9 x 17.2 x 28.3 mm

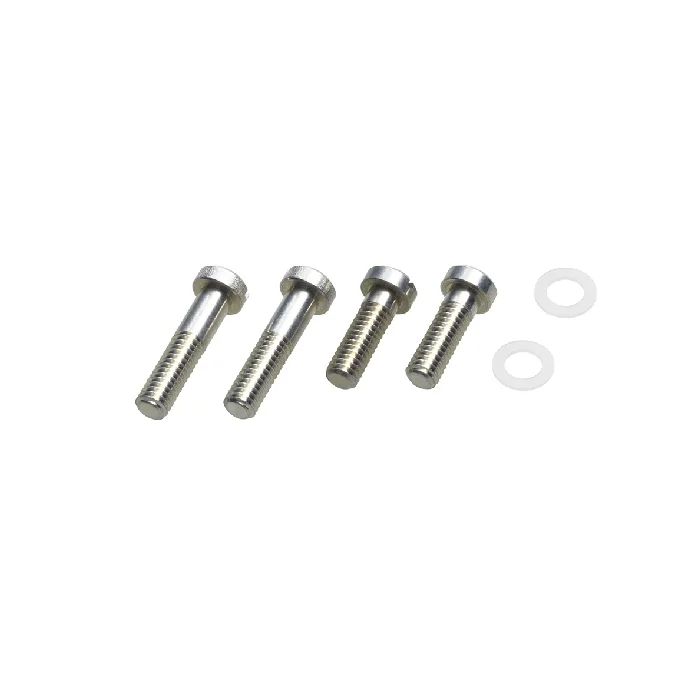

Package includes:

  • Two 11 mm mounting screws
  • Two 8 mm mounting screws
  • Two washers.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Cartridge type

MM (moving magnet), i.e. construction with a movable magnet or MC (moving coil) with a movable coil. MM ones are used more often in turntables of primary and secondary classes

Glossary of terms
MM
Color
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
485
Material
aluminum
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
20
The lowest frequency, Hz
20
Weight, g
6.1
Service life, months
24
Warranty, months
12
