Cartridge
Audio-Technica VM95C

Product code: 88067
no reviews
AED 199
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

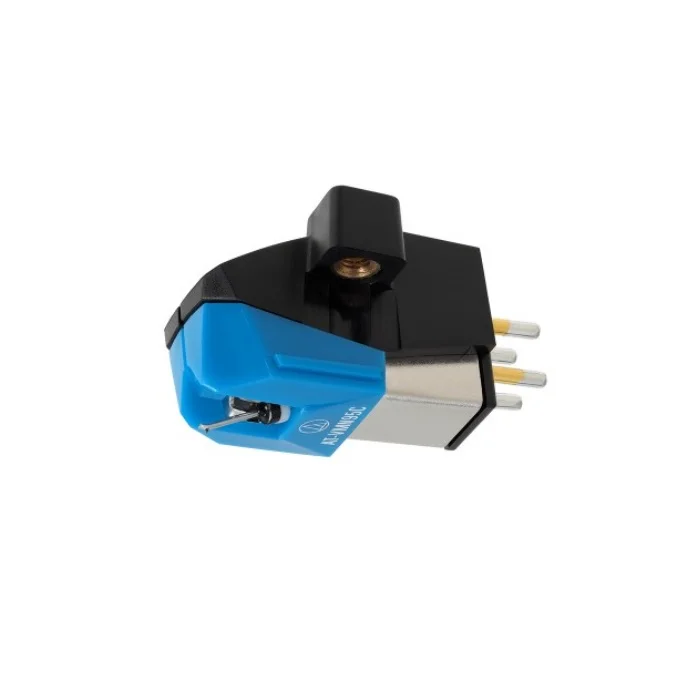

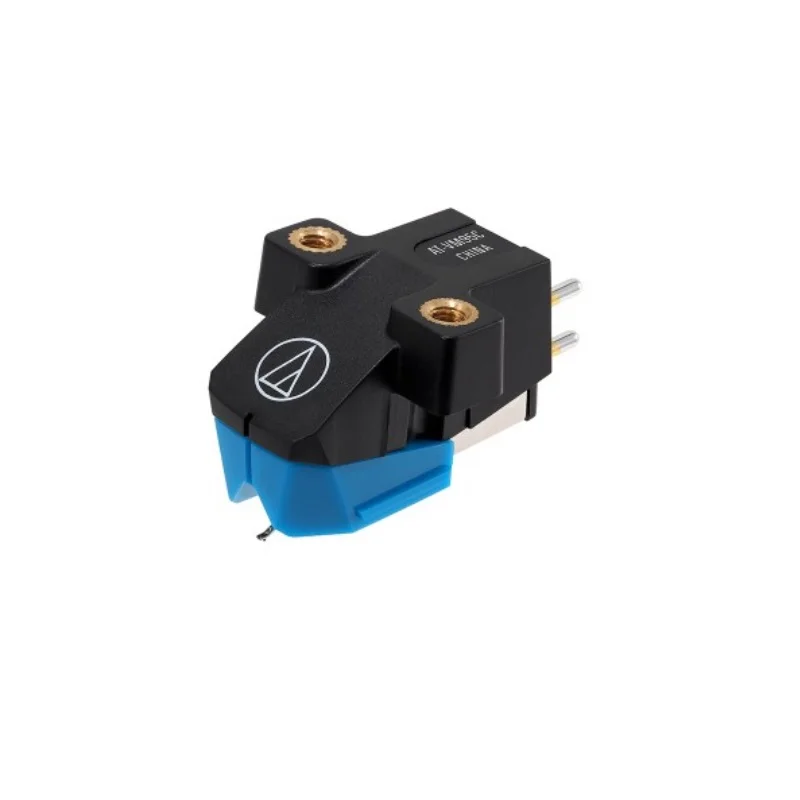

Audio-Technica AT-VM95C is the entry-level model of the new VM95 series of cartridges. This cartridge features a stylus tip with a conical shape sharpened to 0.6 mil.

The AT-VM95C cartridge with two moving magnets has a special coil construction that enhances the efficiency of the moving system and ensures perfect contact between the needle tip and the record groove. Additionally, the cartridge utilizes a special transducer construction to eliminate any loss of sound information and achieve the highest efficiency in the conversion system.

The conical-shaped needle is less demanding in terms of installation angle adjustment, making it highly versatile and suitable for various tonearms. You can always choose a different stylus tip from the VM95 series: Elliptical, Elliptical nude, Microlinear, or Shibata. Each needle wears out with time as you play records, so it is important to have the ability to purchase a replacement needle. The approximate lifespan of the conical needle AT-VMN95C is around 500 hours.

Specifications:

  • Frequency response: 20 - 20,000 Hz
  • Channel separation: 18 dB at 1 kHz
  • Tracking angle: 23°
  • Tracking force range: 1.8 - 2.2 g
  • Optimal tracking force: 2.0 g

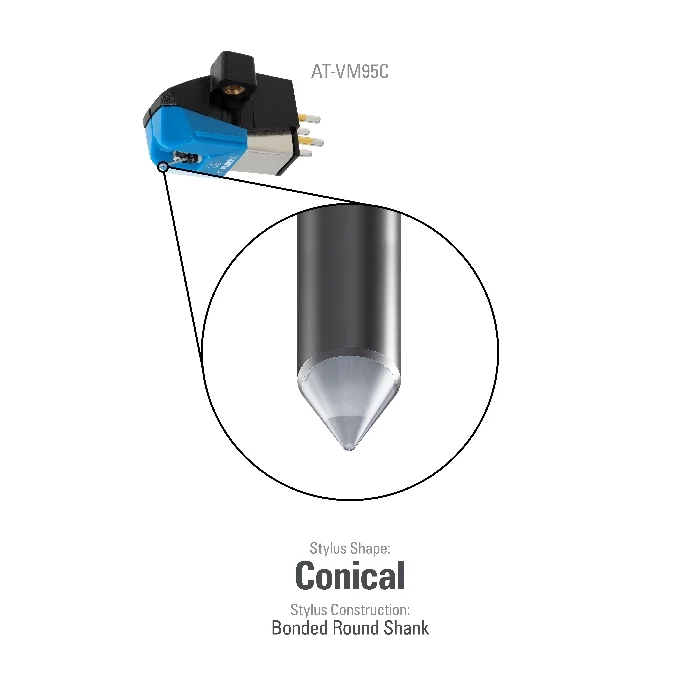

  • Stylus type and shape: conical, Bounded round shank
  • Recommended load impedance: 47 kΩ
  • Internal impedance: 3.3 kΩ (1 kHz)
  • Recommended load capacitance: 100 - 200 pF
  • Output voltage: 4.0 mV (1 kHz, 5 cm/sec)
  • Channel balance: 2.5 dB
  • Needle tip radius: 0.6 mil
  • Dimensions (WxHxD): 18.9 x 17.2 x 28.3 mm

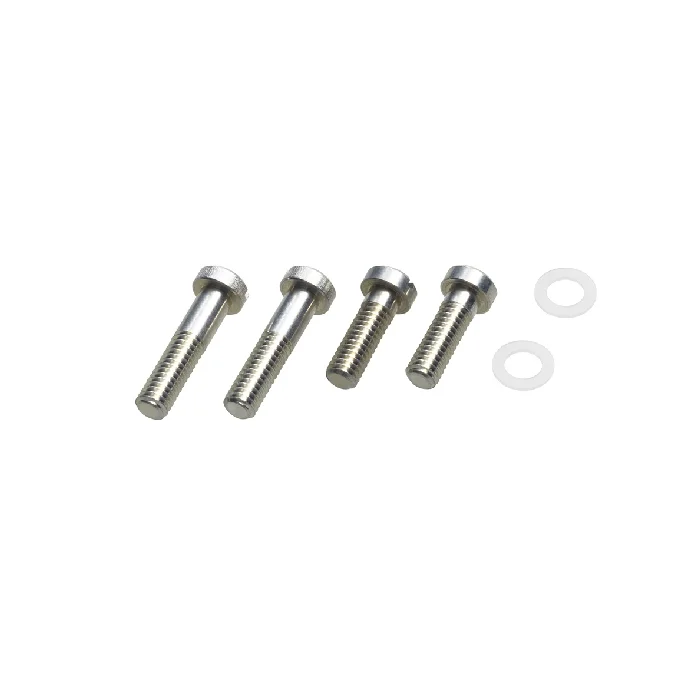

Package includes:

  • Two 11 mm screws
  • Two 7 mm screws
  • Two washers.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Cartridge type

MM (moving magnet), i.e. construction with a movable magnet or MC (moving coil) with a movable coil. MM ones are used more often in turntables of primary and secondary classes

Glossary of terms
MM
Color
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
485
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
20
The lowest frequency, Hz
20
Weight, g
6.1
Service life, months
24
Warranty, months
12
