Cartridge
Audio-technica AT-XP7

Product code: 100081
no reviews
AED 599
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

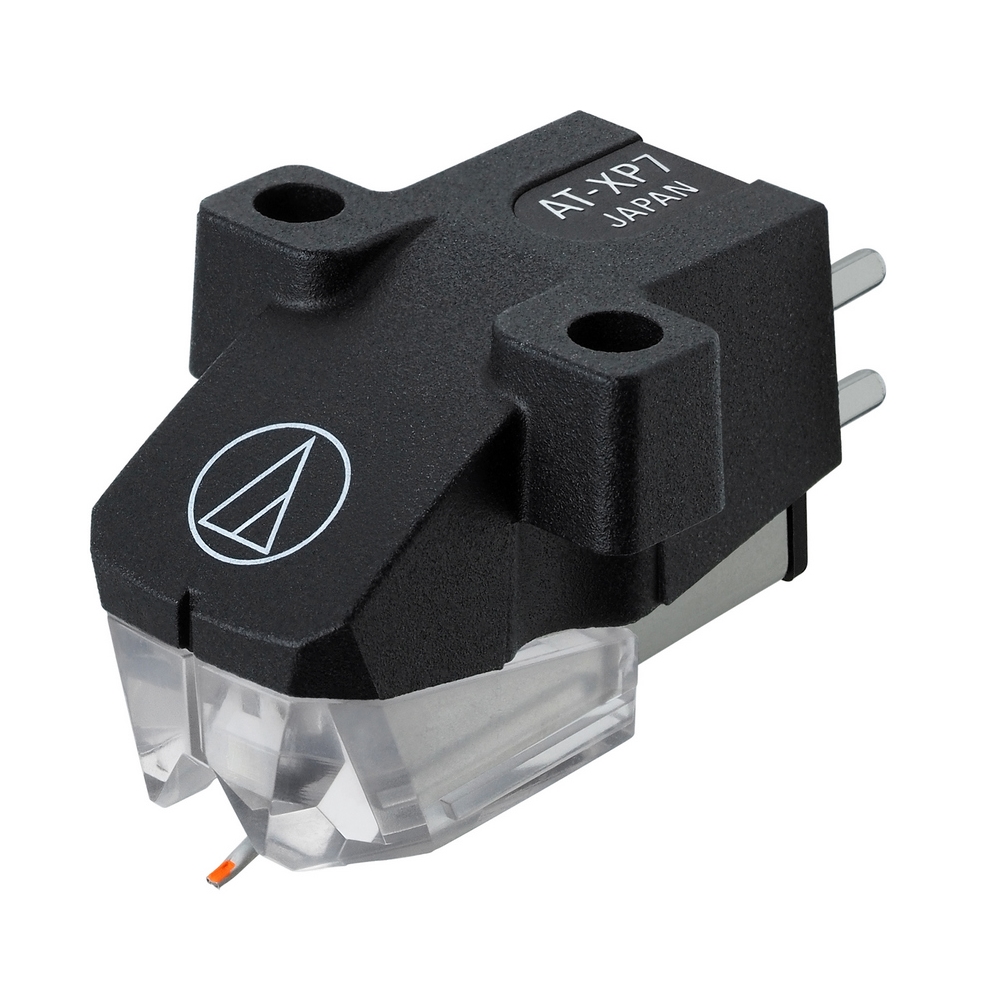

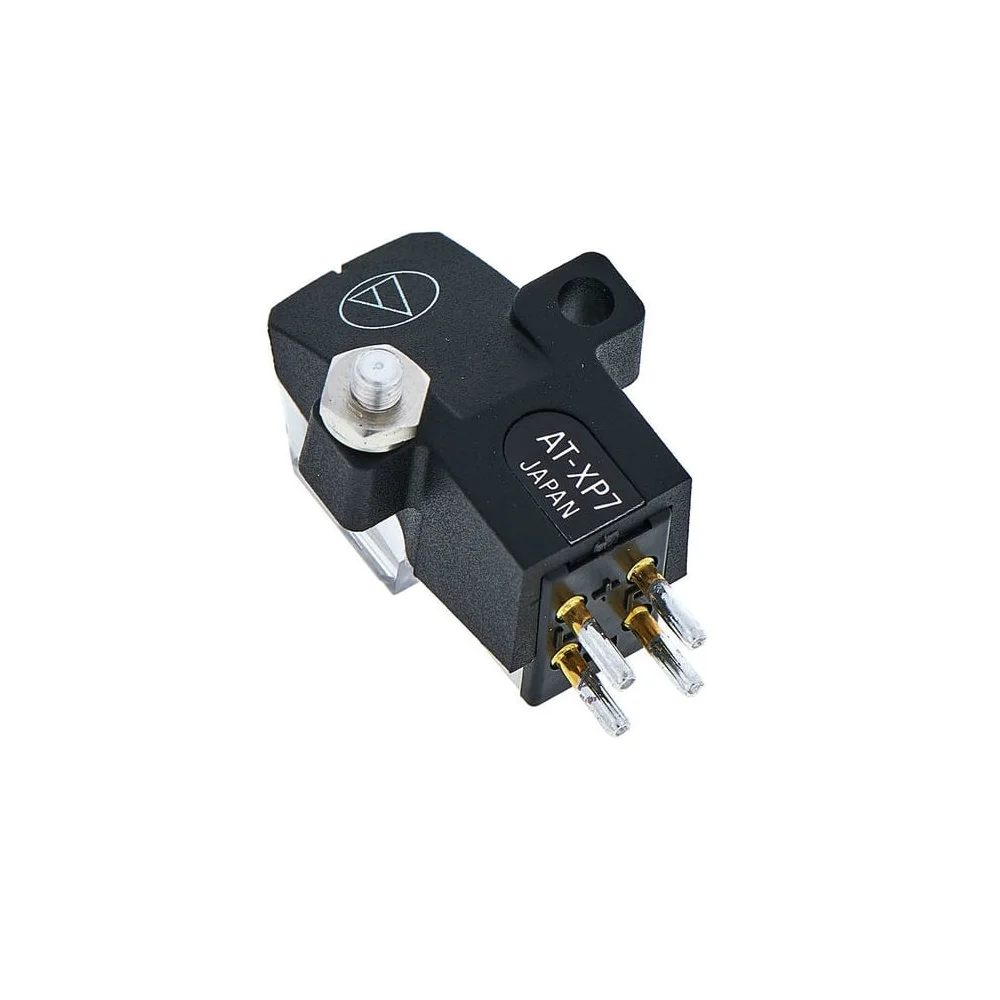

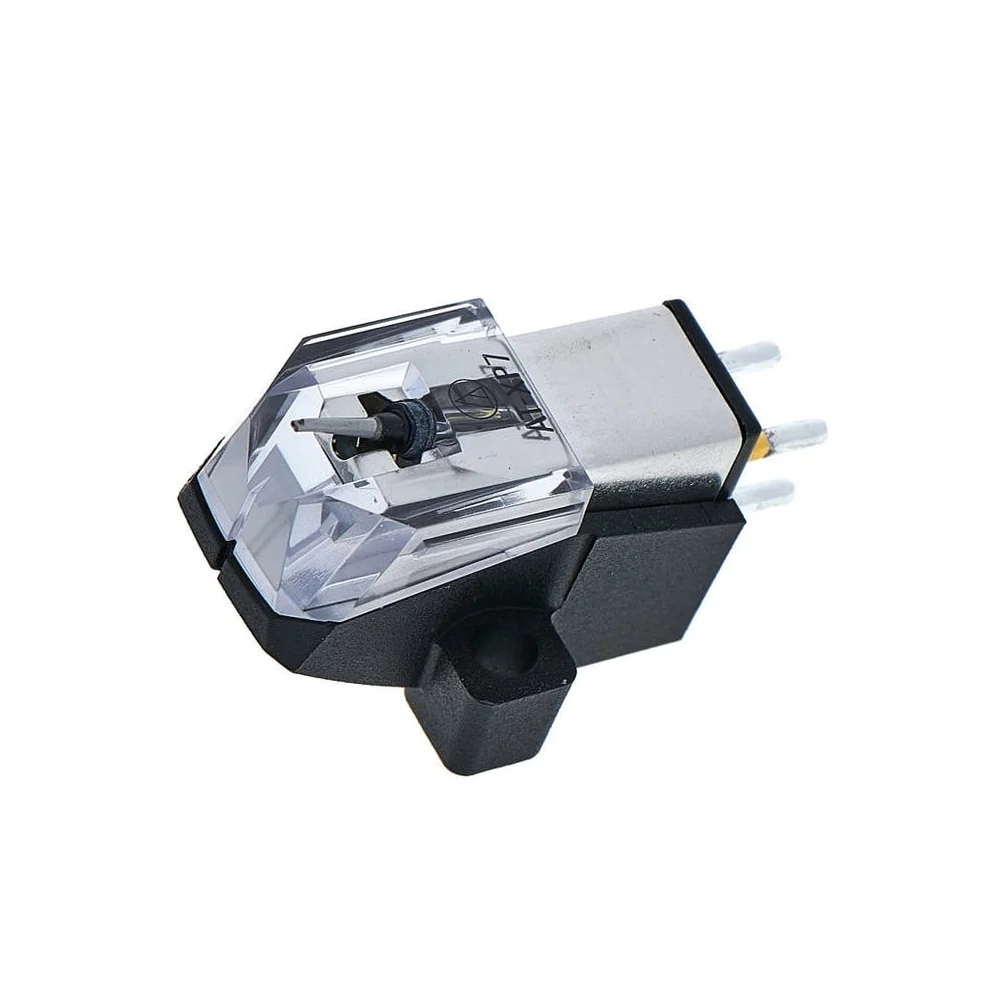

Audio-Technica AT-XP7 - a moving magnet cartridge specifically designed for DJs. It features a housing made of rigid polysulfide and glass fiber, a tracking force of 2 to 4 grams, and provides a powerful output signal of 5.5 mV. The 0.6 mil conical stylus tracks the center of the groove accurately, ensuring reliable performance and playback accuracy. The cartridge design provides maximum visibility of the stylus tip. The cartridge is compatible with XP or VM95 replacement styli, offering a wide range of options for any budget and application.

Features:

  • Stylus shape: elliptical
  • Durable and reliable construction for high-quality playback
  • VM dual magnet
  • Conical aluminum mount

Specifications:

  • Frequency range: 20-20,000 Hz
  • Channel separation: 22 dB at 1 kHz
  • Vertical tracking angle: 20°
  • Tracking force: 2.0-4.0 grams
  • Recommended load resistance: 47 kOhms
  • Output signal: mV
  • Channel balance: 2.0 dB (1 kHz)
  • Stylus diameter: 0.6 mil
  • Dimensions: 17.2 x 17.8 x 28.3 mm
  • Weight: 6.2 grams

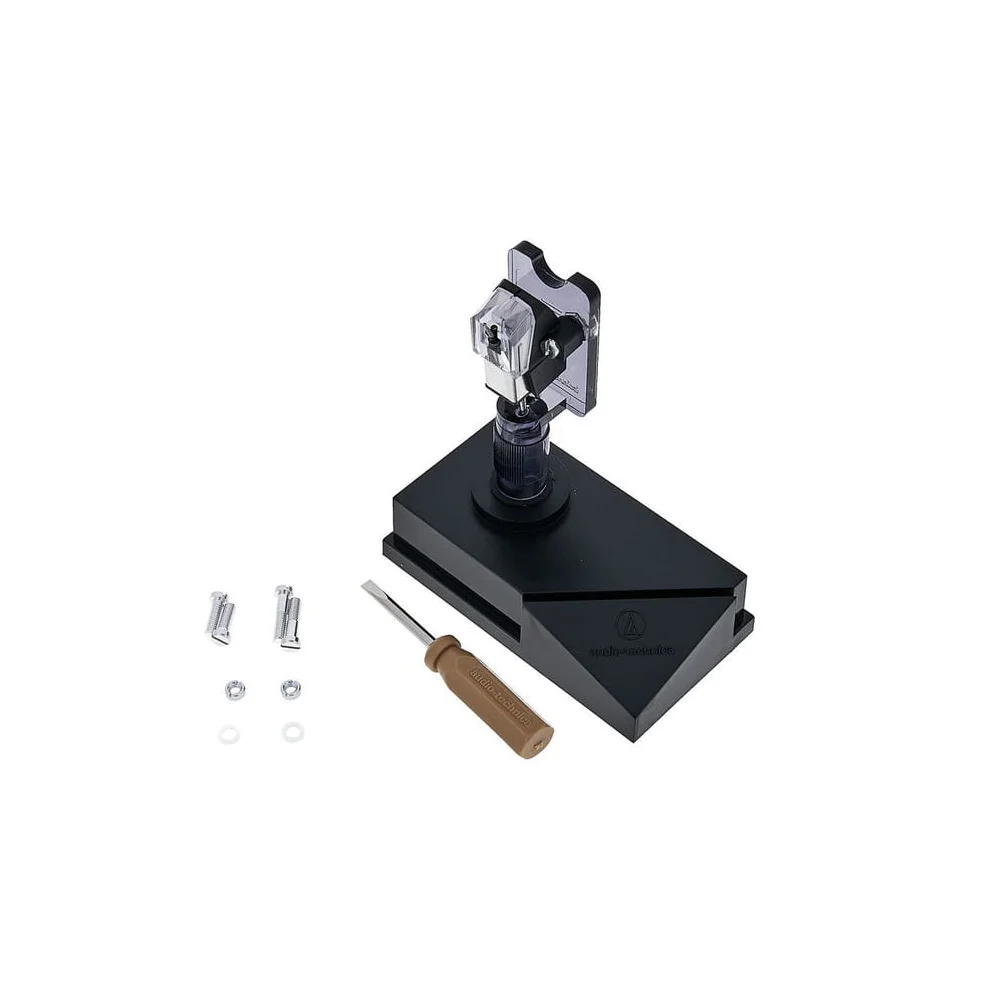

Package includes:

  • Cartridge
  • Set of screws
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Cartridge type

MM (moving magnet), i.e. construction with a movable magnet or MC (moving coil) with a movable coil. MM ones are used more often in turntables of primary and secondary classes

Glossary of terms
MM
Color
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
6.7
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
18
The lowest frequency, Hz
20
Weight, g
6.2
Service life, months
24
Warranty, months
12
