Description

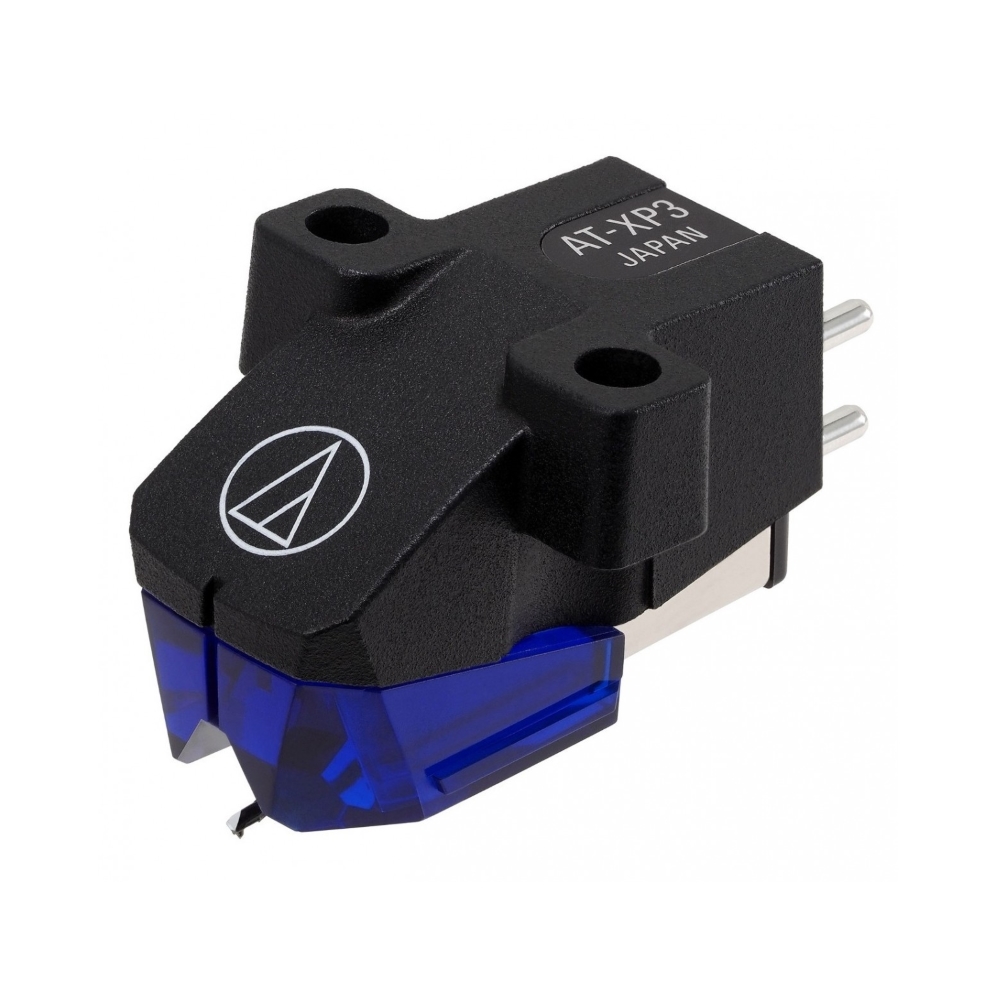

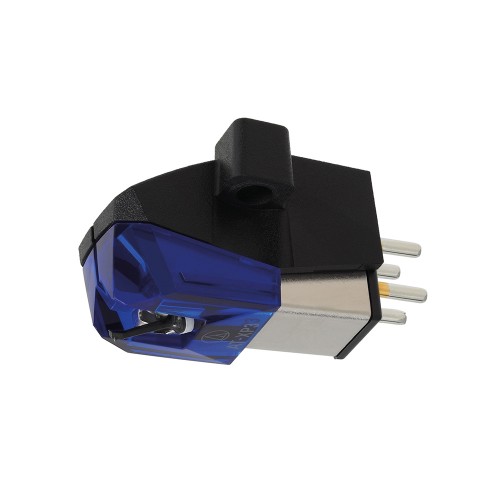

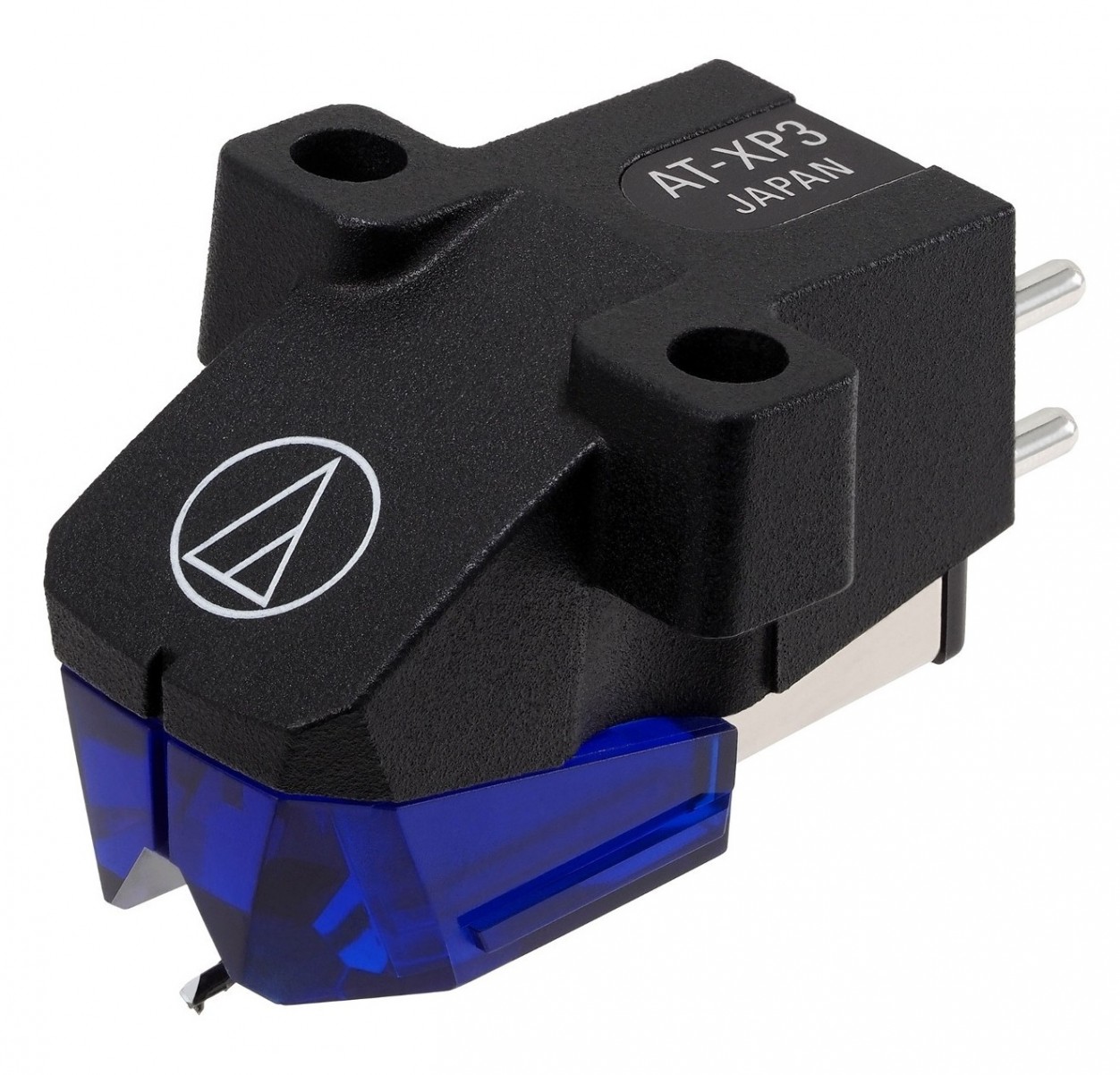

Audio-Technica AT-XP3 is a moving magnet cartridge specifically designed for DJs. It features a housing made of rigid polysulfide and glass fiber, with a tracking force of 2 to 4 grams, and provides a powerful output signal of 5.5mV. The conical stylus with a diameter of 0.6 mil flawlessly tracks the center groove of the track, ensuring reliable performance and accurate reproduction. The cartridge's design provides maximum visibility of the stylus tip. The cartridge is compatible with the interchangeable XP or VM95 stylus series, offering a wide range of options for any budget and application.
Features:

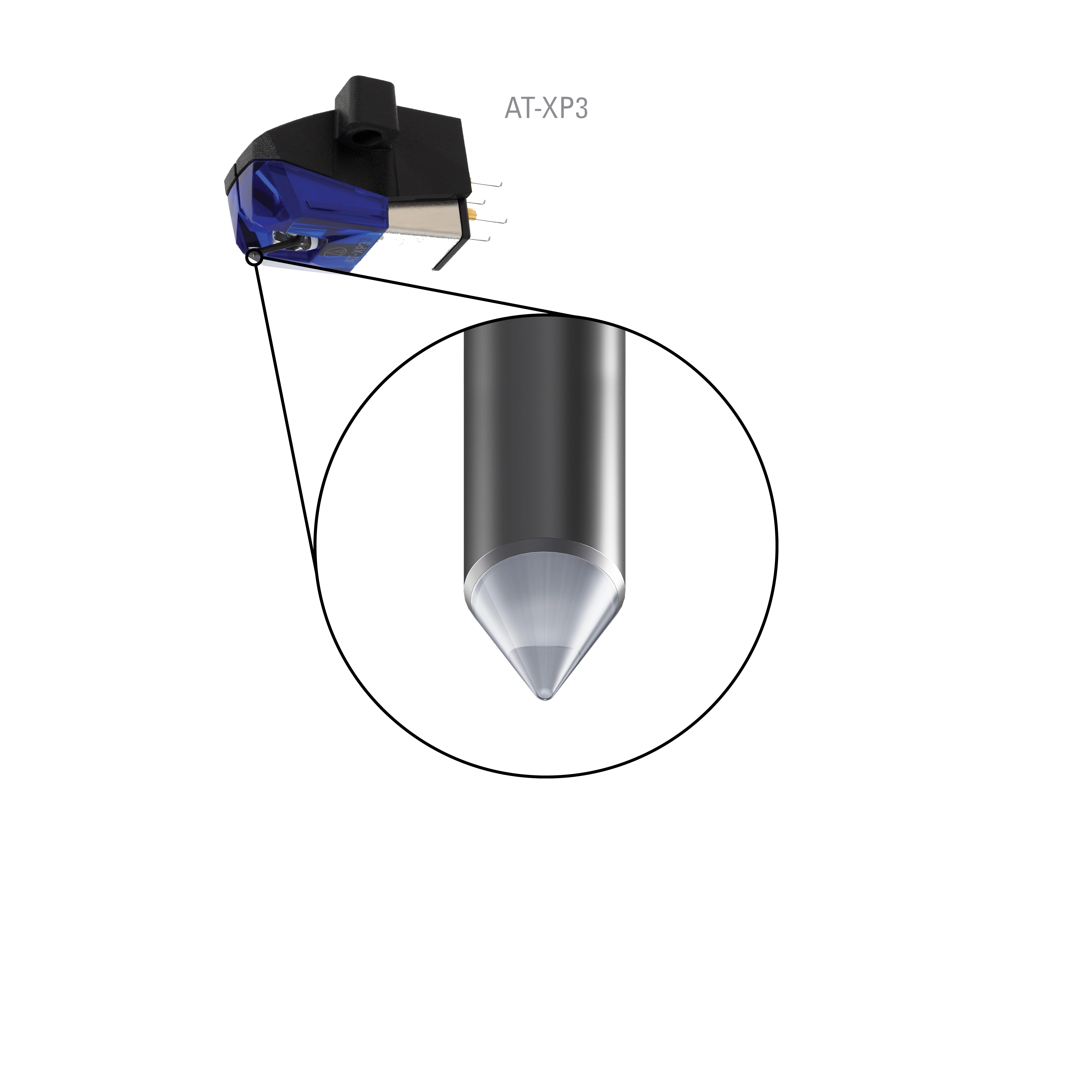

- Needle shape: conical
- Polysulfide housing
- VM dual magnet
Specifications:
- Frequency range: 20-18,000 Hz
- Channel separation: 20 dB at 1 kHz
- Vertical tracking angle: 20°
- Tracking force: 2.0-4.0 grams
- Recommended load impedance: 47 kΩ
- Output signal: 5.5 mV
- Channel balance: 2.0 dB (1 kHz)
- Stylus diameter: 0.6 mil
- Dimensions: 17.2 x 17.8 x 28.3 mm
- Weight: 6.2 grams
Package Includes:
- Cartridge

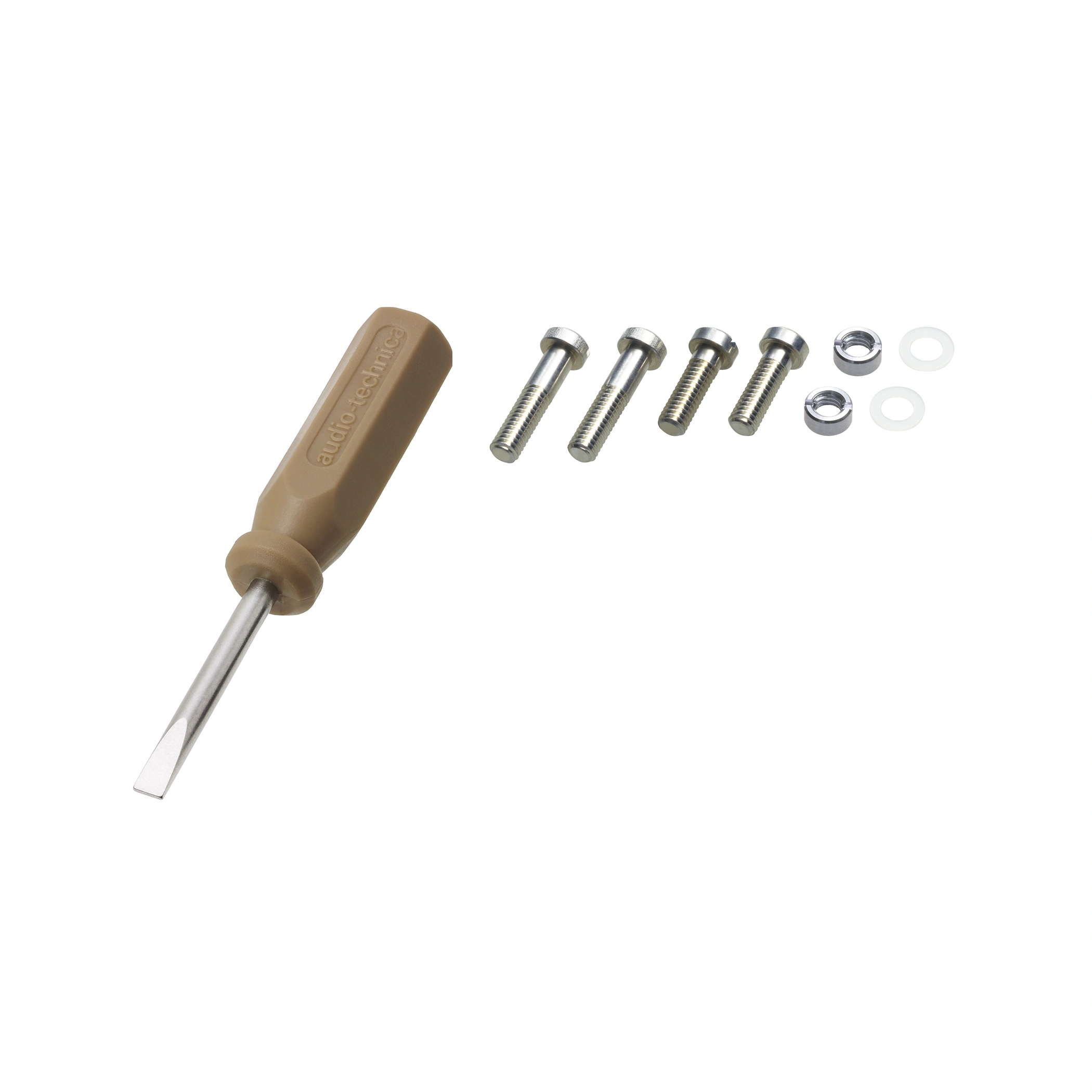

- Set of screws
- Documentation
