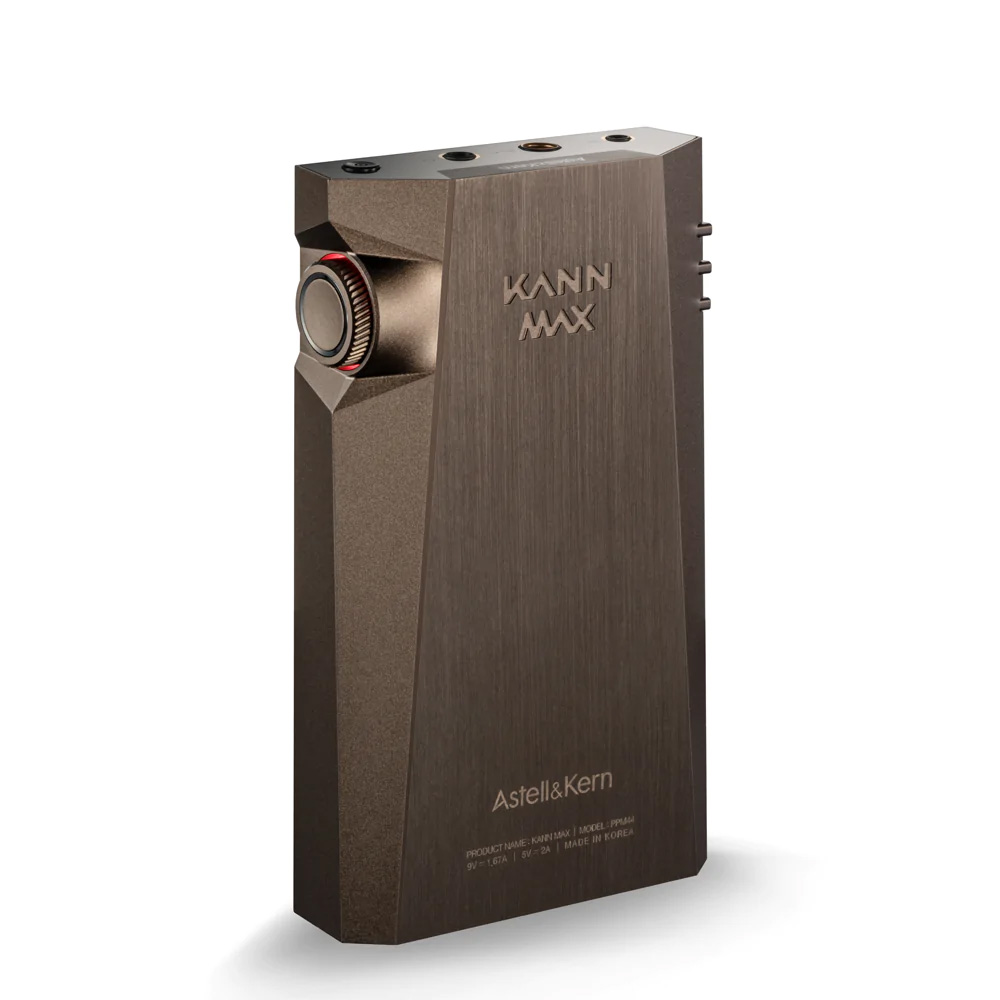

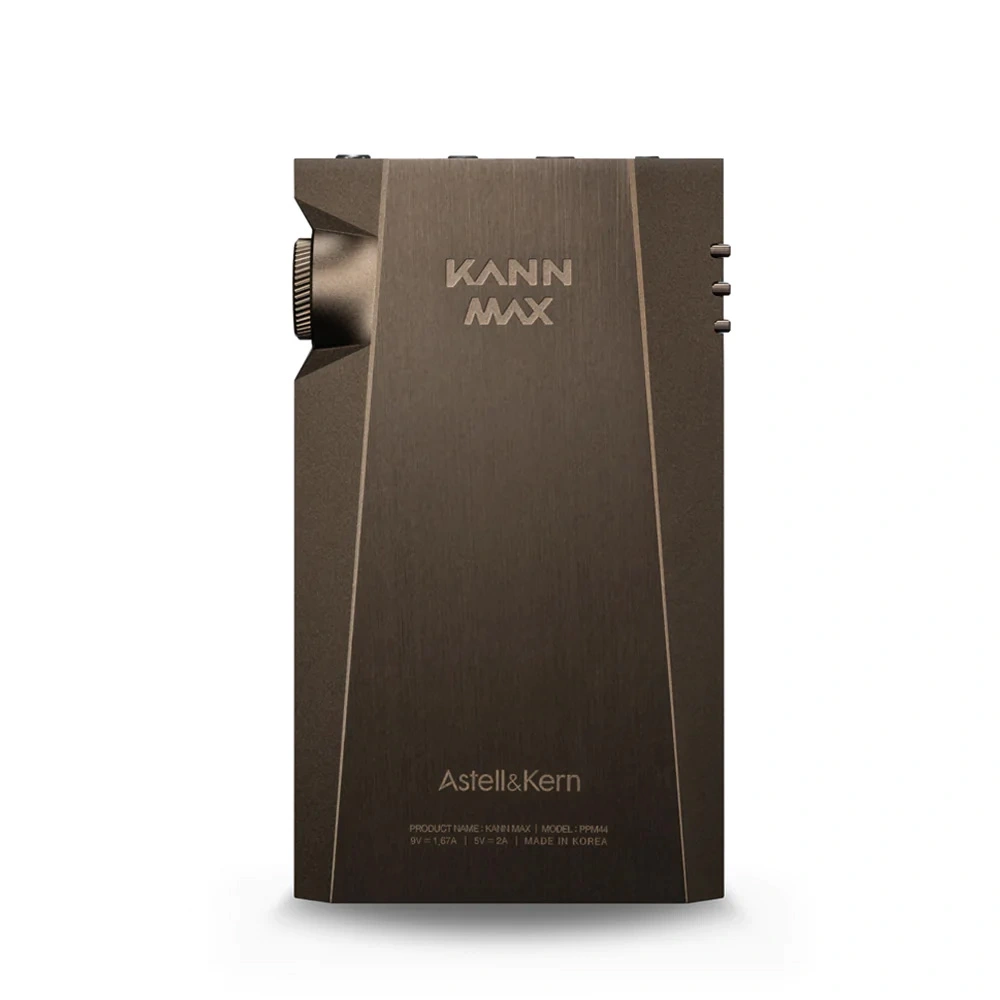

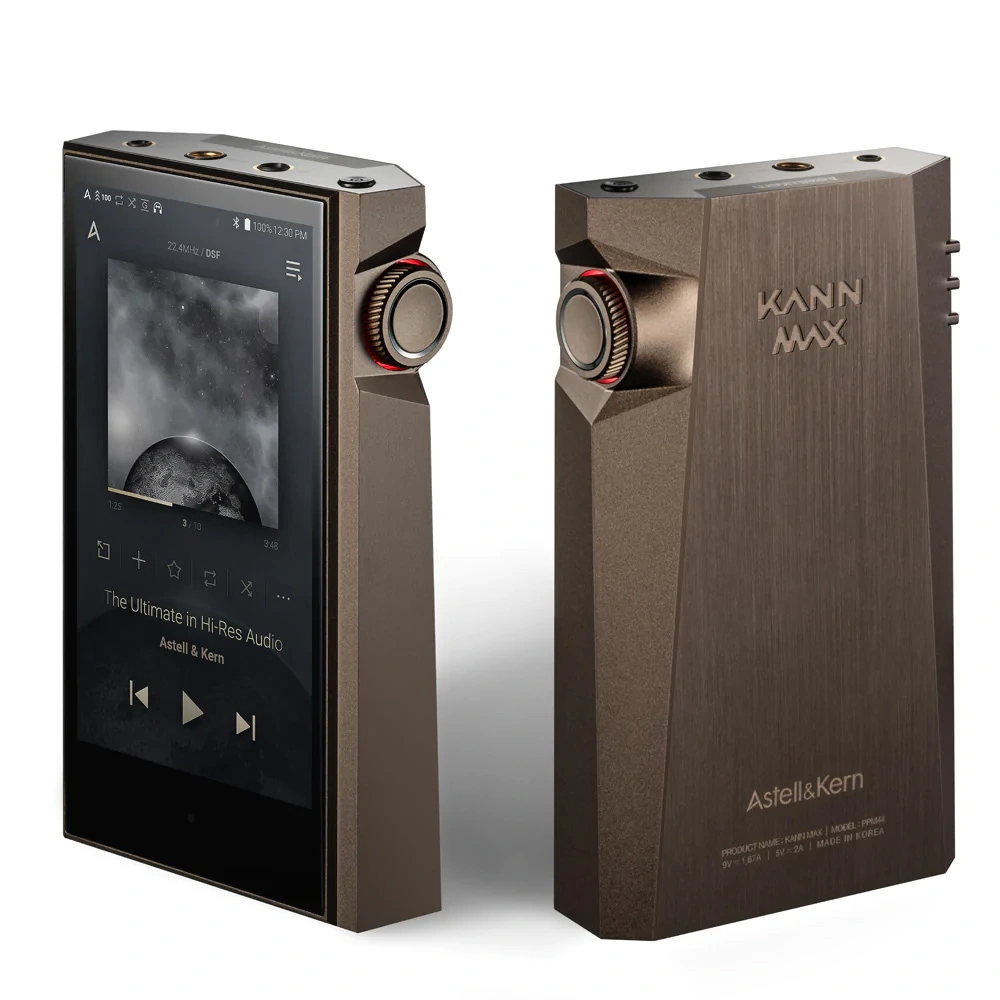

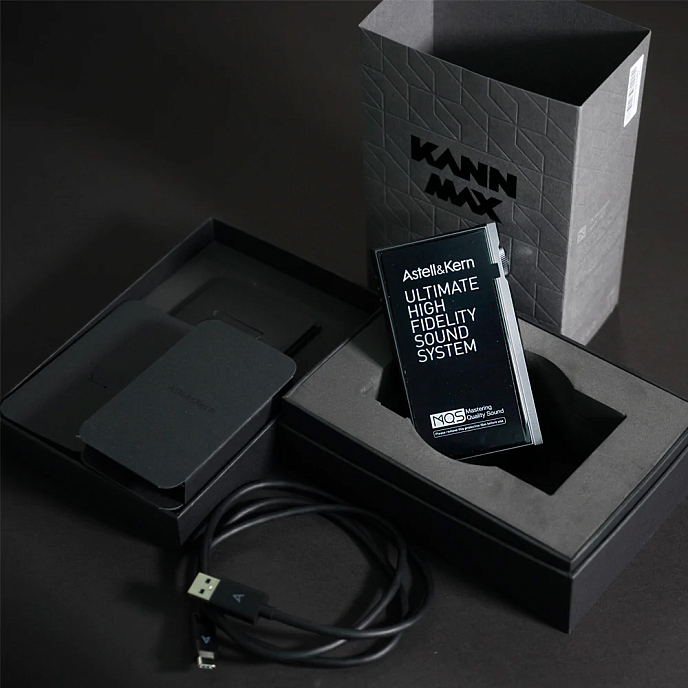

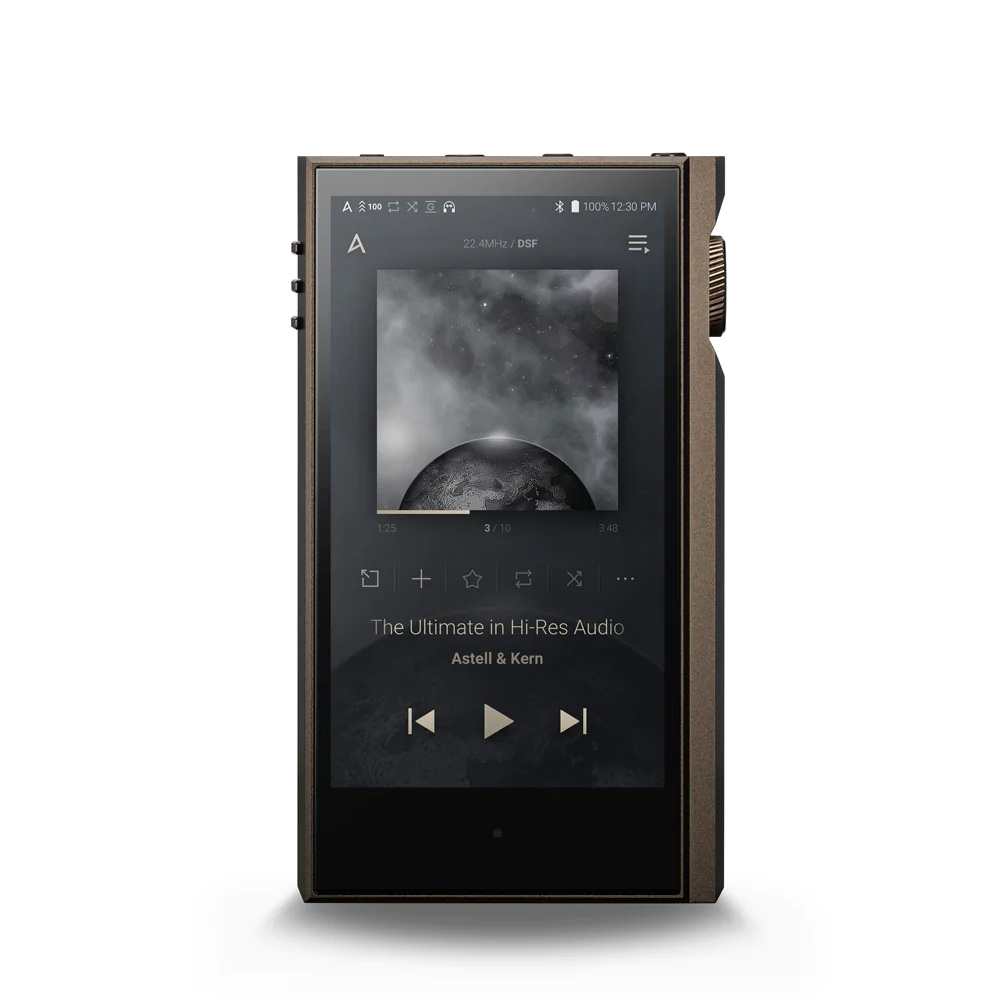

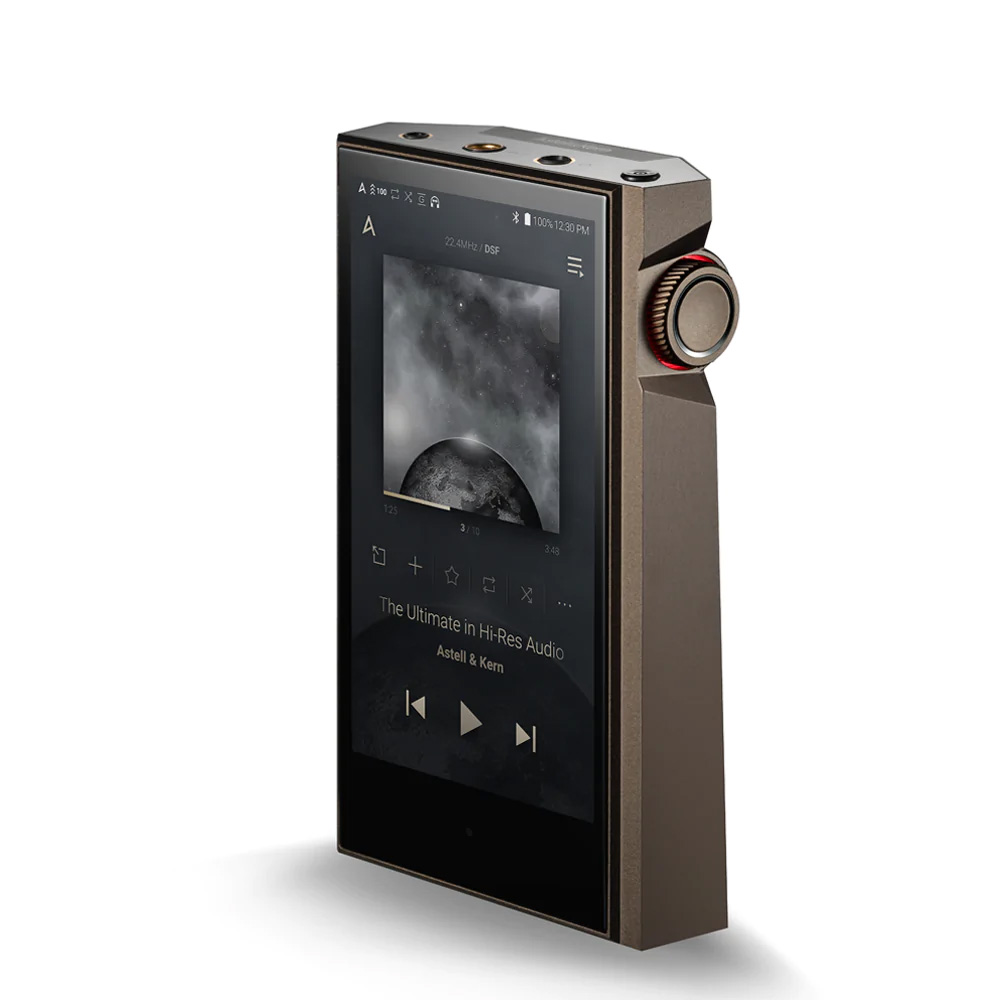

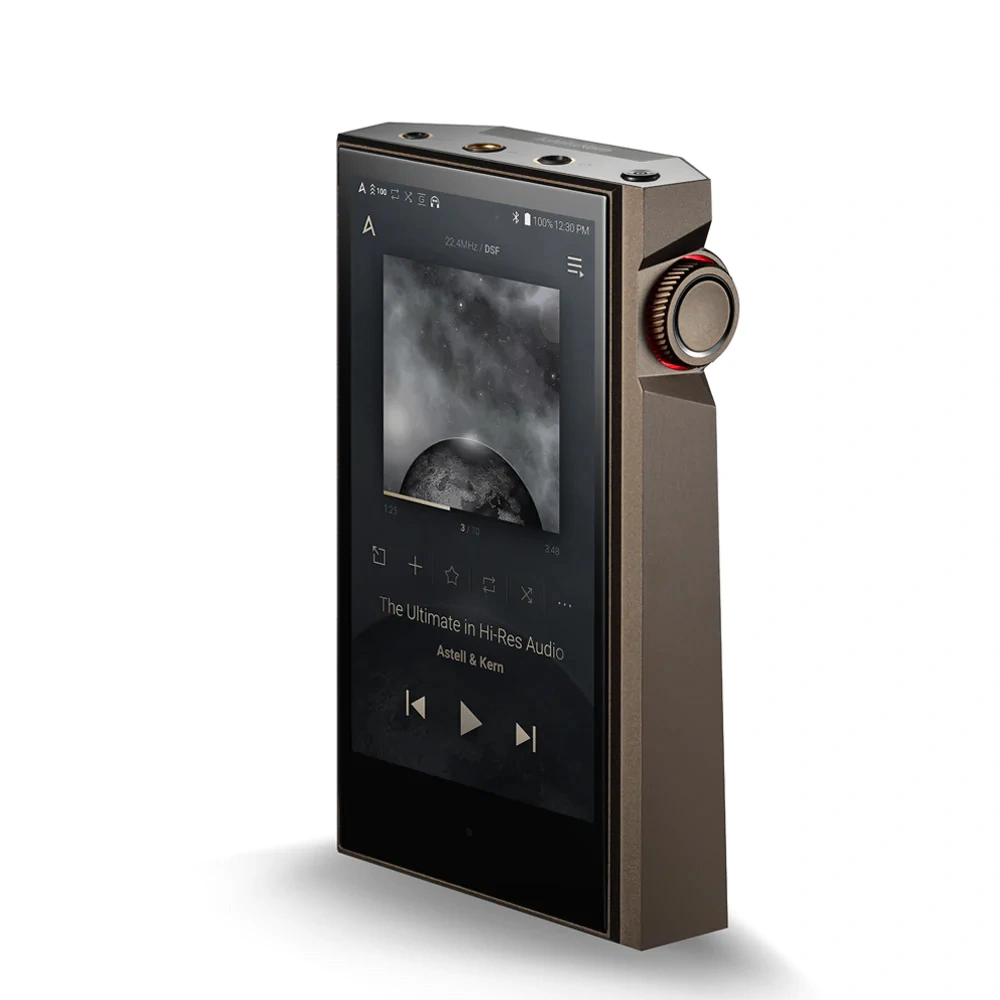

Astell&Kern KANN MAX Brown

Product code: 131044
no reviews

Description

Reviews (0)

Description

The Astell&Kern KANN MAX is a portable Hi-Fi player with high output power, support for Hi-Res Audio Wireless, and MQA.

Features:

  • 4 levels of gain;
  • Output power up to 15 Vrms;
  • 4 ESS ES9038Q2M Quad-DAC chips;
  • TERATON ALPHA technology;
  • Support for 32-bit / 768kHz, DSD512, and MQA x8;
  • aptX HD and LDAC codecs;
  • AK File Drop file transfer function and BT Sync wireless receiver mode;

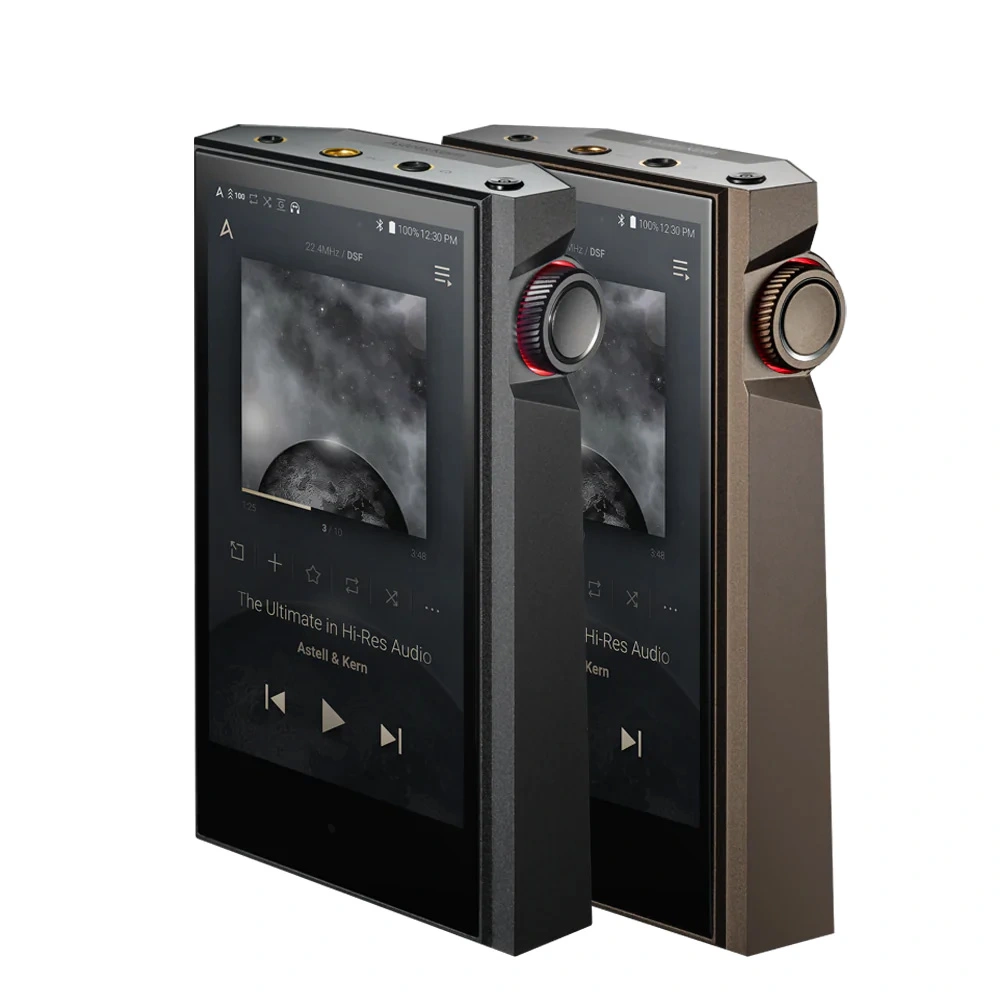

  • 4.1" 1280 x 720p display;
  • Up to 13 hours of battery life + fast charging feature.

Powerful and Perfect

The KANN series is a lineup of portable players known by audiophiles worldwide for their high performance and clean sound. With even higher performance and mobility, the KANN MAX, the fourth product in the KANN series, takes advantage of the strengths of the KANN series.

The well-established design of the KANN series has become even lighter and more compact. The manufacturer has achieved higher performance and lower noise levels. The KANN MAX features a quad-core ESS ES9038Q2M DAC combined with Astell&Kern's unique audio technology, delivering the best performance you can get from a portable player.

Superior Performance in a Smaller Device

The KANN MAX takes the popular series to a new level, delivering perfect sound with high power and clean sound. It offers 4 levels of gain and an ultra-high output power of up to 15 Vrms, which was previously only possible with a stationary headphone amplifier.

The KANN MAX can handle even the most demanding headphones with high impedance. It has smaller dimensions and weight compared to the KANN ALPHA player, which boasted better portability within the existing KANN series.

Despite its smaller size, all power-related components have been improved, and the power scheme has been revised multiple times to provide up to 13 hours of continuous playback.

Updated Circuitry for High Performance and Low Noise

As output power increases, so does the level of noise. The KANN MAX is equipped with ultra-high output power and eliminates any noise. The device embodies Astell&Kern's philosophy of delivering the original sound as intended, without compromises.

The KANN MAX uses an analog volume controller to ensure a rich dynamic range without losses. By separately tuning the power chips for each audio block - digital, amplifier, and volume adjustment - the stable power delivery required for each audio block is achieved. This design eliminates pulsating noise from the DC power source. The analog noise that can be heard when the operational amplifiers are used at higher volume levels is minimized.

The combination of ultra-high output power and low noise in the KANN MAX was achieved through a new circuit design, including developing and dividing the same-sized PCB as the KANN ALPHA into 12 layers and revising the physical dimensions of the amplifier scheme.

4 ESS Quad-DAC Chips for Clean and Stunning Sound

The KANN MAX is the first player in the KANN series equipped with four ES9038Q2M chips to deliver ultra-high performance. By using a four-channel DAC, one DAC can be dedicated to one channel, allowing the depth and realism of the sound source to be fully expressed.

In combination with Astell&Kern's amplifier circuit design, which naturally and delicately enhances the performance of the DAC, decoding and transmitting the original sound as it is intended is achieved. The four ESS chips

Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Bluetooth version

Bluetooth is a short-range wireless technology that allows you to connect headphones or portable speakers, a stereo system or a soundbar to your smartphone or laptop. For a certain version to work, both devices must support it. The versions differ in data transfer speed, power consumption, securing data transfer, anti-interference ability and range of connection.

Glossary of terms
5.0
Charging connector
USB-C
Codec support

To take advantage of a particular codec it must be supported by both devices

Glossary of terms
AptX-HD, LDAC
Color
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
4 x ES9038Q2M
Diagonal, inches

The distance between opposite corners of the screen in inches

Glossary of terms
4.1
Material
aluminum
Maximum capacity of SD cards, GB
1024
Memory capacity, GB

The amount of data that can be stored on the device (internal memory).

Glossary of terms
64
Model
Astell&Kern KANN MAX
Number of SD card slots
1
Operating system
own

The operating system developed by the device manufacturer.

Словарь терминов
Output connectors

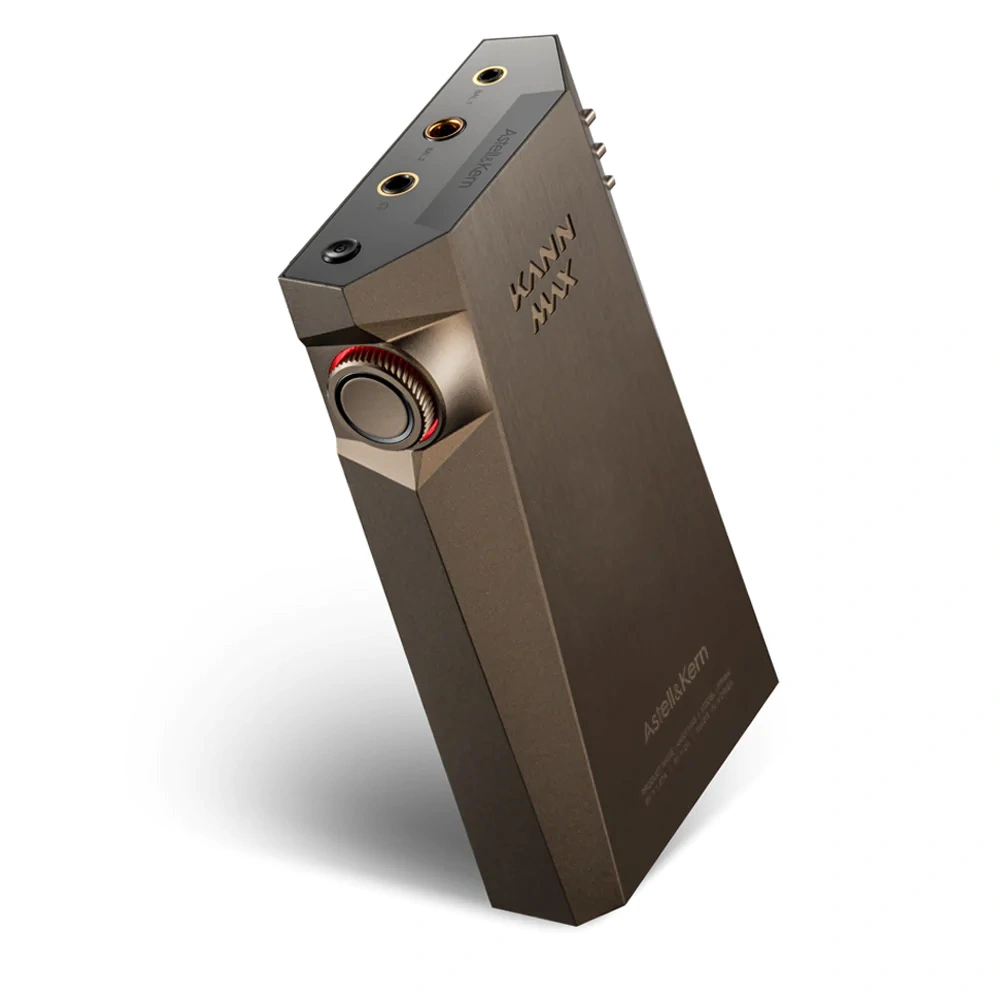

3.5mm jack, 2.5mm jack, 4.4mm jack
Playback time

The operating time of the device on a single charge.

Glossary of terms
13
Supported audio file formats
WAV, FLAC, ALAC, APE, DST, DSD, DSF, DXD, MP3, WMA, MQA, AIFF, OGG
Supported memory cards
microSDXC
Touch control

Control by touches

Glossary of terms
yes
Wi-Fi

Support Wi-Fi technology

Glossary of terms
yes
Depth, mm
23
Height, mm
117
Width, mm
68
Weight, g
305
Service life, months
24
Warranty, months
12
