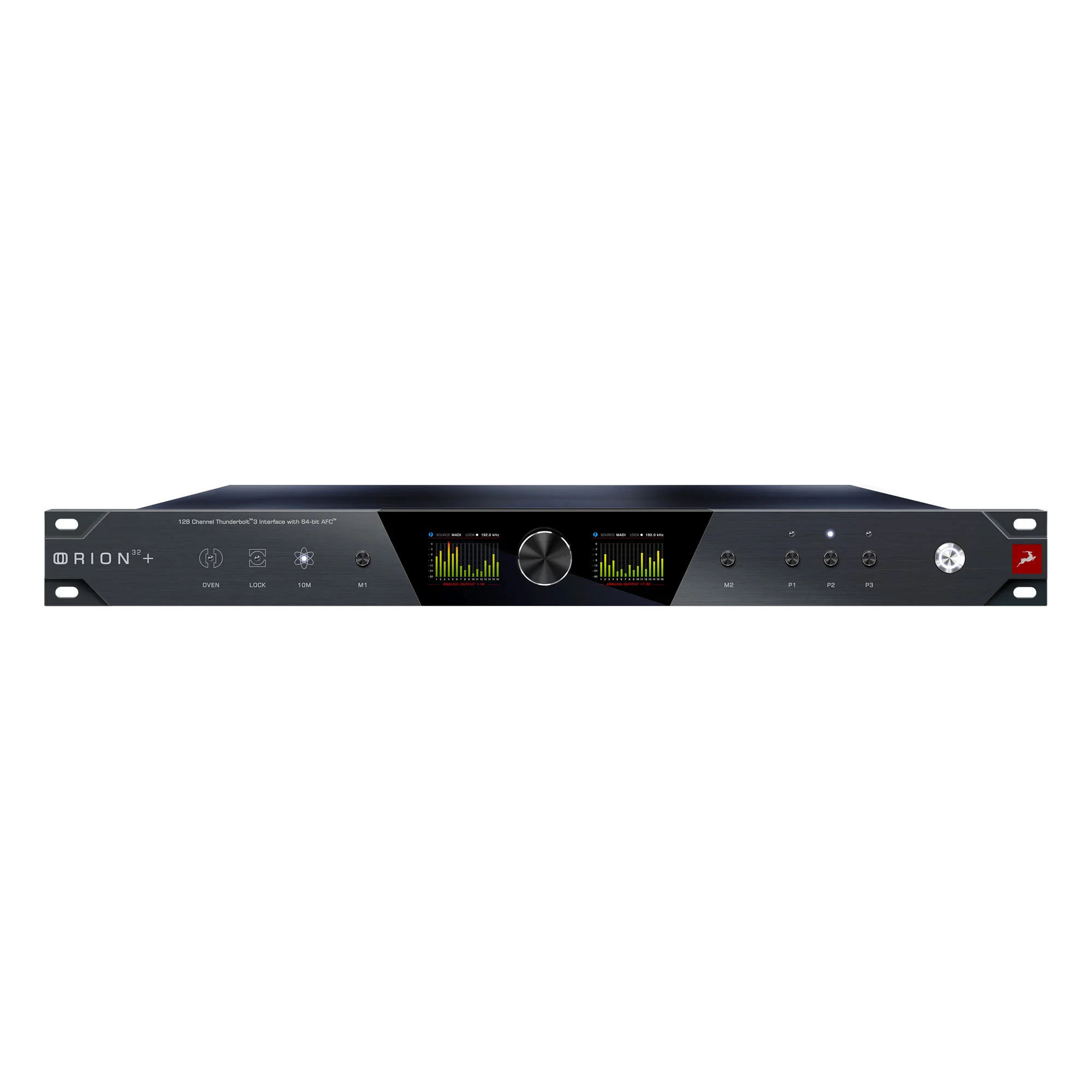

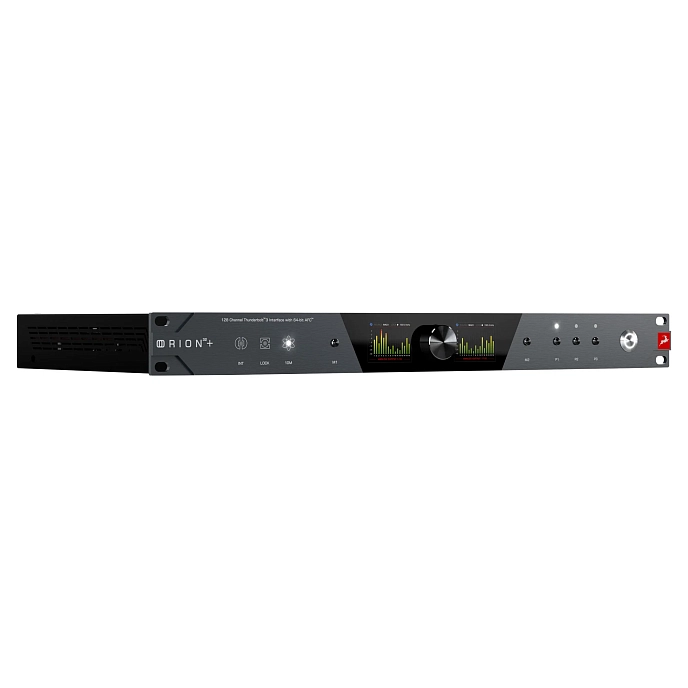

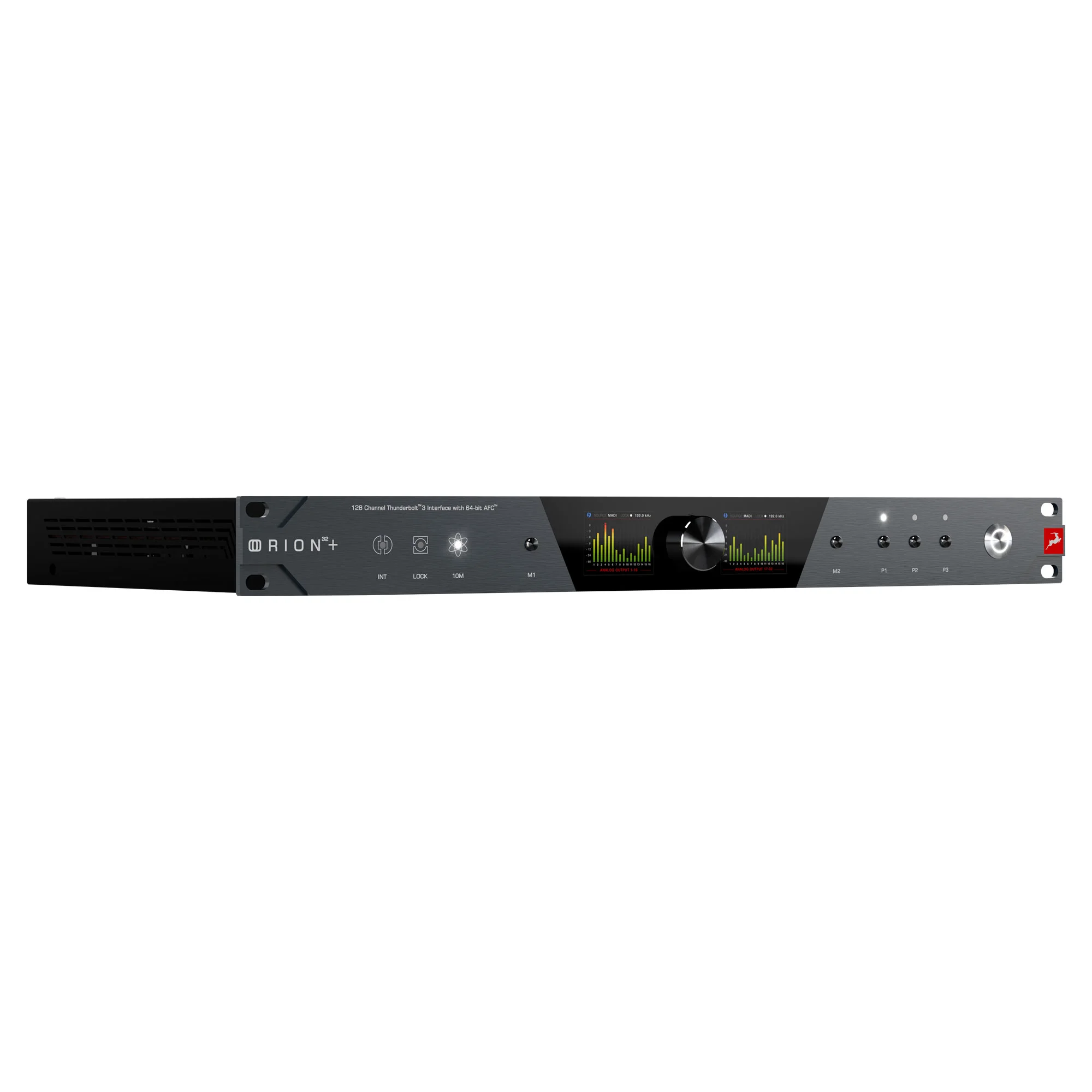

Antelope Audio Orion 32+ Gen 4
The Antelope Audio Orion 32+ Gen 4 is a Thunderbolt/USB audio interface with 32 channels of analog-to-digital conversion and enhanced performance for sound engineers in recording studios and live performances. With updated design, expanded dynamic range, and low non-linear distortion coefficient, the Orion32+ Gen 4 will be a significant improvement to your working setup.
Features:
- Compatible with Pro Tools and Native
- 128 channels of Hi-Res audio via Thunderbolt or 32 channels via USB
- 128 channels via MADI interface
- Impeccable 64-bit synchronization system and 4th generation jitter suppression
- Efficient fanless design
- 10 M input for Atomic Clock connection
- One input and two Word Clock outputs (BNC)
- DSP with EQs, compressors, and other effects, including De-Esser and AuraVerb
- Control from multiple computers
For over a decade, the Orion 32 interface series has revolutionized the world of professional sound recording and production. The latest version of this iconic 1U studio device, which is a central element in the game, has enhanced it, taking the best from its predecessors and adapting to the constantly evolving needs and industry standards. The Orion 32+ Gen4 is equipped with the latest Antelope audio technologies, significantly enhancing the device's potential.
The Orion 32+ Gen 4 is ready for use with Pro Tools HD and Native, providing zero-latency monitoring, streaming of 128 channels of 24-bit/192kHz audio, perfect synchronization, cleanest conversion, extensive connectivity options, and more.
Converters with up to 130 dB dynamic range, impeccable synchronization achieved through new 64-bit Acoustically Focused Clocking (AFC) technology, and jitter management algorithm allow for deep and detailed sound with vivid transients and crystal-clear high frequencies. A large collection of legendary effects emulators on the FPGA FX platform provides all necessary processing for recording, mixing, and mastering.

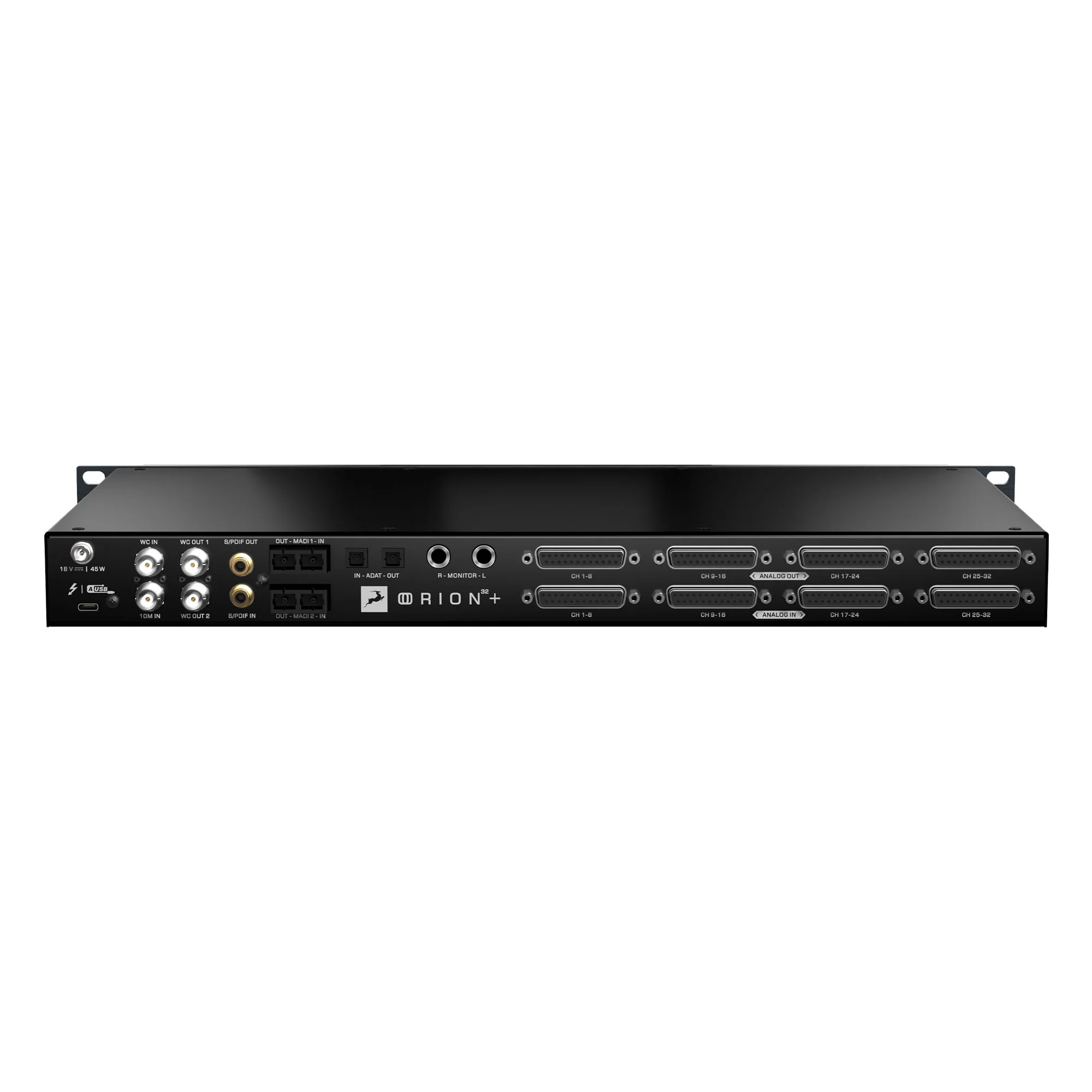

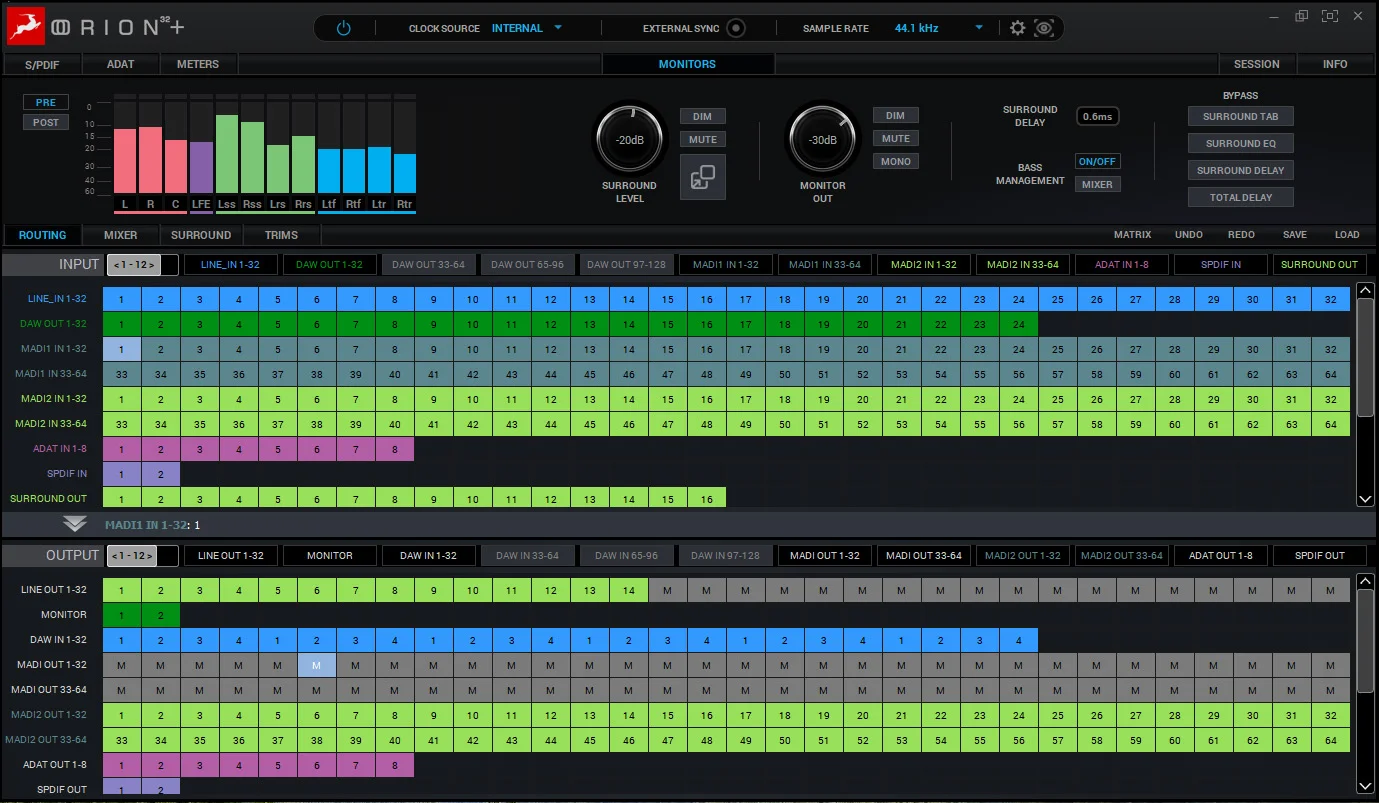

The Orion 32+ Gen 4 features a software control panel and routing matrix with four mixers. The application allows you to build effect chains and perform latency-free monitoring, while the program can be controlled from multiple networked computers. With the ability to connect via HD, HDX, and HD Native, the Orion 32+ Gen 4 provides low latency and compatibility with HD systems. The device can transmit hi-res audio via HDX or USB 3.0 and supports digital connections MADI, ADAT, and S/PDIF.
The Orion 32+ Gen 4 is compatible with the latest Atmos immersive sound system, ready to use with immersive effect. The integrated platform supports over 23 audio formats from stereo to Dolby Atmos 9.1.6 and offers tools for precise speaker calibration and room correction.
Intuitive monitoring system controls and quick recall of preset settings are designed to boost productivity. The device is available as an additional upgrade for the Orion 32+ Gen4. As a physical extension of the system, the compatible hardware controller Antelope MRC provides simplified and tactile control, crucial for advanced monitoring.
The Orion 32+ Gen 4 is distinguished not only by its updated exterior and significantly improved hardware, but also by the redesigned control panel for an even smoother workflow. The device now comes equipped with a powerful preset system along with signal routing, level adjustment, mixer settings, and monitoring controls.
For practical control of output signal levels and quick recall of presets, a convenient pop-up monitoring widget with the "Always On Top" feature has been introduced. The device's signal routing matrix is now fully customizable, making corrections easier and less complex.
Package includes:
- Audio interface
- Power cable
- Documentation
