Bookshelf speakers
Yamaha NS-5000 Right

Product code: 126807
no reviews

Description

Reviews (0)

Description

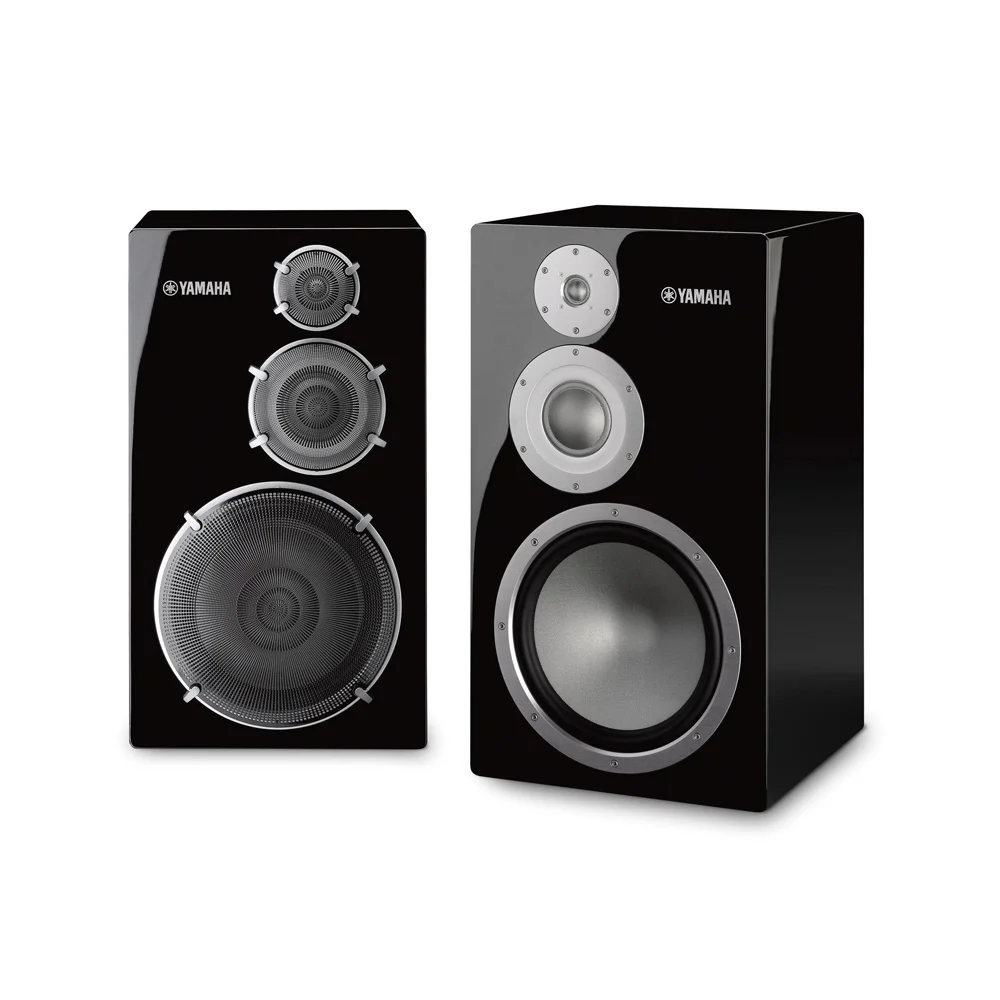

The Yamaha NS-5000 speakers have an uncompromising design and are created using select materials and components, as well as the most advanced technologies of this legendary company.

Features:

  • Three-way High-End class speakers with separate chambers for the drivers.
  • Drivers with signature ZYLON diaphragms made of advanced material.
  • Birch plywood reinforced construction and external lacquer coating.
  • Separate acoustic chambers for midrange and tweeter drivers.

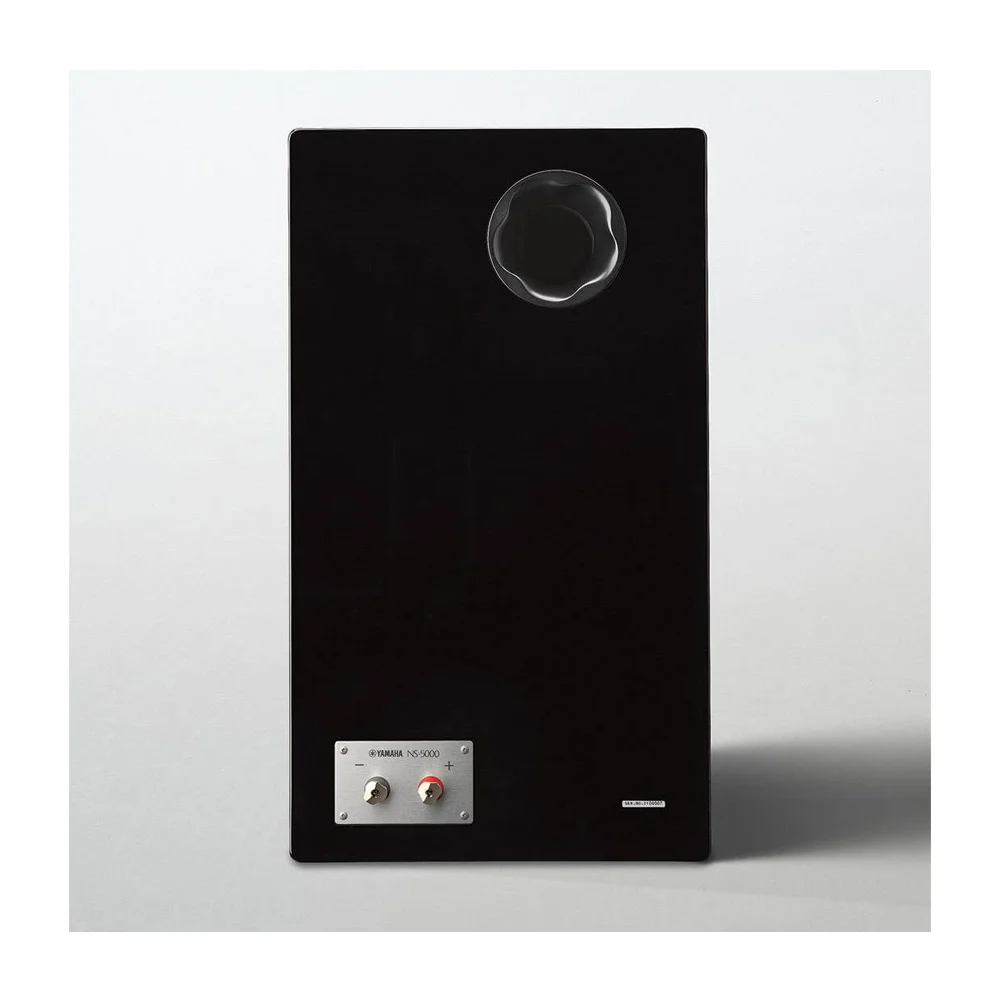

  • Curved rear panel phase inverter.
  • Cabinet material: natural birch plywood.

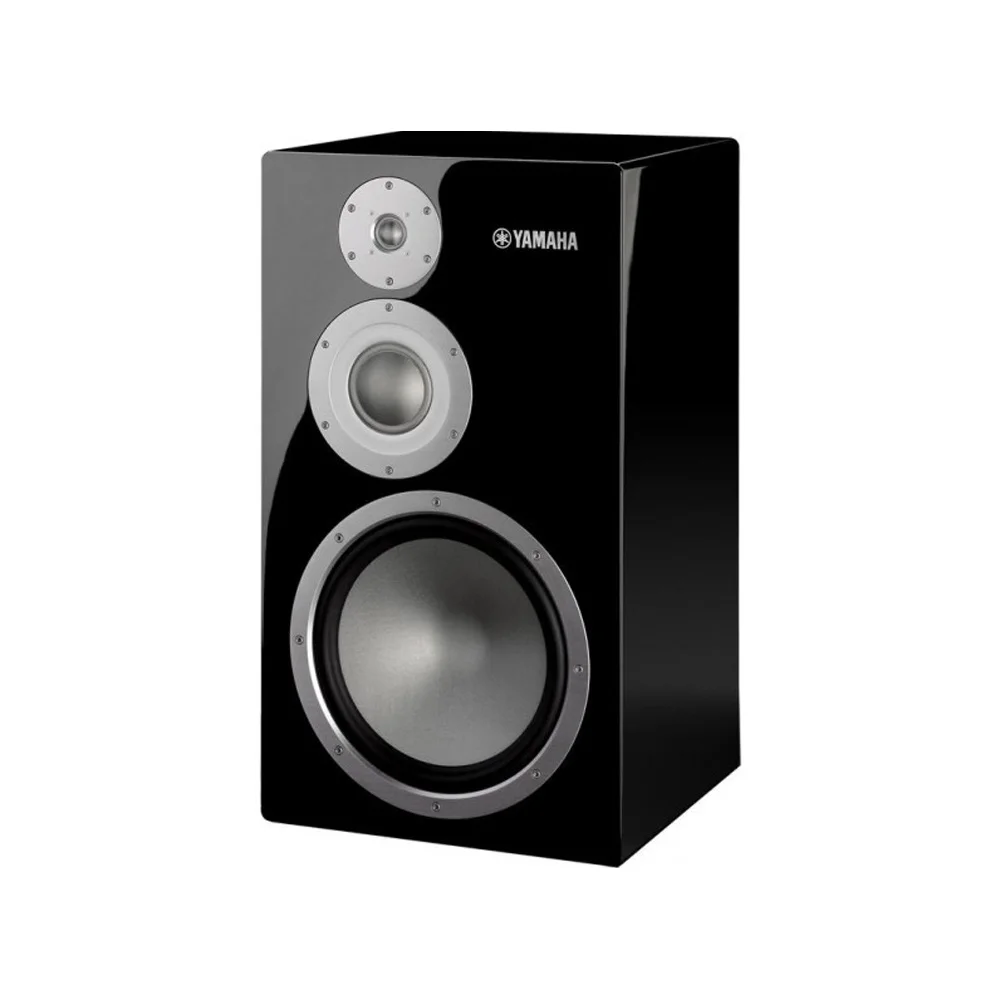

The Yamaha NS-5000 has a three-way configuration and in terms of sound quality and thoughtful design, can be considered the top system for all speakers in this class. This model resembles the famous NS-1000M speakers (released by Yamaha in 1974), but actually has a completely updated design.

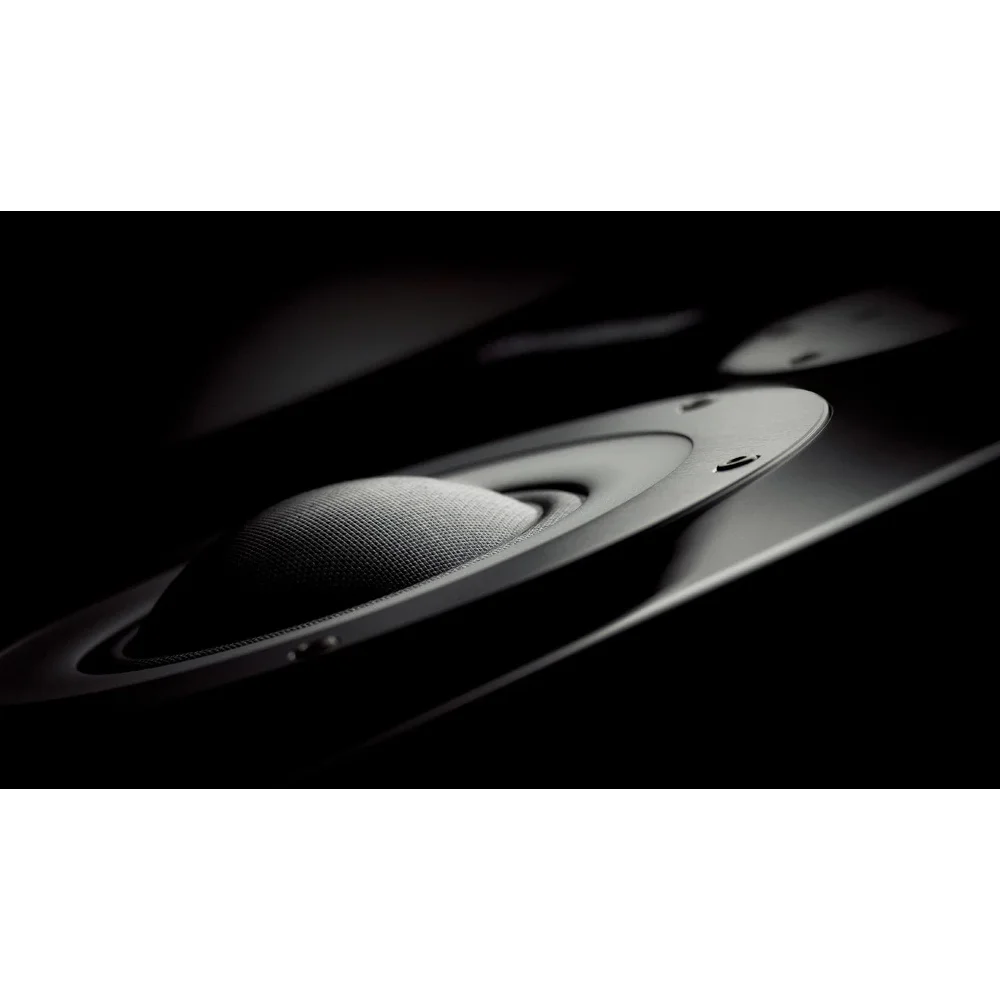

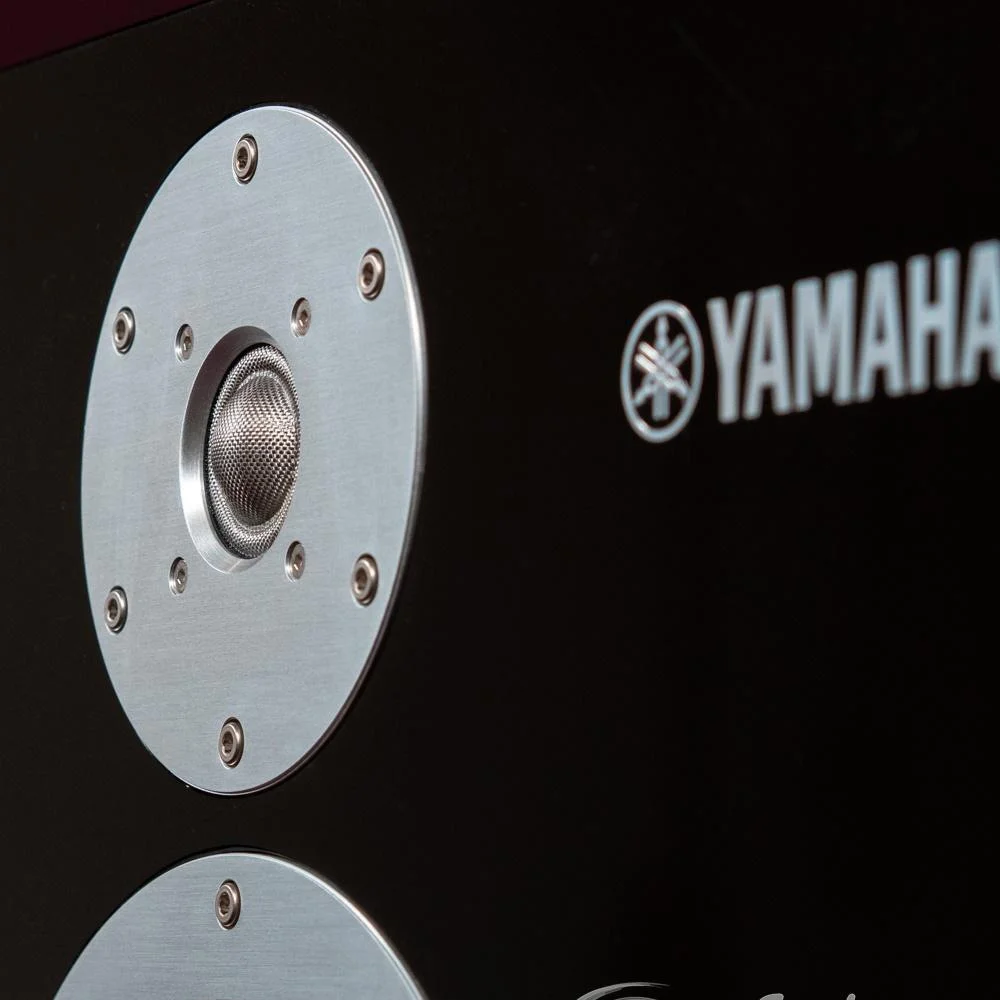

The speaker diaphragms in the Yamaha NS-5000 are made of patented synthetic ZYLON fiber, created in Japan and recognized as the strongest in the world. The membrane is additionally coated with a special Monel alloy. In terms of weight and stiffness ratio, the diaphragms of these drivers surpass even those made with beryllium, making the sound of the NS-5000 exceptionally transparent and fast.

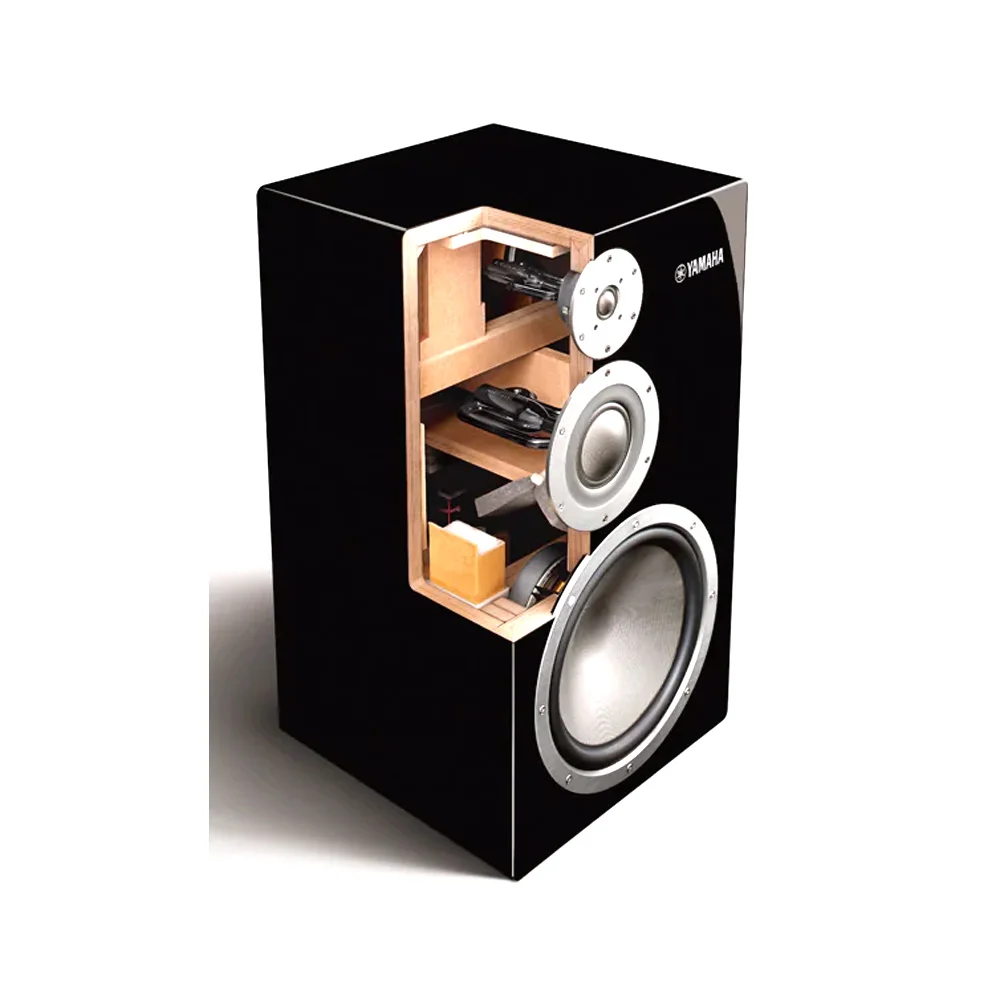

The tweeter and midrange drivers in the NS-5000 are housed in RS acoustic chambers to suppress unwanted resonances. These chambers have a precisely calculated shape patented by Yamaha. As a result, the sound in the mid and high frequencies is maximally natural and balanced. In addition, thanks to them, the need for a large amount of sound absorber inside the speaker cabinet is eliminated, making the sound more dynamic.

The Yamaha NS-5000 cabinet is precision-made from laminated birch plywood from Japanese white birch grown on Hokkaido Island. The front panel of the speaker is 28 mm thick, while the others are 19 mm thick. The internal volume of the speaker is 65 liters, which is optimal for a 12-inch woofer. The cabinet has internal braces to eliminate wall vibrations, and the special shape of the phase inverter prevents noise and distortion. The luxurious black lacquer finish emphasizes the high status of this model.

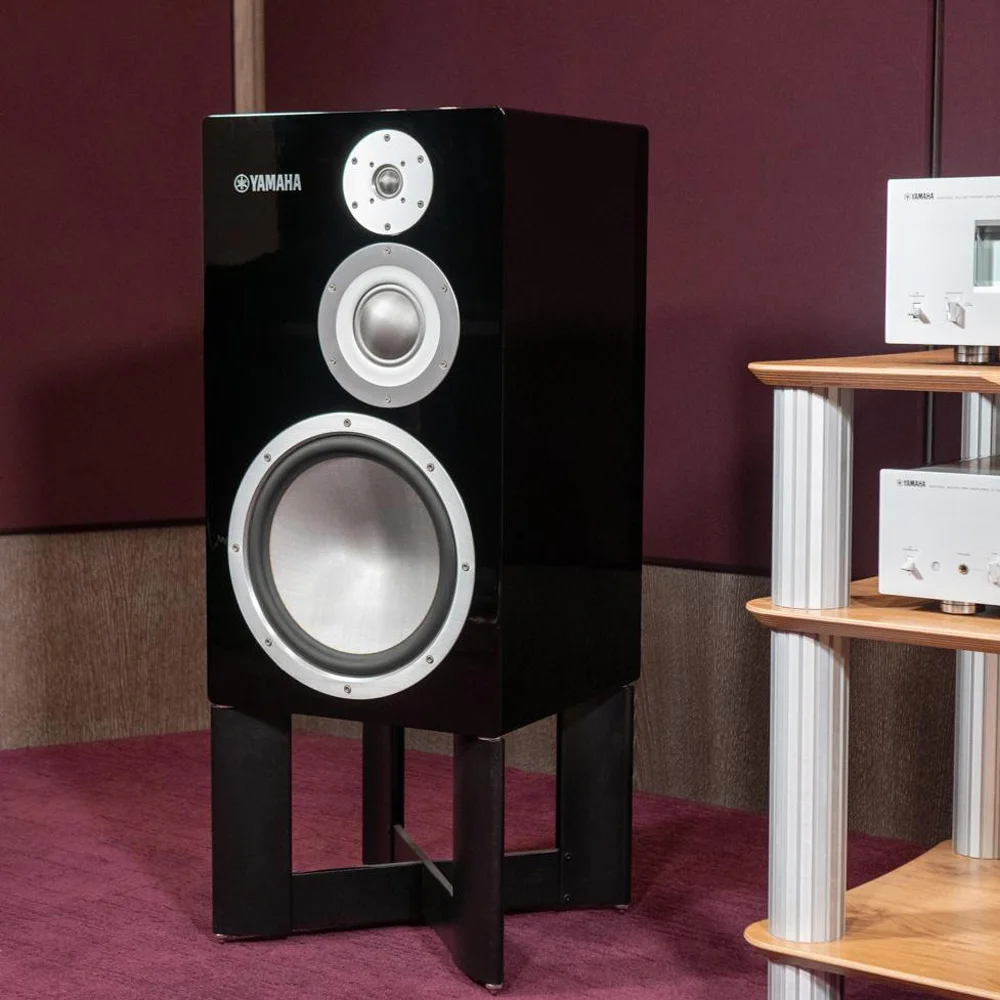

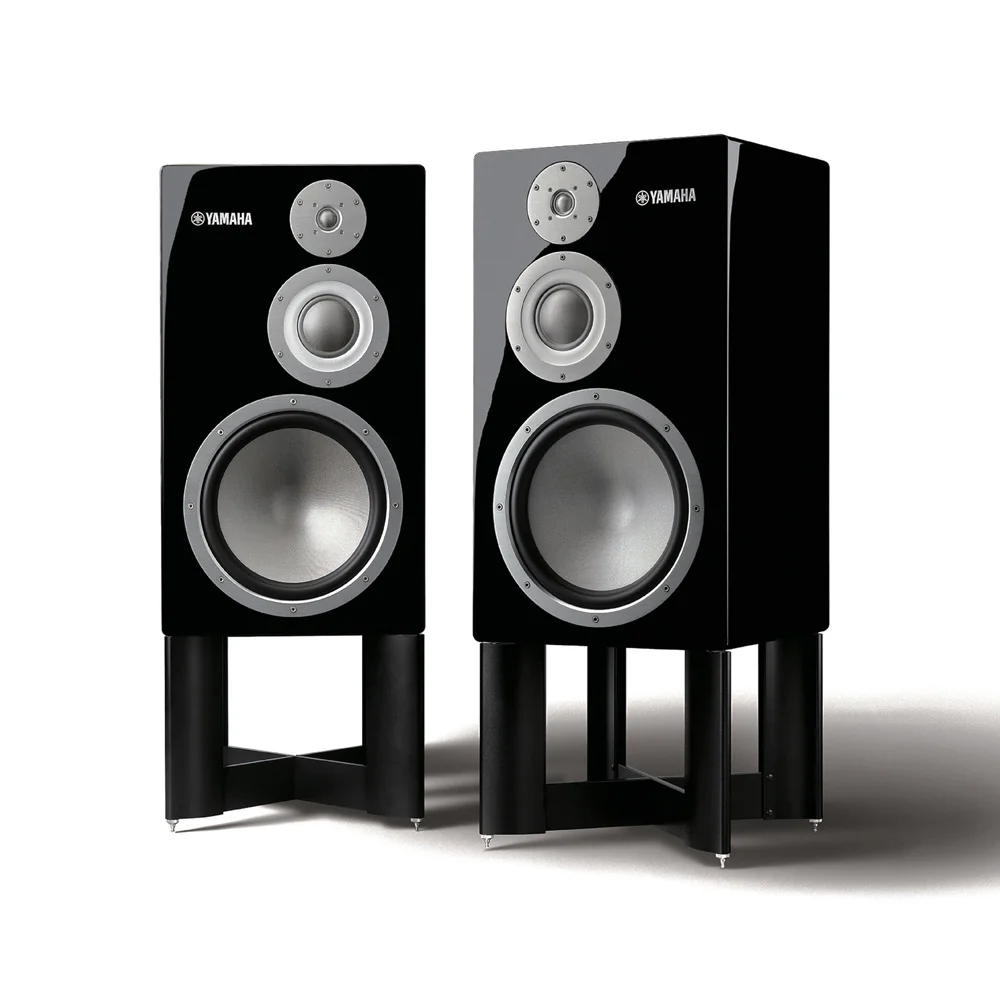

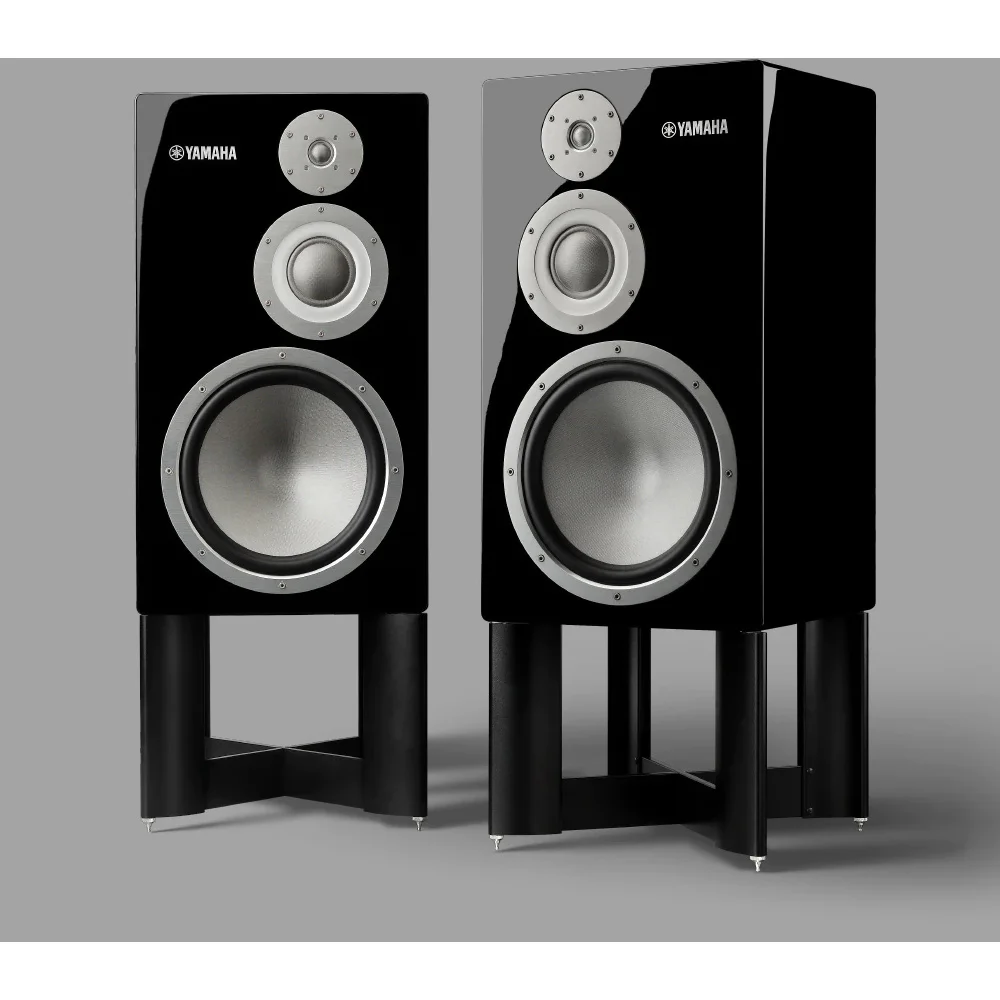

The Yamaha NS-5000 speakers are equipped with high-quality audiophile-grade component crossovers, and their installation is designed to minimize phase distortion. The speaker systems can be complemented by special floor stands.

Package includes:

  • Speaker system - 1 pc.
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color
Connection method
stereo
Diameter of the woofer, mm
300
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
6
Material
wood
Midrange speaker size, mm
83
Mount type
body
Number of lanes
three-lane

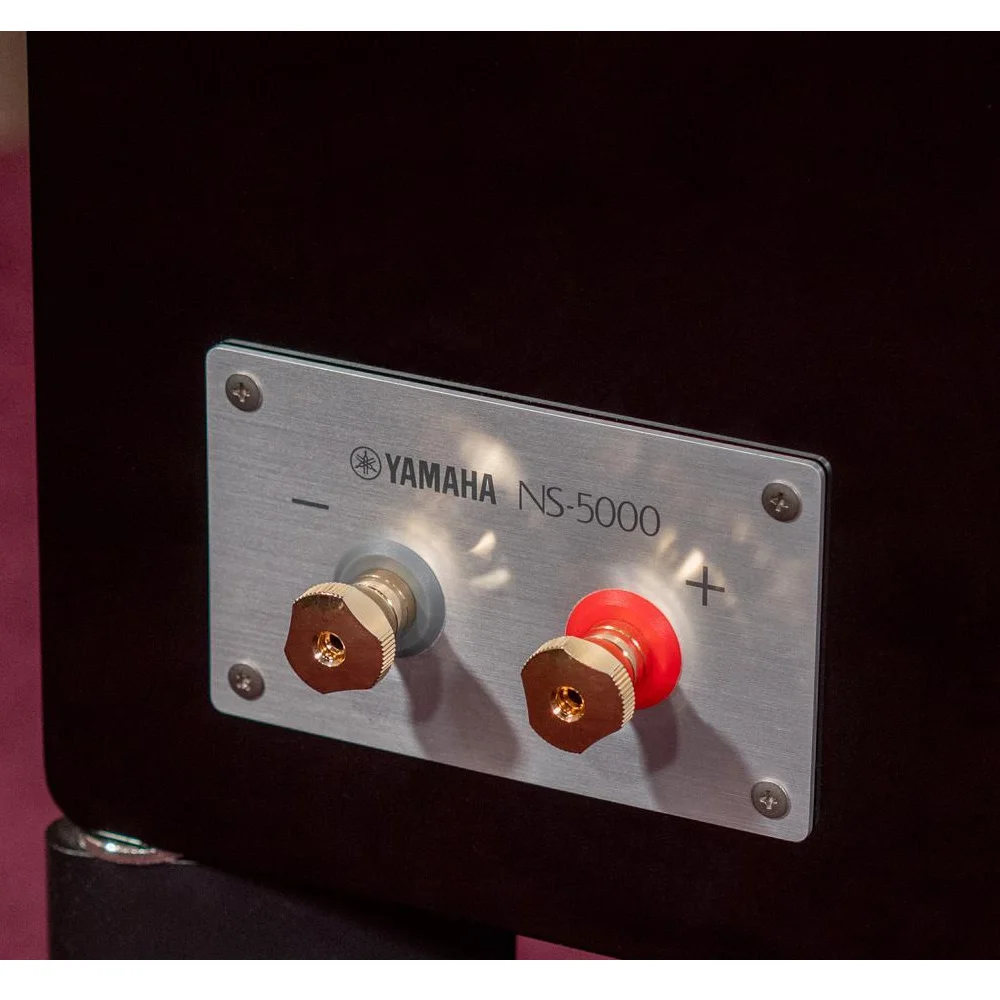

A classic connection of two channel terminals and a screen.

Словарь терминов
Phase Inverter location
below
Power, W
200
Removable panels
yes
Sensitivity, dB

A value describing the volume of the device in relation to the level of power supplied

Glossary of terms
88
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
40
The lowest frequency, Hz
26
Tweeter size, mm
30
Type of speakers
passive bookshelf
Depth, mm
390
Height, mm
689
Width, mm
380
Weight, g
35000
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Japan
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
