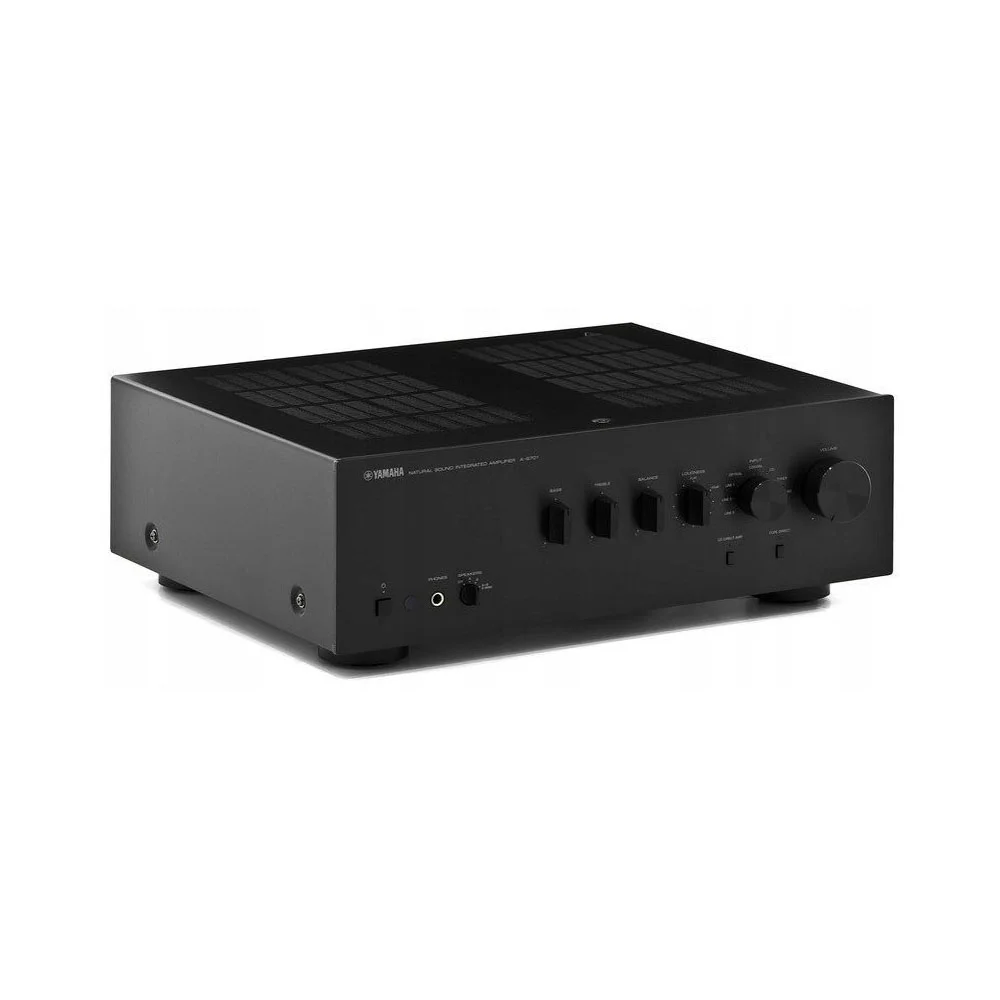

Integrated amplifier
Yamaha A-S701 Black

Product code: 122999
no reviews

Description

Reviews (0)

Description

Integrated amplifier Yamaha A-S701 features a circuit topology that utilizes the proprietary ToP-ART technology. Thanks to this circuitry and the Direct Symmetrical Design construction, absolute symmetry of the right and left channels is ensured. The signal pass from the input to the output of the amplifier is carried out through a direct symmetrical scheme, ultimately contributing to distortion minimization and achieving pure natural sound. The model's chassis is equipped with a special ART (Anti-Resonance and Tough) Base, which in conjunction with a central metal brace allows for excellent damping, increased rigidity, and minimized vibrations and resonances.

The power supply unit of the Yamaha A-S701 integrates buffer capacitors of 12000 µF each and a massive custom transformer. Large extruded aluminum radiators are used for cooling. The circuitry incorporates carefully selected and tested components, including high-quality relays, a single-point grounding system, capacitors made to order, and other top-class components. The amplifier has a power output of 100W per channel when used with 8-ohm speakers and can deliver a maximum of 160W per channel with 4 ohms.

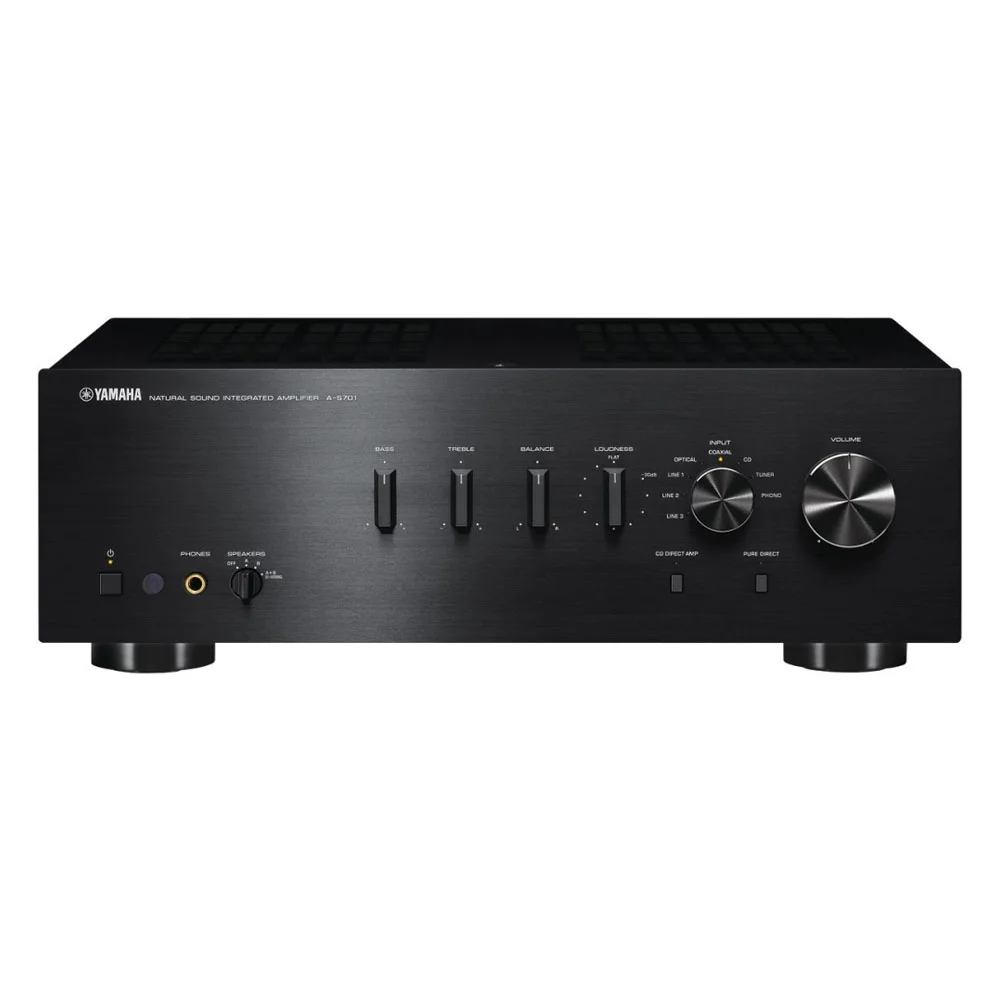

A noteworthy feature is the tone control function, with a regulator located on the aluminum front panel for smooth adjustment. This function allows for compensation of losses in the high and low frequency bands related to human hearing characteristics at low volume levels.

The Yamaha A-S701 amplifier offers the option to use the CD Direct Amplification mode, which enhances the signal-to-noise ratio and provides direct signal transmission when a source is connected to the CD input, bypassing input selectors, tone controls, and volume adjustments. This ensures a clean natural sound. The Pure Direct mode operates with all inputs, directing the signal bypassing the buffer amplifier and balance, tone, and tone control knobs.

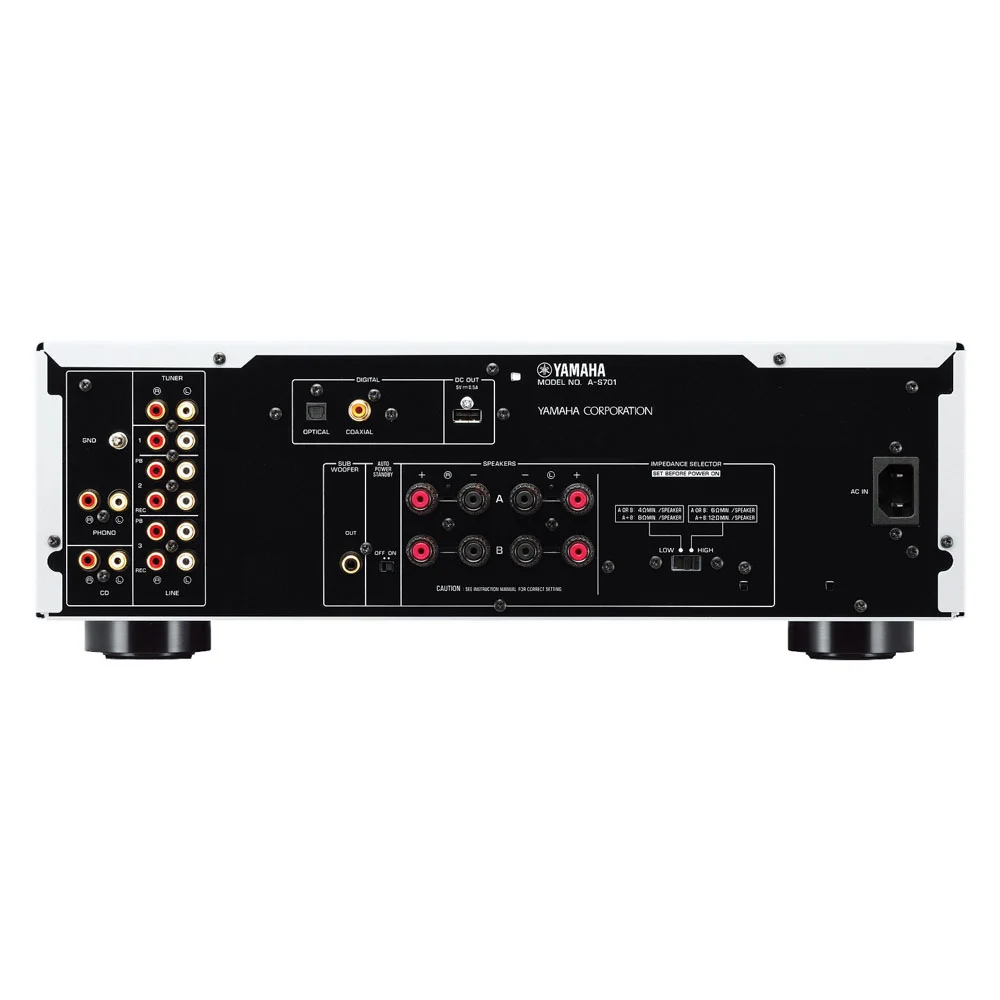

With a built-in DAC, as well as coaxial/optical inputs, digital sources such as TV panels, Blu-ray players, and others can be connected to the Yamaha A-S701. PCM signals up to 24 bit / 192 kHz are supported. The amplifier features a headphone amplifier, MM phono stage, a set of line inputs, recording outputs, and a connector for an active subwoofer. An external Bluetooth module YBA-11 supporting aptX codec can be connected. Four pairs of gold-plated screw terminals are provided for speaker connection.

Features:

  • Well-damped chassis with aluminum front panel;
  • Power output of 100W per channel at 8 ohms and 160W at 4 ohms;
  • ToP-ART circuit topology, CD Direct Amp and Pure Direct modes, smoothly adjustable tone control;
  • Built-in DAC, Bluetooth module connectivity, MM phono stage.

Package includes:

  • Amplifier;

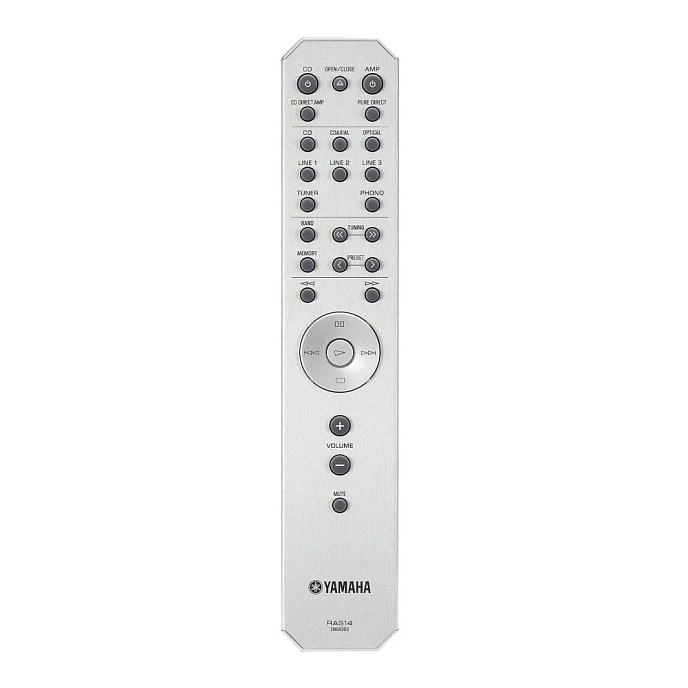

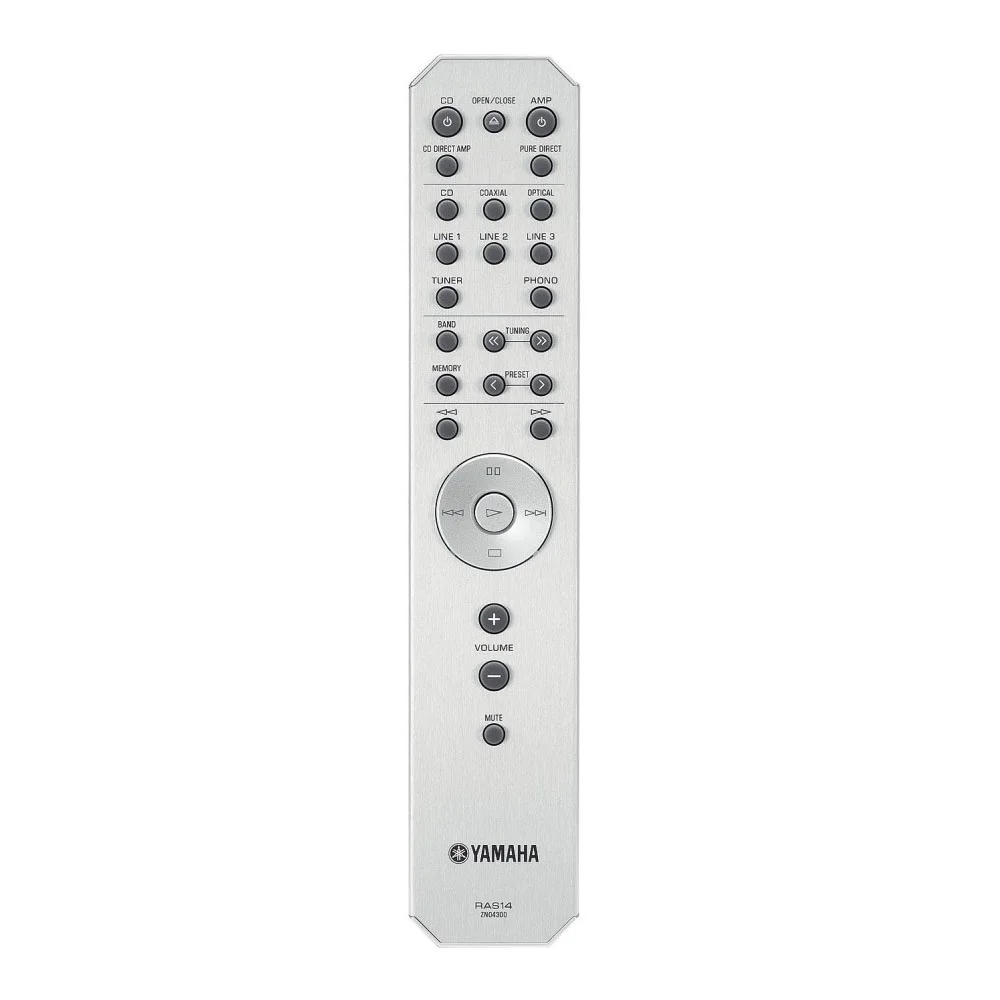

  • Remote control with 2 AA batteries;
  • Power cable;
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Internal DAC
yes
Input connectors
Coaxial, Optical, RCA
Output connectors
RCA, Optical, Coaxial
Headphone output
yes
Phono stage type
MM
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
The lowest frequency, Hz
10
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
100
Remote controller

The remote controller simplifies the use of the device

Glossary of terms
yes
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Color
DAC bit depth, bits
192
Material
metal
Connecting to a computer via USB
yes
Powered by USB
yes
Depth, mm
387
Height, mm
151
Width, mm
435
Weight, g
11200
Service life, months
24
Warranty, months
12
