Cable
ddHiFi BC130A Air Nyx MMCX - 4.4mm 0.55m

Product code: 143687
no reviews

Description

Reviews (0)

Description

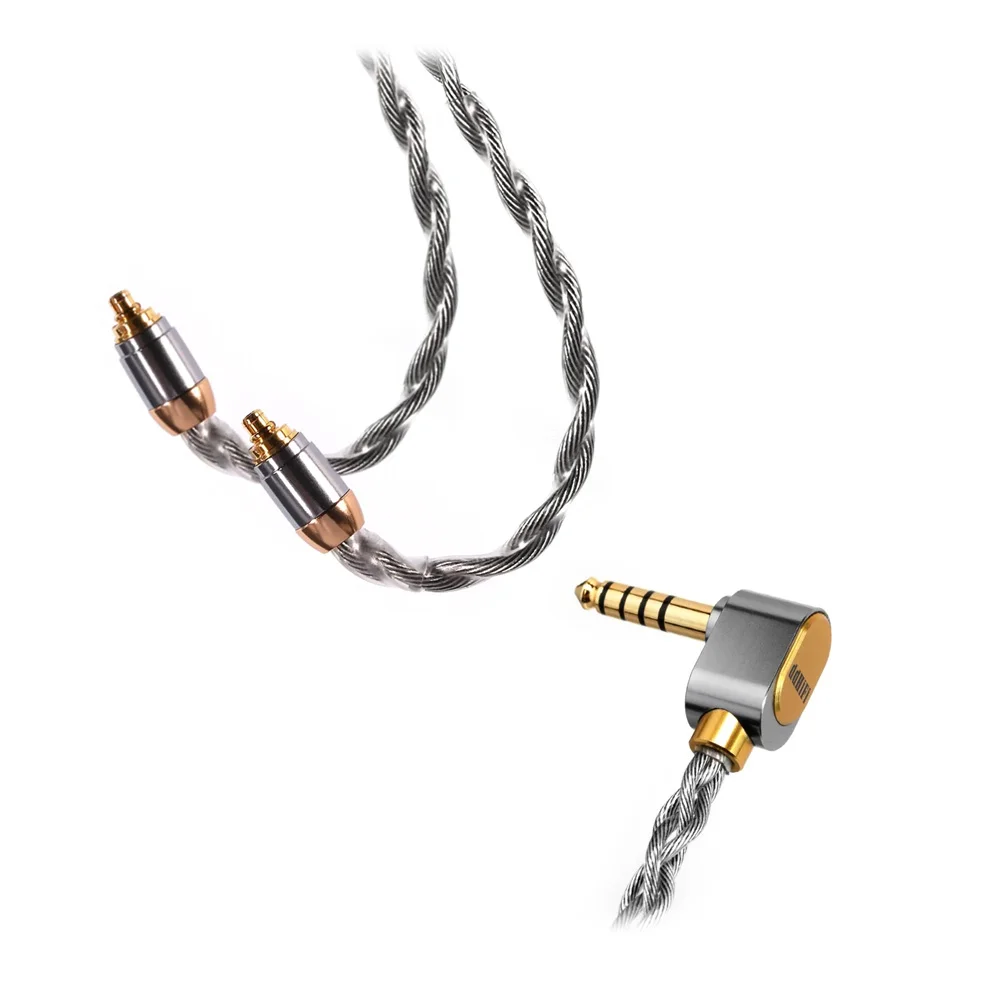

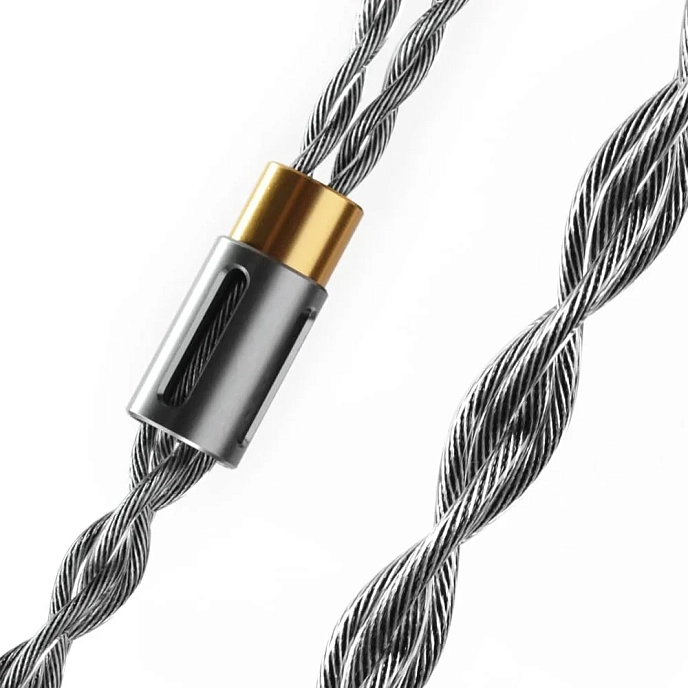

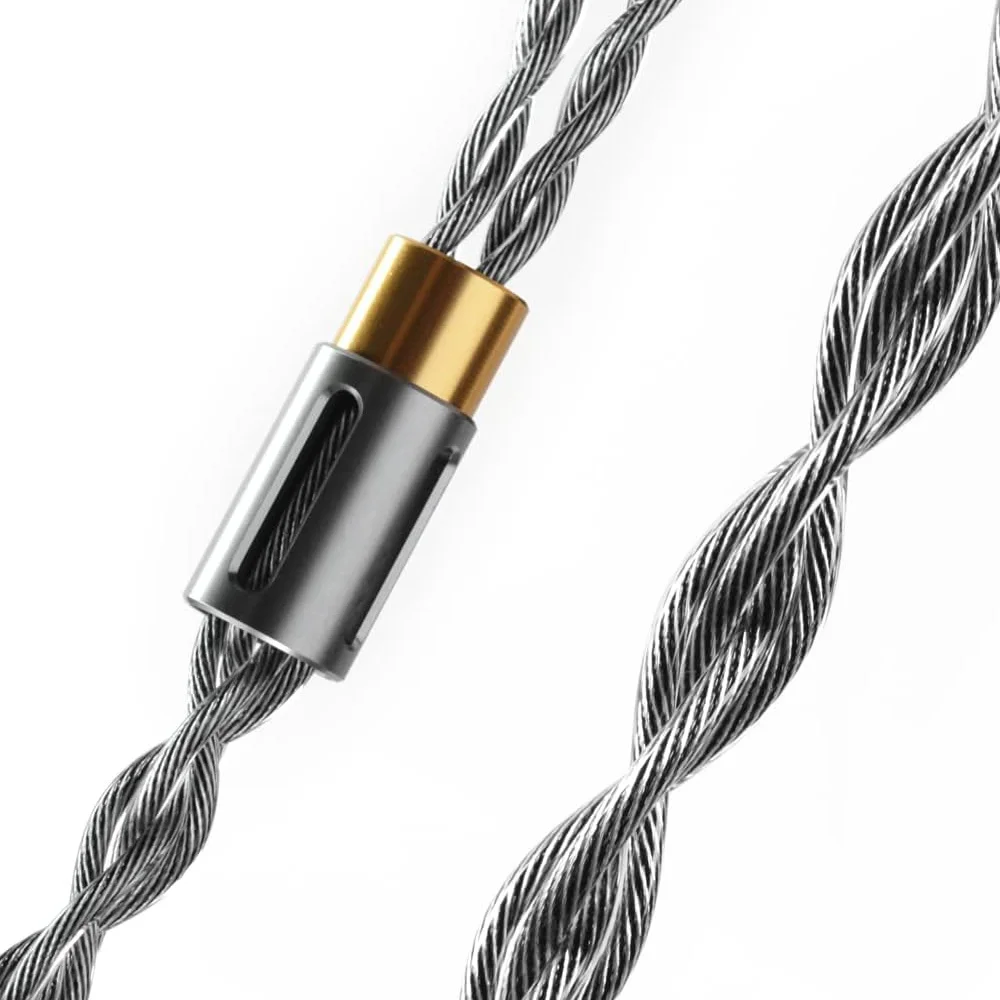

ddHiFi BC130A Air Nyx - Replacement Headphone Cable

The Nyx sets a new standard for the Air series with its use of highest quality materials. The shielding layer improves signal transmission, while the braiding layer and unique weaving structure ensure exceptional quality. Handcrafted for superior execution.

Features:

  • Construction: 27.2AWG (conductor) + 24.9AWG (shield)
  • Conductor: Second-generation Litz made of copper and pure silver
  • Conductor: 7x7 0.05mm
  • Shield: 7x14 0.05mm
  • Inner insulation: NUC HDPE foam (Japan)
  • Outer insulation: Polymer (USA)

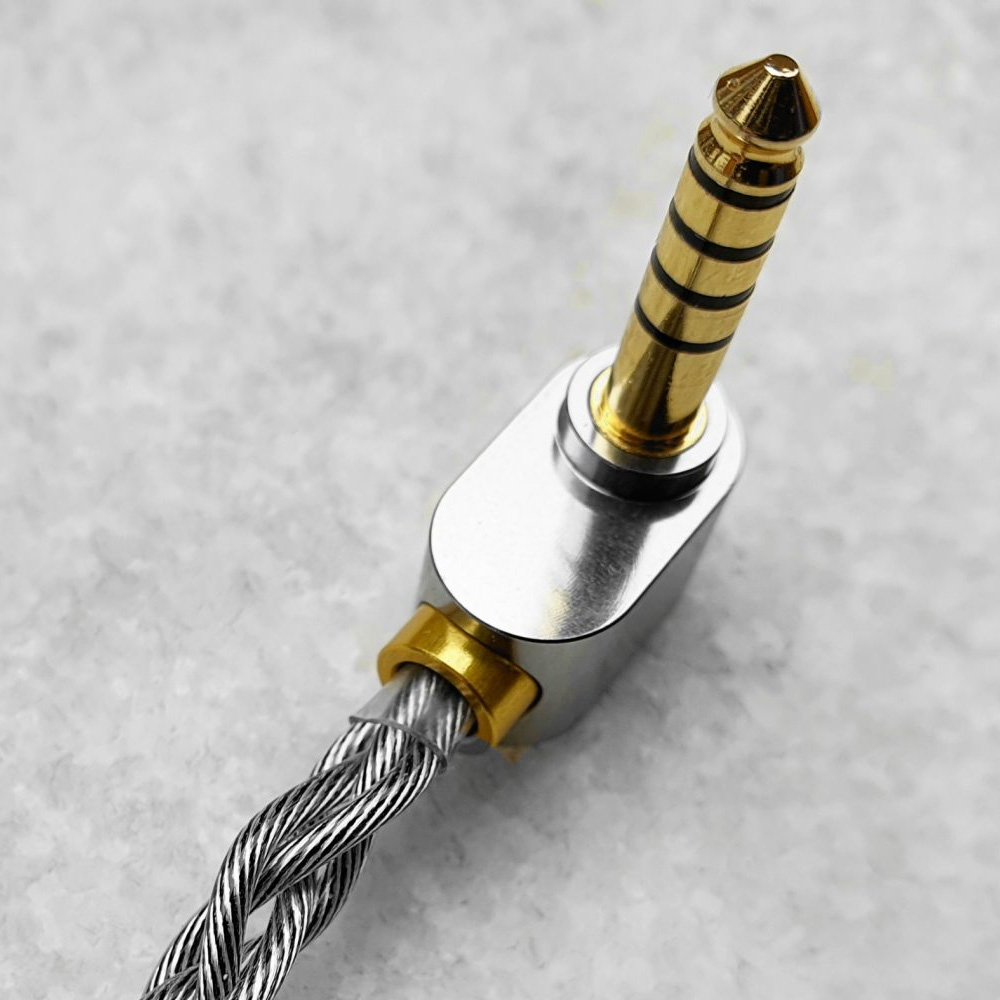

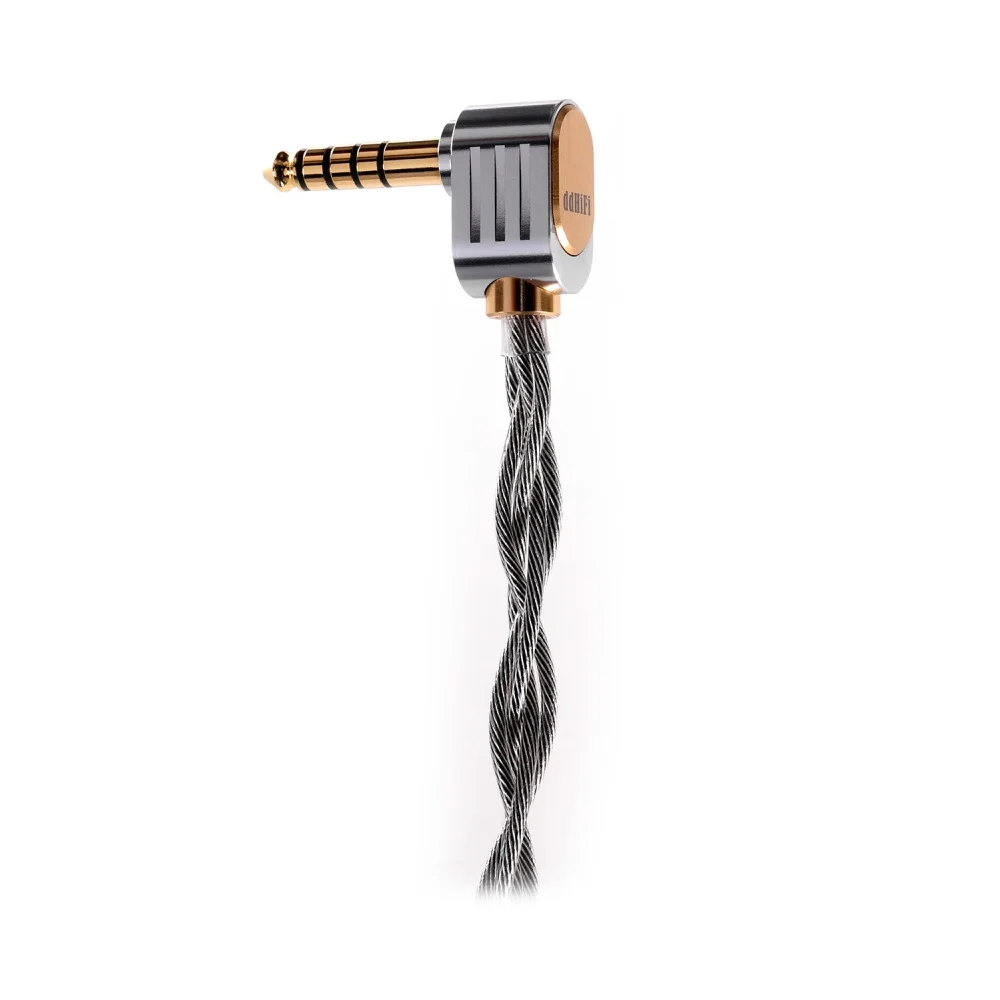

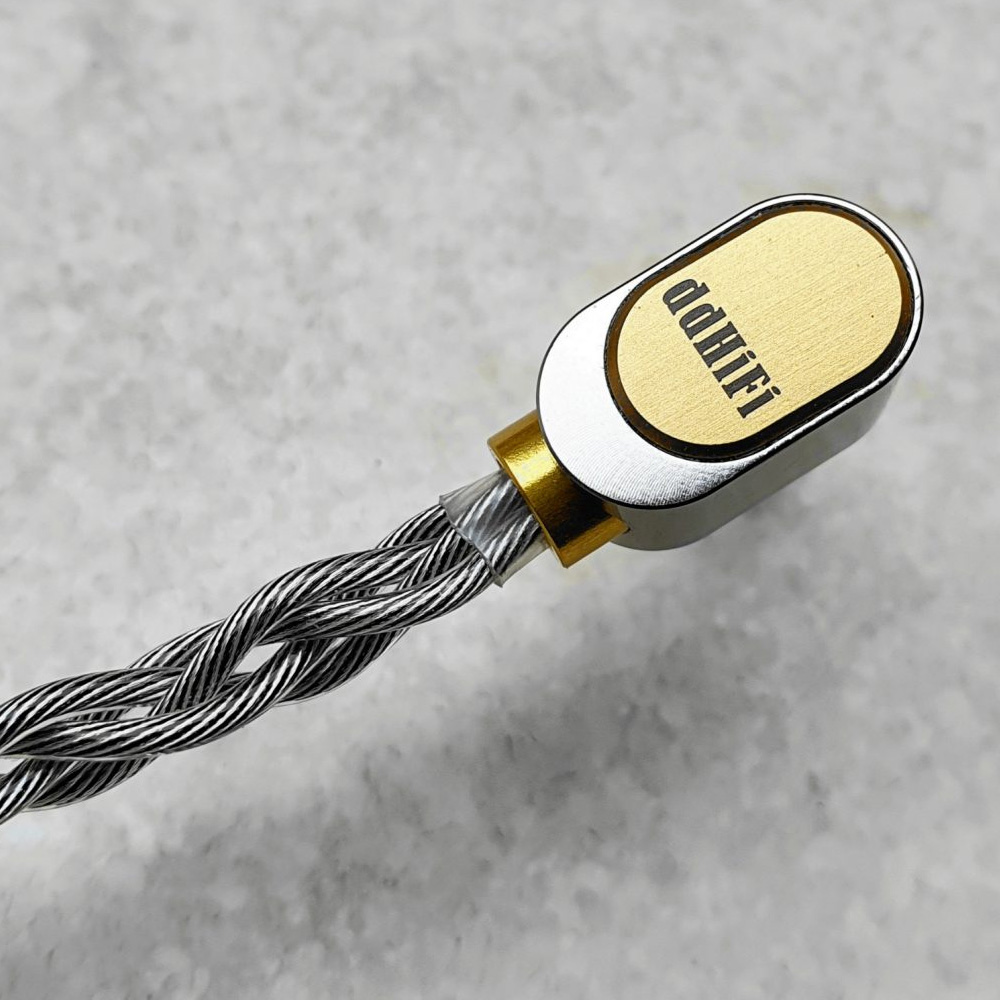

What are the advantages of the L-shaped balanced 4.4mm connector?

Most headphone cables with a 4.4mm connector have straight plugs, but not everyone prefers to use them this way. The process of making a straight plug is relatively simple, with assembly completed by securing the plug in a threaded hole. However, if it is in the shape of an L-plug, the cable must be handmade as twisting the wires cannot be done by machines. Additionally, assembly is complicated due to the increased number of parts in the plug housing.

Furthermore, plug protection can only be done after soldering to ensure even connection of the four-wire conductors before inserting them into the metal shell using four separate processes. Finally, once the 4.4mm plug is securely installed, wire braiding can be started.

Does the shielding layer improve signal transmission?

Absolutely. Environmental interference easily affects headphone cable performance. There are various ways to reduce interference, including ensuring material purity, wrapping it in a braid layer, creating a unique structure, etc. When using a shielding layer, it can be securely connected to the shielding on the output device for maximum interference protection.

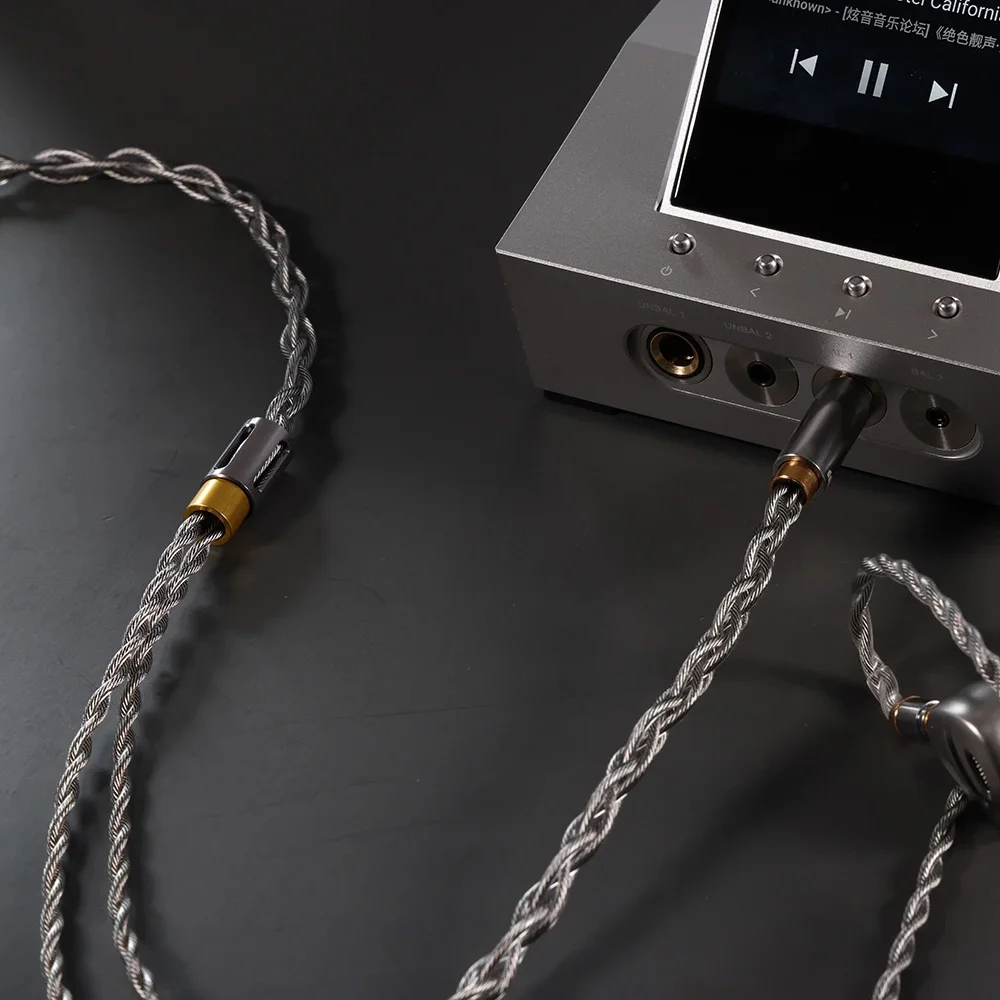

The Nyx headphone cable's shielding layer is fully connected to the 4.4mm plug and the 0.78mm tip contact housing. When connected to a 4.4mm output device, the shielding layer and device housing can be completely grounded, significantly reducing signal interference.

High-quality Connectors

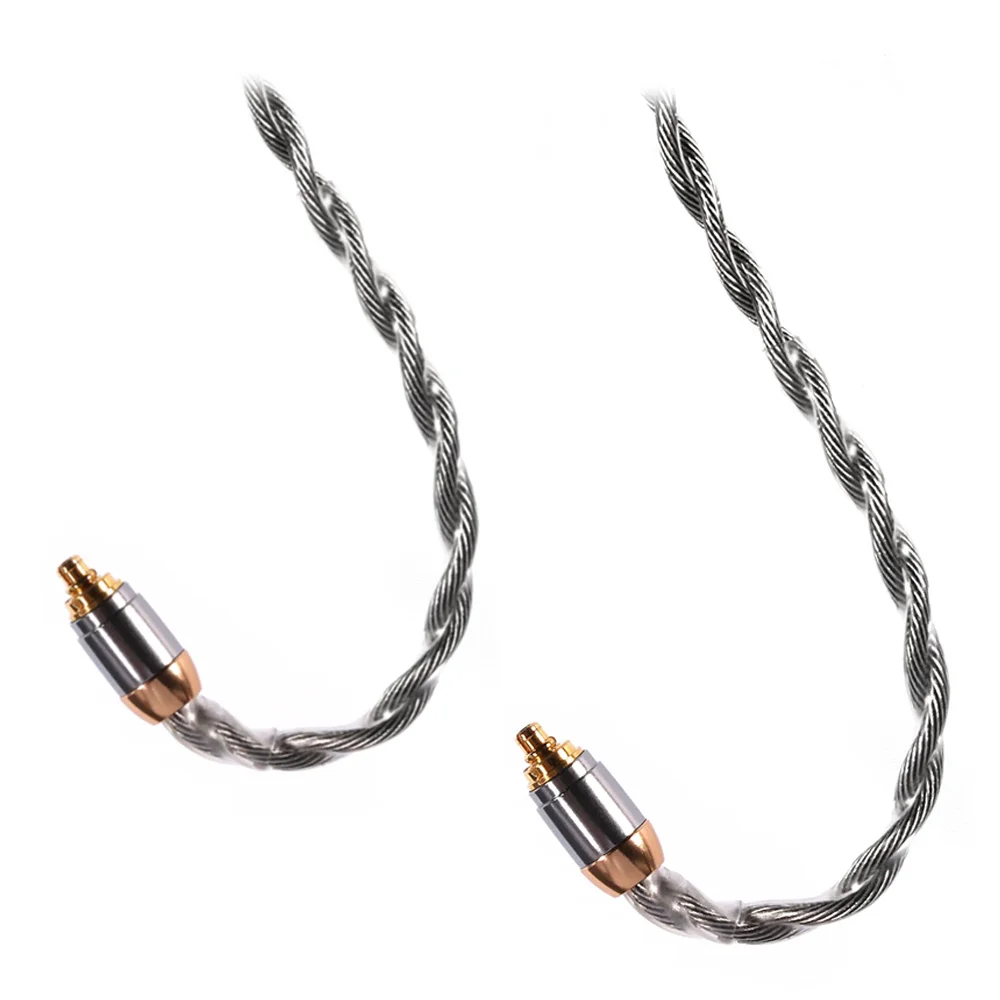

The cable features a shielded 2-pin ddHiFi connector. The contact pin is designed with a two-layer shell, with the inner layer for soldering the shielding layer of the headphone cable and the connecting pin made of 24-karat gold-plated copper-silver alloy.

Package Includes:

  • Cable
  • Storage case
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Balanced cable

A cable for a balanced (symmetrical) connection allows you to neutralize the negative impact of cable length on signal transmission, and also has a beneficial effect on the final sound.

Glossary of terms
yes
Braid material
PVC
Cable length, m

The length should allow you to lay the cable with a small margin. The longer the cable, the more impact it can have on the sound.

Glossary of terms
0.55
Cable type
twisted Y-shaped

Spiral with connection to two cups of headphones. Lengthens when stretched

Словарь терминов
Color
Conductor material
copper
Connector (left)
MMCX male, 4.4mm jack male
Connector (right)
MMCX male, 4.4mm jack male
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
China
Service life, months
24
Warranty, months
12
