Headphone amplifier with DAC
Stax SRM-D10

Product code: 90412
no reviews

Description

Reviews (0)

Description

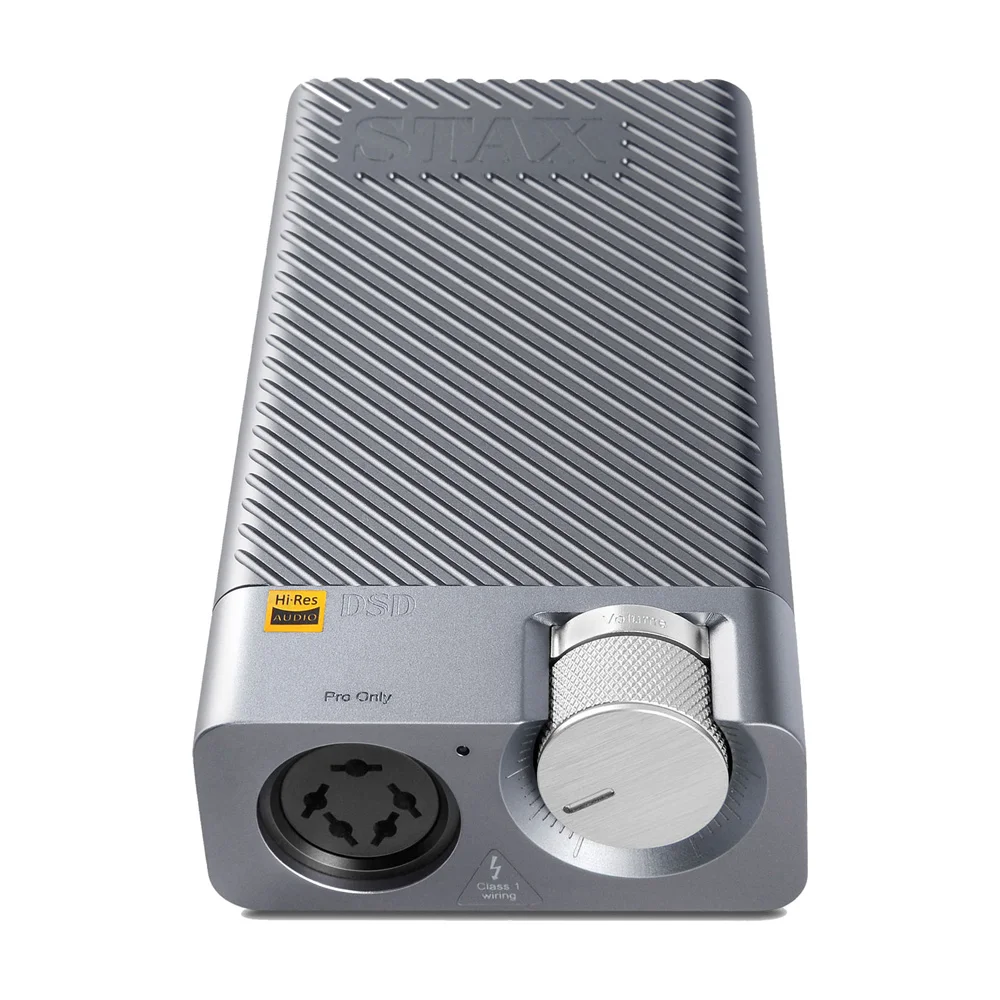

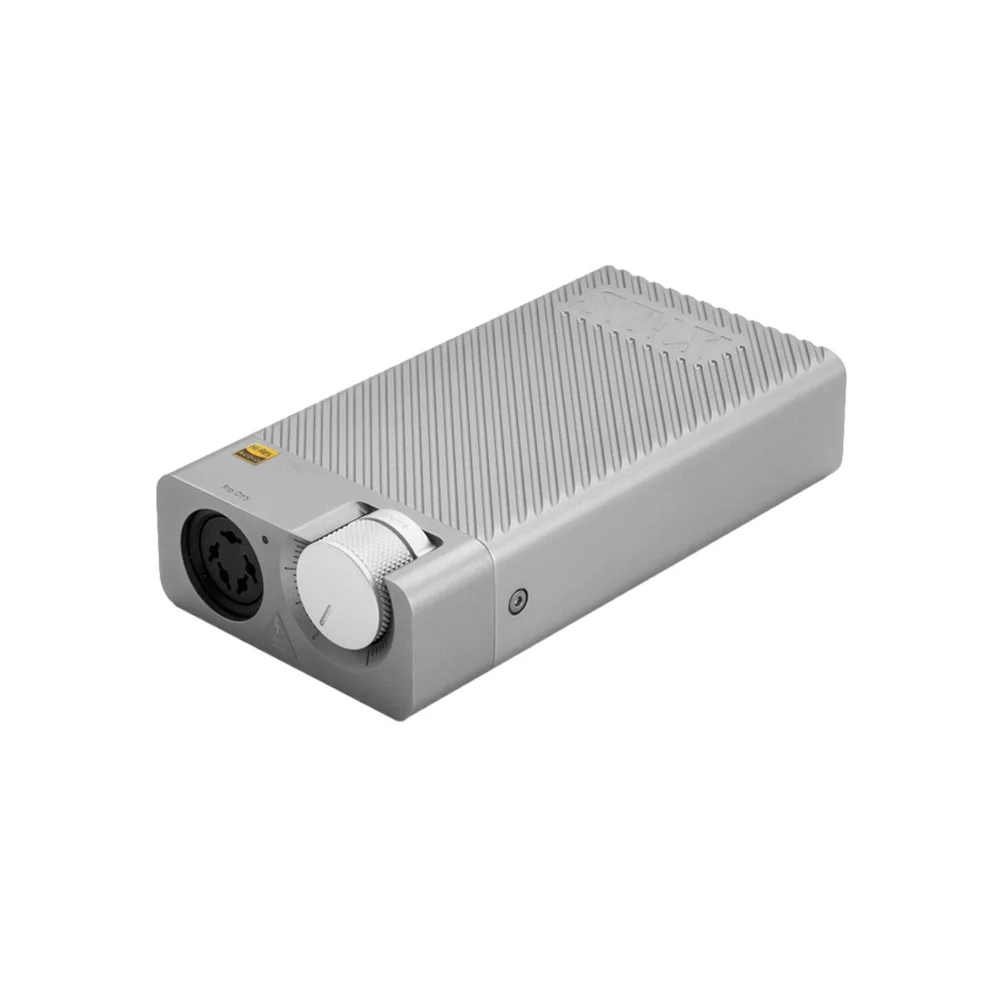

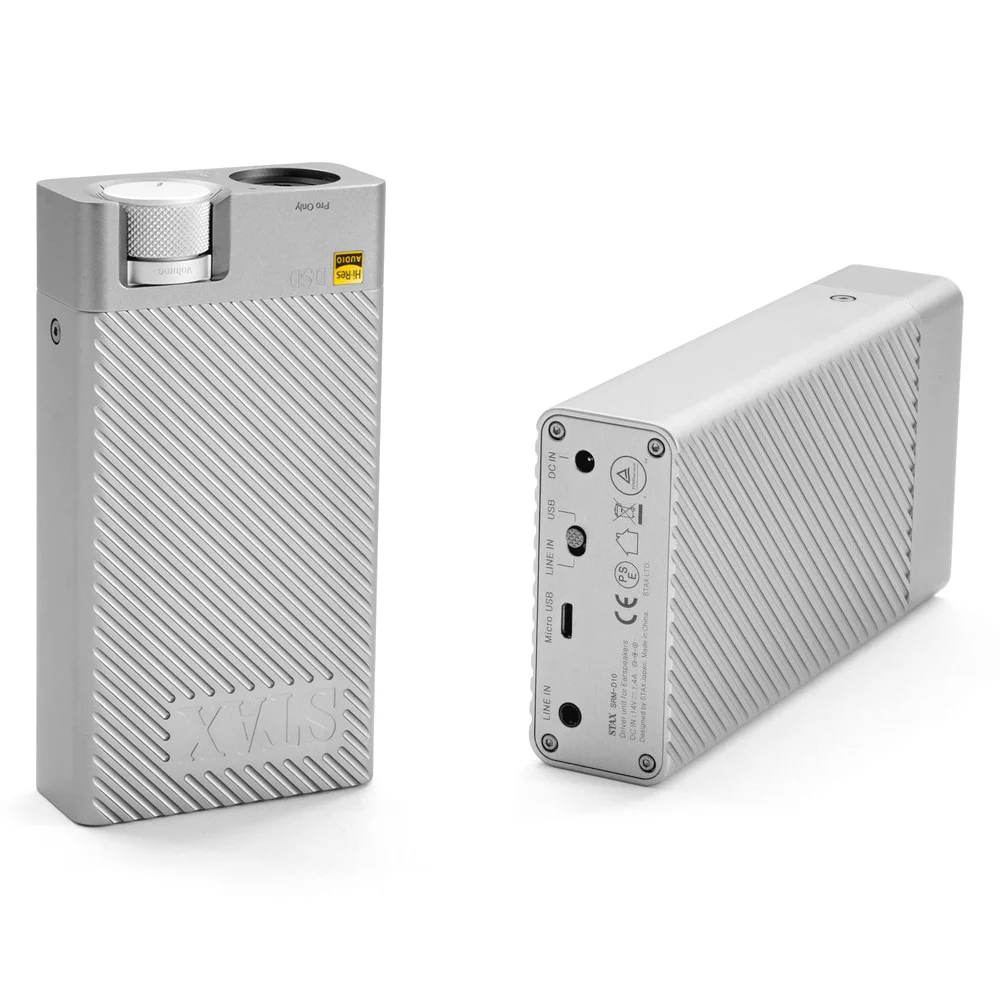

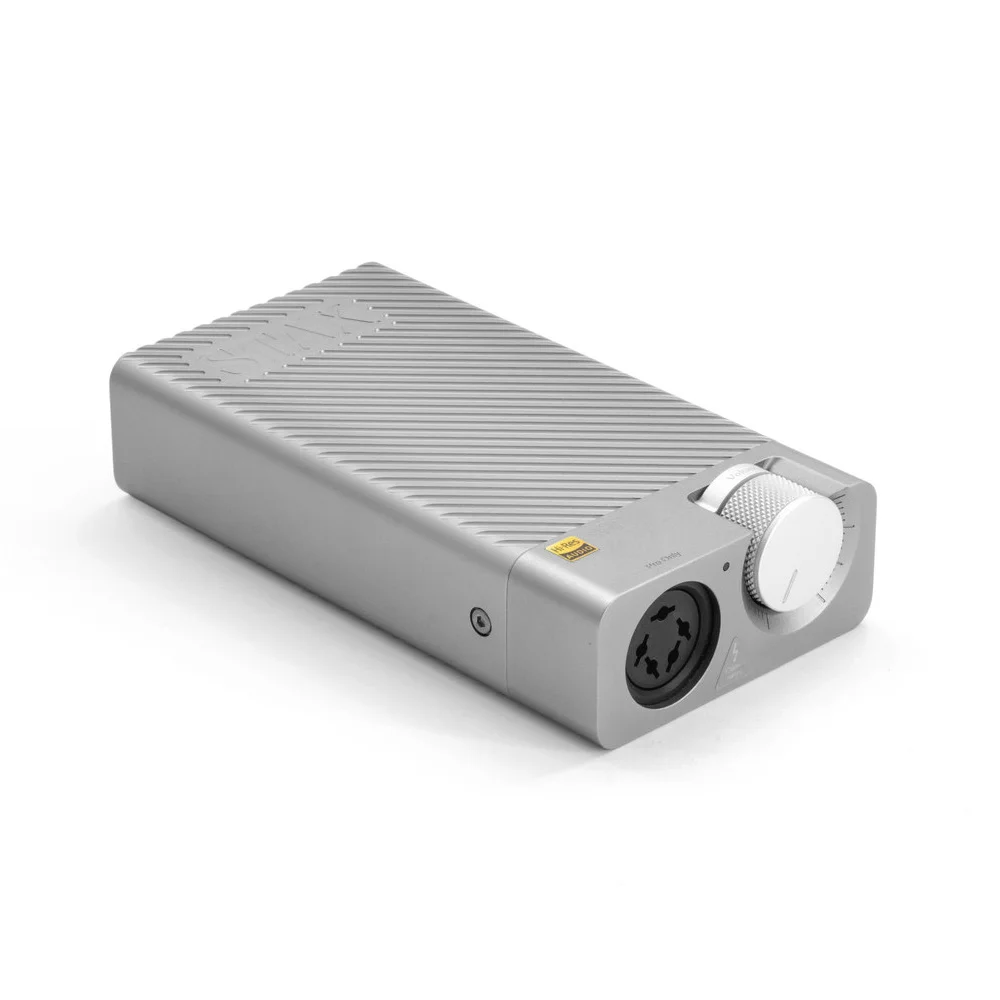

STAX SRM-D10 Compact DAC/Amplifier

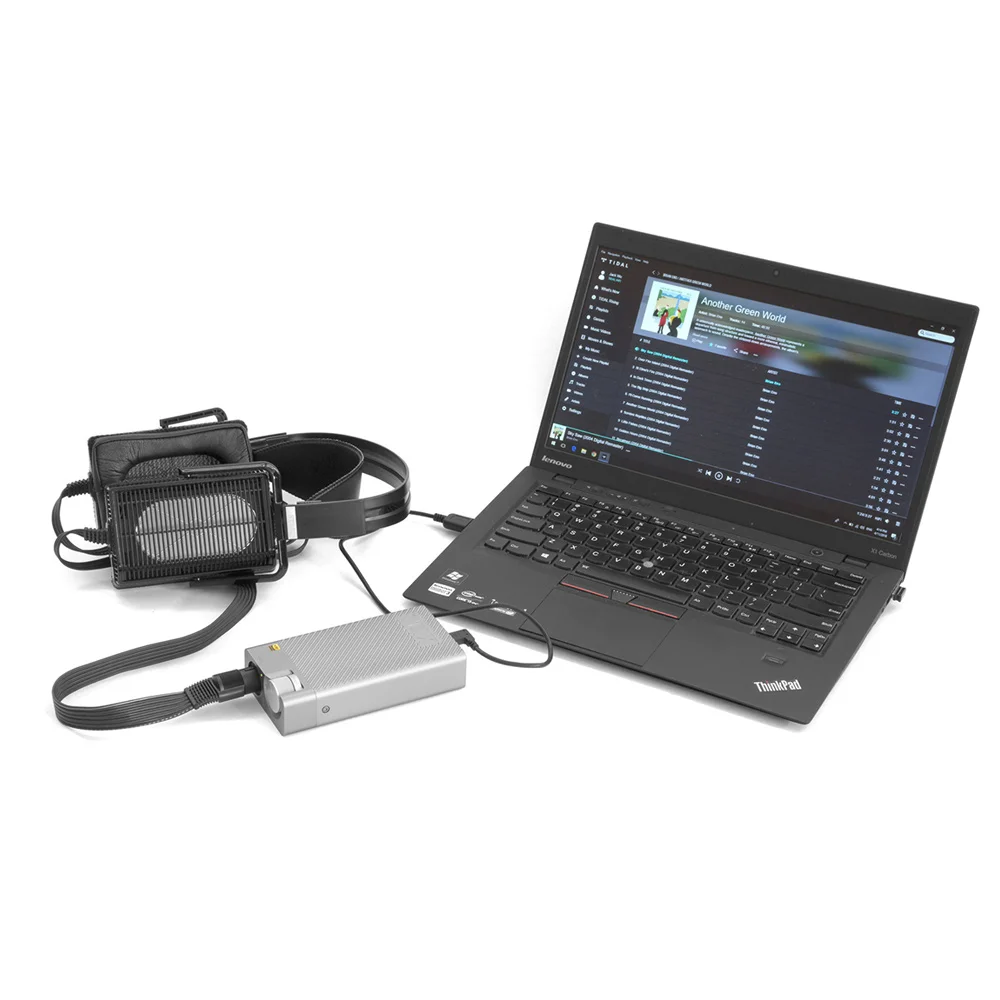

The STAX company proudly presents the world's first compact DAC/amplifier combination, the SRM-D10. With its high-performance DAC for PC/Mac and the ability to connect multiple digital audio sources, it stands on the same level as the superb traditional STAX electrostatic amplifiers.

Now you can take the SRM-D10 to your country house, office, or simply outdoors and enjoy the superior sound of STAX anytime, anywhere. This portable amplifier is equipped with a high-capacity built-in lithium-ion battery. The company spared no effort in repeatedly treating the surfaces of the fully aluminum housing to create a velvety texture. The USB XMOS interface supports DSD 5.6MHz and PCM signal playback with a sampling frequency of up to 384 kHz. The superior high-voltage amplifier ensures perfect reproduction of a wideband signal and pleases with its stable and prolonged operation.

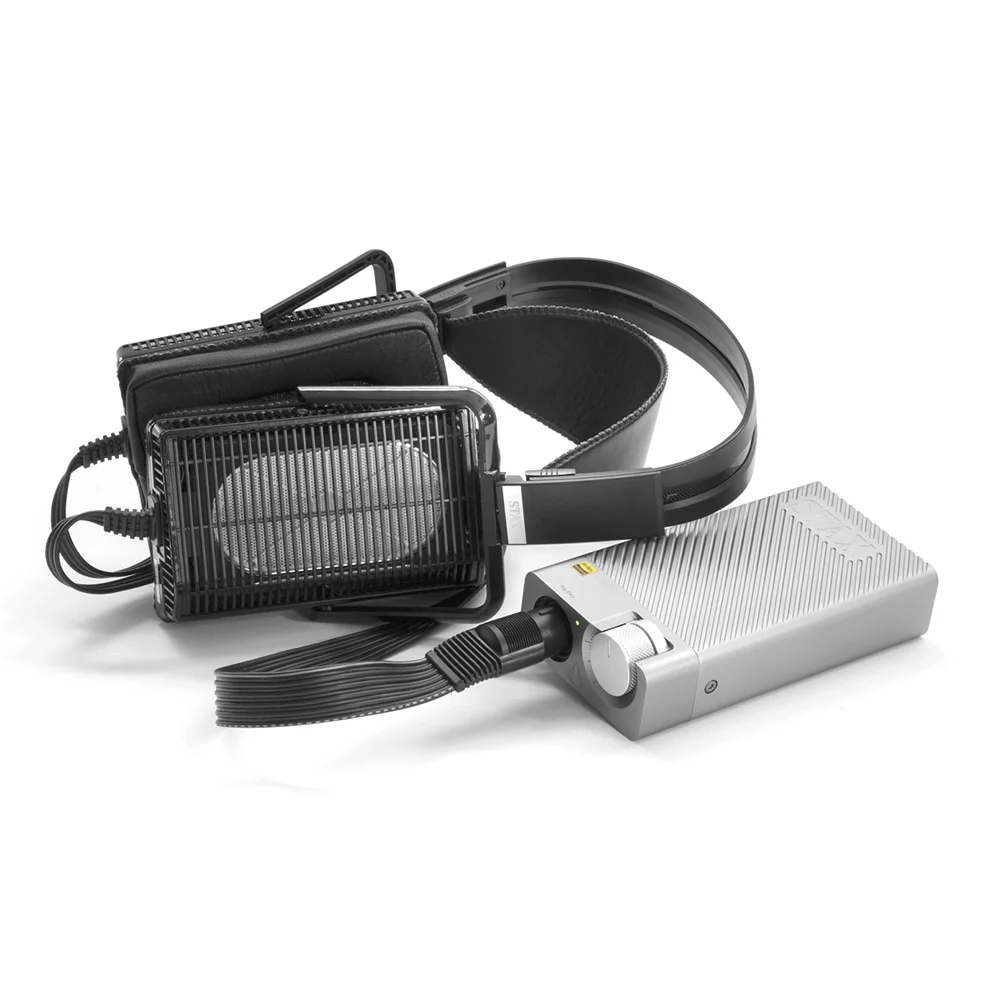

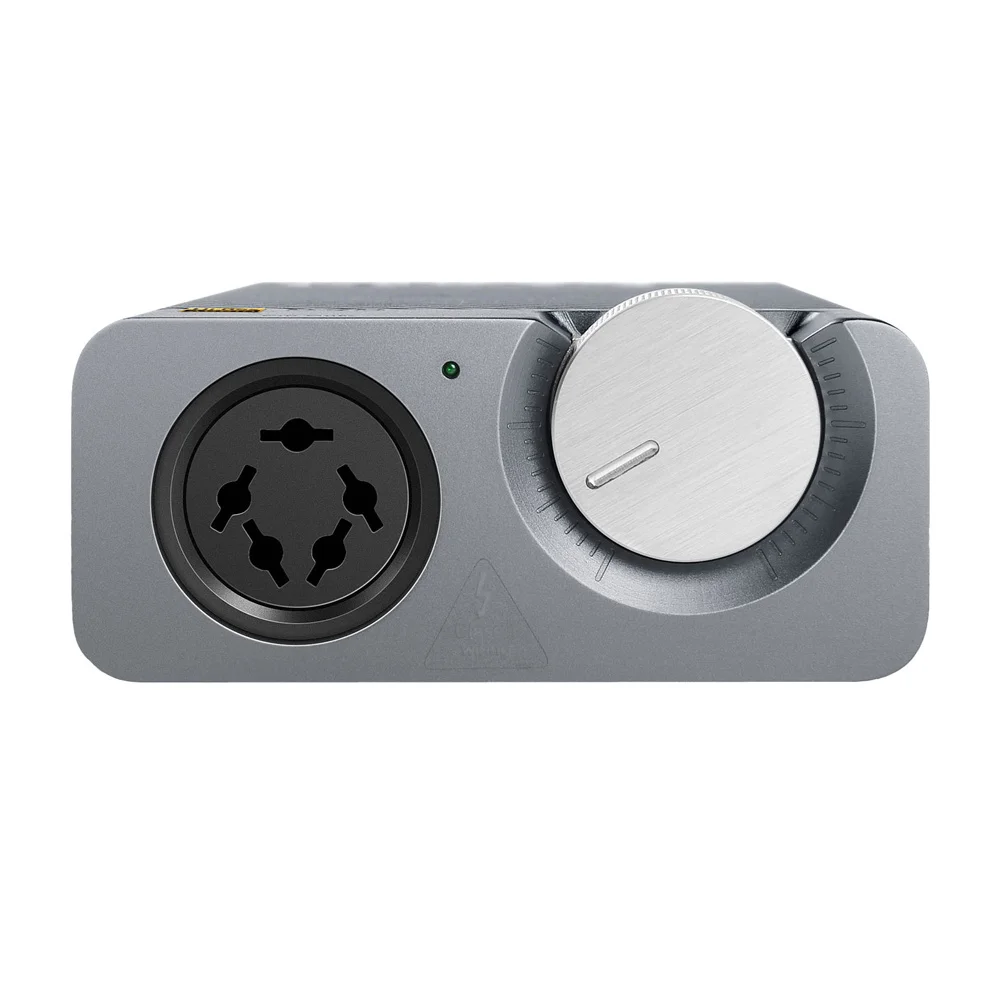

Carefully selected internal components guarantee the high quality and durability of the device. The standard 5-pin STAX connector is compatible with all STAX brand headphones. The wide range of the power supply ensures flexible power management. As a result, the market now has a small and powerful worker with the unmatched sound quality and exquisite design that is traditional for STAX products.

Features:

  • Frequency range: 20 - 40 kHz
  • Total harmonic distortion: 0.02%
  • Gain: 53 dB
  • Input impedance: 20 kΩ
  • Maximum input voltage: 10 V
  • Bias voltage: 580 V
  • Maximum output voltage: 200 V
  • XMOS USB DAC, DSD 5.6 MHz, PCM 384 kHz
  • Up to 4.5 hours of autonomous operation

Package includes:

  • Amplifier
  • Power cable
  • 1m USB cable
  • 3.5mm cable
  • User manual
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Headphone output
XLR
Output connectors
5-pin
DAC bit depth, bits
24
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
384
Powered by USB
yes
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Built-in battery
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
40
Color
Form factor
stationary

For use on a table or in a rack.

Словарь терминов

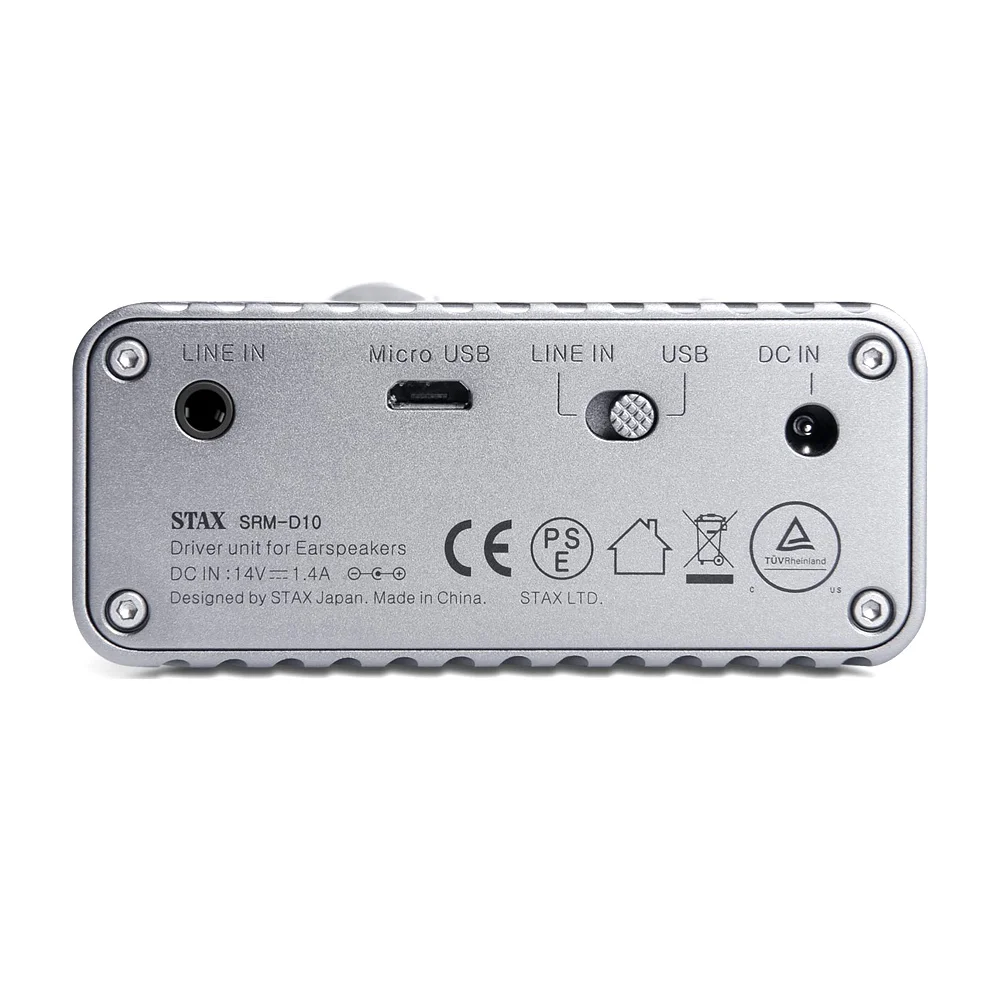

Input connectors
USB Micro, 3.5mm jack
Internal DAC
yes
Material
aluminum
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
10000
Depth, mm
141
Height, mm
32
Width, mm
75
Weight, g
450
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
