Pro-Ject DAC BOX RS (UK Plug) black

Product code: 141468
no reviews
AED 5,000
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

Pro-Ject DAC BOX RS is a state-of-the-art digital-to-analog converter. This device can be used with any digital audio source, including support for the latest high-resolution formats.

Features:

  • DAC: 2x PCM1792
  • Tubes: 6922 EH
  • Frequency range: 20 Hz - 50 kHz (+/- 0.1 dB)
  • USB 2.0: Audio 24-bit/192 kHz + DoP128
  • 2 x coaxial: 24-bit/192 kHz
  • 2 x optical: 24-bit/96 kHz

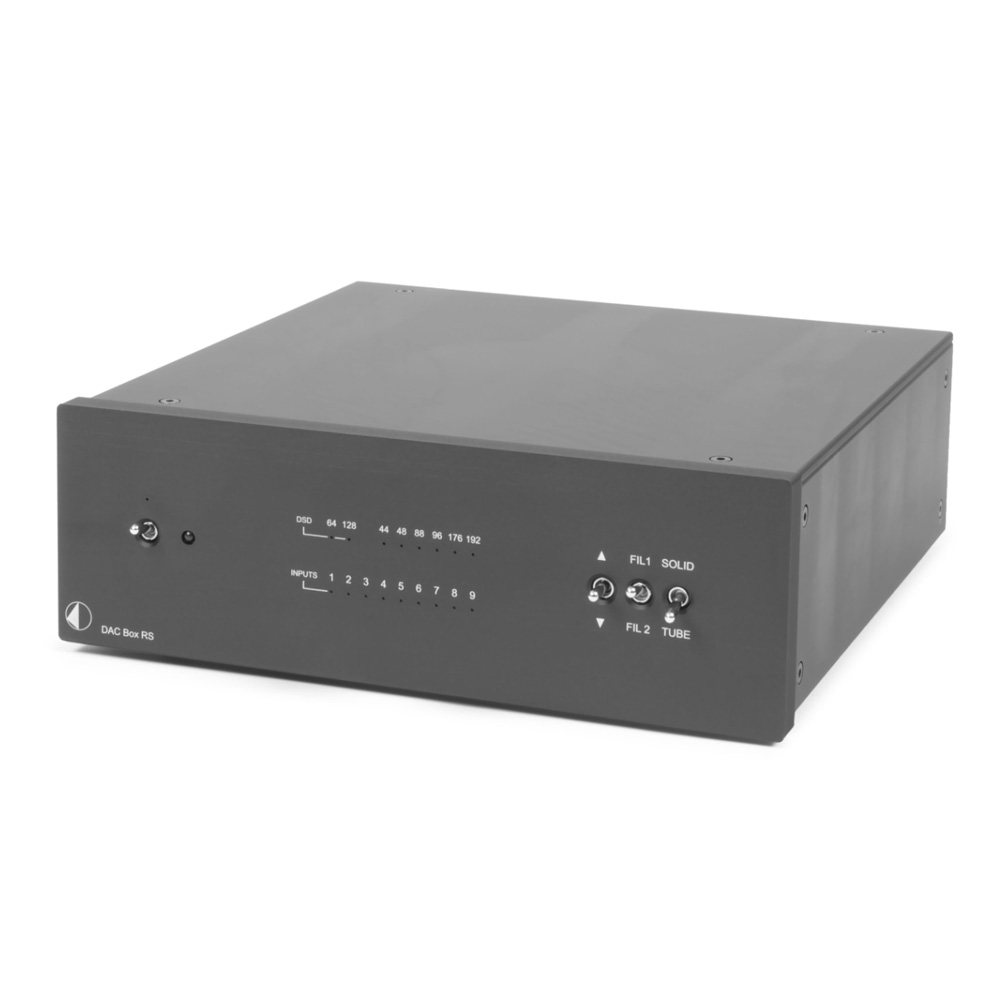

The converter uses two PCM-1792 chips (one in each channel) and features a switchable tube/transistor output, unbalanced and balanced analog outputs. The sampling frequency and input signal type are displayed on the front panel of the device using LED indicators.

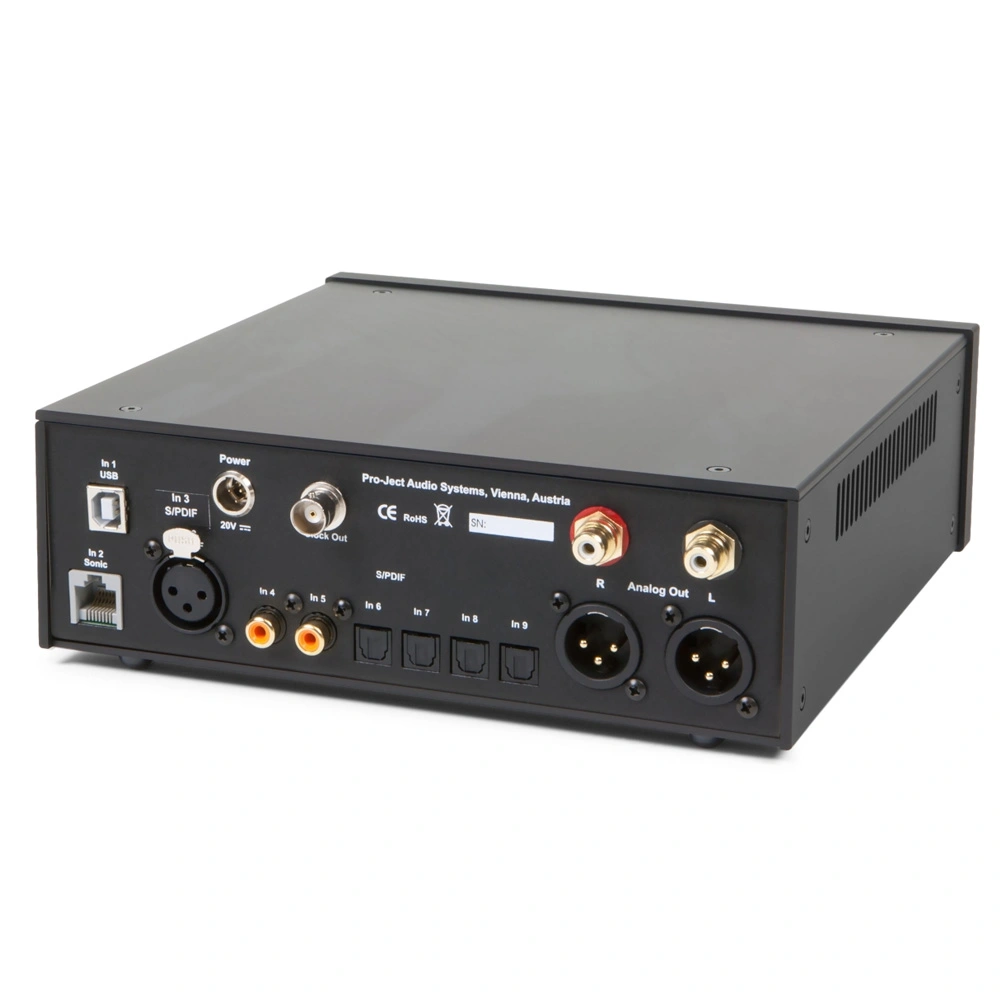

The Pro-Ject DAC BOX RS can be used with any digital source in a home audio system. It is equipped with a USB input for connecting to a PC or streamer transports to achieve unmatched sound quality. The device supports processing data in high-resolution formats. Additionally, the Pro-Ject DAC Box RS features an AES/EBU input and I²S/Master Clock outputs, which can be used for connecting to the CD transport CD Box RS and other compatible devices.

The Pro-Ject DAC BOX RS model uses high-class PCM 1792 DACs (one per channel) and provides two different digital filter settings to achieve optimal sound quality. It also features both tube and solid-state output stages (with the option to switch between them) to suit the preference of each user.

The sound circuitry has extremely low noise levels and high linearity characteristics, as well as very low output impedance. This prevents sound distortion caused by various connecting cables and input circuits of connected amplifiers. The Pro-Ject DAC Box RS is one of the most uncompromising devices in its class.

Package includes:

  • DAC
  • Power cable
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
PCM1792
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes
Input connectors
BNC, Coaxial, Optical, AES, USB-B, RJ45
Output connectors
RCA, XLR
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
24
DAC bit depth, bits
192
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Playback via USB
yes

Playing music files via USB

Словарь терминов
Connecting to a computer via USB
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
50
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
100
Circuit design
hybrid

A combination of tube and transistor technologies.

Словарь терминов
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Color
Material
metal
Depth, mm
210
Height, mm
72
Width, mm
206
Weight, g
1894
