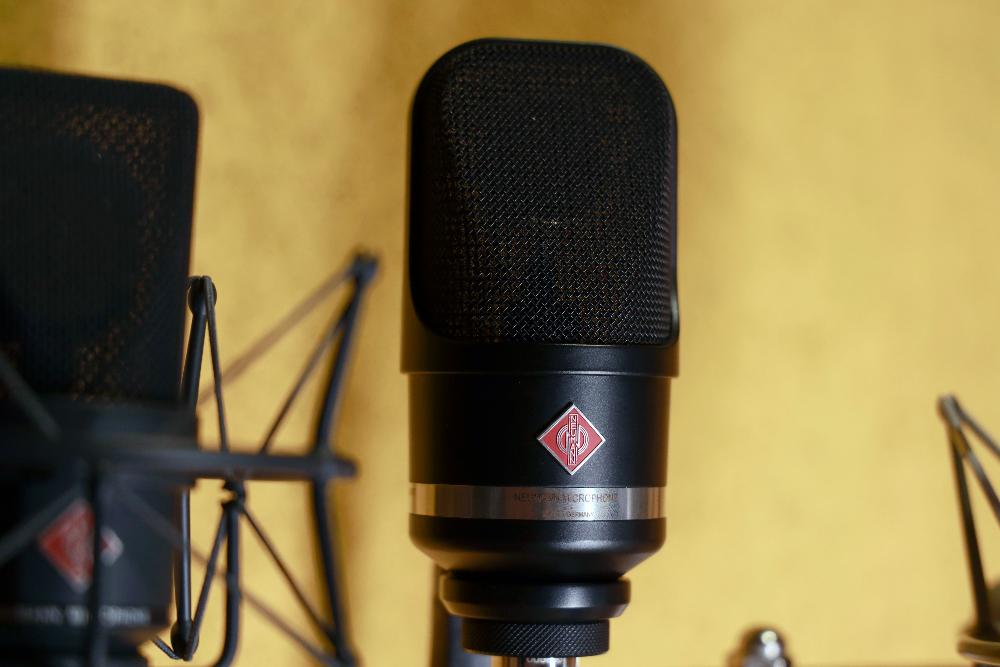

Neumann TLM 107 Black

Product code: 118022
no reviews
AED 5,520.90
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

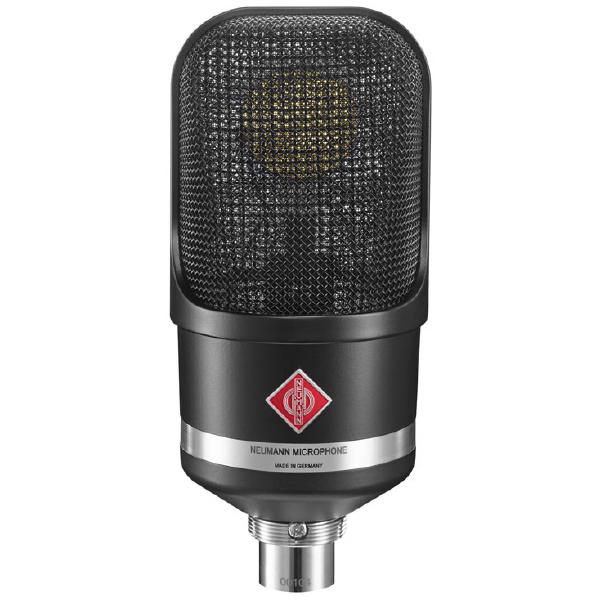

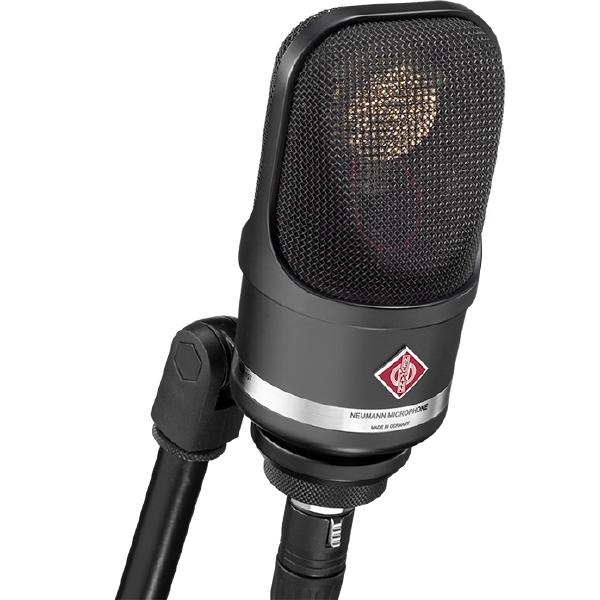

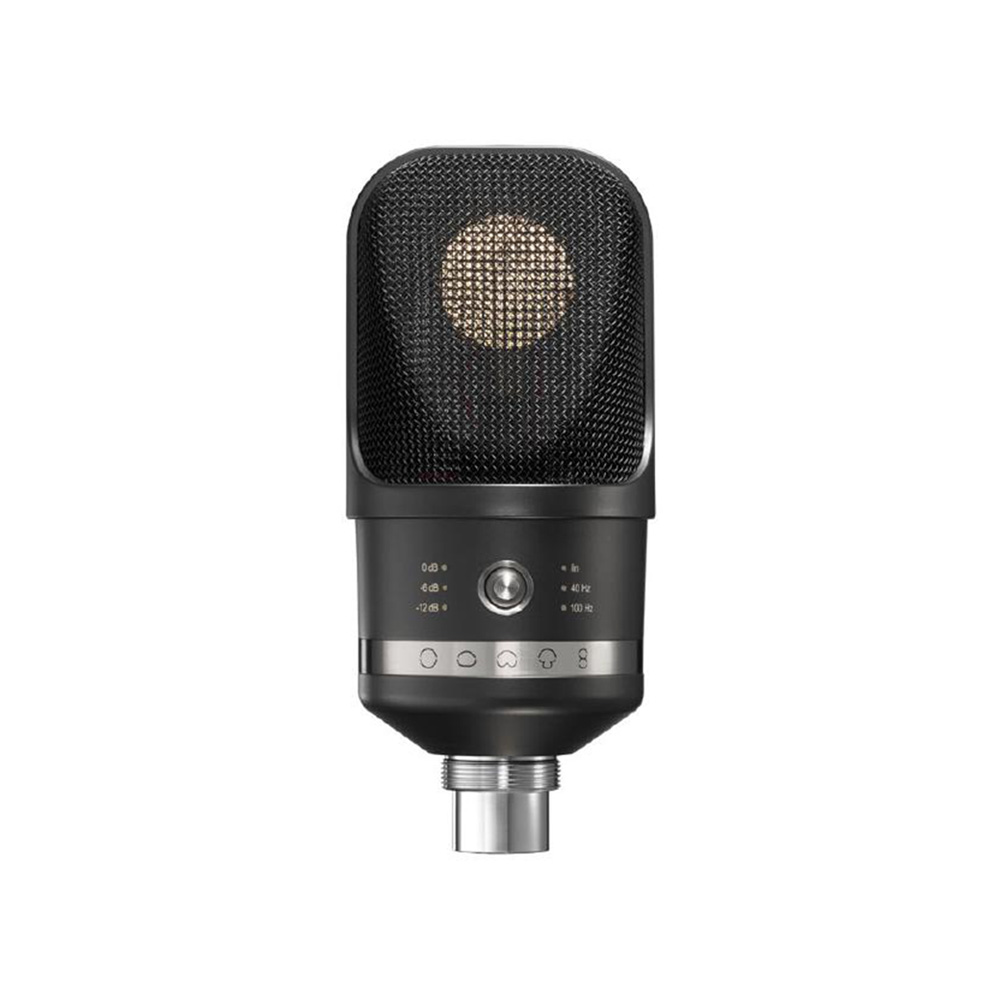

The Neumann TLM 107 is a condenser microphone with 5 different polar patterns, an attenuator, and a high-pass filter. Unlike other microphones that may evoke nostalgia, the TLM 107 is a modern microphone that offers a wide range of capabilities and high-quality sound reproduction. It can be used in recording, mixing, and post-production, opening up new possibilities in the field.

This microphone features a newly developed transducer that delivers exceptional accuracy in pulse response. It offers a choice of 5 polar patterns: omnidirectional, cardioid, figure-8, wide cardioid, and hypercardioid. Regardless of the polar pattern selected, the TLM 107 ensures accurate sound reproduction across the entire frequency range. Its sound is balanced, with a nearly linear frequency response up to 8 kHz and a slight boost beyond this range, adding a sense of freshness and presence to vocals or instruments. Special attention has been given to reproducing natural speech, particularly the "s" sound. The grille has been upgraded to reduce sensitivity to plosive sounds, and the capsules are better protected against dust and moisture.

The TLM 107 is designed to provide uncompromising sound quality. Its transformer-less design ensures high linearity of frequency response and a wide dynamic range. The microphone has a self-noise of only 10 dB, making it practically inaudible. Furthermore, its stability does not depend on the specific microphone unit used. The microphone can handle a maximum SPL level of 147 dB, but with the built-in attenuation, it can be increased to 153 dB, allowing it to record high loudness sounds without distortion. The microphone also features filter settings at 40 Hz and 100 Hz, which are the most commonly used in sound recording. The 40 Hz setting cuts low-frequency noise below the range of fundamental tones, while the 100 Hz frequency is often optimal for vocals, including baritone recordings.

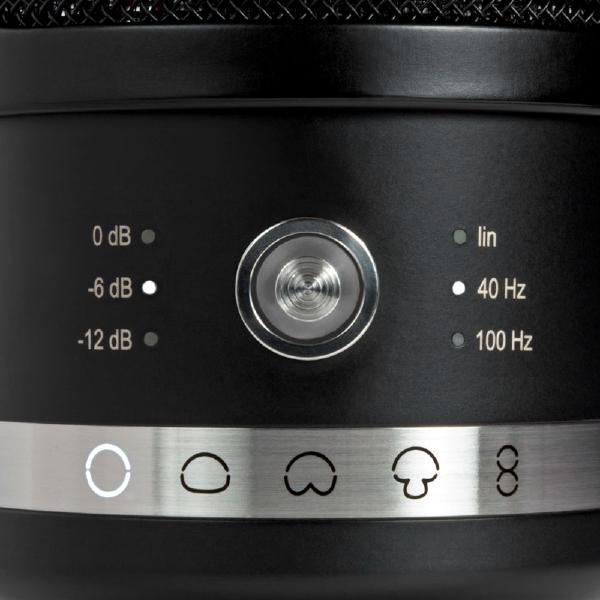

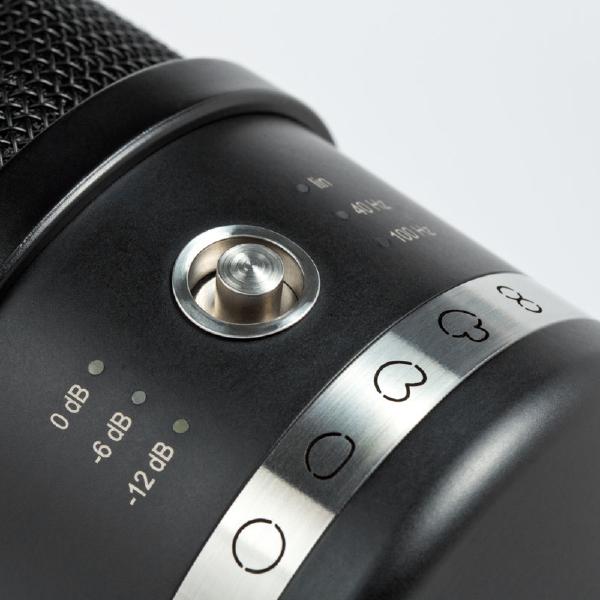

One of the most innovative aspects of the TLM 107 is its management concept. All microphone functions can be easily controlled through a single navigation button, providing an intuitive user experience. The chrome trim of the microphone is illuminated, and the Pad and Low Cut statuses are displayed through LEDs on the switch. To avoid distracting singers, the switch and display are located on the back of the microphone. The illumination automatically turns off after 15 seconds of inactivity.

In terms of specifications, the TLM 107 is a large-diaphragm microphone with a pressure gradient transducer. It offers the following features: 5 polar patterns (omnidirectional, wide cardioid, cardioid, hypercardioid, figure-eight), balanced sound in all 5 polar patterns, intuitive one-button navigation control, LED indicator for quick viewing of current settings, switches for attenuation (-6 dB, -12 dB) and low-cut filter (40 Hz, 100 Hz), and exceptional transparency and naturalness in reproducing the human voice with an exceptional transient response.

In terms of its acoustic working principle, the TLM 107 operates on a pressure gradient transducer. It offers the following specifications: a reproducible frequency range of 20 Hz to 20 kHz, sensitivity of 11 mV/Pa at 1 kHz with 1 kΩ, nominal impedance of 50 Ω, load impedance of 1 kΩ, maximum SPL for THD <0.5% of 141 dB, maximum output voltage of 10 dBu, power supply voltage of 48 V ± 4 V, current consumption of 3.2 mA, microphone connector XLR3F, weight of 445 grams, diameter of 64 mm, and length of 145 mm.

The package includes the microphone itself, a wooden case, wall mount (SG 2), and a user manual.

Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Audio signal format
mono
Color
Connectors
XLR
Cut filters
yes
Diaphragm size
large diaphragm

These microphones are very sensitive. They require an external power supply and are hung up to ceiling

Словарь терминов
Directional characteristic switch
yes
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
50
Max SPL, dB
141
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
hypercardioid

Unidirectional polar pattern of the microphone.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Minimum load resistance, Ohms
1000
Sensitivity switch
yes
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
72
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Depth, mm
64
Height, mm
145
Width, mm
65
Weight, g
445
