Studio microphone
Neumann TLM 103 Stereo Set Nickel

Product code: 114507
no reviews
AED 10,645.95
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

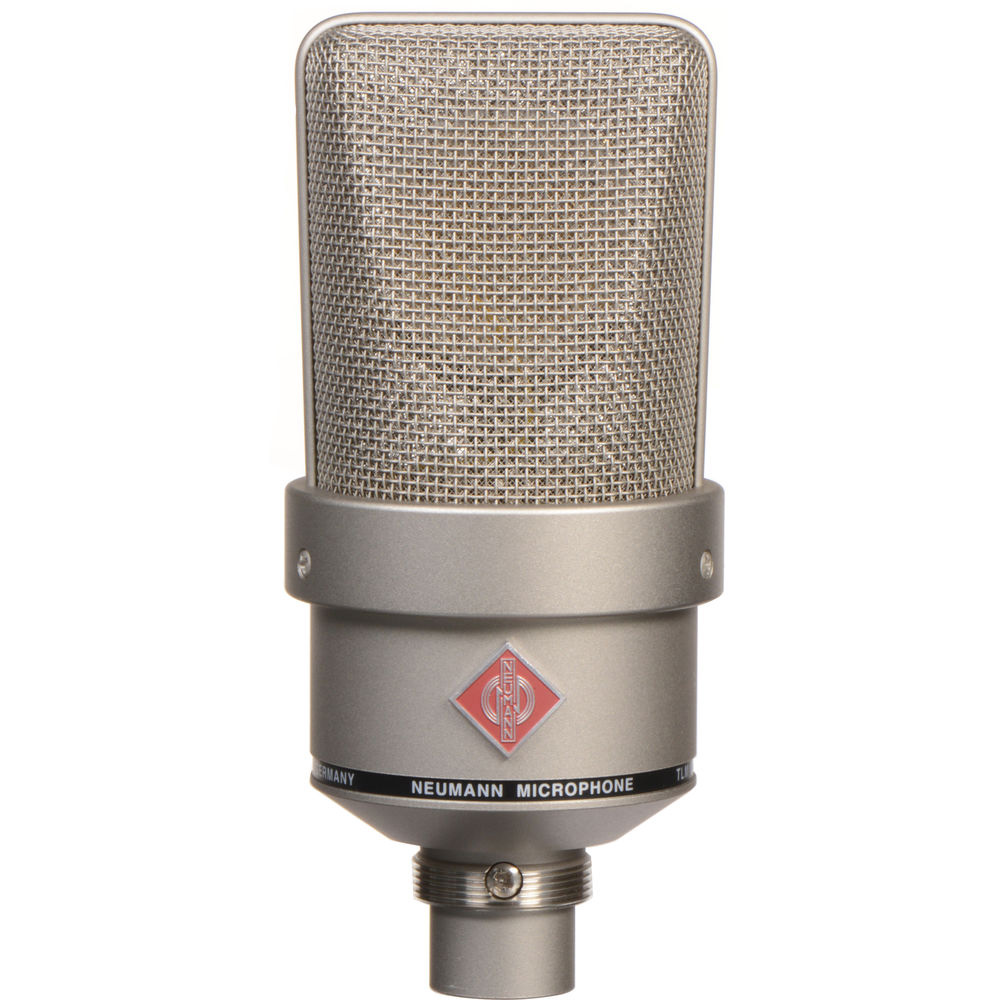

TLM 103 is a large-diaphragm microphone that is widely used in professional and semi-professional audio recording. It is the perfect choice when you need high-quality sound but have a limited budget. Thanks to its reliable and transformerless circuitry, which is the same as some other Neumann microphone models, the TLM 103 has very low self-noise and can effectively capture high sound pressure level signals. Its cardioid polar pattern, derived from the U 87, provides a well-balanced and effective reduction of off-axis signals.

Polar Pattern

The TLM 103 comes with a large-diaphragm capsule and a cardioid polar pattern. This pattern is suitable for most recording situations as it effectively reduces unwanted side signals. Off-axis sounds, which the microphone is less sensitive to, are reproduced naturally. This feature helps avoid acoustic feedback during live concerts or when recording with studio monitors.

Acoustic Characteristics

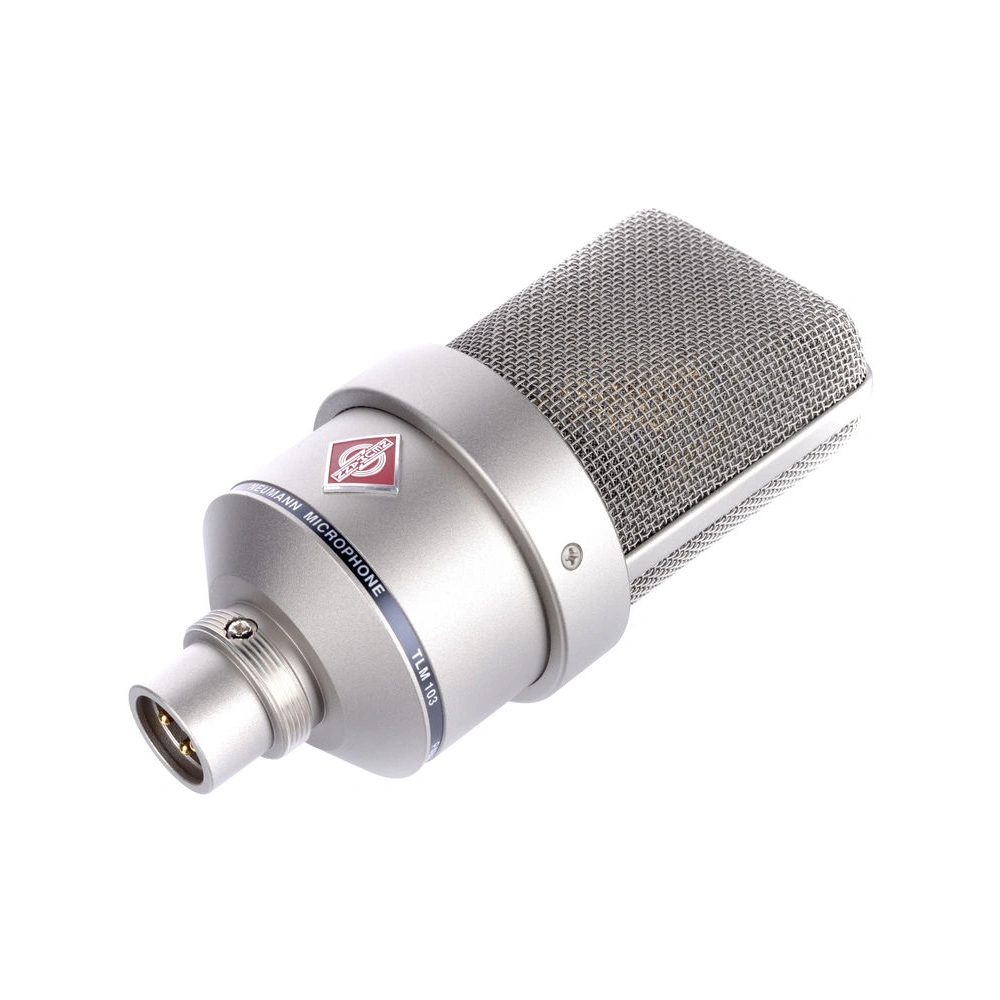

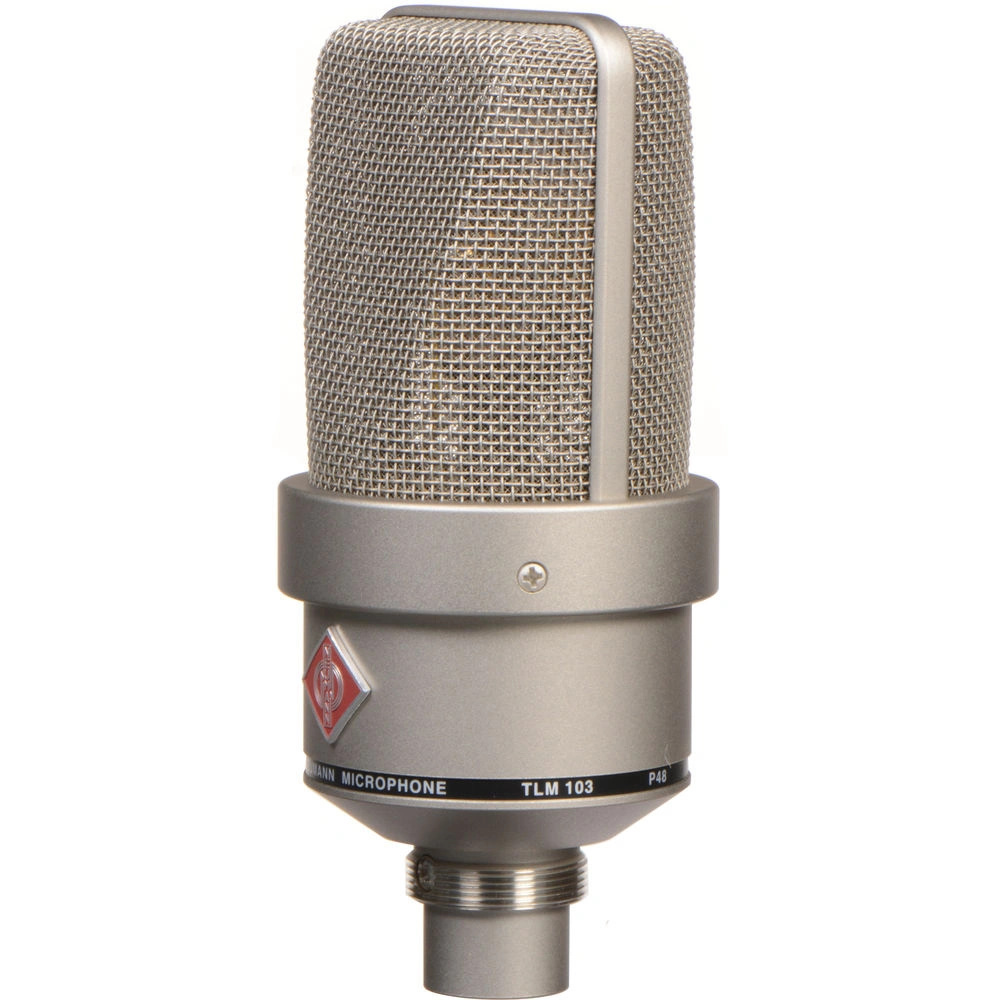

The Neumann logo on the microphone body indicates the working side of the TLM 103 capsule. The capsule is an improved version of the S 87 capsule used in renowned U 67/U 87 microphone models. The frequency response is linear up to 5 kHz, followed by a wide, flat boost of +4 dB in the high-frequency range. The large grille protects the capsule from loud sounds and wind noise without affecting its transparency. These high-performance characteristics are achieved without any resonance correction, allowing the microphone to accurately reproduce musical and speech details without altering their coloration.

Reliability

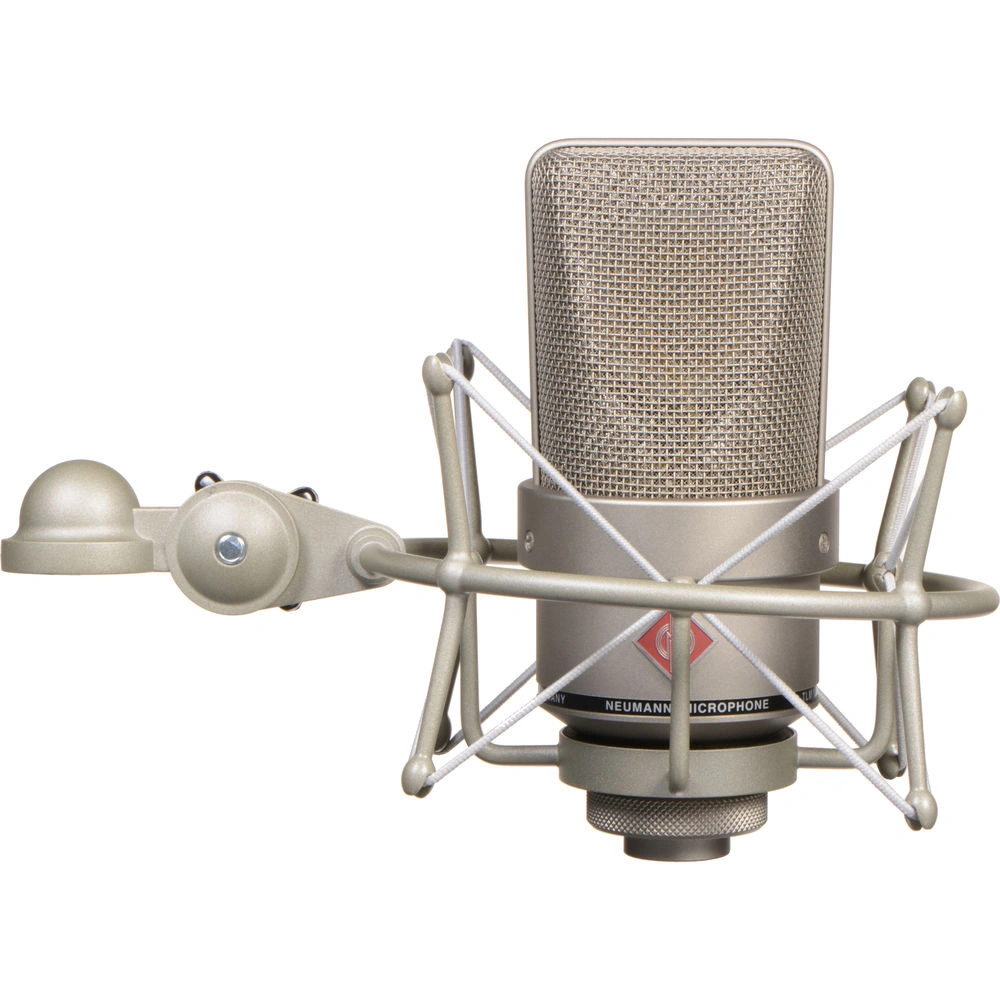

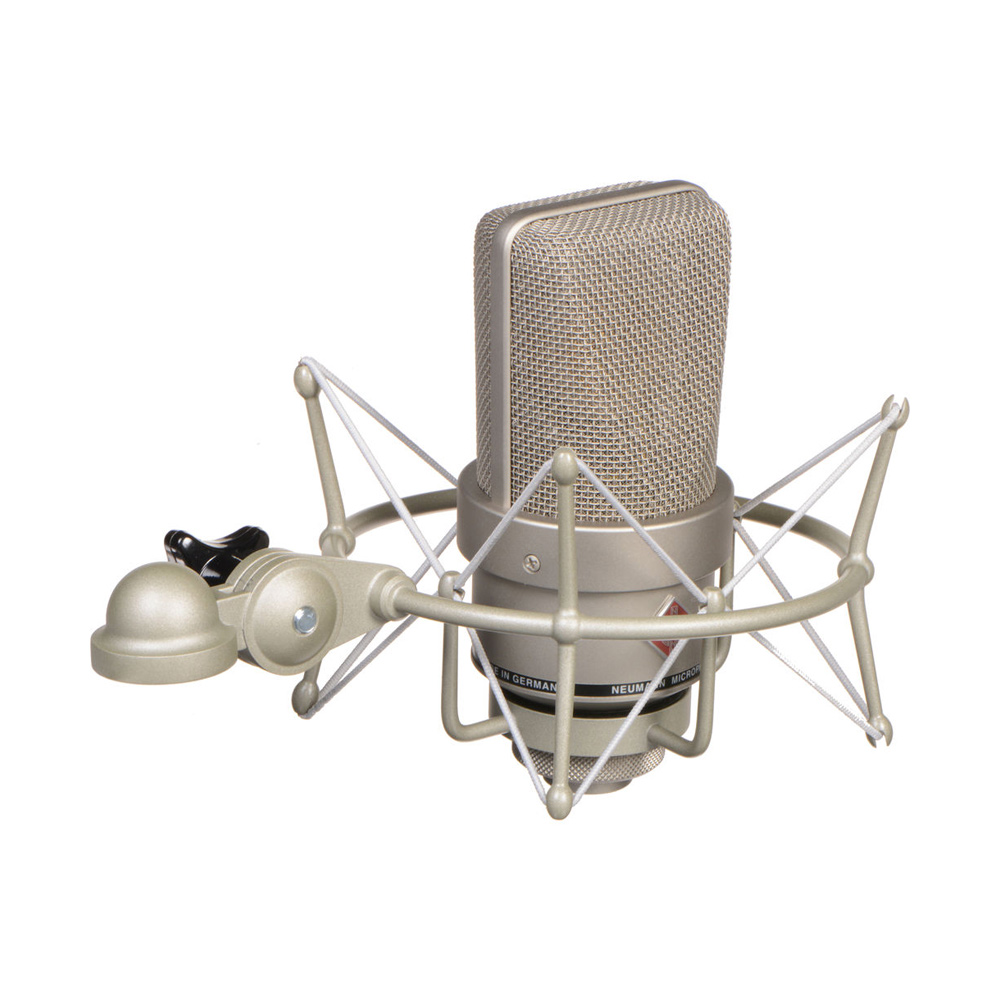

The entire construction is securely mounted inside the housing with an elastic suspension to minimize handling noise. Additionally, the TLM 103 features an extra elastic mounting for the capsule. Its frequency range extends down to 20 Hz, ensuring faithful reproduction of low-frequency signals without any timbre changes. However, the wider frequency range makes the microphone more susceptible to handling and wind noise. To address this, elastic suspension accessories like the EA 1 are provided. For close-up vocal recording, it is recommended to use the windscreen shields PS 10 and PS 20 for extra protection.

Features:

  • Cardioid microphone with a large diaphragm
  • Pressure gradient transducer, single-diaphragm capsule
  • Transformerless circuitry
  • Extremely low self-noise: 7 dB-A
  • Includes a swivel mount
  • User-friendly and suitable for home and professional studios
  • High-quality professional equipment on a limited budget

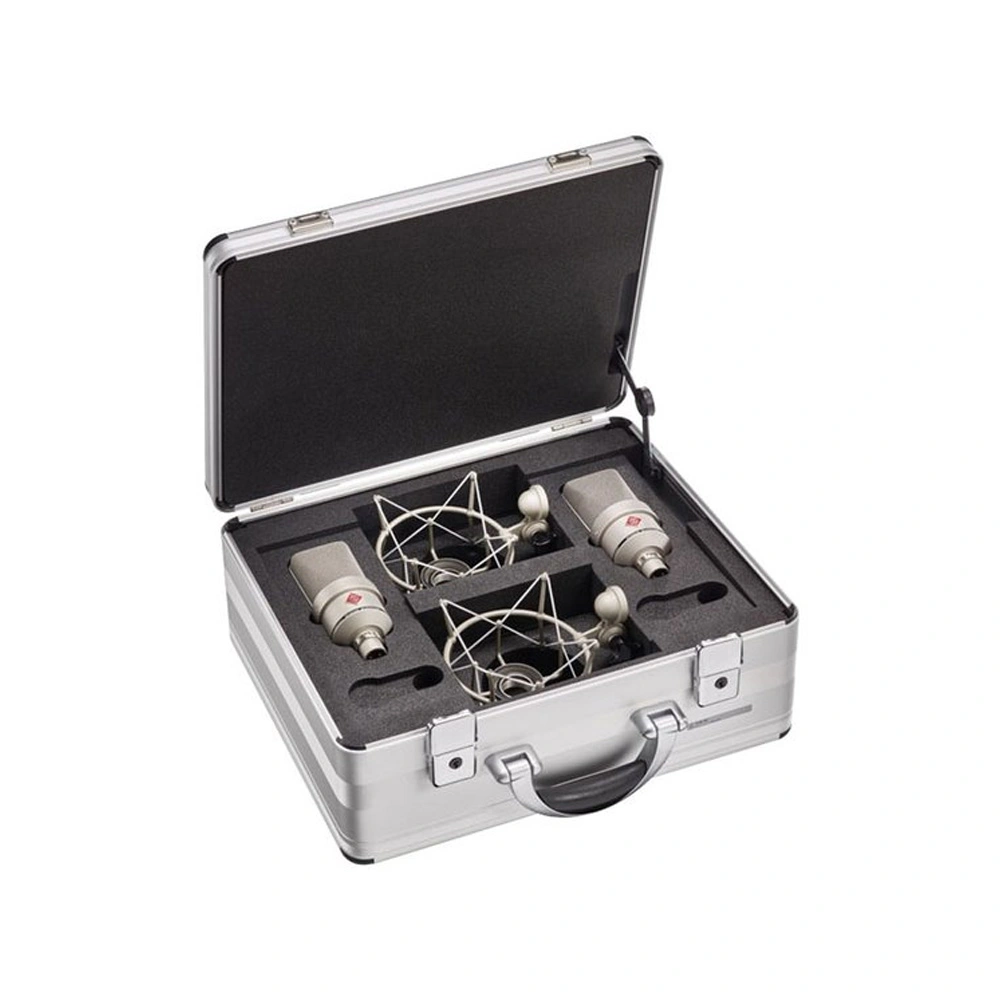

Package includes:

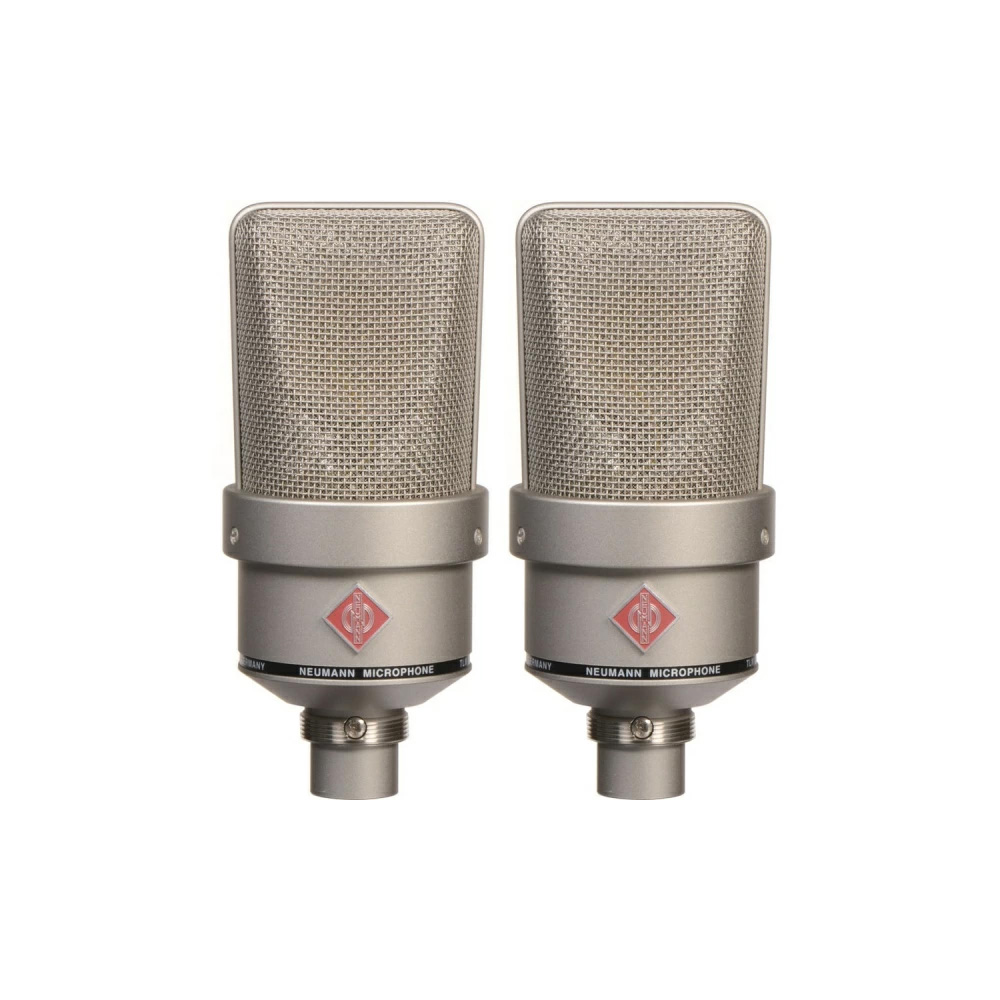

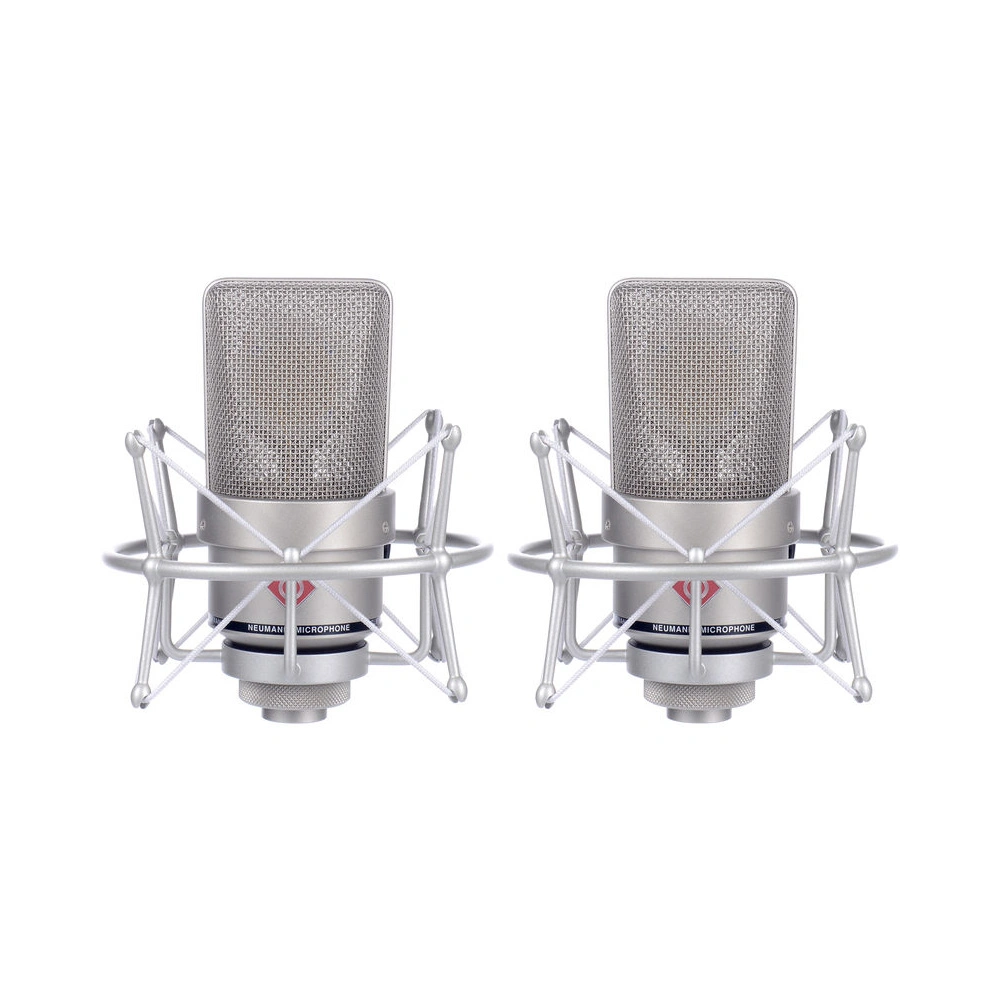

  • 2 TLM 103 microphones

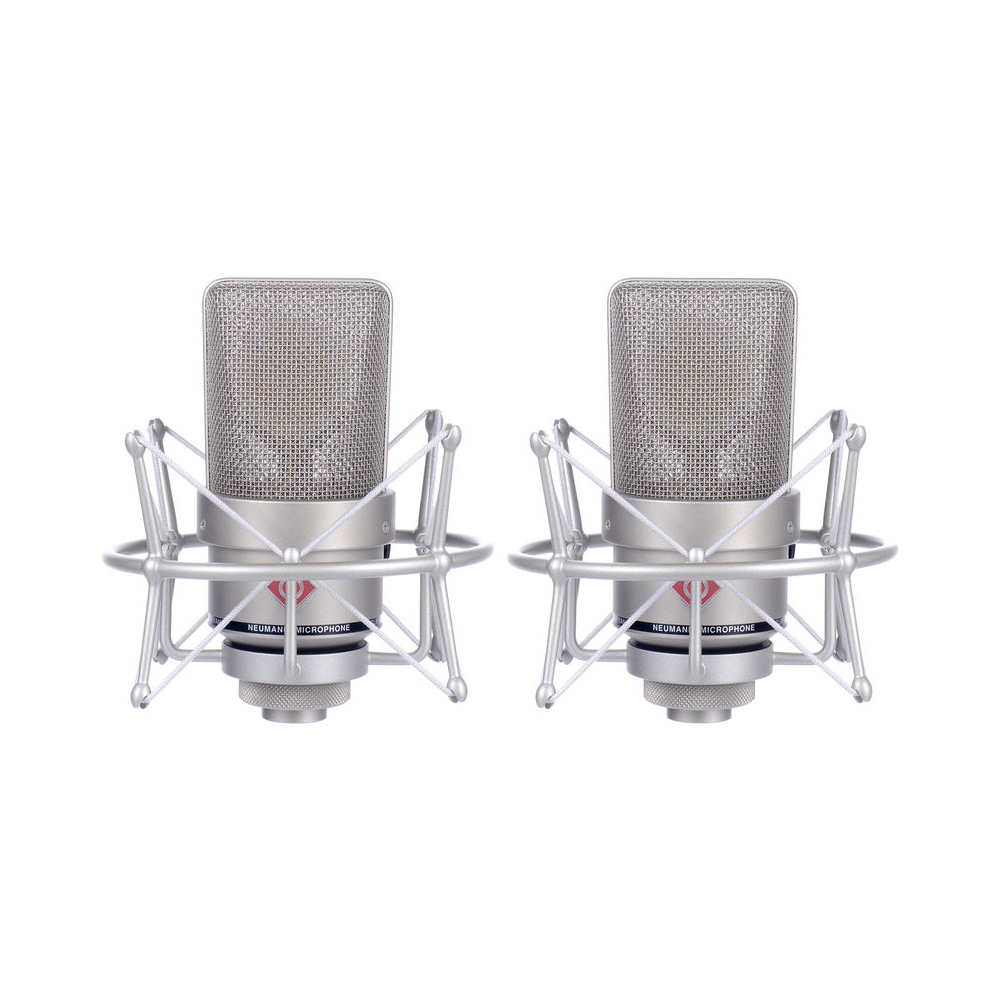

  • 2 EA 1 elastic suspensions
  • Aluminum case
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color

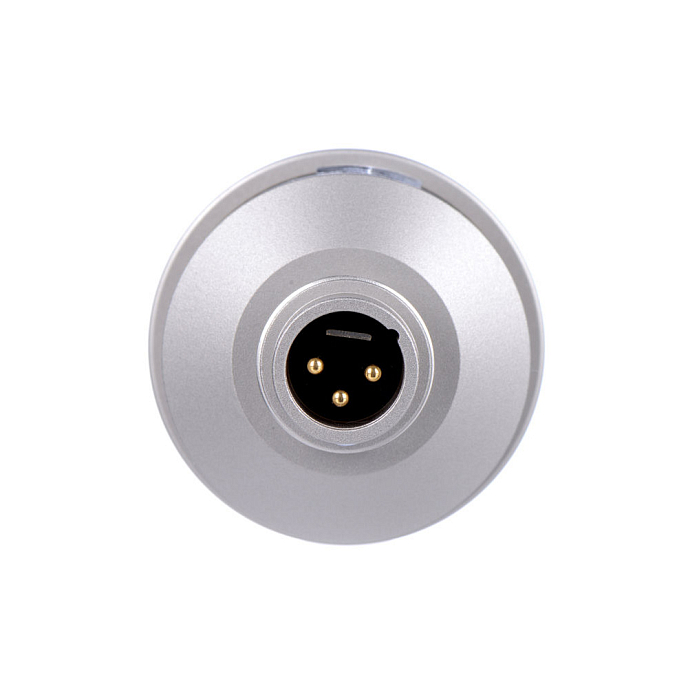

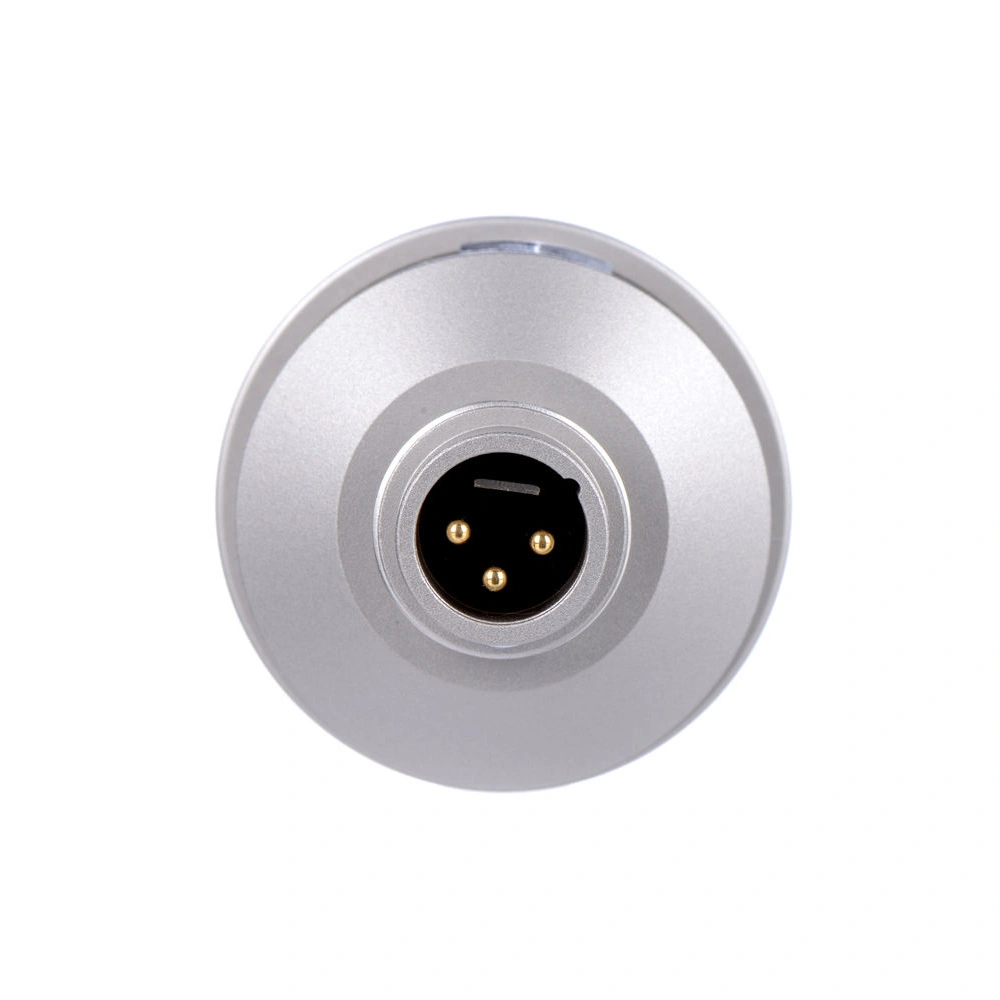

Connectors
XLR
Diaphragm size
large diaphragm

These microphones are very sensitive. They require an external power supply and are hung up to ceiling

Словарь терминов
Free-field sensitivity without load (1 kHz), mV/Pa
23
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
50
Max SPL, dB
138
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Minimum load resistance, Ohms
1000
Phantom power

Necessary for condenser microphones

Glossary of terms
yes

Simultaneous transmission of DC power and information signals over one wire.

Словарь терминов
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
77
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Depth, mm
60
Height, mm
132
Width, mm
60
Weight, g
450
