Bookshelf speakers

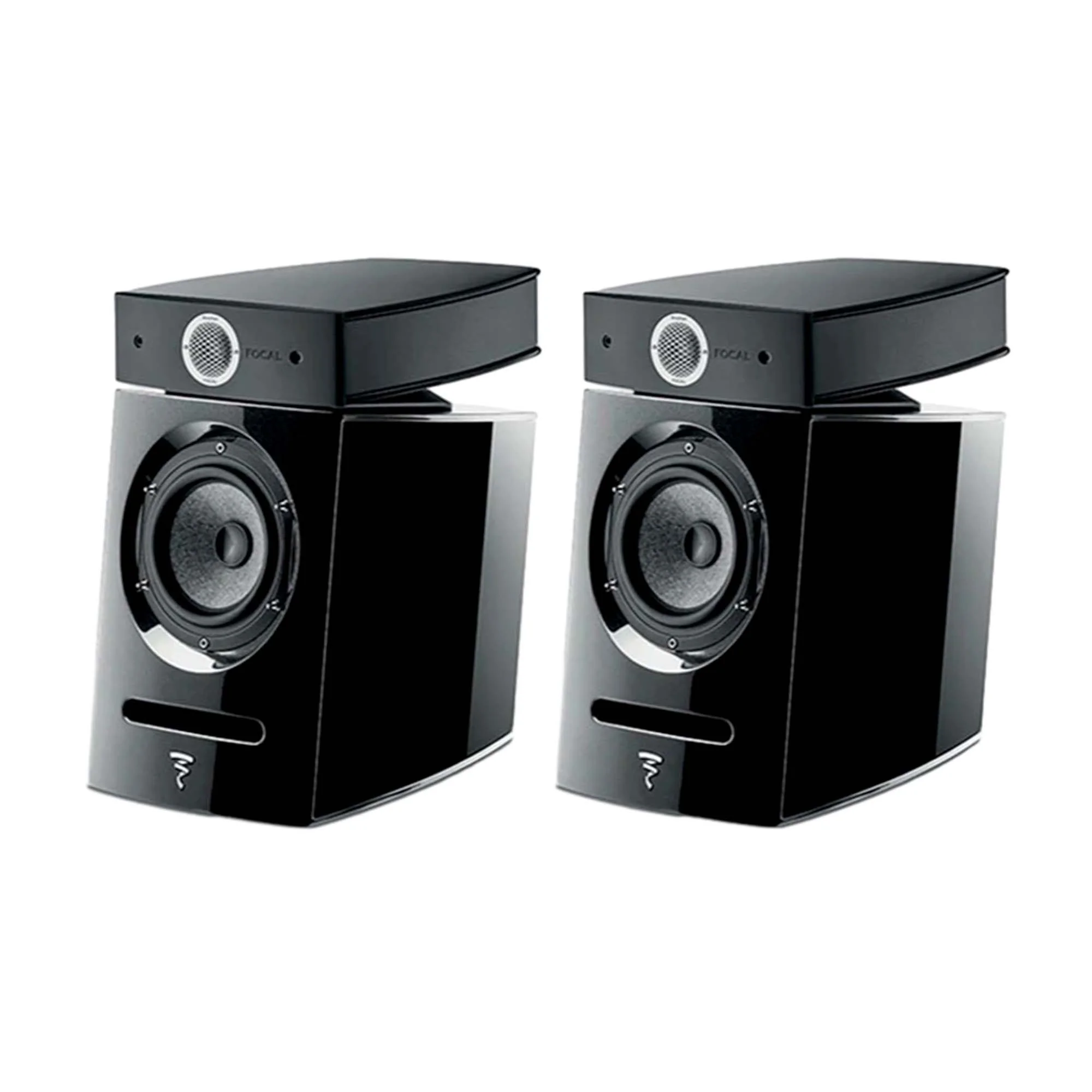

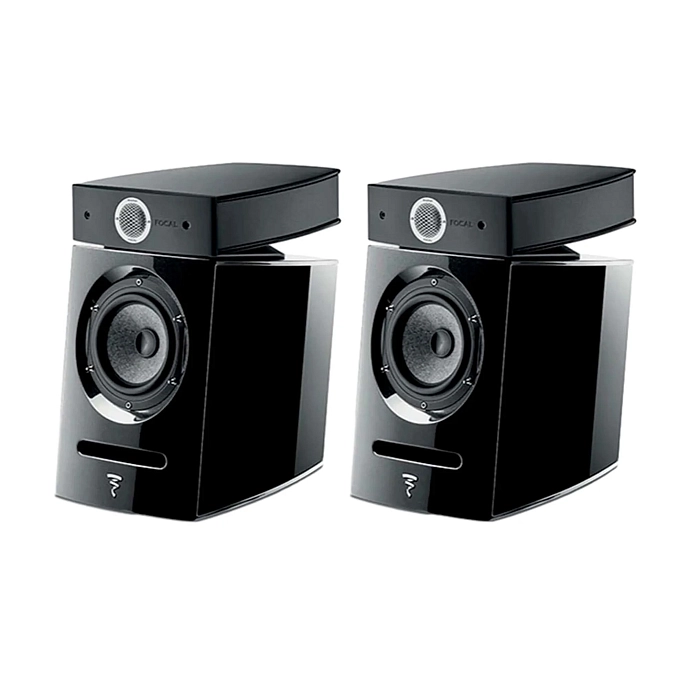

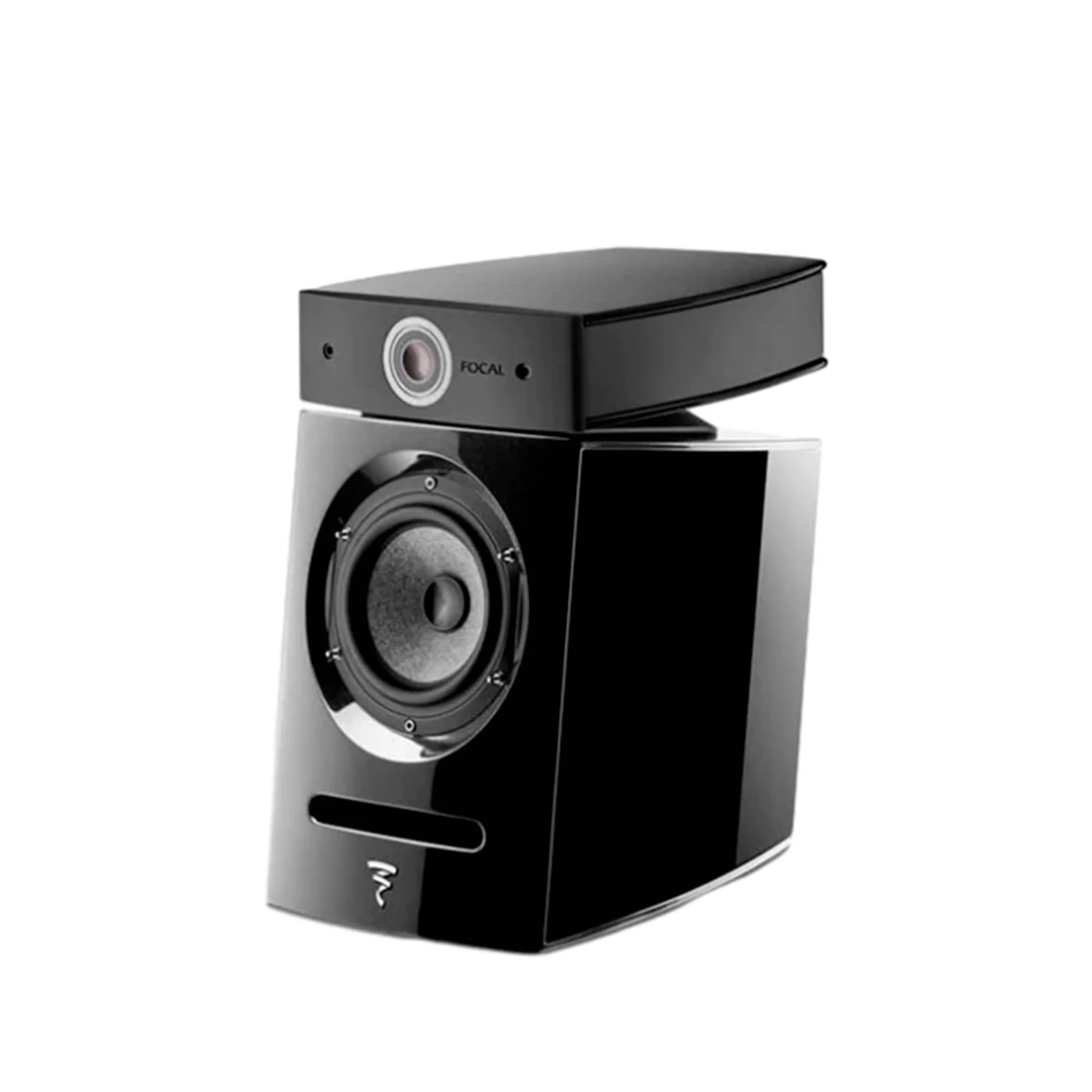

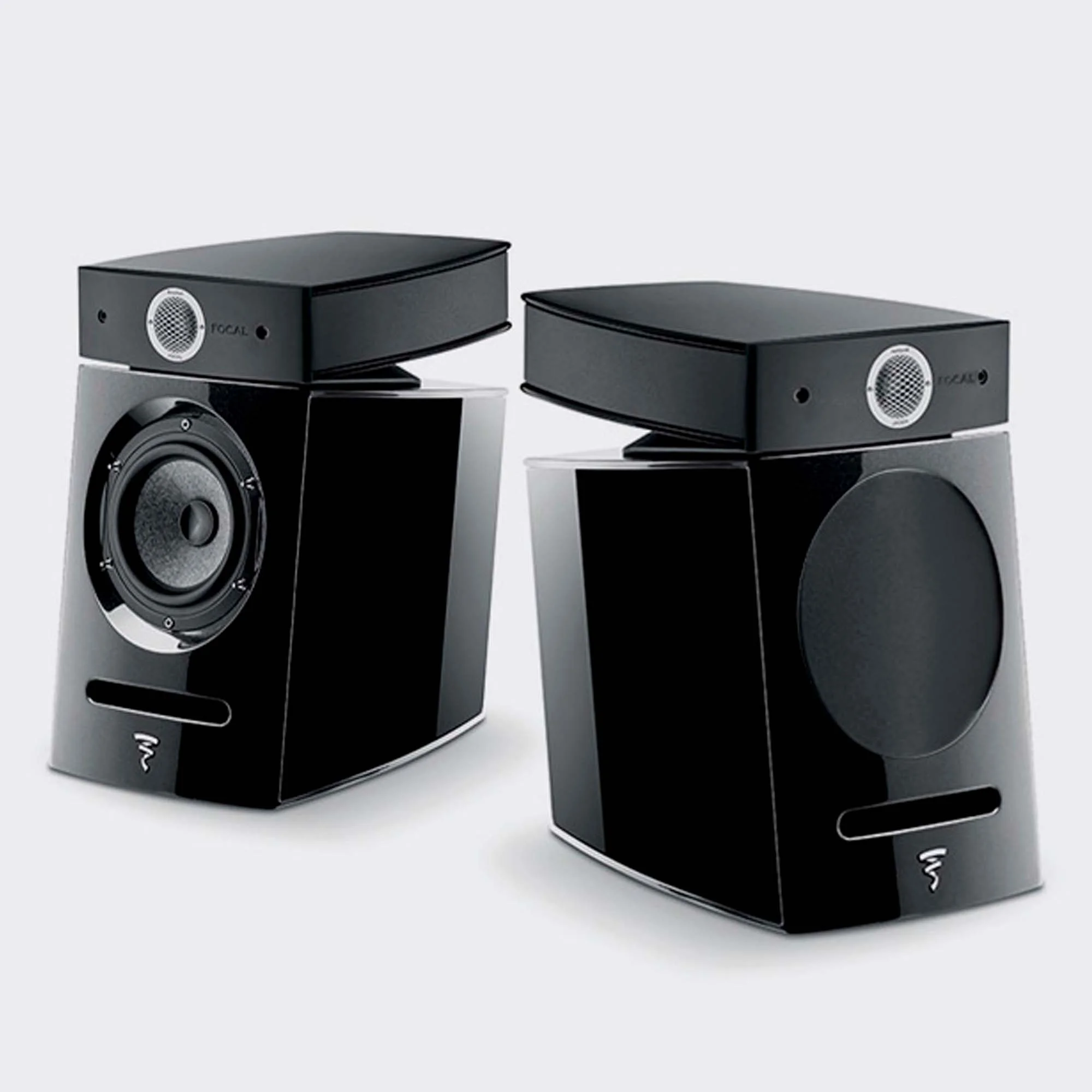

Focal Diablo Utopia EVO Black Lacquer

Product code: 136475
no reviews
AED 77,040
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

Compact, stylish, and captivating, the Diablo Utopia EVO acoustic system embodies Focal's traditions in producing bookshelf speakers. Inspired in many ways by the Grande Utopia EM system, it offers an entirely new quality of bass reproduction, thanks to the 165mm driver with the patented Power Flower system and its phase inverter coordinated with it.

Features:

  • Beryllium IAL2 tweeter with reverse dome in the high-frequency section
  • Power Flower magnetic system for the woofer
  • Frequency range: 44 Hz - 40 kHz
  • Tweeter: 1 x 27 mm, Woofer: 1 x 165 mm
  • Sensitivity: 89 dB
  • Power: 25 - 200 W

Mounted on standard floor stands, the Diablo Utopia III EVO system mesmerizes with its ability to reproduce mid and high frequencies, rich bass, and unprecedented power.

The low and mid frequency range is reproduced by Focal's traditional woofer with an astonishingly light yet rigid 165mm driver consisting of two layers of fiberglass with syntactic foam sandwiched and attached to a half-roll suspension. Another distinctive feature of the woofer is its Power Flower magnetic system. Indeed, its shape resembles a six-petal magnet flower. This design not only increases power but also better focuses the magnetic field. Instead of a ring magnet, the basket is reinforced with six separate neodymium elements, creating a uniform and very powerful field.

The high-frequency section includes the famous IAL-2 tweeter with a beryllium inverted dome. The magnetic system is shaped like a Laval reactive nozzle, and the volume behind it acts as a Helmholtz resonator tuned to the tweeter's resonance frequency.

The cabinet itself is designed using the same Gamma technique as other Utopia models – it takes into account the distribution of vibrations and distributes them along the curved walls' cross-section so that their impact on sound is minimal. The cabinet is made of MDF panels, some of which are five centimeters thick in certain areas. At the bottom of the front panel, there is a slotted port.

Package Includes:

  • 2 x acoustic system
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color
Connection method
bi-amp, bi-wiring
Diameter of the woofer, mm
165
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
8
Material
MDF
Number of lanes
two-lane

Two speakers where each is responsible for its own frequency band.

Словарь терминов
Phase Inverter location
at the front
Power, W
200
Removable panels
yes
Sensitivity, dB

A value describing the volume of the device in relation to the level of power supplied

Glossary of terms
89
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
40
The lowest frequency, Hz
44
Tweeter size, mm
27
Type of speakers
passive bookshelf
Depth, mm
427
Height, mm
431
Width, mm
258
Weight, g
20000
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
France
Service life, months
24
Warranty, months
12
