DAC
FiiO TAISHAN-D03K

Product code: 94920
no reviews
AED 99
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

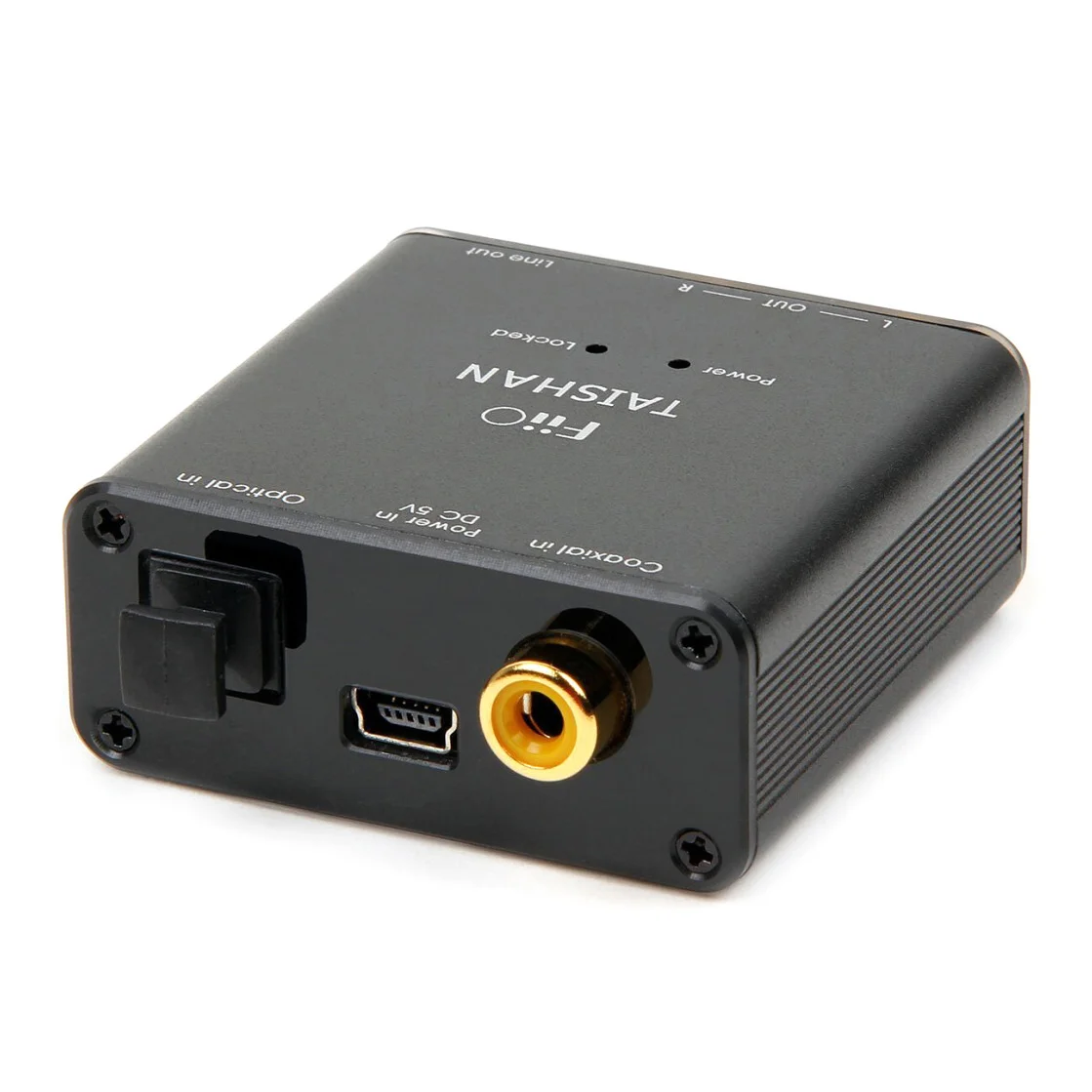

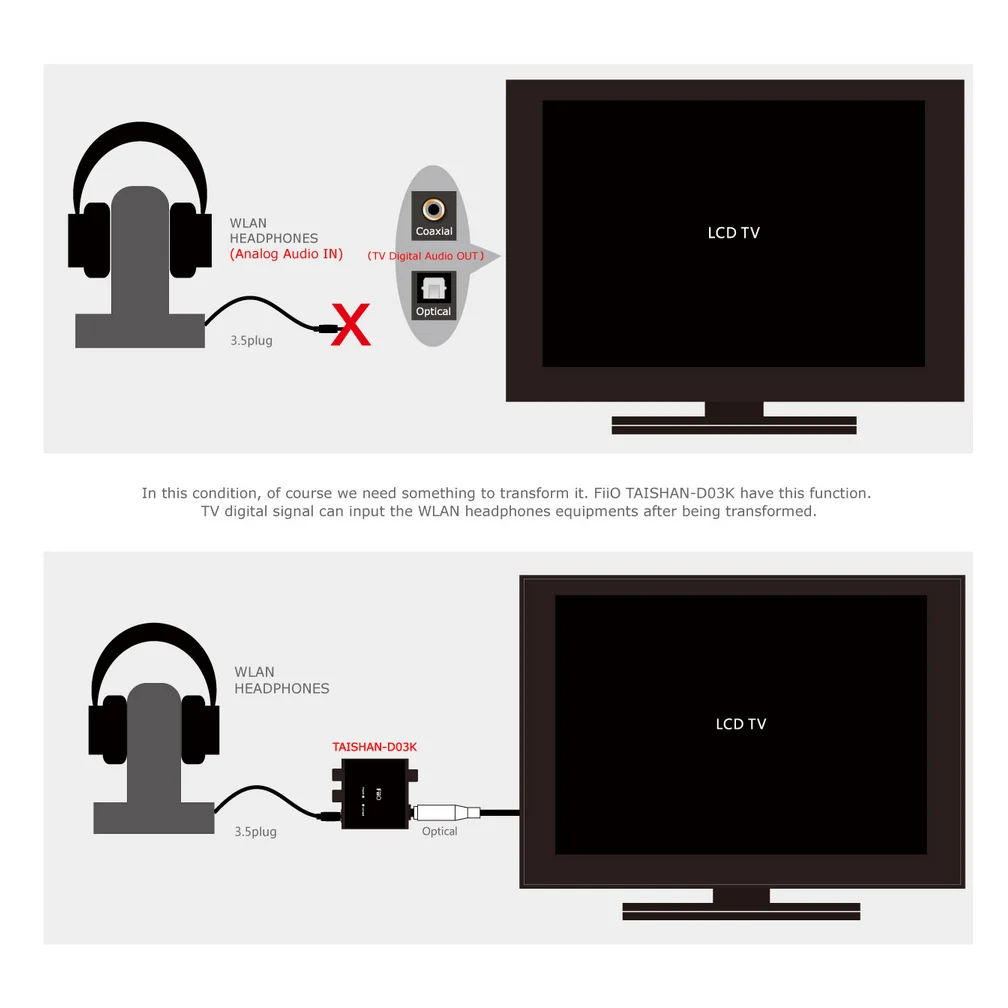

The FiiO D03K TAISHAN is a mini DAC in a compact housing. The device features optical and coaxial inputs for receiving digital audio signals, and an analog stereo output represented by RCA connectors and a mini-jack socket. It can be used to connect players or TVs with digital outputs to analog integrated amplifiers or mini-systems to improve the sound quality of the system. Additionally, the presence of a 3.5mm output allows for connection to devices such as wireless headphone transmitters that do not have other types of connectors. This device can also come in handy in many other scenarios.

The FiiO D03K TAISHAN supports signal processing with parameters up to 24-bit/192 kHz and is equipped with a miniature toggle switch for selecting inputs (coaxial/optical). A corresponding LED is used to indicate the start of data conversion (Signal Lock). The device is powered by an external power supply connected to the converter through a standard USB connector. The D03K TAISHAN circuitry is constructed on a miniature board with shortened signal transmission paths, minimizing interference. The metal housing of the converter also serves to protect its electronic components from external interference and is painted black.

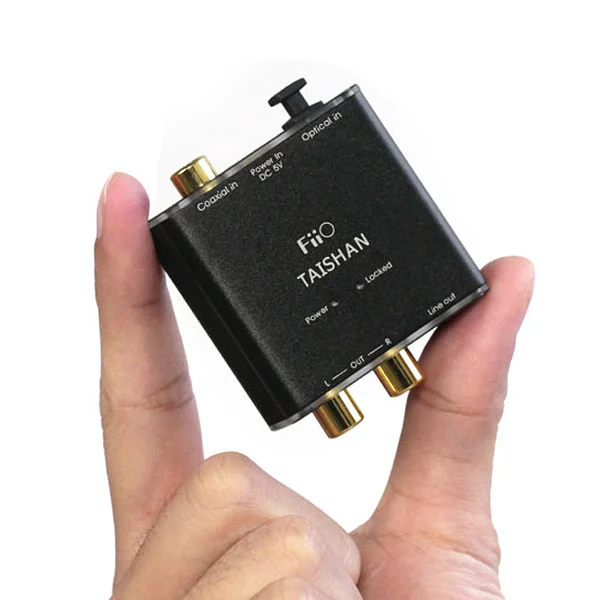

Its compact size allows the DAC to be hidden behind the player or TV, using cables of minimal length for connection. Despite its small size and simplistic appearance, the D03K TAISHAN provides a much higher sound quality than the built-in converters of most DVD and BD players, as well as media players. However, it should be noted that this device is designed to work only with PCM streams and cannot decode audio information in Dolby Digital or DTS. Nevertheless, the device performs its primary function very well and is one of the most cost-effective ways to improve the sound quality of many audio systems.

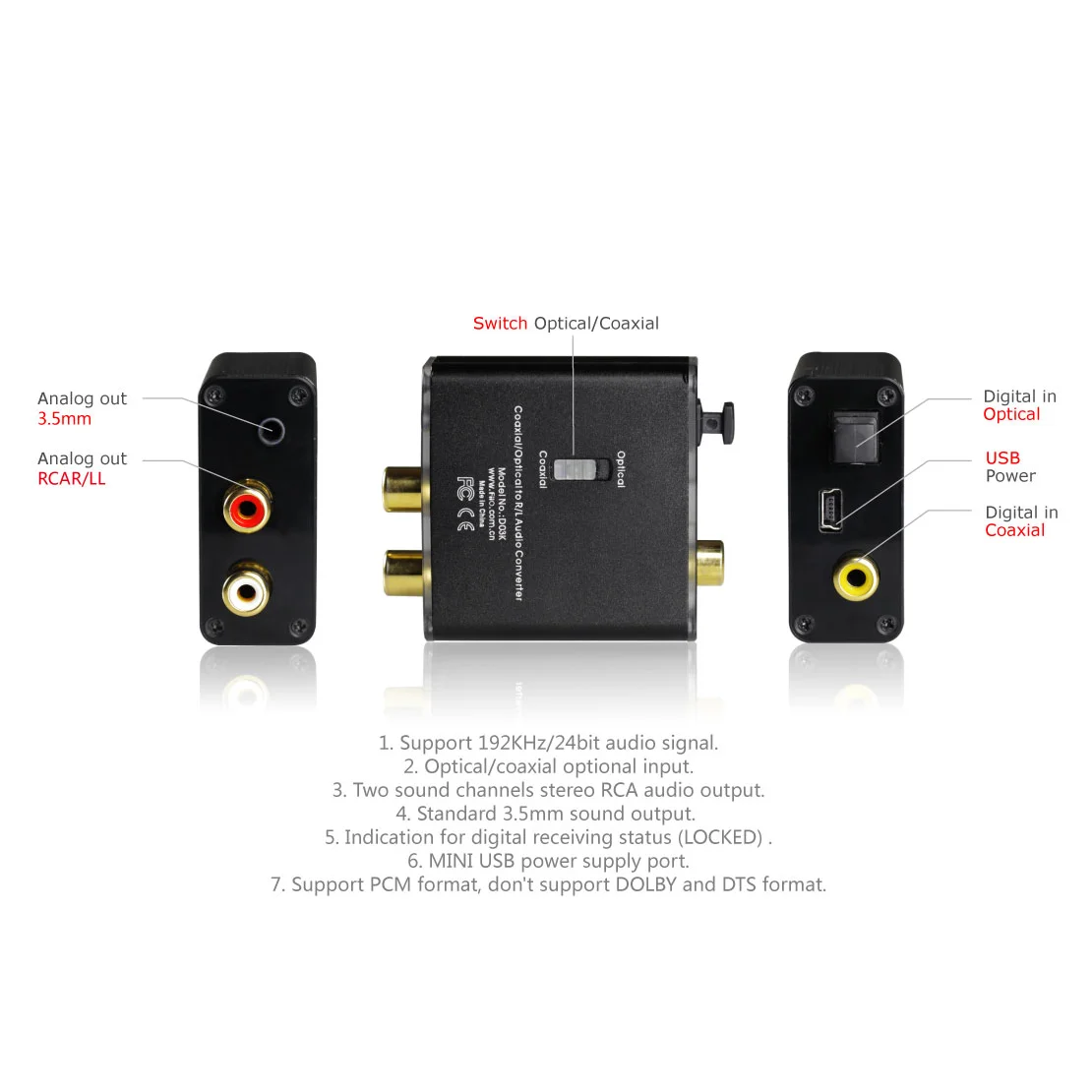

Features:

  • Signal frequency and resolution up to 192 kHz / 24-bit
  • Gold-plated connectors
  • Optical and coaxial digital inputs
  • RCA stereo output
  • 3.5mm analog output
  • Digital signal indicator (Locked)
  • USB powered (mini USB input)

Package includes:

  • FiiO D03K TAISHAN
  • Power supply with mini USB connector
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Headphone output
3.5mm jack
Output connectors
3.5mm jack, RCA
DAC bit depth, bits
24
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
192
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
95
Powered by USB
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
20
Color
Form factor
portable
Input connectors
Coaxial, Optical, USB Mini
Internal DAC
yes
Material
plastic
Depth, mm
21
Height, mm
62
Width, mm
49
Weight, g
50
Service life, months
24
Warranty, months
12
