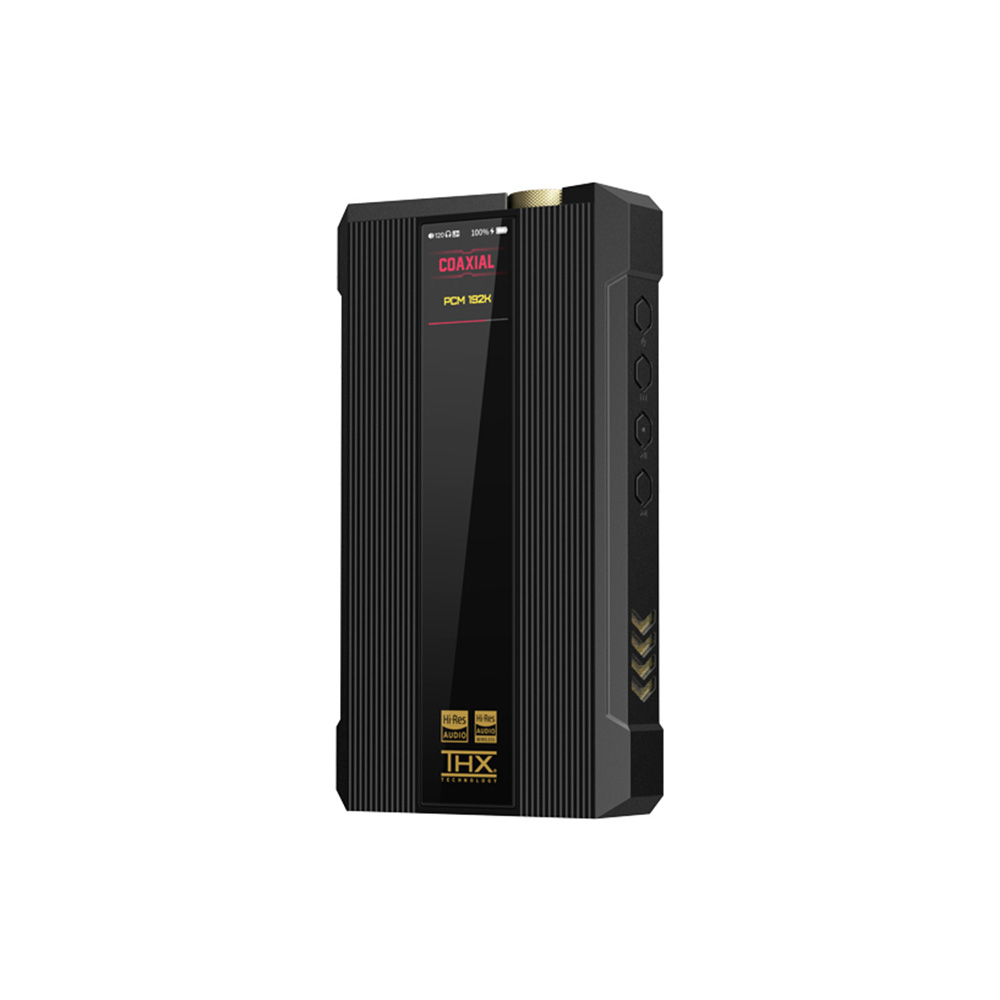

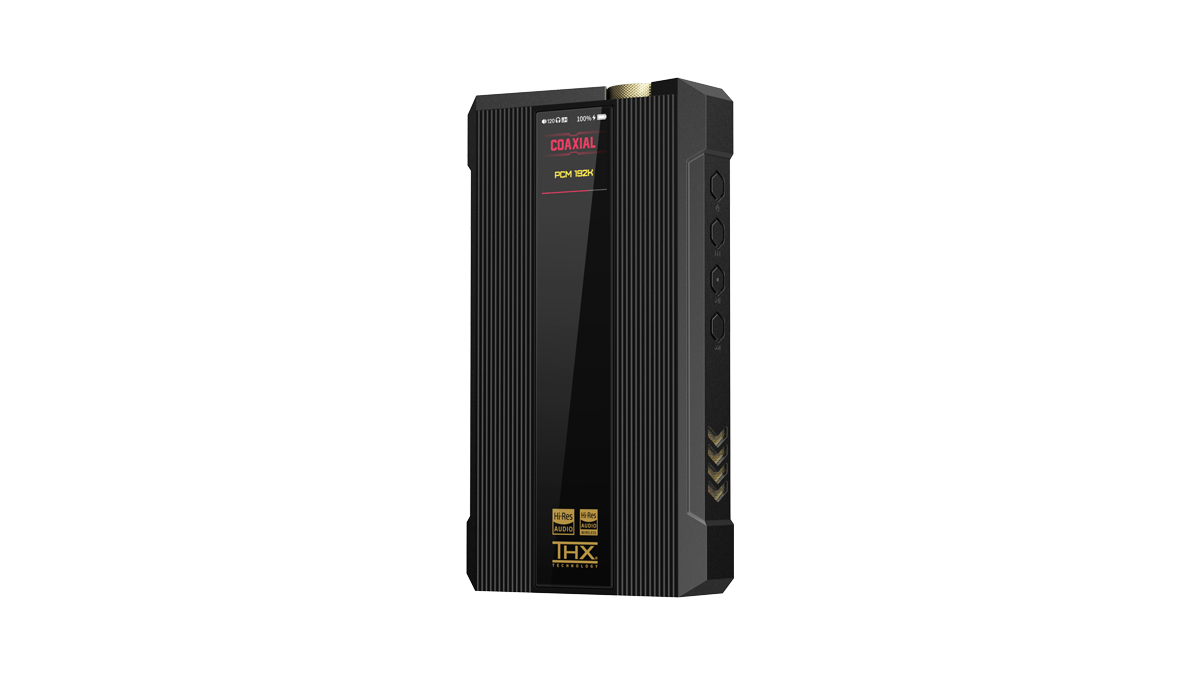

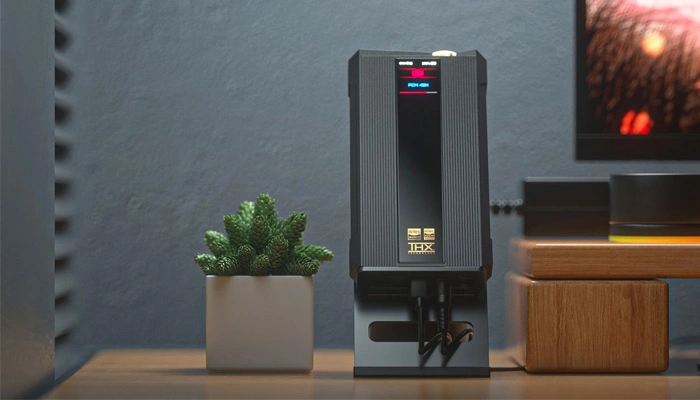

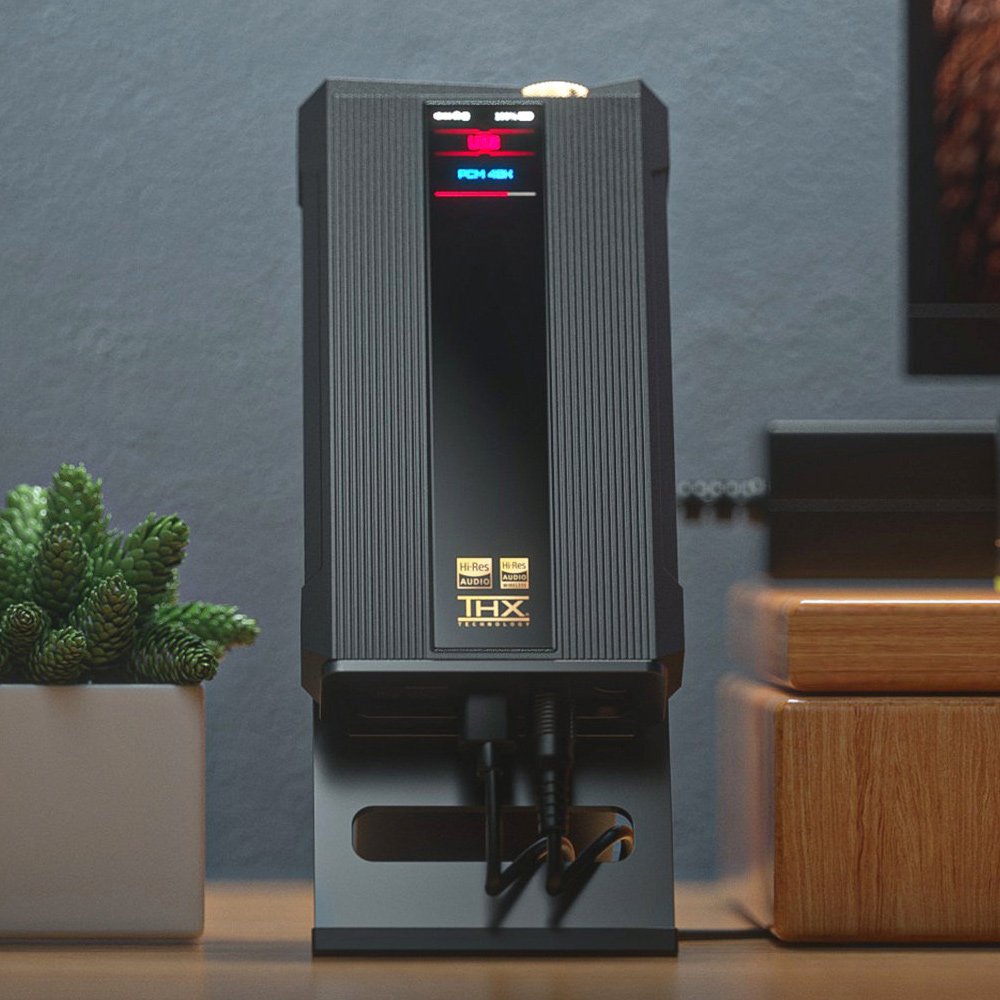

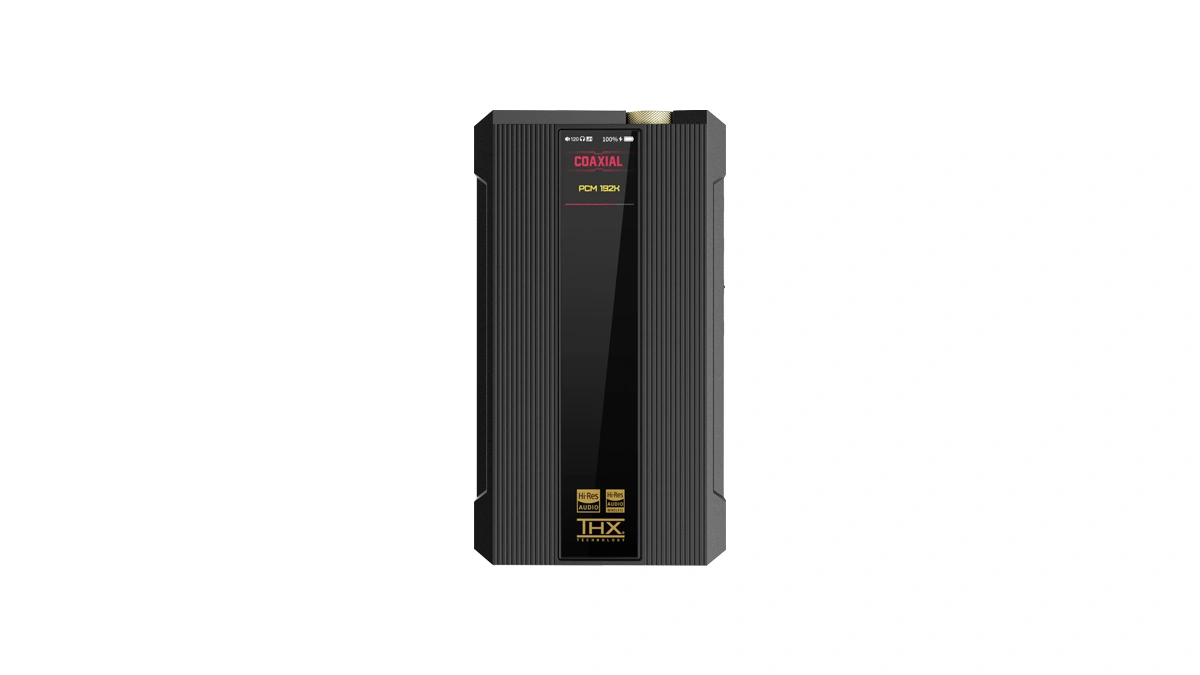

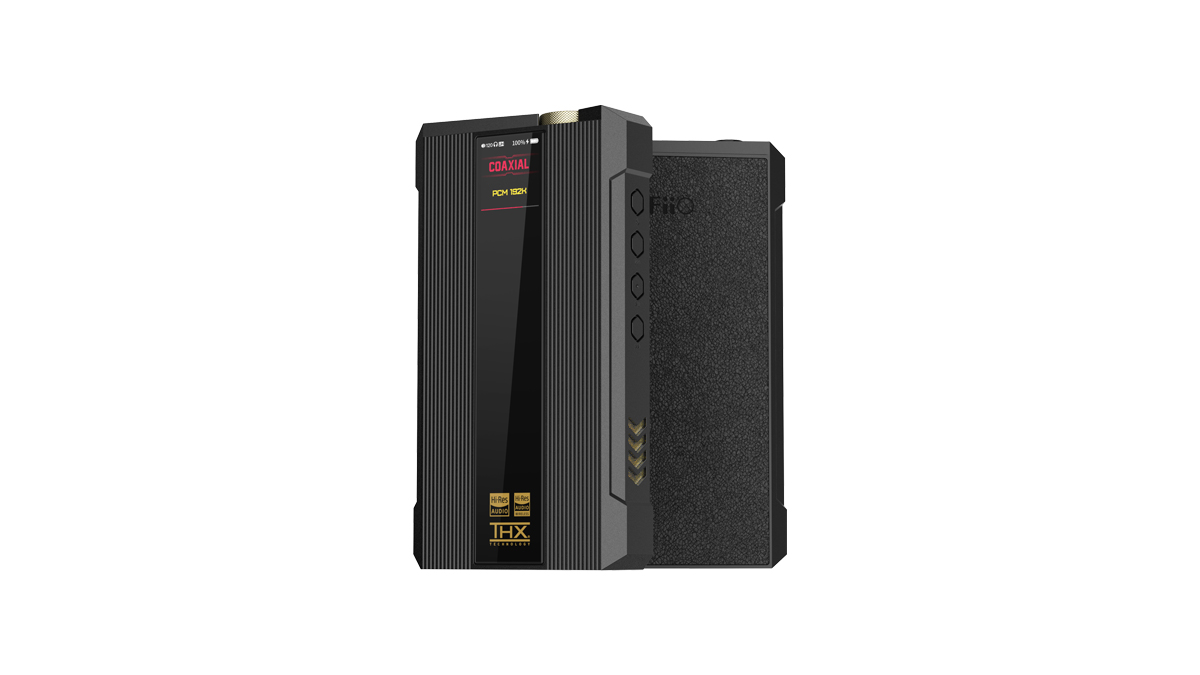

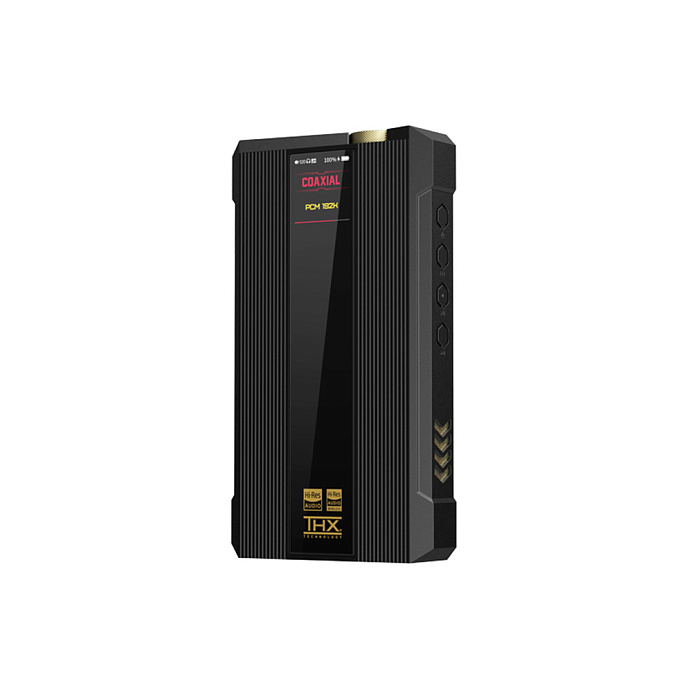

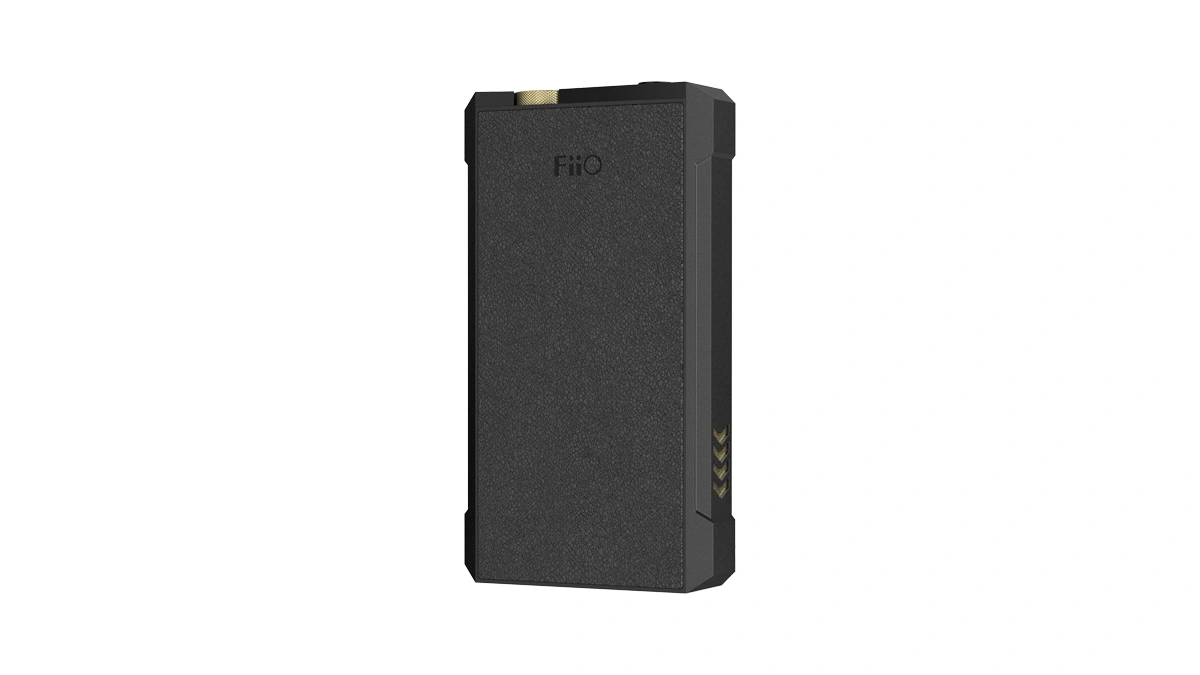

FiiO Q7 - The Unparalleled Flagship USB DAC/Amplifier by FiiO

The FiiO Q7 is a flagship USB DAC/amplifier that is based on the successful architecture of the M17, FiiO's flagship digital audio player. It features premium-class components such as the ES9038PRO DAC, THX AA788+ circuitry with two amplifiers, the latest 16-core XMOS XU316 receiver, the latest Qualcomm QCC5124 Bluetooth chipset, and other enhancements. The FiiO Q7 delivers exceptional performance thanks to its flagship-class audio circuitry.

Not just portable, but also transportable

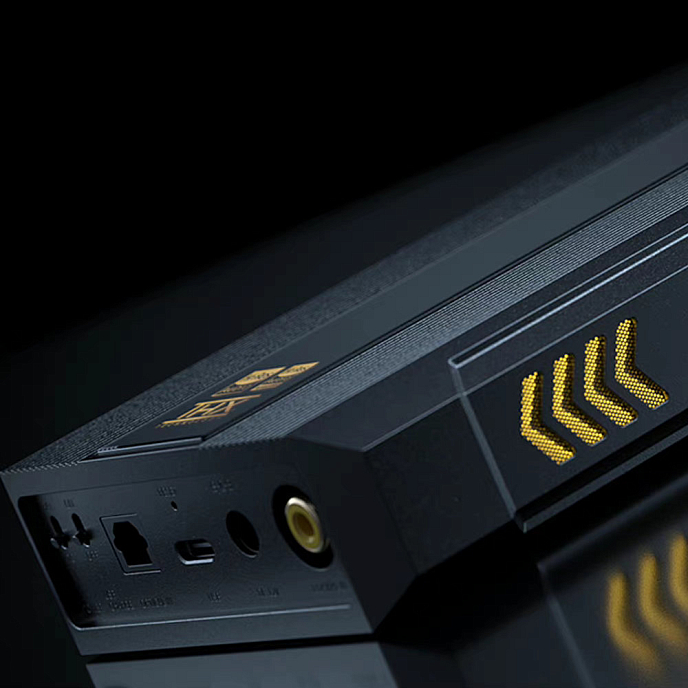

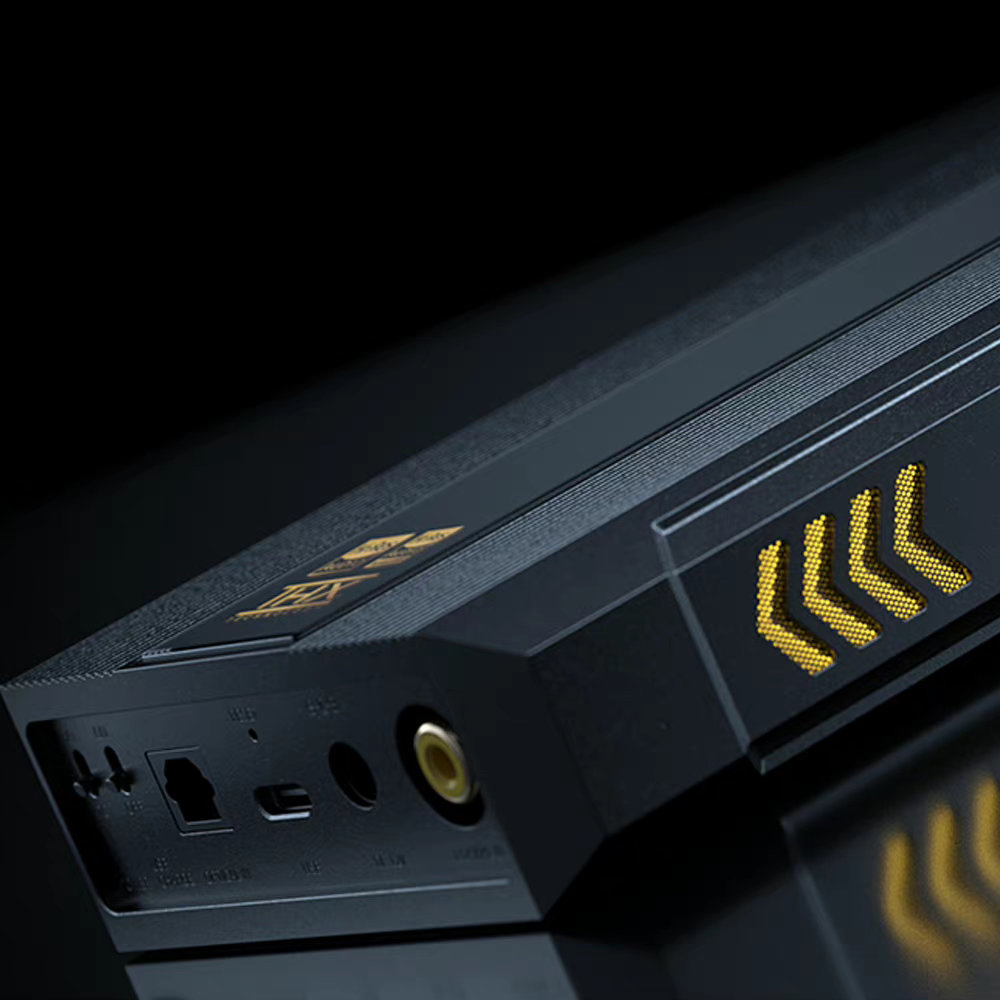

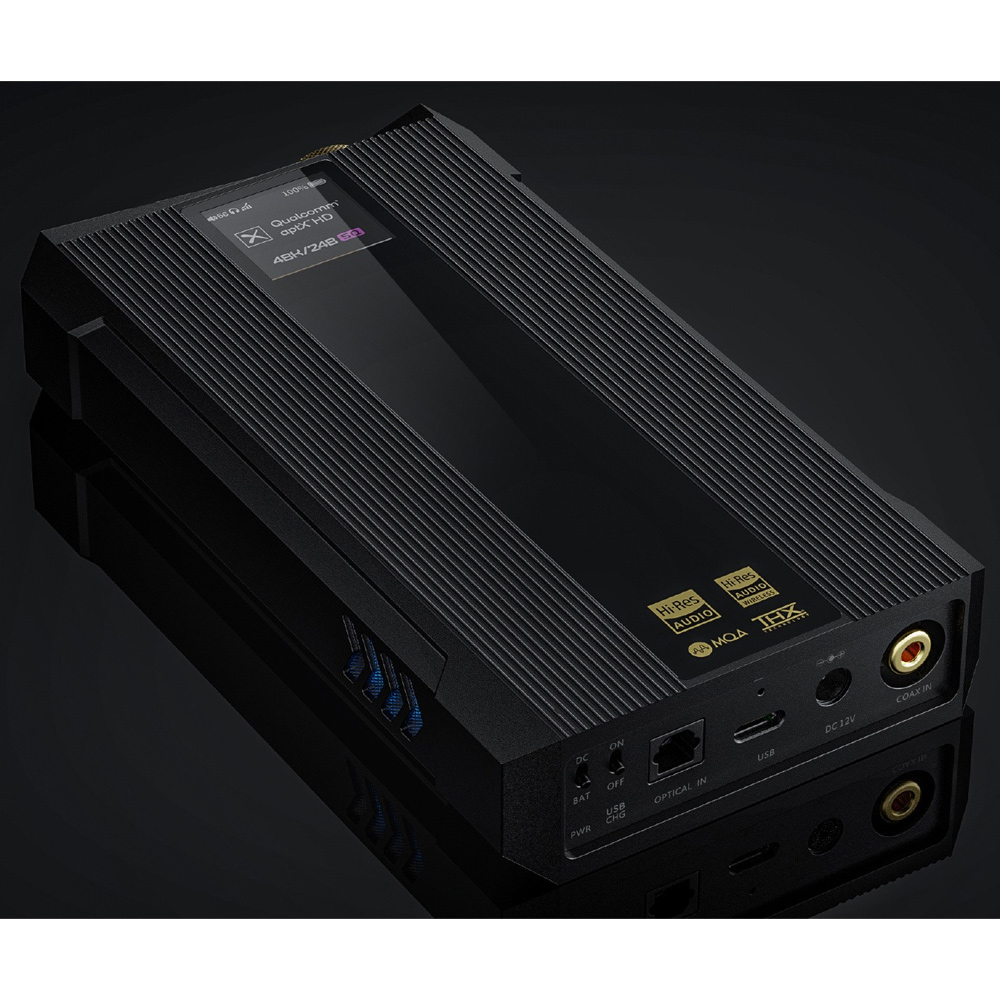

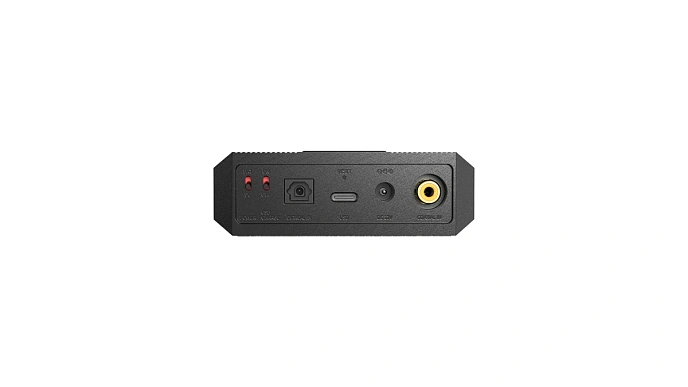

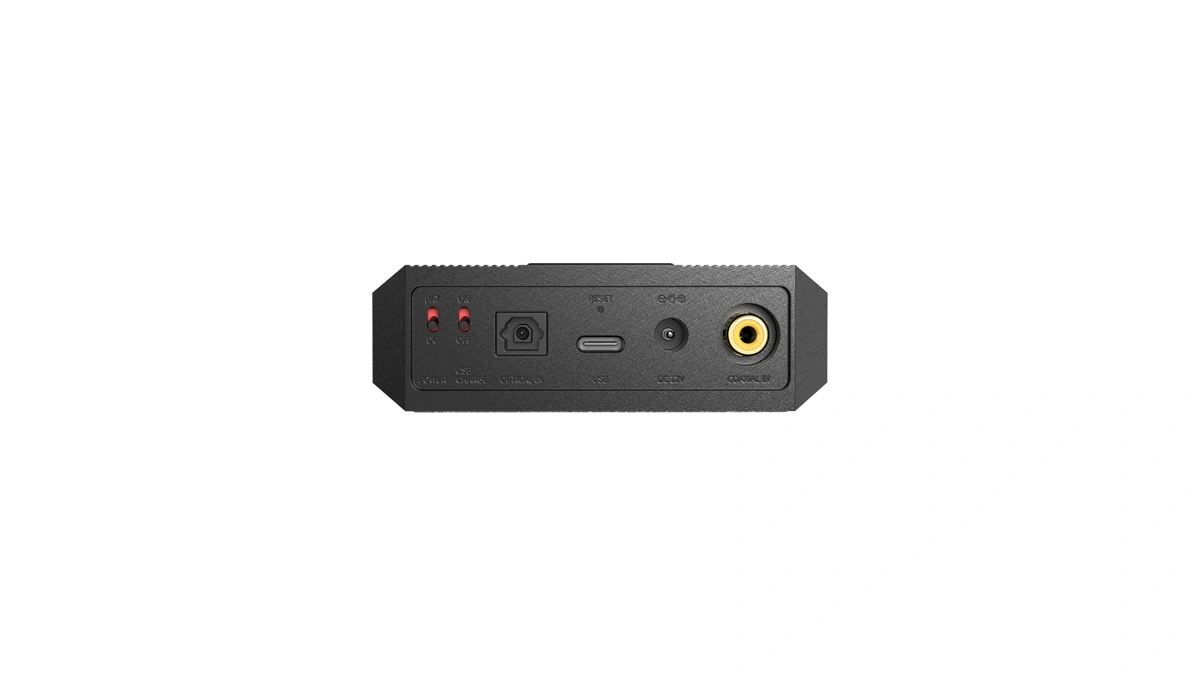

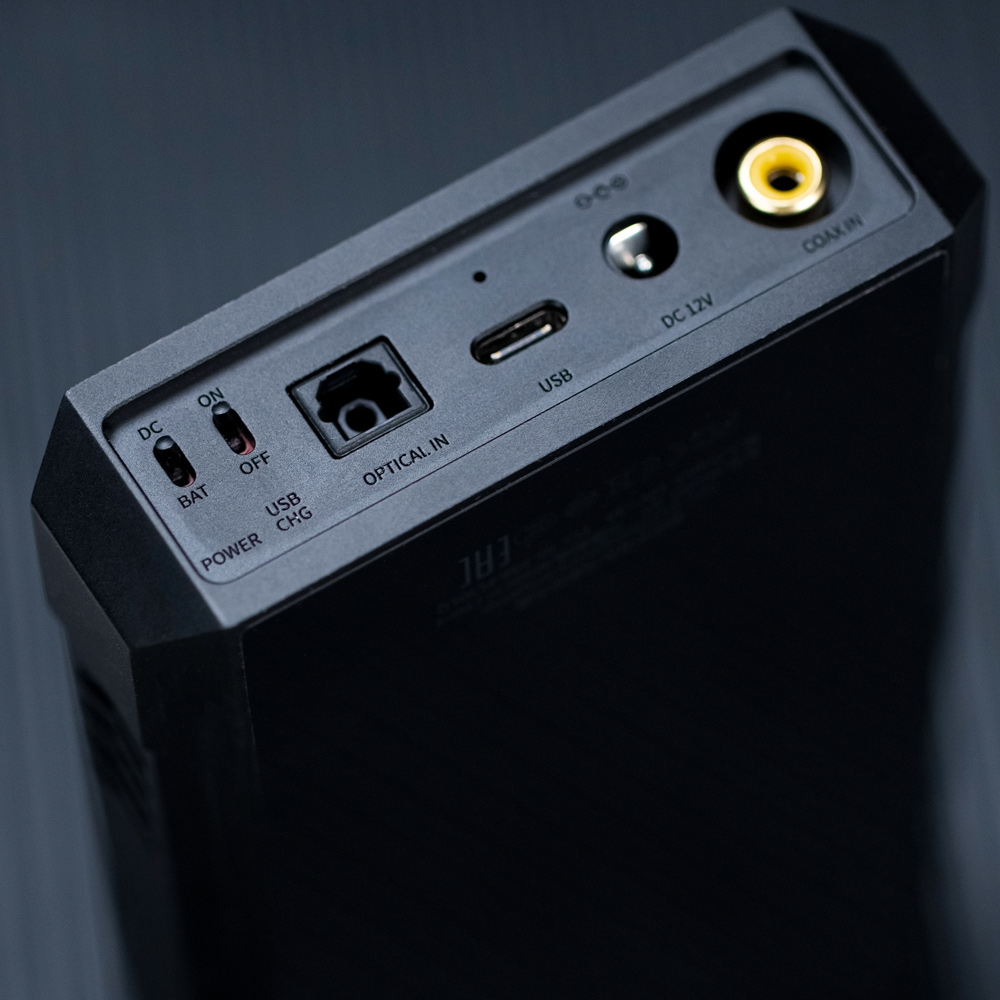

The FiiO Q7 pushes the boundaries of portable devices. It is a high-performance device that has a dual power design. Owners can use it with the built-in battery or connect it to a DC power source to take its performance to a whole new level. It has various input options, including USB Type-C, coaxial, optical, and Bluetooth, allowing it to connect to a wide range of signal sources.

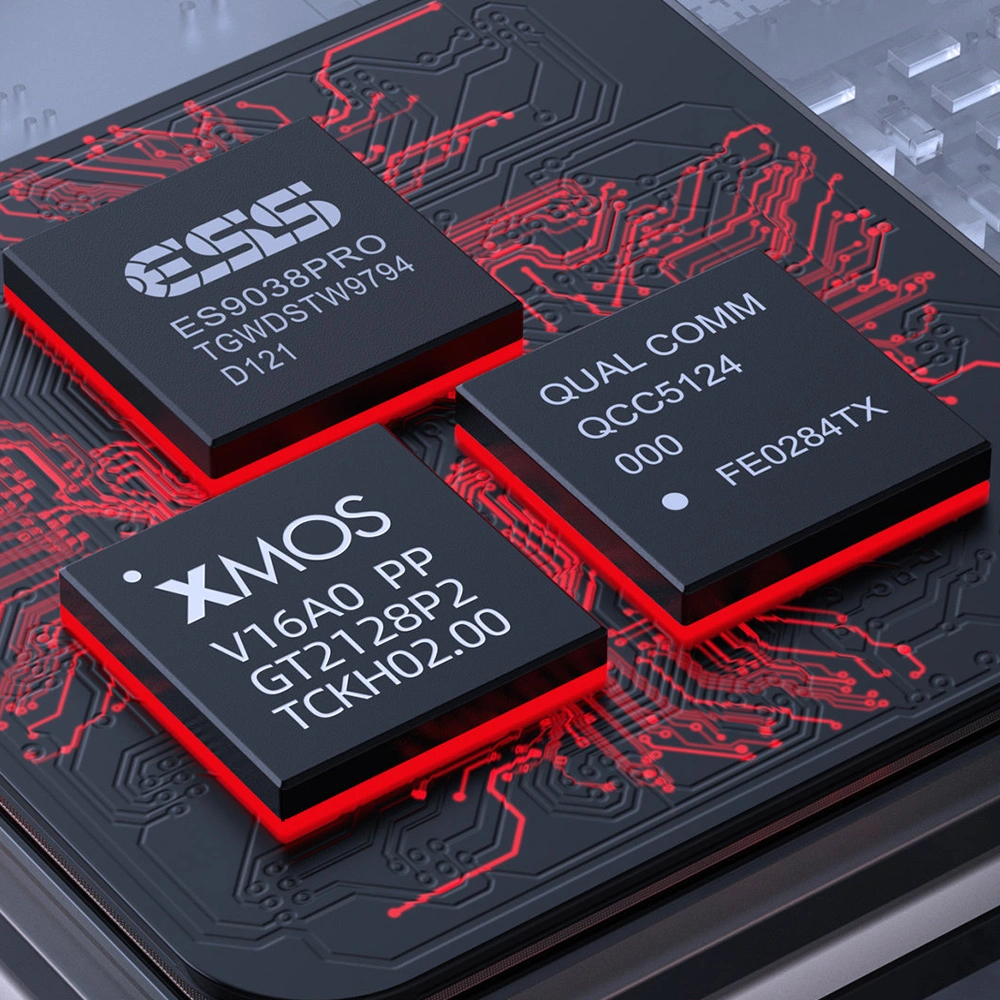

Flagship Sabre DAC ES9038PRO chipset

The FiiO Q7 is built around the flagship 32-bit Sabre ES9038PRO chipset. It provides extremely clean audio signal decoding, offering best-in-class ultra-low distortion and noiseless sound decoding.

Latest generation XMOS USB processor

The FiiO Q7 utilizes the latest 16-core XMOS XU316 USB receiver chipset. This allows the Q7 to decode high-resolution 32-bit PCM and DSD audio.

Incredibly powerful dual-circuit THX amplifier output

The FiiO Q7 has the power of desktop amplifiers, capable of driving even the most demanding headphones with ease. It is based on two THX AA788+ circuits, providing an output power of up to 3000mW. The FiiO Q7 has five levels of amplification. It is worth noting that after activating the DC power supply in "super big ear" mode, the output power is increased by 100% to 3000mW.

Wireless capabilities

The FiiO Q7 supports high-resolution Bluetooth connection with the latest QCC5124 chipset from Qualcomm. It supports high-resolution wireless codecs, including LDAC, aptX HD, aptX Adaptive, and more.

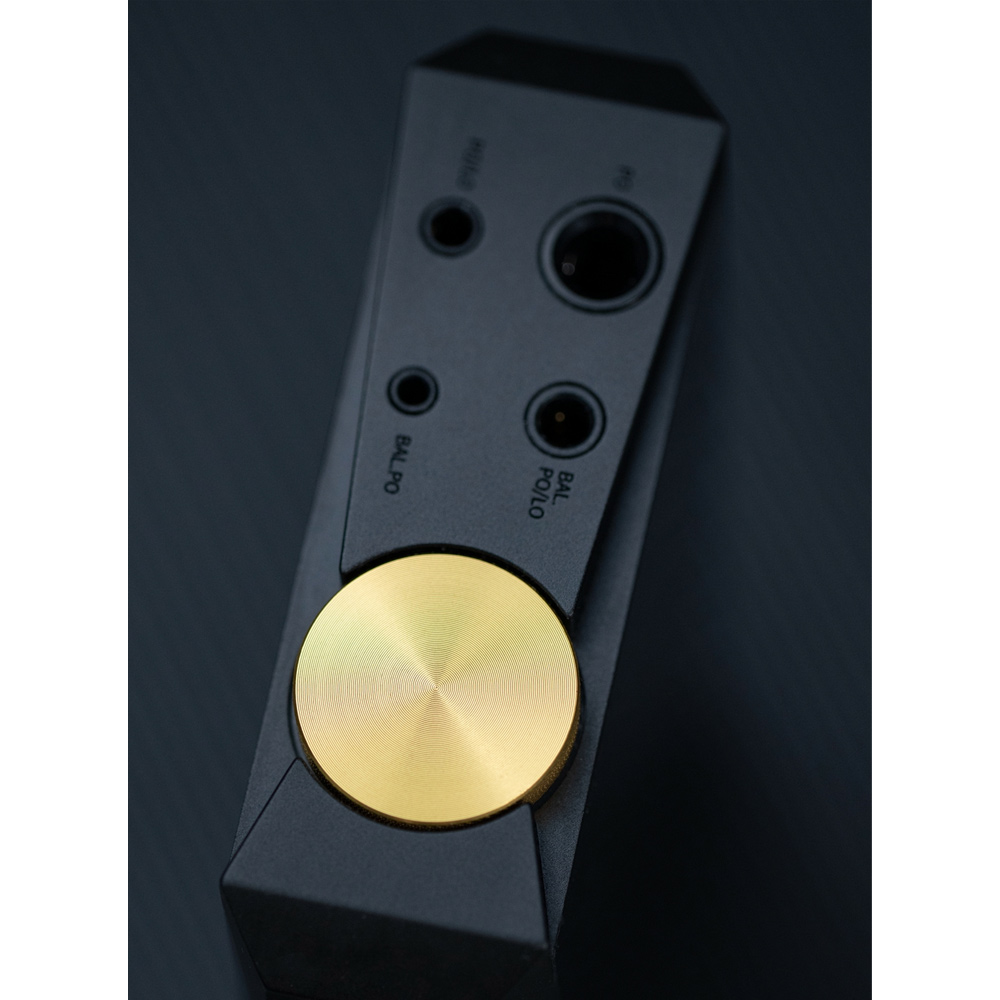

The FiiO Q7 is equipped with multiple headphone output jacks, including 3.5mm, 6.35mm, 2.5mm balanced, and 4.4mm balanced. With its five levels of amplification, you can connect highly sensitive IEMs to power-hungry headphones.

In portable mode, it is powered by a 9200mAh battery, providing up to 1500mW of high output power and ensuring consistent high-quality sound when running on battery power.

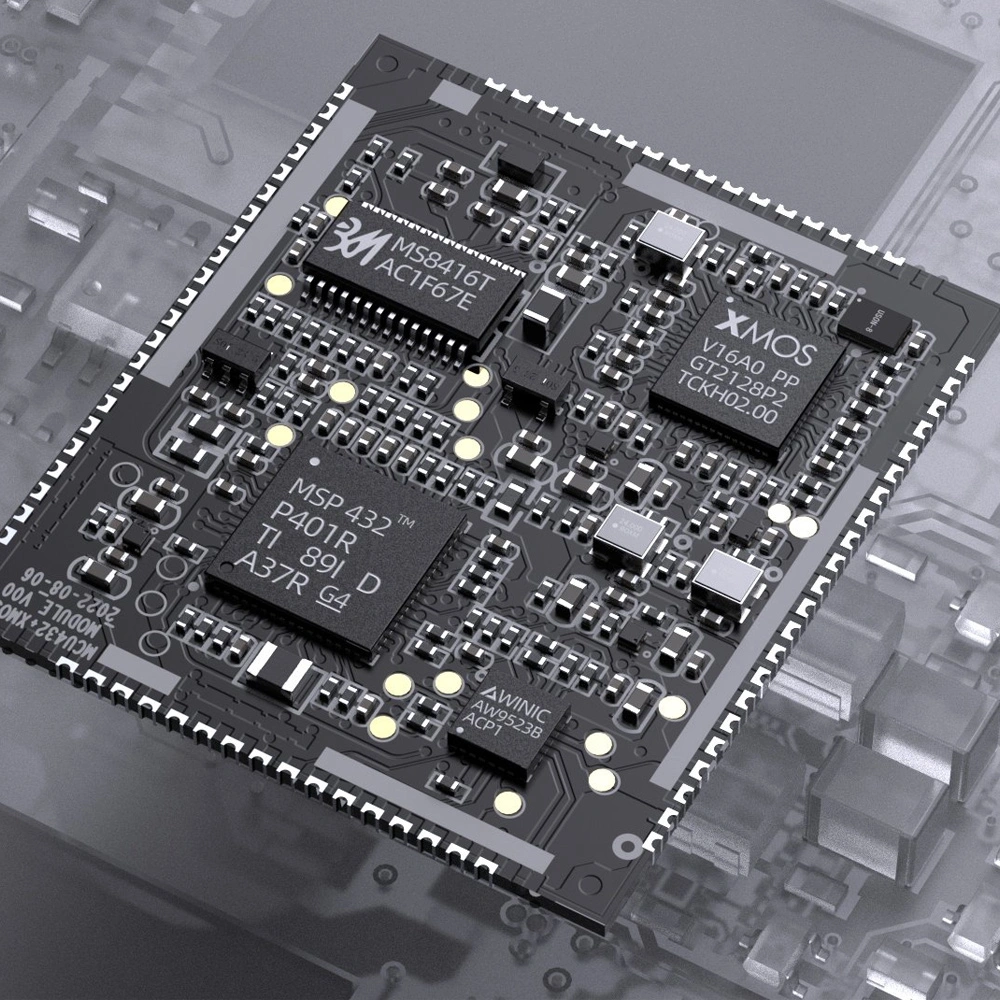

The FiiO Q7 uses an updated version of Feiao's proprietary OS: the Digital Audio Center, which includes clock frequency management, USB decoding, and SPDIF decoding. The device is powered by a Cortex M4 processor for efficient digital audio processing. At the same time, the digital and analog parts are designed with separate boards, each equipped with a display that takes the listening experience to a new level.

Features:

  • ESS ES9038PRO DAC
  • Supports PCM 32-bit/384kHz, MQA, and DSD256 formats
  • 2x THX AAA 788+ headphone amplifier circuitry
  • Latest generation XMOS XU316 USB processor
  • Qualcomm QCC5124 Bluetooth chipset
  • Supports LDAC, aptX HD, AptX Adaptive codecs
  • 3.5mm, 4.4mm, and 6.3mm outputs
  • Reliable dual independent power supply construction
  • Can be used in both portable and desktop modes
  • Five-step gain modes
  • Controlled via FiiO App over Bluetooth
  • 3000mW output power

Package includes:

  • Portable DAC/amplifier
  • Power adapter
  • USB-C to USB-C cable
  • Angled USB-C to USB-C cable
  • USB-C to Lightning cable
  • USB-C to USB-A adapter
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Headphone output
2.5mm jack, 3.5mm jack, 4.4mm jack, 6.35mm jack
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
3
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
ES9038PRO
DAC bit depth, bits
32
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
384
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Built-in battery
yes
Bluetooth version

Bluetooth is a short-range wireless technology that allows you to connect headphones or portable speakers, a stereo system or a soundbar to your smartphone or laptop. For a certain version to work, both devices must support it. The versions differ in data transfer speed, power consumption, securing data transfer, anti-interference ability and range of connection.

Glossary of terms
5.0
Color
Form factor
portable
Input connectors
Optical, Coaxial, USB-C
Internal DAC
yes
Material
aluminum
Playback via USB
yes

Playing music files via USB

Словарь терминов
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
Power, W
3
Depth, mm
88
Height, mm
158
Width, mm
28
Weight, g
620
Service life, months
24
Warranty, months
12
