Headphone amplifier with DAC
FiiO Q11

Product code: 133146
no reviews
AED 399
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

Q11 - a portable model developed by the sub-brand of a Chinese manufacturer - Jade Audio. Q11 replaces the successful models Q1 and Q1 Mk2. The improvements primarily concern the amplifier - its power has been significantly increased. The DAC is built on the Cirrus Logic CS43198 chipset. Q11 is equipped with two headphone outputs, 3.5mm and 4.4mm, allowing users to connect Q11 to their preferred headphones.

Features:

  • DAC: CS43198
  • USB Connector: Type-C (USB 2.0)
  • Battery Life: up to 13 hours
  • Output Power: 165mW at 32Ω / 3.5mm, 650mW at 32Ω / 4.4mm
  • Supports PCM 32 bit / 384 kHz and DSD256
  • LED indication of incoming bit rate
  • Supports control via FiiO Control App
  • Aluminum body

Superior sound with excellent components in audio circuits

FiiO equipped the Q11 model with the flagship CS43198 DAC chipset from Cirrus Logic. This high-performance 32-bit DAC chip provides superior resolution with ultra-low distortion levels when converting high-resolution audio signals. To ensure best-in-class performance, the DAC chipset is supported by two independent OP AMP amplifiers, high-precision quartz oscillators, low-noise power supply, and more.

Support for high-resolution PCM and DSD audio signals

FiiO Q11 supports high-resolution audio signal conversion, including PCM signals up to 32 bit / 384 kHz and DSD256. It performs high-precision conversion, providing high resolution across a wide frequency range. Simply connect your favorite IEMs/headphones and enjoy true high-resolution sound on your smartphone.

Powerful amplifier section with two headphone outputs

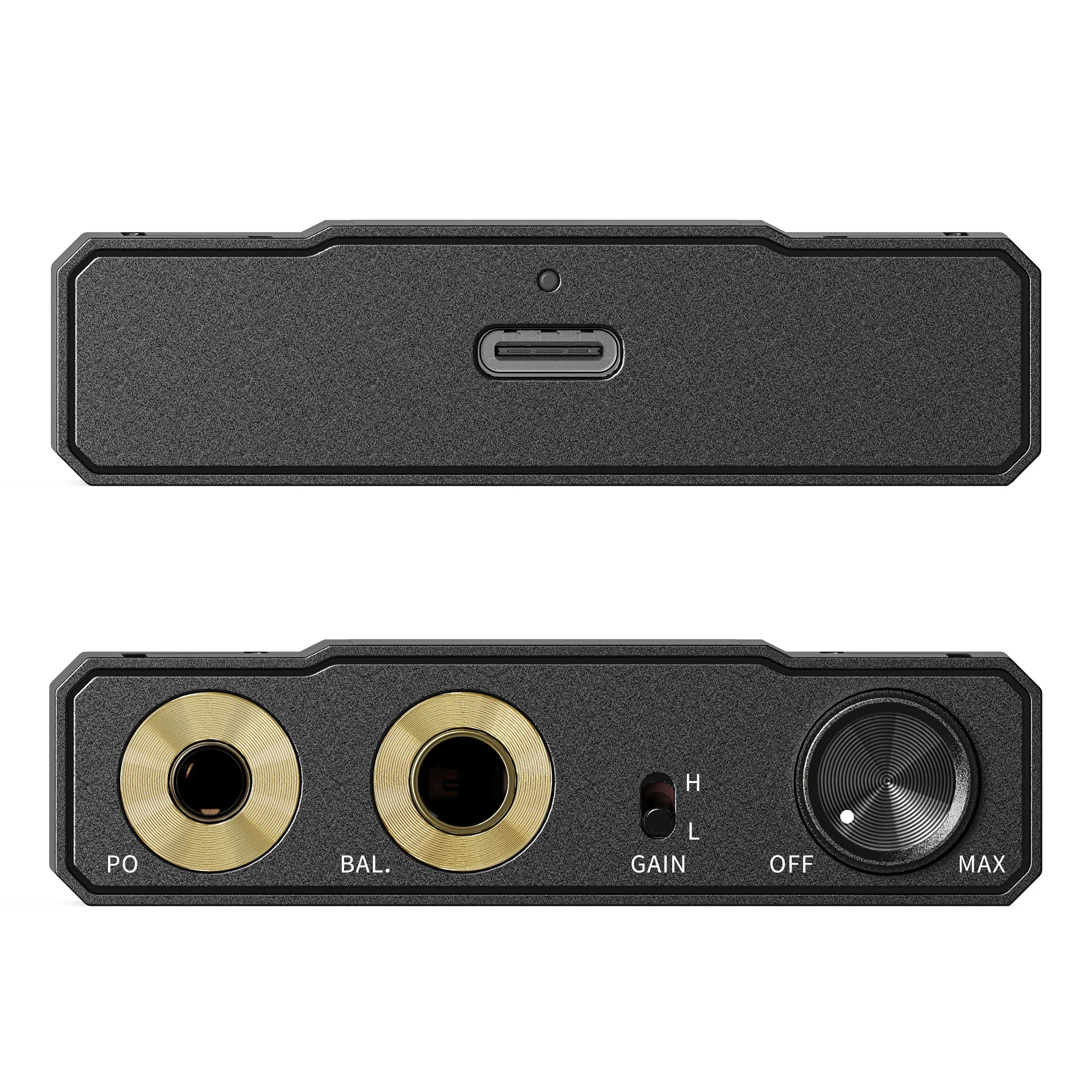

FiiO Q11 features an amplifier section with two independent OP AMPs. It has increased output power up to 650mW in balanced connection. FiiO Q11 has two headphone outputs, a 3.5mm single-ended output and a 4.4mm balanced port. The device also has two gain levels, high and low.

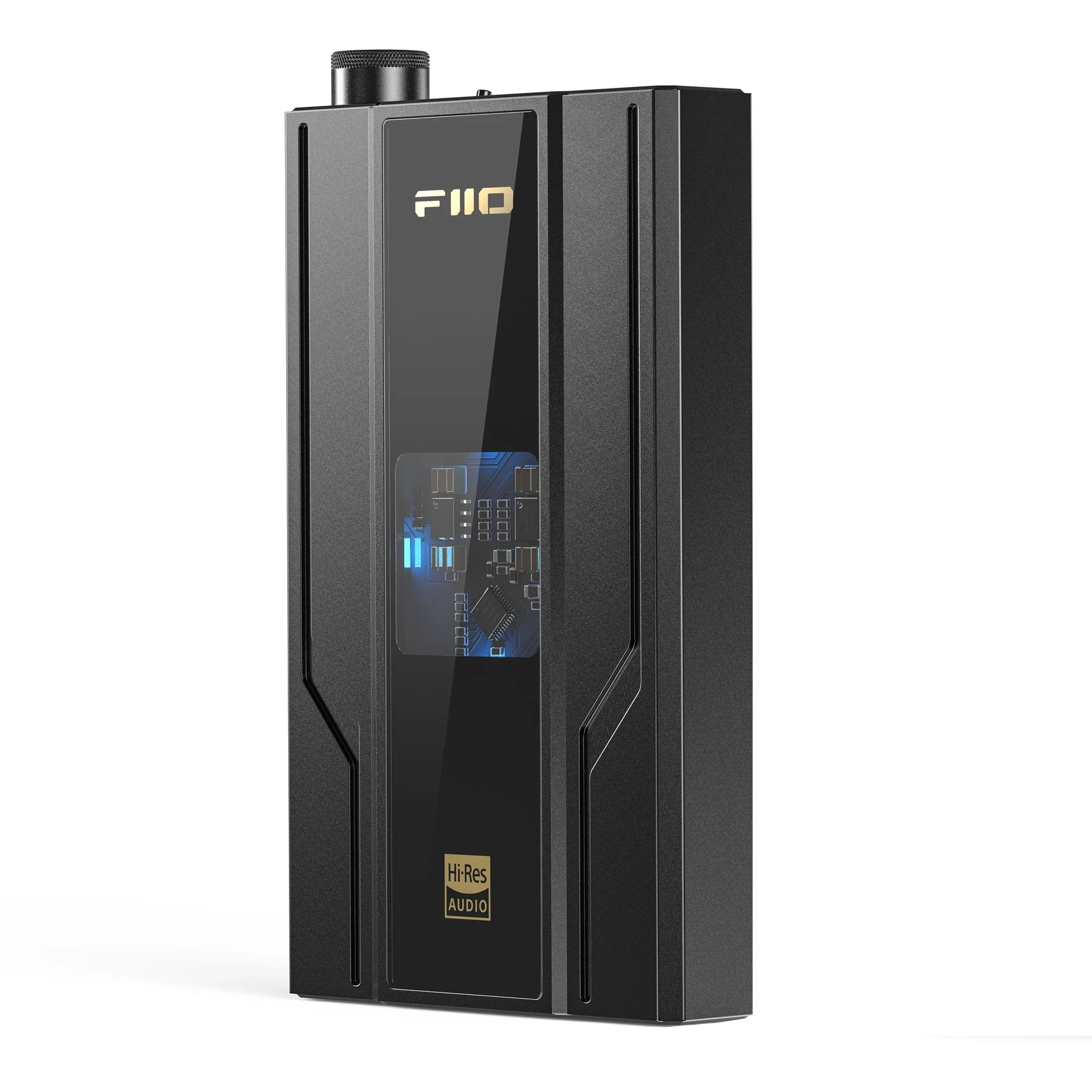

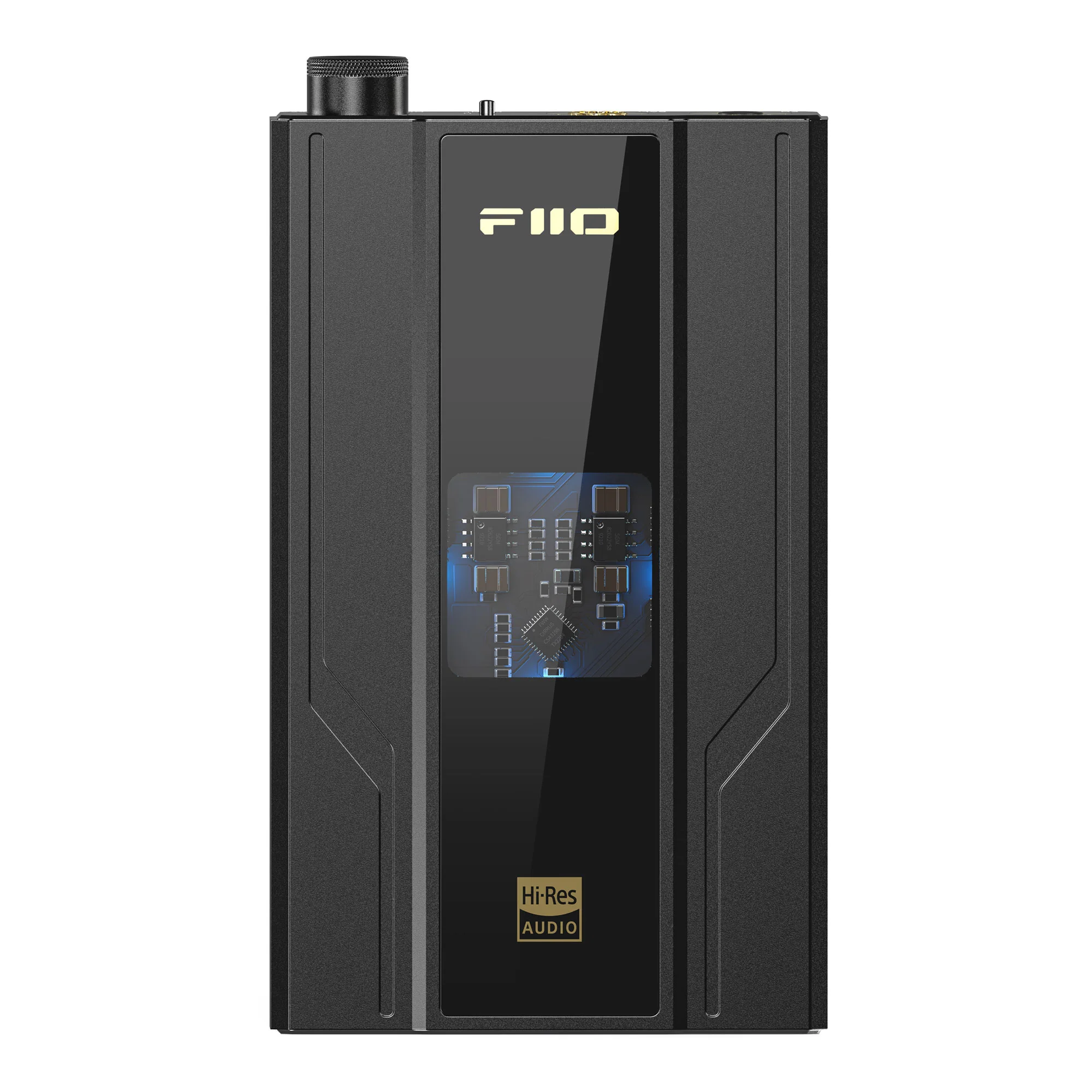

Exclusive housing with multi-colored Ambient Light design

FiiO Q11 stands out with its exquisite all-metal housing design. The device has a mirror finish and looks simply stunning. In the center of the device, there is a transparent glass window with LEDs that light up in different colors depending on the active bit rate. Blue glow indicates a sampling frequency of 48 kHz or lower, yellow indicates a sampling frequency higher than 48 kHz, and green is for DSD audio signals. The illumination can be turned off using the FiiO Control app.

"Two-in-One" volume control

FiiO equipped Q11 with a "two-in-one" volume control. It has a smooth operation and good grip, allowing precise adjustment of the volume to the desired level. It also serves as a power switch for turning on/off the Q11.

Compatibility with various devices

FiiO Q11 is widely compatible with various devices, you can connect it to smartphones, tablets, PCs, and even laptops. Simply use the USB output and you can use FiiO Q11 for all your high-resolution audio needs.

Package includes:

  • Portable DAC
  • USB-C to USB-A cable
  • USB-C to USB-C OTG adapter
  • USB-C to USB-Lightning OTG adapter
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Headphone output
3.5mm jack, 4.4mm jack
Output connectors
3.5mm jack, 4.4mm jack
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
0.65
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
CS43198
DAC bit depth, bits
32
Internal DAC
yes
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
384
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
125
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Built-in battery
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
50
Circuit design
operational
Color
Form factor
portable
Input connectors
USB-C
Material
aluminum
Playback via USB
yes

Playing music files via USB

Словарь терминов
Depth, mm
16
Height, mm
105
Width, mm
60
Weight, g
150
Service life, months
24
Warranty, months
12
