Headphone amplifier with DAC
FiiO KA5

Product code: 133144
no reviews
AED 499
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

The FiiO KA5 is a portable USB DAC with a built-in headphone amplifier, equipped with top-level components for high-resolution sound reproduction. The KA5 features two CS43198 DAC chips, which provide decoding of high-resolution audio signals, including PCM up to 32-bit/768kHz and DSD256. It also comes with two independent amplifier chips. Key features of the KA5 include SPDIF output, dual headphone outputs (3.5mm and 4.4mm), OLED display, fully aluminum chassis, and multifunctional physical buttons.

Features:

  • OLED display
  • Multifunctional buttons
  • 2 x CS43198 DAC
  • Supports PCM up to 32-bit/768kHz and DSD256
  • SPDIF digital output
  • Output power up to 256mW
  • Multilayer PCB
  • Supports the proprietary Control App
  • Aluminum housing

2 Flagship Cirrus Logic DACs

The FiiO KA5 is equipped with two high-performance CS43198 chips from Cirrus Logics. This 32-bit DAC supports the decoding of high-resolution audio signals and achieves best-in-class SNR, DNR, and ultra-low distortion performance. The output signal is transparent, clean, and has excellent tonality, bringing your favorite music to life. In addition, the built-in processor of the KA5 effortlessly performs complex operations, making the use of the KA5 even more convenient.

Hi-Res Audio

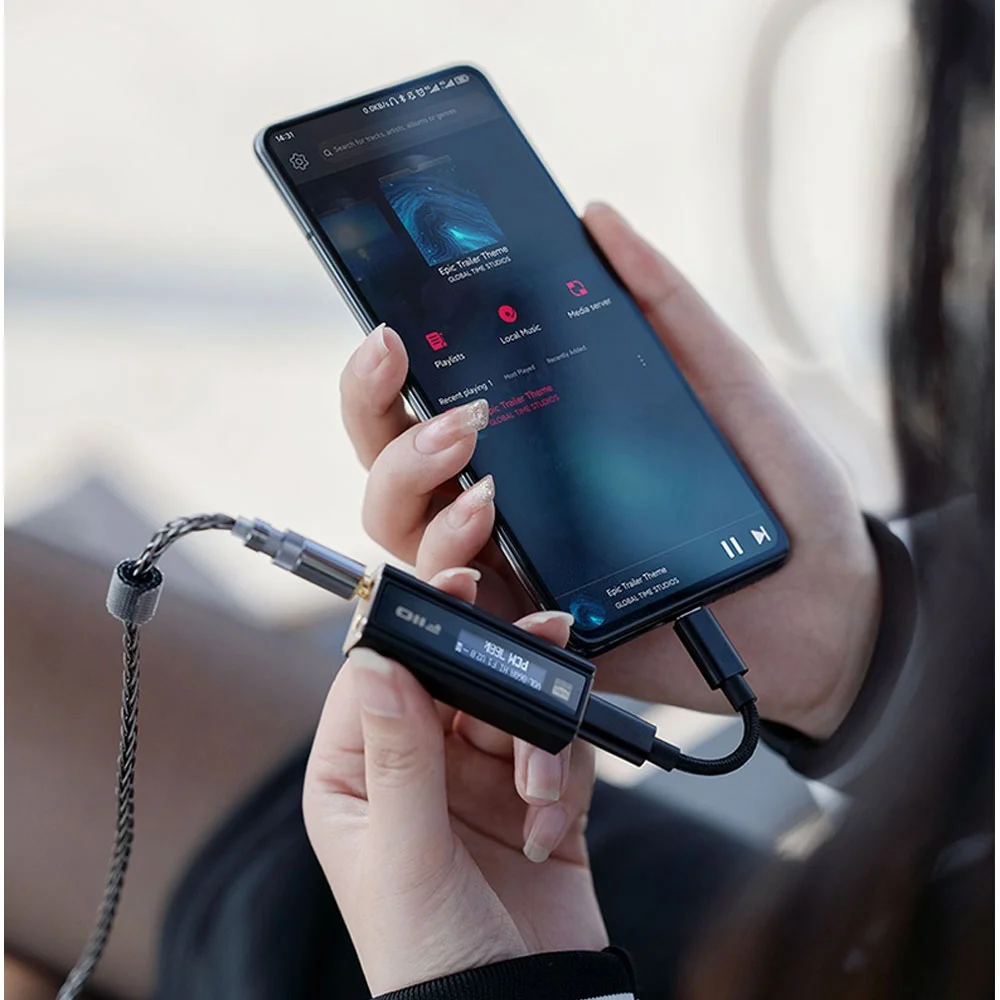

The KA5 supports the decoding of the latest audio formats, turning your smartphone into a Hi-Res player with support for PCM signals up to 32-bit/768kHz and DSD256. This allows you to truly immerse yourself in the essence of your music and listen to it regardless of the device you have connected to.

Dual Outputs - Dual Amplifiers

For powerful output and serious amplification, the KA5 is equipped with two independent 8261 AMP chips. The KA5 provides up to 265mW of clean power per channel through the balanced port with a 32-ohm load. Even through the single-ended 3.5mm output, it delivers power up to 122mW with a 32-ohm load. These figures are comfortable enough to easily drive most headphones.

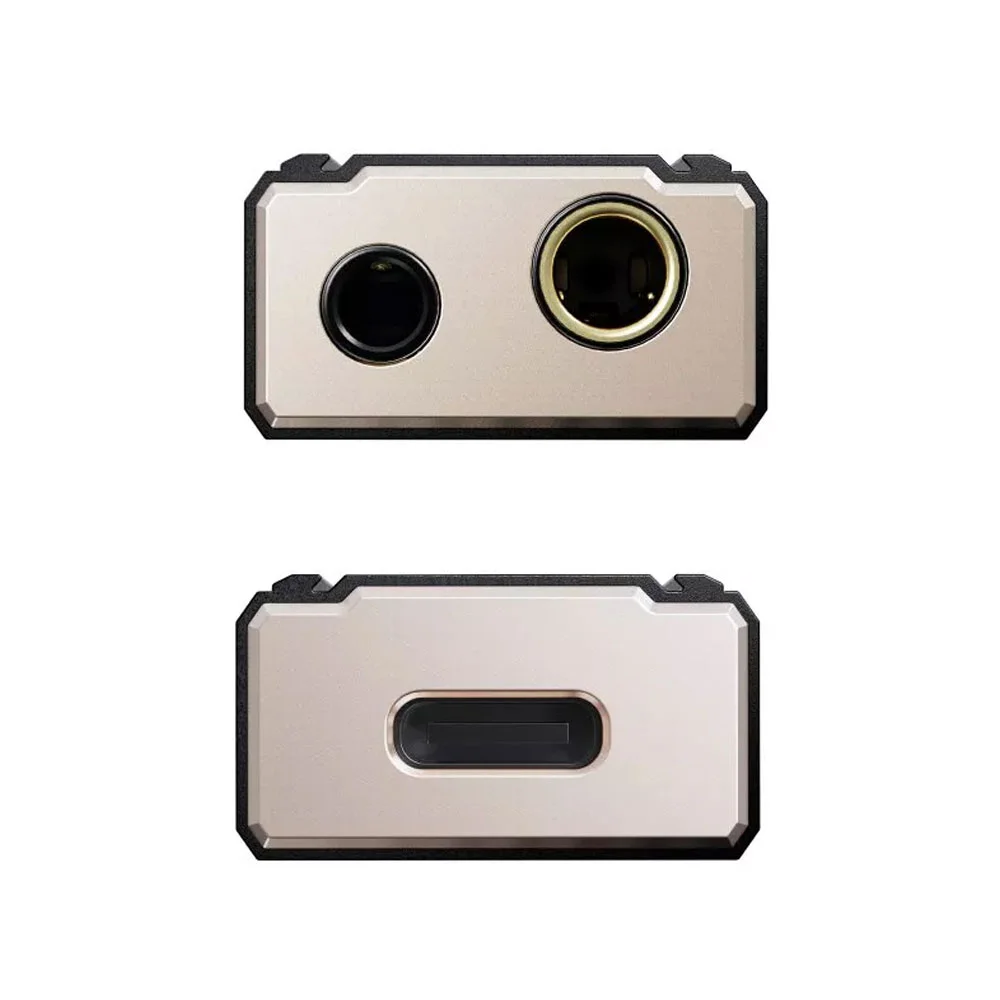

3.5mm, 4.4mm Headphone Outputs, and SPDIF Digital Output

The FiiO KA5 has two headphone outputs, including a single-ended 3.5mm and a balanced 4.4mm. An interesting feature is that the 3.5mm jack is combined with the SPDIF digital output.

Multifunctional Physical Buttons

FiiO has equipped the KA5 with a multifunctional button, as well as physical volume control buttons. The volume buttons also have multiple A and B functions. In A mode, a short press changes the volume, and a long press changes the track. In B mode, a short press changes the track, and a long press changes the volume. This setting can be changed using the FiiO Control App.

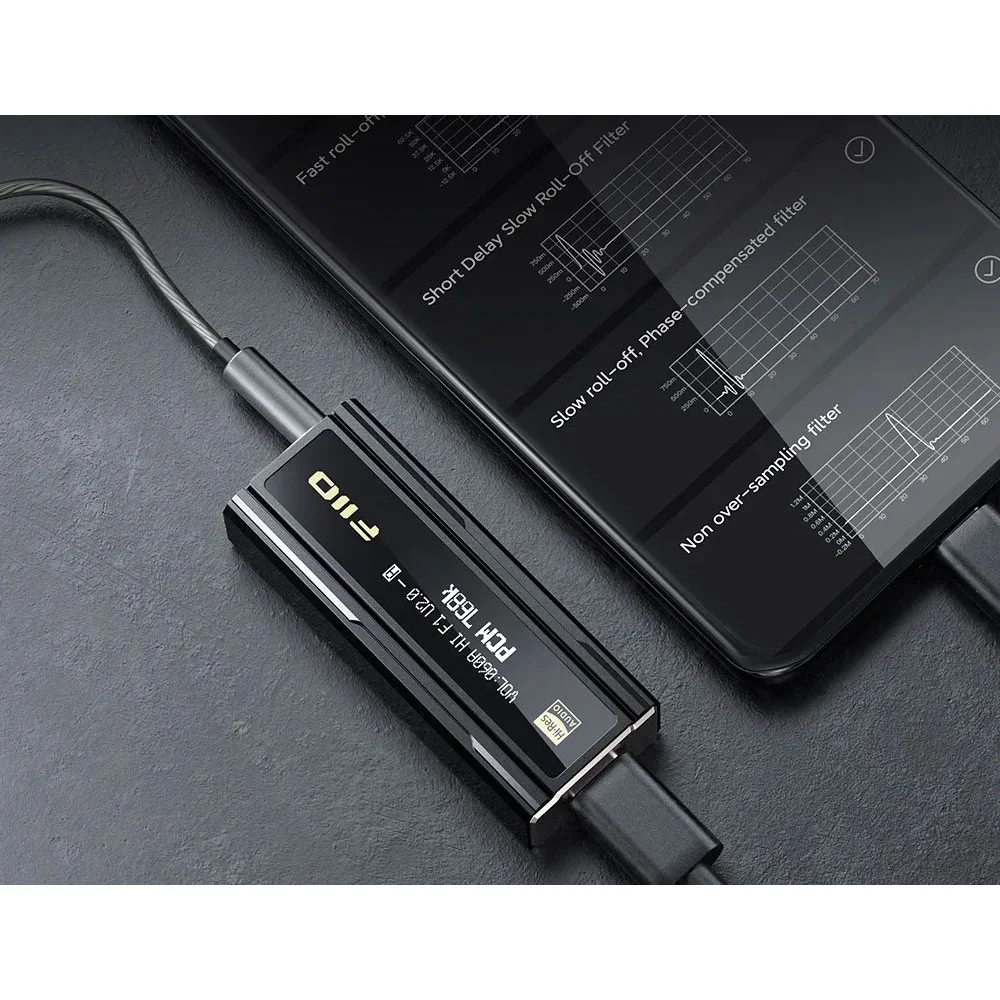

Supports FiiO Control App

The FiiO KA5 is fully compatible with the FiiO Control App. It allows the user to adjust various settings of the device, including digital filters, volume control settings, gain settings, OLED display settings, etc. Discover a whole new realm of KA5 settings through the app.

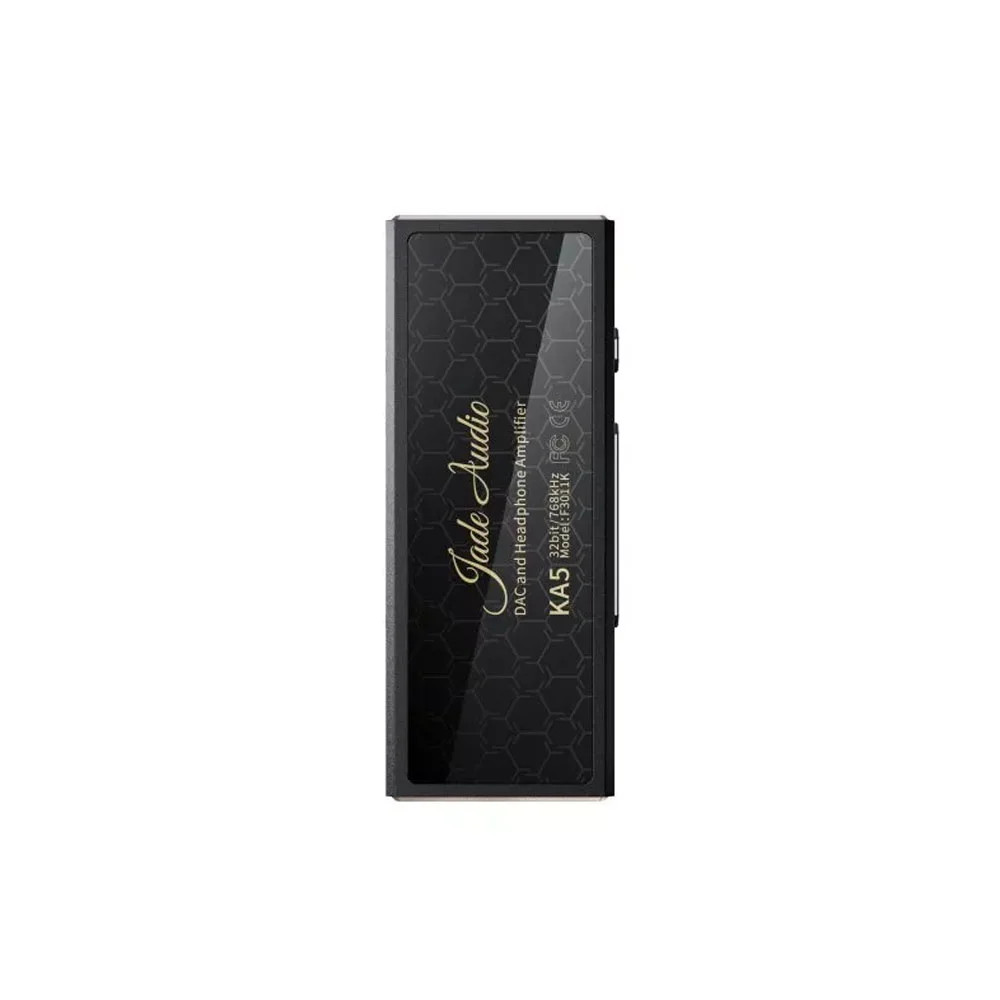

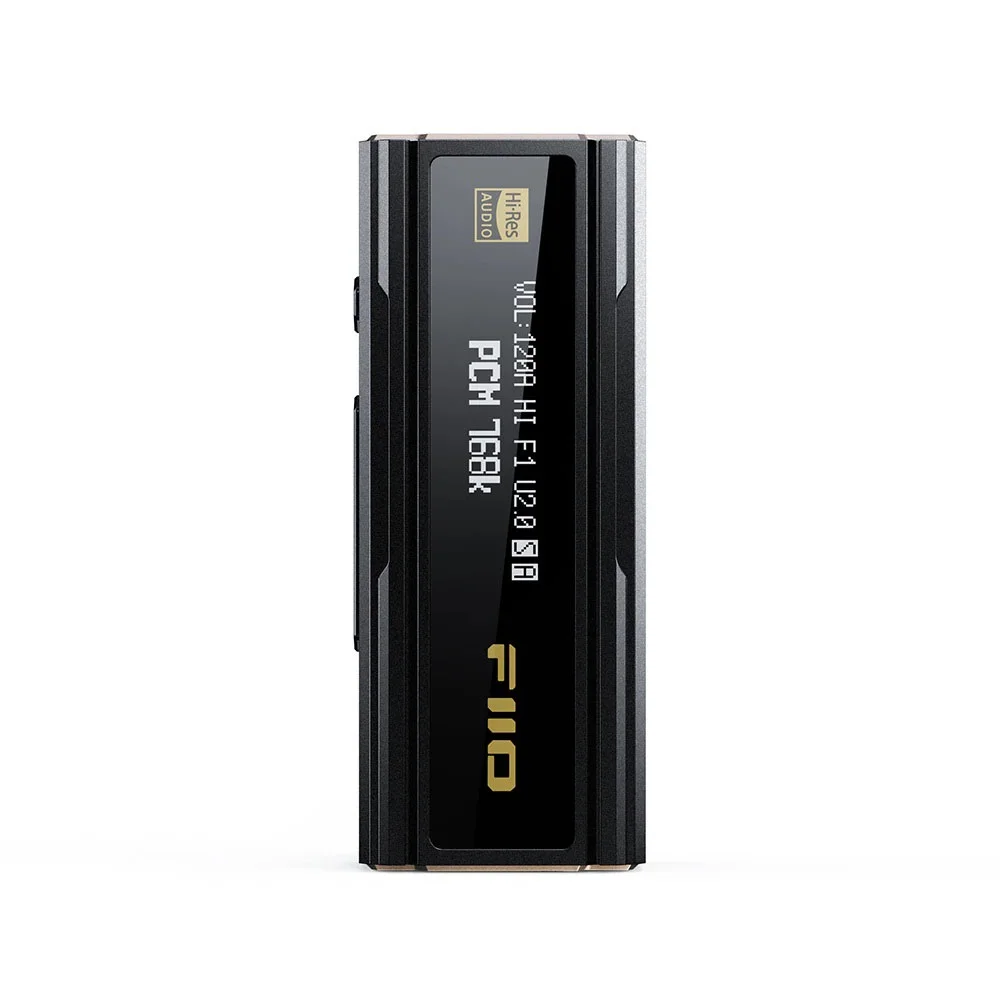

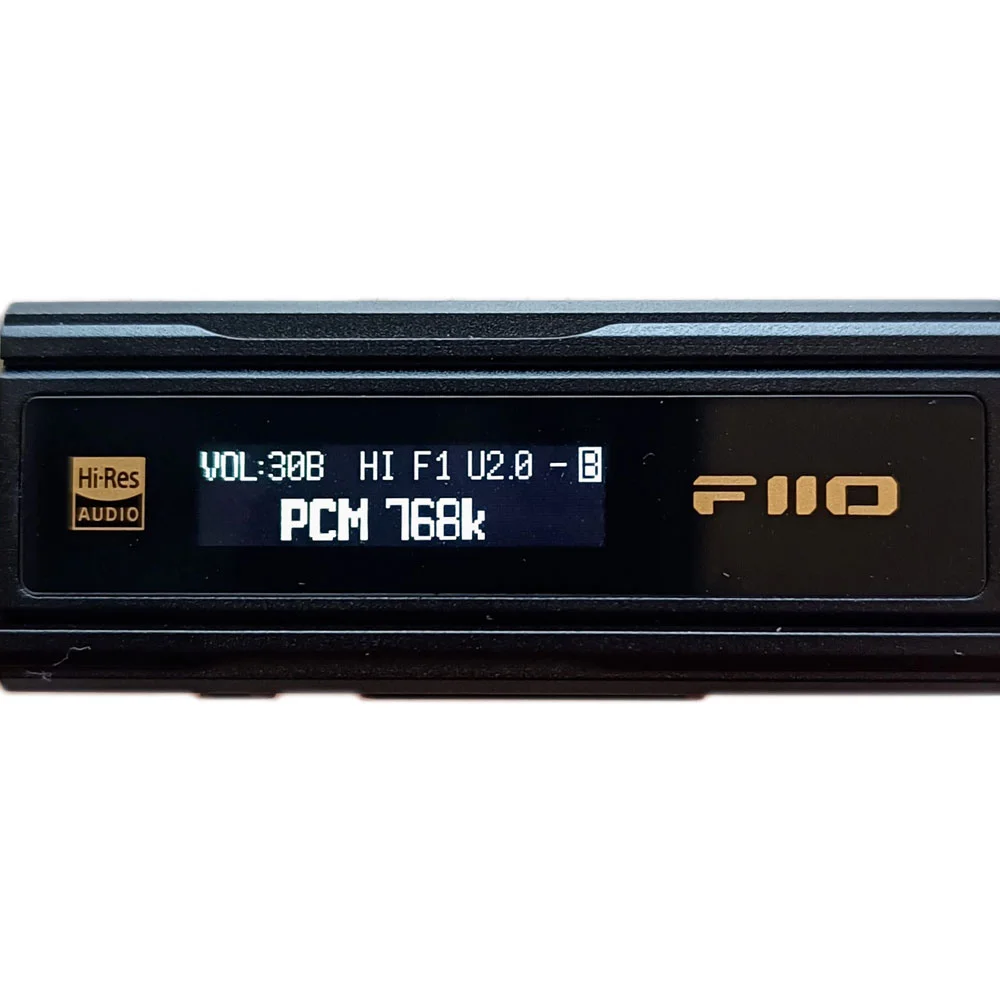

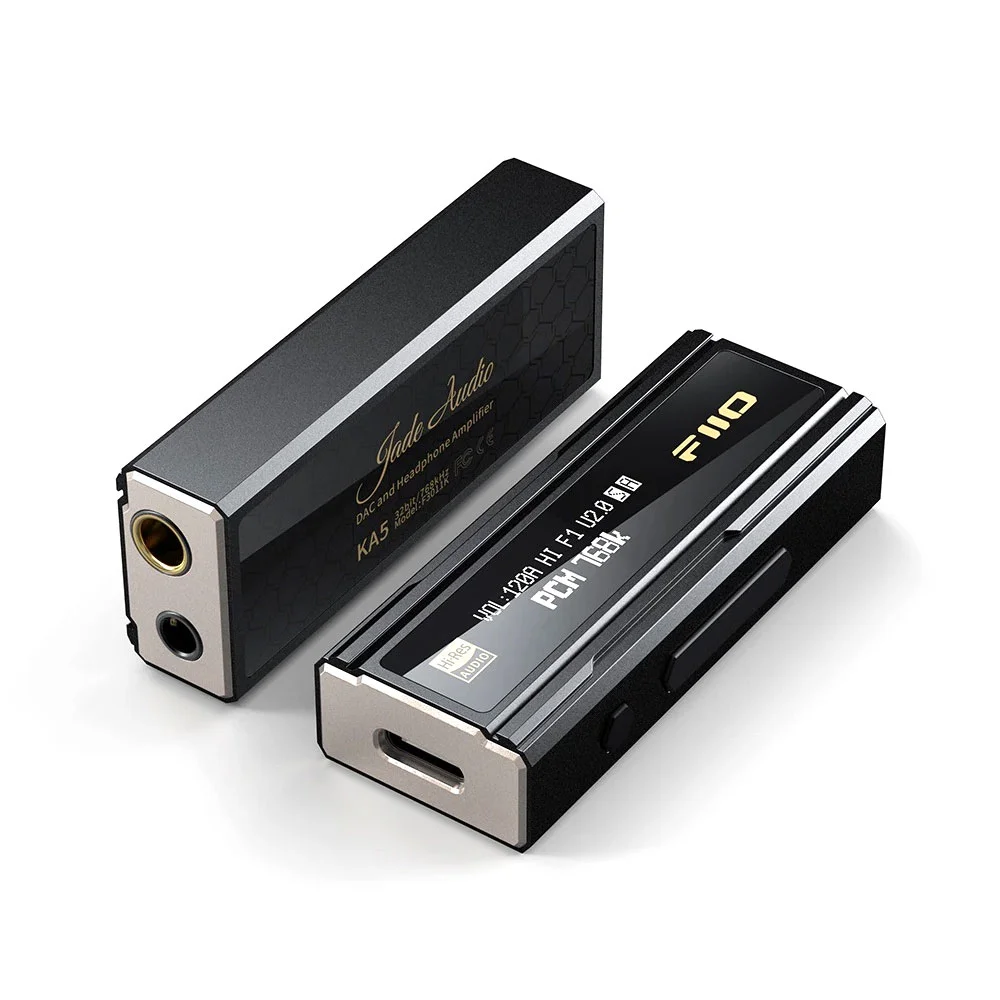

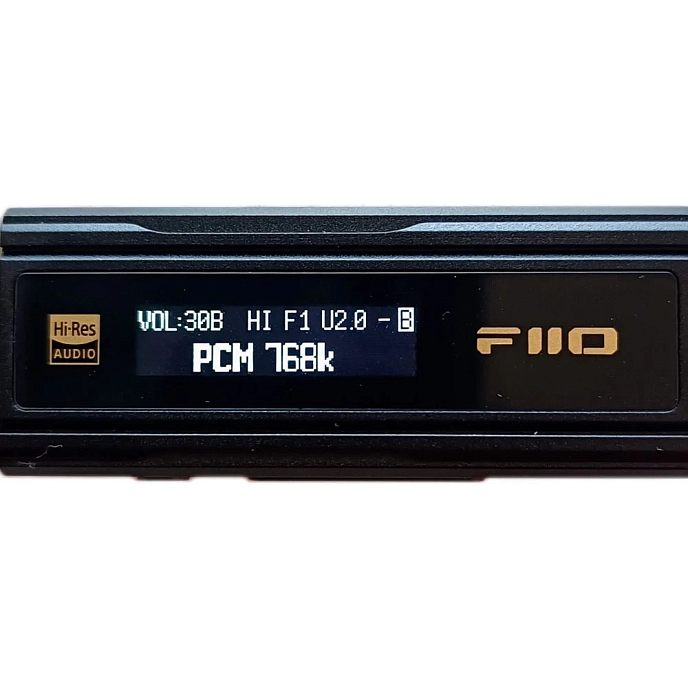

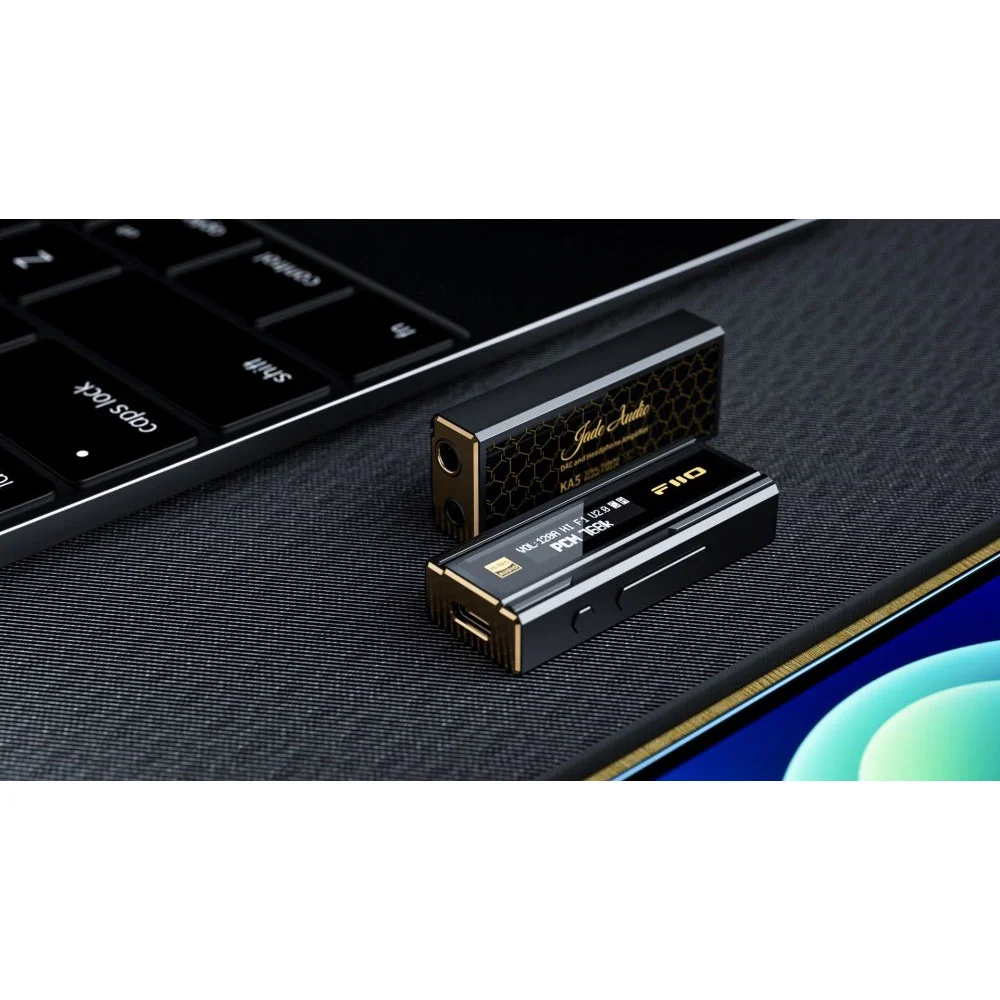

High-Quality Build and OLED Display

The KA5 has a compact form factor and is housed in a premium-class aluminum alloy chassis. The device has front and rear tempered glass panels that give it a first-class and exquisite finish. The aggressive lines of the KA5 give it a bold look, while the carefully crafted texture makes it pleasant to handle. The built-in OLED display shows various settings at any time during operation.

High-Quality Components

To improve the sound quality, the KA5 uses a 6-layer PCB with gold-plated traces and high-performance operational amplifiers with ultra-low noise levels, ensuring powerful and reliable sound.

Package Contents:

  • Portable DAC
  • USB-C to USB-C cable
  • USB-C to Lightning cable
  • USB-C to USB-A adapter
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Headphone output
3.5mm jack, 4.4mm jack
Output connectors
3.5mm jack, 4.4mm jack
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
0.25
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
2 x CS43198
DAC bit depth, bits
32
Internal DAC
yes
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
768
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
126
Powered by USB
yes
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
50
Circuit design
operational
Color
Form factor
portable
Input connectors
USB-C
Material
aluminum
Playback via USB
yes

Playing music files via USB

Словарь терминов
Depth, mm
22
Height, mm
56
Width, mm
12
Weight, g
19
Service life, months
24
Warranty, months
12
