Headphone amplifier with DAC
FiiO K7

Product code: 129820
no reviews
AED 929
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

FiiO K7 - Headphone Amplifier with Built-In Digital-to-Analog Converter

The K7 features a six-level sound circuit with truly balanced analog and digital sections, which helps reduce crosstalk and accurately reproduce music.

High-Quality Balanced Amplification

The K7 is equipped with the same THX AAA 788+ amplifiers as the K9 PRO, capable of delivering 560mW of power to a 300-ohm load at 1% distortion, as well as 2000mW to a 32-ohm load at 1% distortion. This ensures optimal performance for headphones with a wide range of impedance and, most importantly, allows you to experience the musicality that will touch your heart.

Rich and Delicate Sound

The left and right channels are equipped with the efficient high-performance AK4493SEQ DAC. With the accurate reproduction of the timbre and its rich and delicate sound, you will rediscover your music.

High-Precision Decoding

The XMOS XUF208 decoder chip uses dual clock frequency control to easily handle various music formats, allowing you to easily listen to many audio formats.

RGB Indication

The RGB indicators are capable of displaying individual and mixed colors with a unique light flow effect when power is turned on/off or when switching input signals. The dazzling light effects will add a much-needed touch of sophistication to your desk.

Advanced Device Protection System

Protection systems against overheating, overload, and short circuit ensure that the K7 always performs at its best, so you can enjoy excellent listening and not worry about the device during power issues.

High-Quality Power Supply

The K7 has a power supply design consisting of multiple independent cascades, with the voltage of each cascade regulated by low-noise LDOS. This design is powered by an external 12V power source. Overall, the power supply design of the K7 ensures abundant and clean power for quality listening.

Multifunctional Control

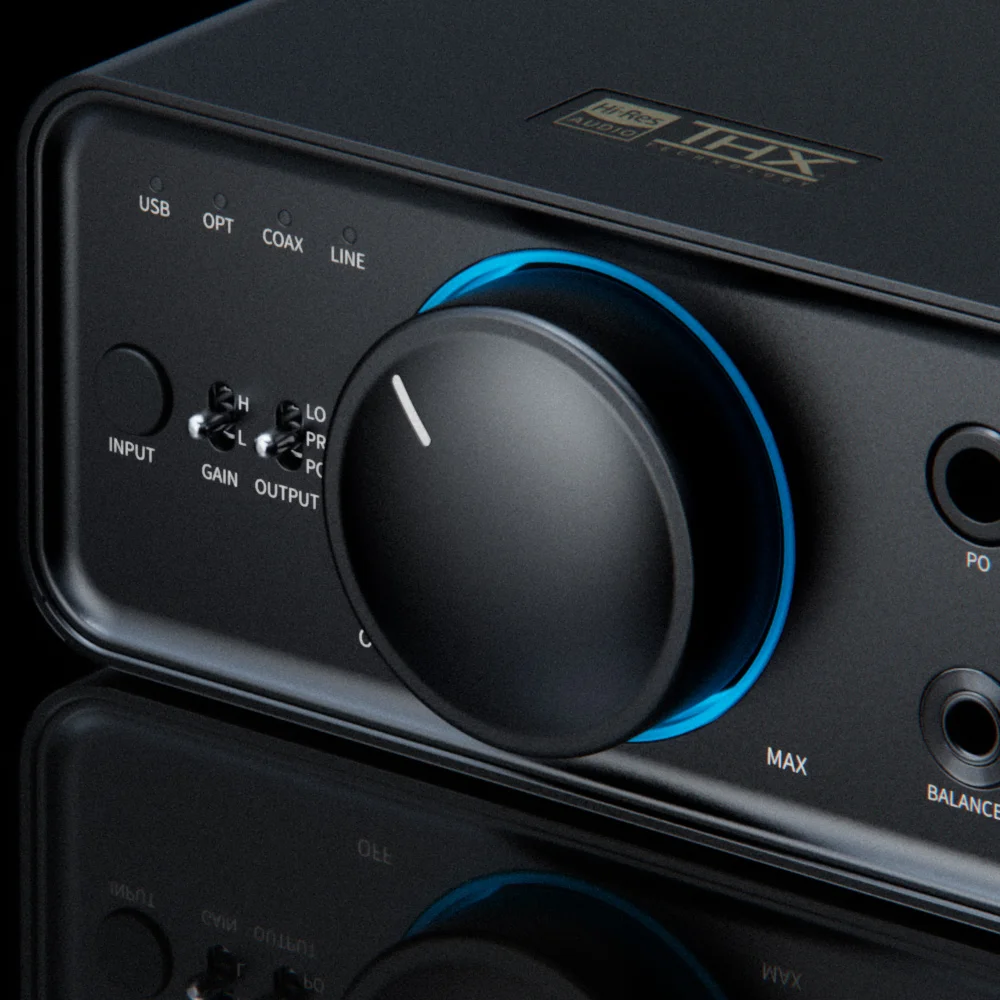

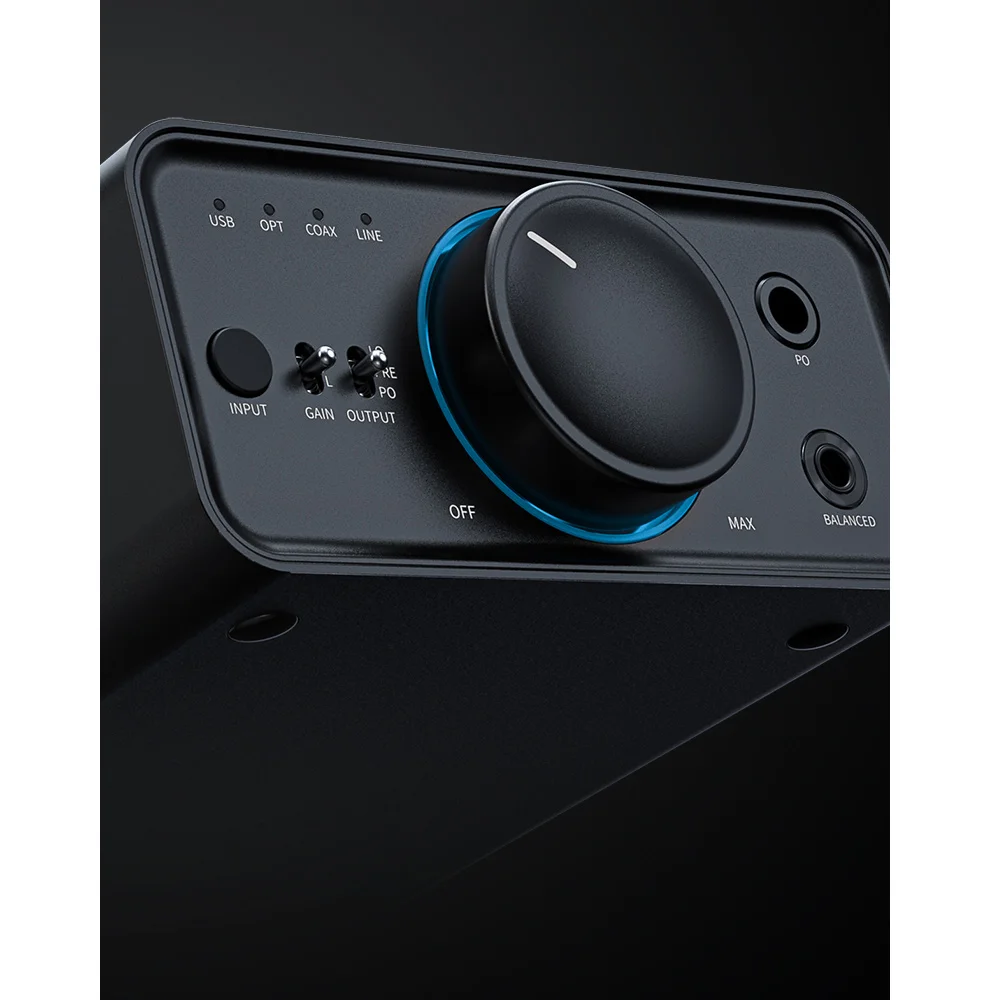

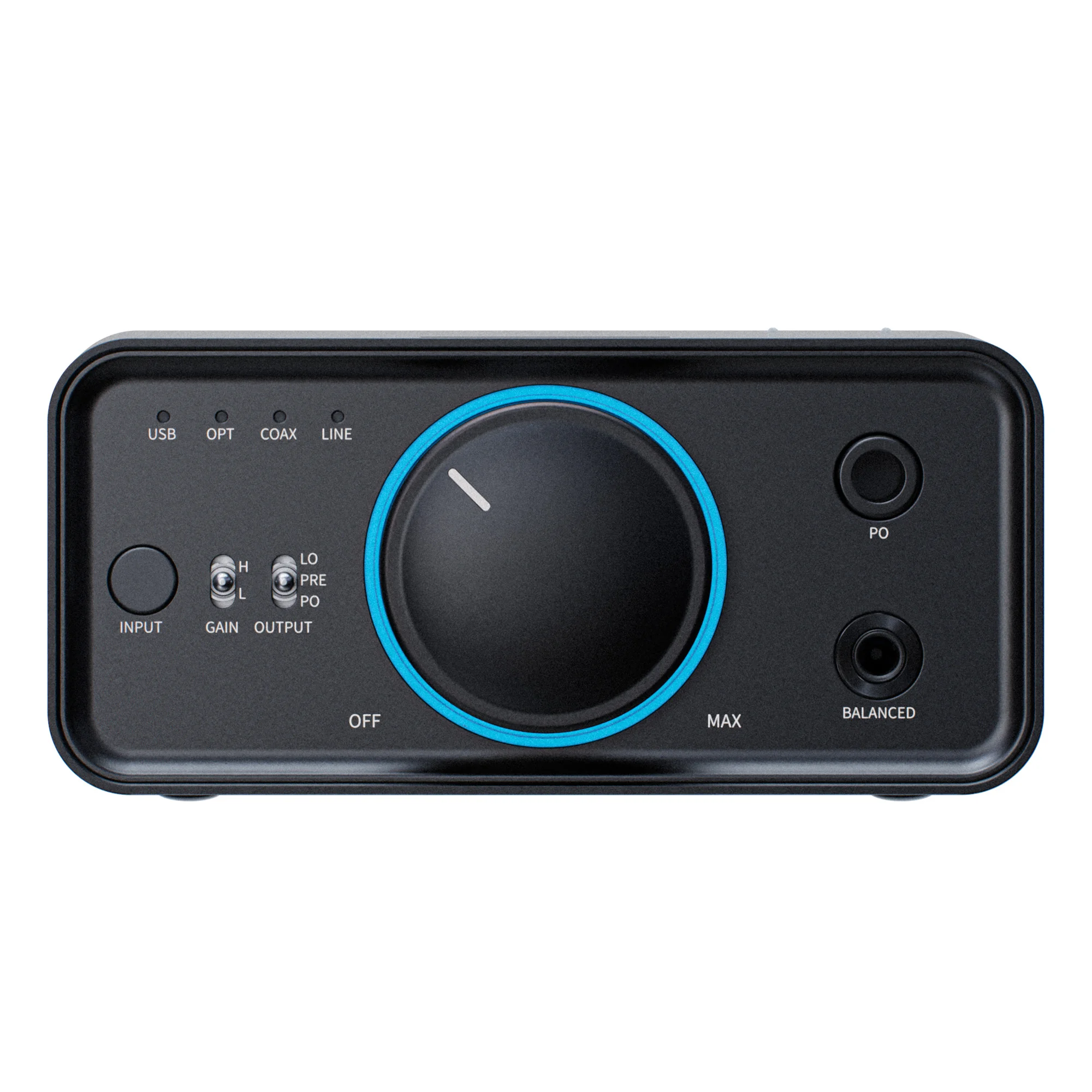

One toggle switch controls the selection between 4 different inputs with a smooth light effect indicating when the input is switched and ready to use.

2 Amplification Levels

High and low levels of hardware amplification allow for easy customization of the K7 for headphones with different impedance and sensitivity, providing rich and stable listening.

Design

The K7 features a fully aluminum alloy construction, meticulously processed using CNC machines and other technological processing methods. Its elegant black color is perfectly complemented by gold THX and Hi-Res Audio logo inserts, enhanced by a burst of color from the RGB backlighting for a luxurious appearance.

Features:

  • Balanced circuitry
  • THX AAA 788+ amplification technology
  • 2 x AK4493S DAC
  • Output power: 2W at 32 ohms and 560mW at 300 ohms, on the 4.4mm balanced output
  • Enhanced low-noise power supply
  • RGB backlighting with PCM/DSD playback format indication and input mode
  • 2 amplification levels
  • 4.4mm balanced output
  • Aluminum body

Package Contents:

  • Amplifier with DAC
  • Power adapter
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
2
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
50
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
384
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
116
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Output connectors
RCA
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes

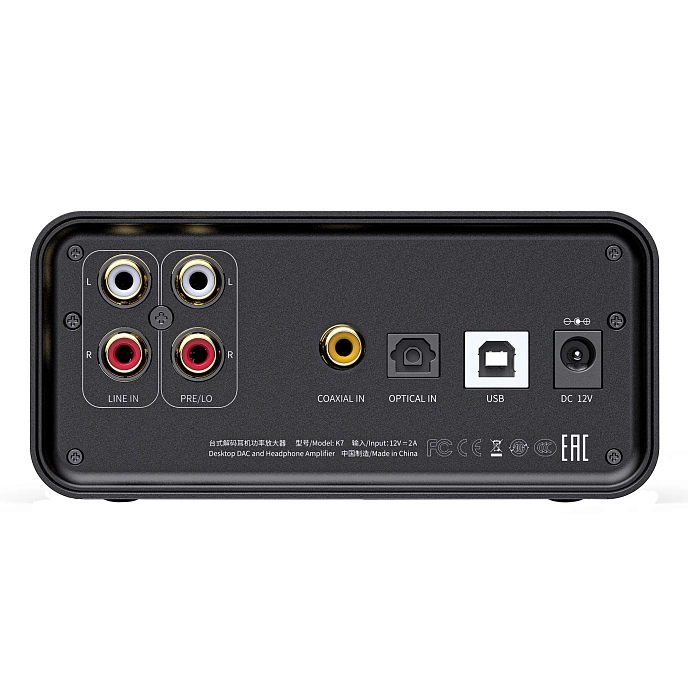

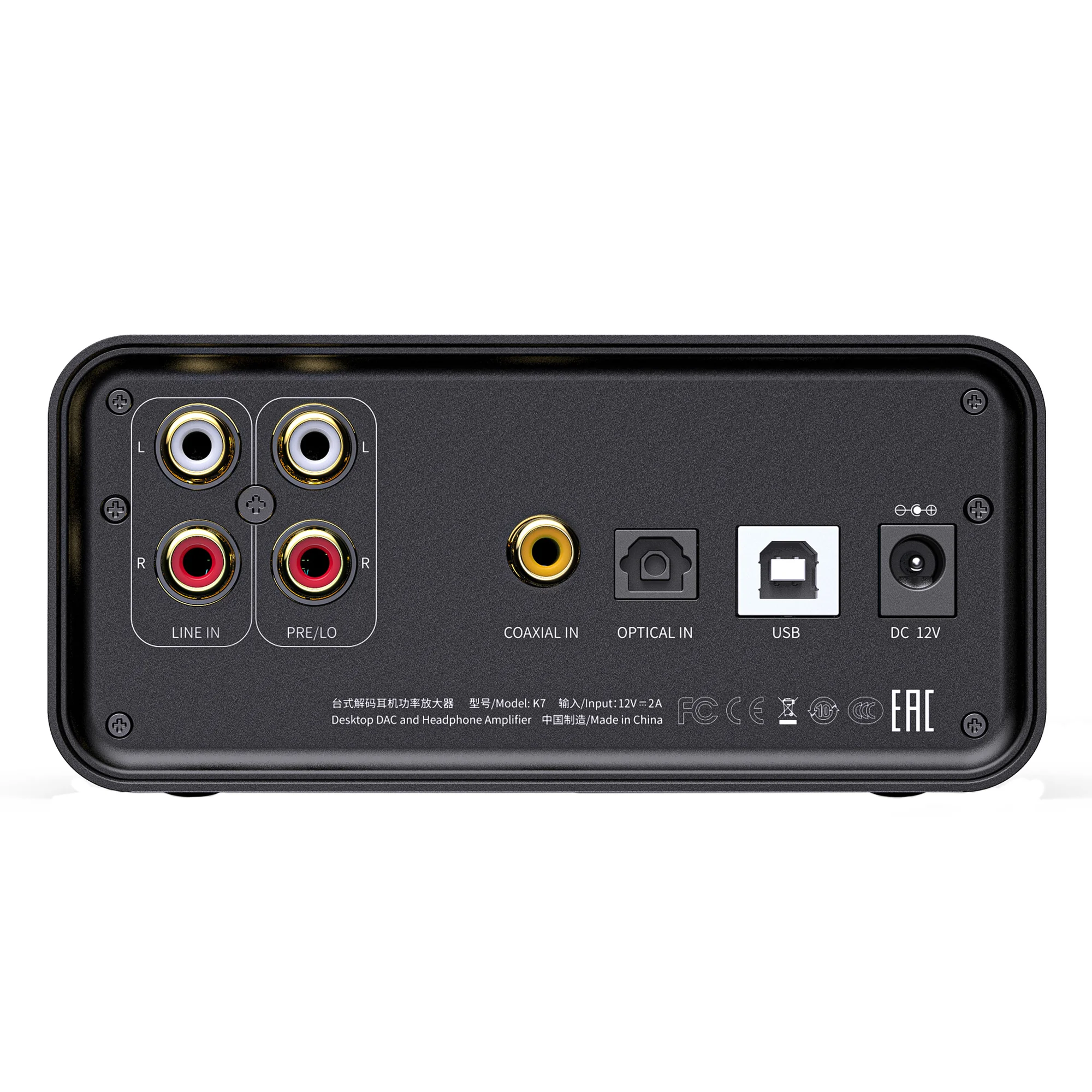

Input connectors
RCA, USB-B, Coaxial, Toslink
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
2 x AK4493S
DAC bit depth, bits
32
Internal DAC
yes
Color
Connecting to a computer via USB
yes
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Material
aluminum
Playback via USB
yes

Playing music files via USB

Словарь терминов
Headphone output
4.4mm jack, 6.35mm jack
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

300
Power, W
2
Depth, mm
168
Height, mm
55
Width, mm
120
Weight, g
610
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
