Headphone Amplifiers and DACs
FiiO E10K

Product code: 95774
no reviews
AED 329
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

The compact FiiO E10K device is a USB digital-to-analog converter with a built-in headphone amplifier. The device is housed in a black anodized aluminum case with textured walls, making it look great on any desktop. In addition, this case is resistant to mechanical stress and provides reliable protection for the sensitive electronic components. It can be confidently taken on trips as part of your luggage.

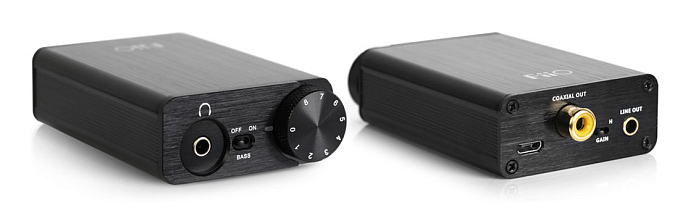

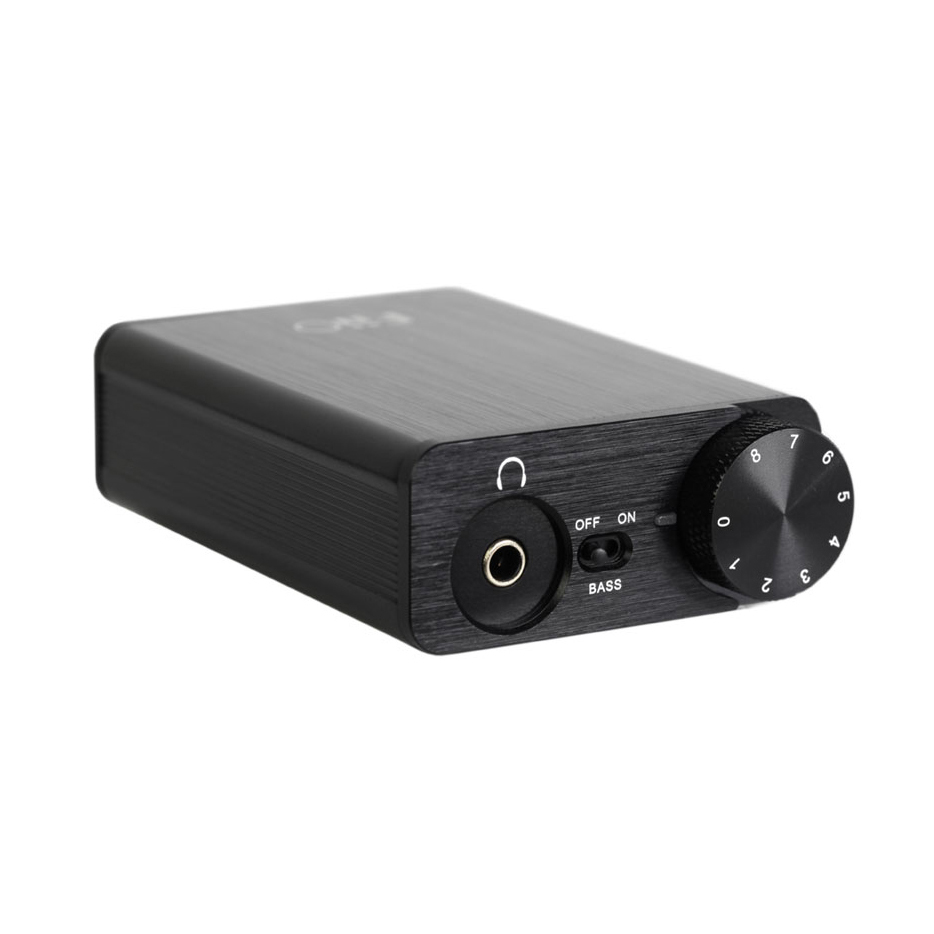

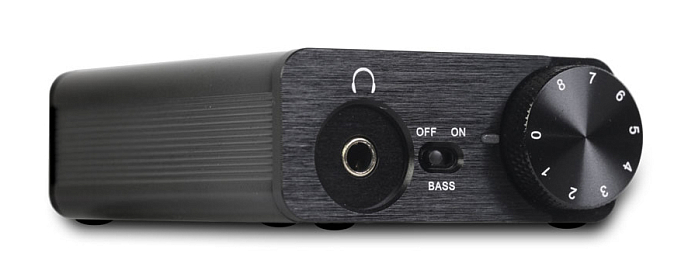

The front panel of the FiiO E10K features a large volume knob with labeled numbers, a headphone jack, and a bass boost switch. The bass boost feature enhances the emotional impact of the sound for certain headphone models. The digital-to-analog converter is based on the Texas Instruments PCM5102 chip, which can handle a digital stream with 24-bit/96kHz parameters. The manufacturer claims that this model utilizes an optimized filter, reducing background noise levels and improving detail reproduction. There is virtually no noise during pauses between tracks, and the new filter design does not introduce any phase distortion to the signal.

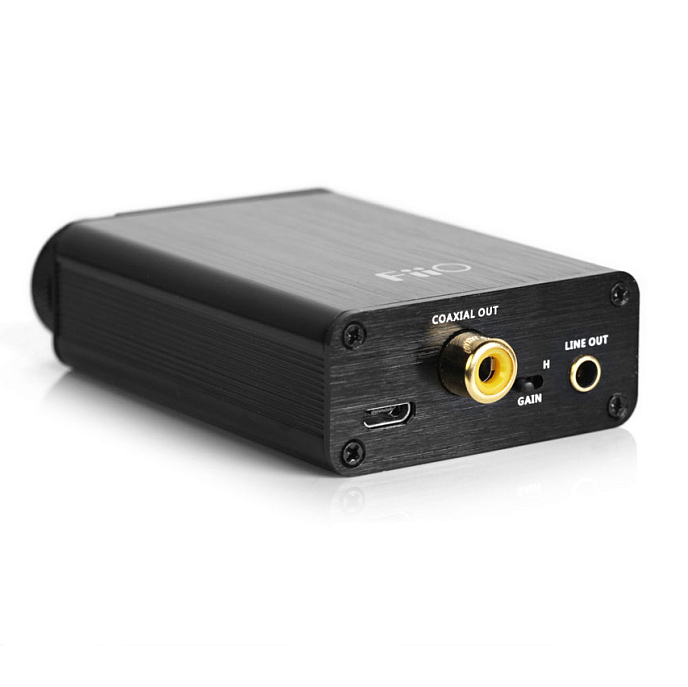

The FiiO E10K is equipped with digital coaxial and line outputs, allowing it to be used in a stationary audio system. It connects to a PC via a micro-USB port, which also supplies power to the converter. The headphone amplifier circuit in the FiiO E10K is based on the LMH6643 chip, which has excellent dynamic characteristics. The recommended headphone impedance for use with the FiiO E10K is between 16 and 150 ohms. This converter provides noticeably better sound quality compared to built-in computer sound cards. Additionally, it delivers reliable performance with headphones of both low and high impedance, indicating well-designed output stages and power supply arrangement.

Features:

  • Texas Instruments PCM5102 converter
  • Durable aluminum case
  • Coaxial and line outputs
Reviews (0)

There are no reviews for this product yet.

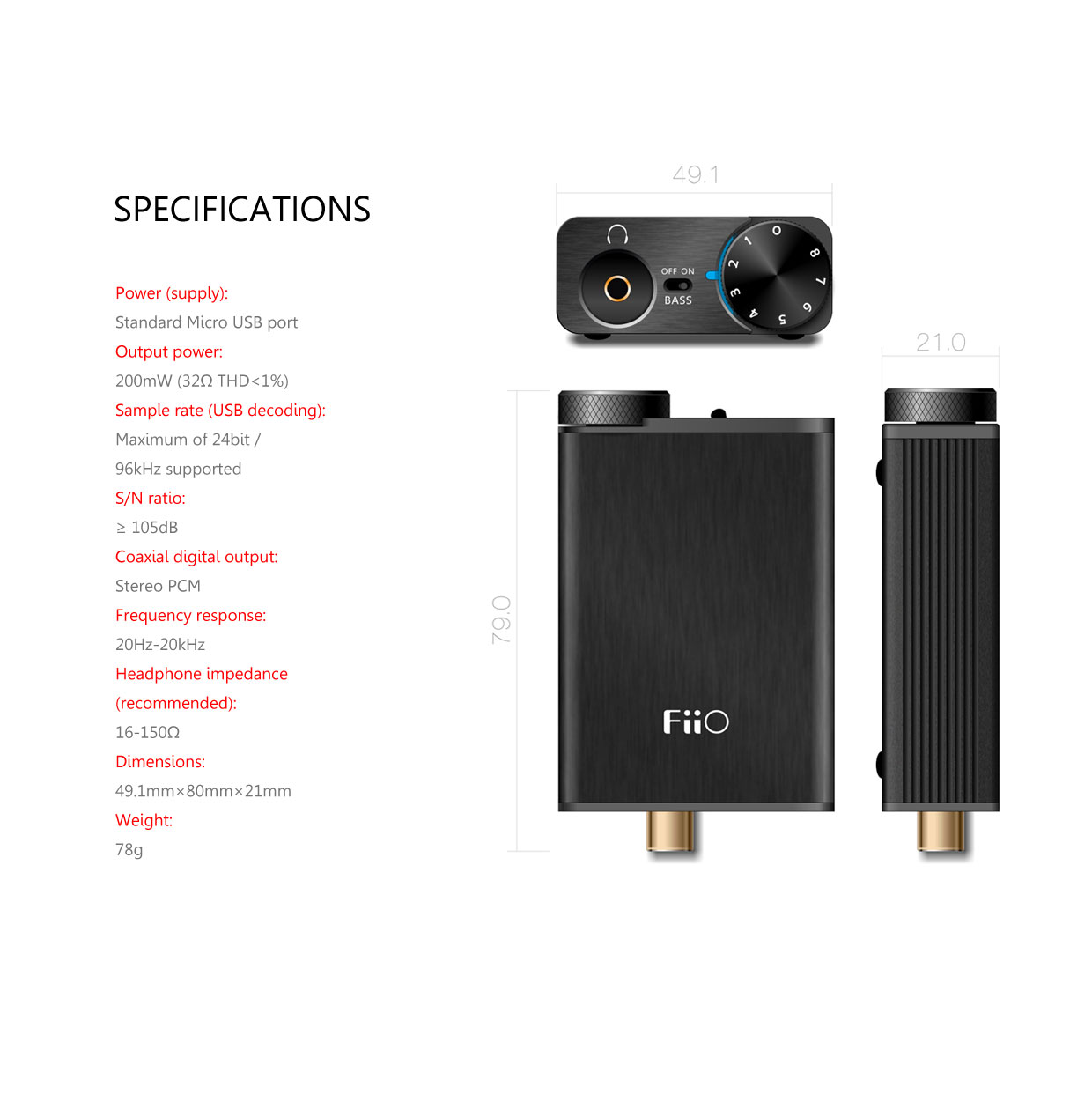

Characteristics

Characteristics

Brand
Headphone output
3.5mm jack
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
0.2
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
PCM5102
DAC bit depth, bits
24
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
192
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
108
Powered by USB
yes
Connecting to a computer via USB
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
20
Color
Form factor
portable
Input connectors
Coaxial, 3.5mm jack
Internal DAC
yes
Material
aluminum
Circuit design
operational
Depth, mm
49
Height, mm
49
Width, mm
49
Weight, g
78
Service life, months
24
Warranty, months
12
