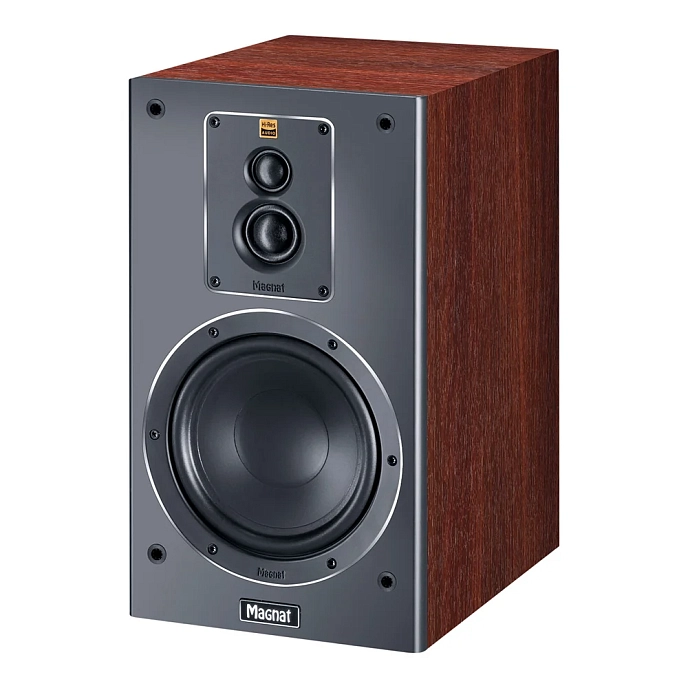

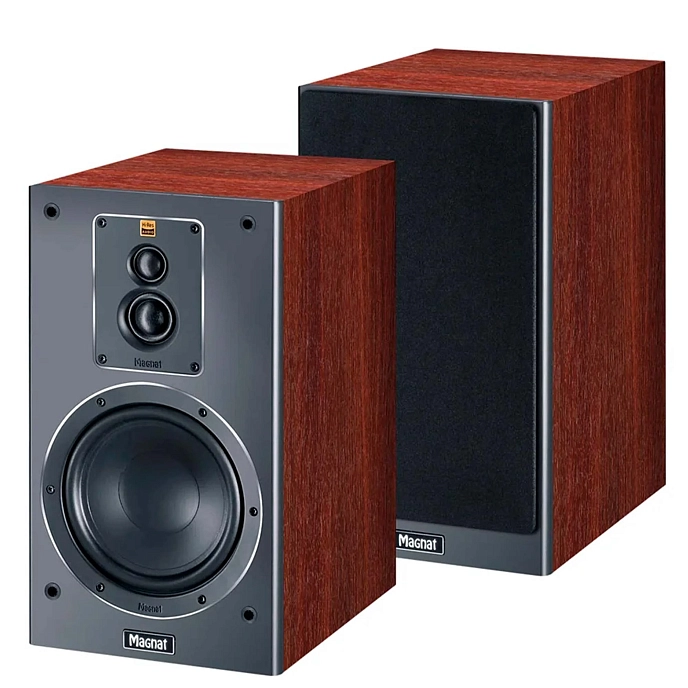

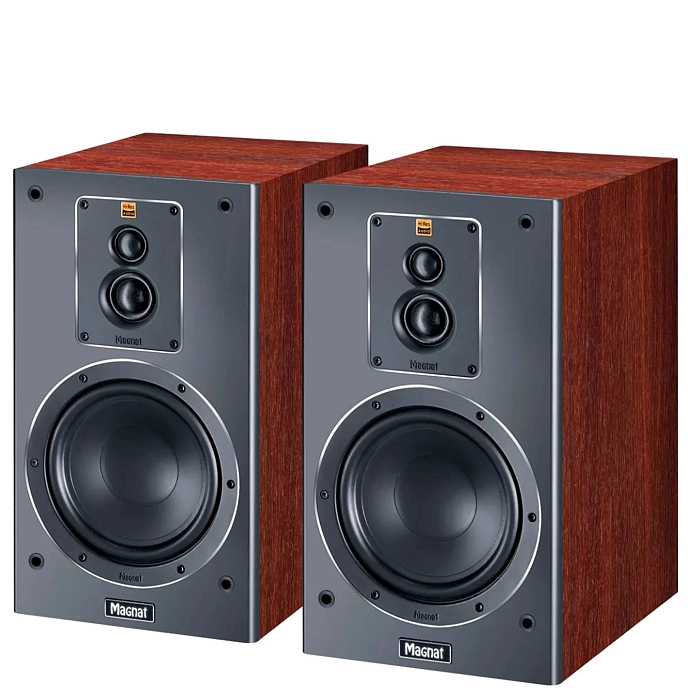

Magnat Signature 503 - a three-way shelf speaker with a phase inverter design.
Features:
- Hi-Resolution certification;
- Dual tweeter with fmax technology;
- 3-way construction with rear phase inverter;
- Optimization with Klippel laser equipment;
- Ventilated voice coil for maximum stability and dynamics;
- Effective for stereo systems and home theaters.
To reproduce low frequencies up to 2800 Hz, the long-excursion midrange/woofer FE-Dynamics with a reinforced paper diaphragm is used. Its 170 mm diameter guarantees operation from 32 Hz. From 2800 to 17500 Hz, sound is reproduced by a 30 mm soft dome Fmax with an extra-long stroke, and from 17500 to 53000 Hz, a 19 mm super tweeter Fmax assists. All drivers feature powerful neodymium magnetic systems, ventilated coils, and cast baskets. The crossovers are optimized in terms of amplitude and phase with a fourth-order filter with a 24 dB per octave slope. The phase inverter system covers a range from 32 to 53,000 Hz and has a sensitivity of 91 dB with a nominal impedance of 4 to 8 ohms.

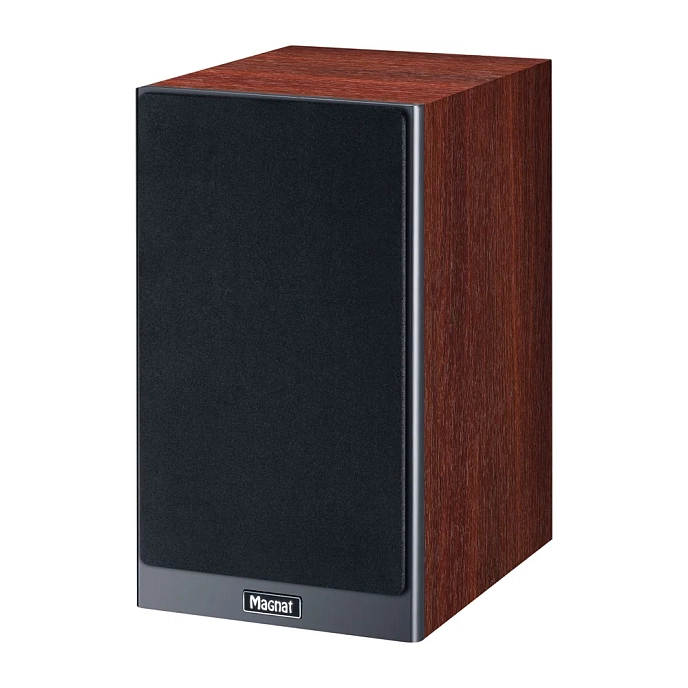

The Magnat Signature 503 can handle up to 100 watts of power (peaking at 170 watts), and a recommended amplifier should output at least 20 watts per channel. The wide radiation pattern of the speakers and unusually high upper frequency limit allowed them to receive the prestigious Hi-Res Seal. Large isolated terminals with thick gold-plated screw contacts ensure good contact for thick wires. The sturdy, low-resonance housing construction is made of MDF. It features an aerodynamic port with low jet noise and a removable fabric grille.
Package includes:
- 2 x speaker;
- Documentation.
